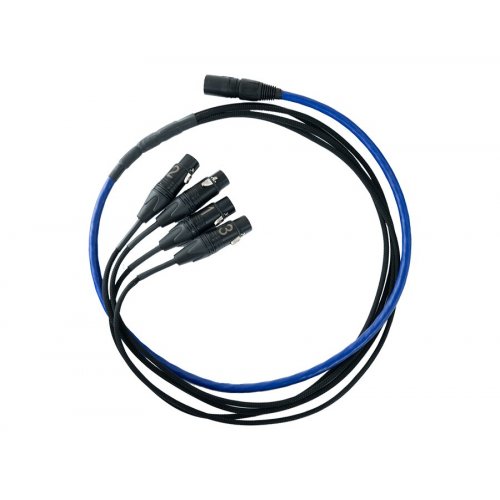

Sound Tools SuperCAT Sound Tails DMX Analog Audio Over CAT5 - 5-Pin Female

About: Sound Tools SuperCAT Sound Tails DMX Analog Audio Over CAT5 - 5-Pin Female

Speed up load ins and load outs by using less cables and connections with the SoundTools SuperCAT Tails, our easy-to-use four channels over shielded CAT5e breakout cable.

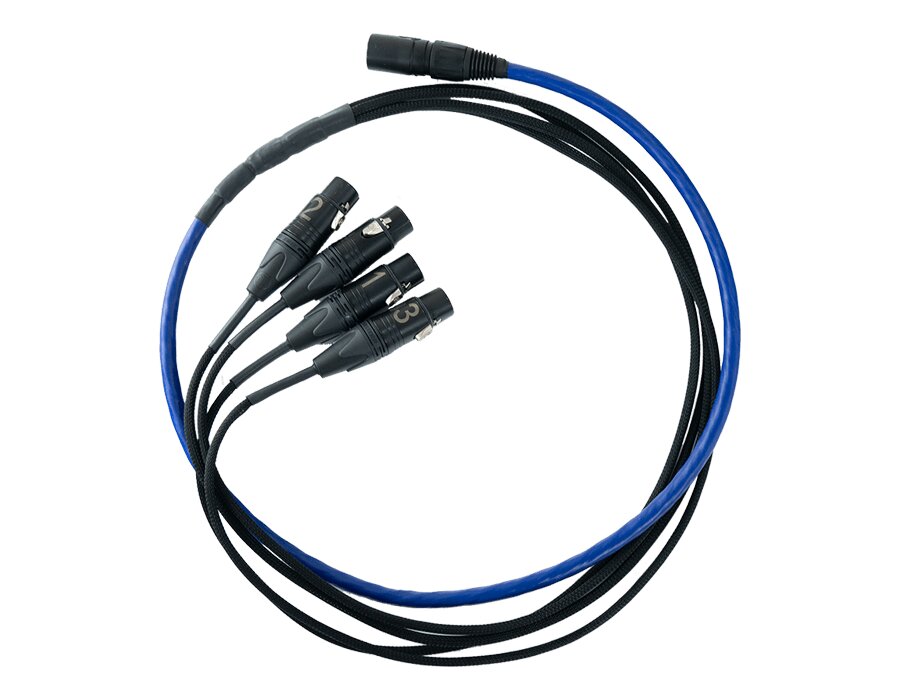

• One black shielded Neutrik etherCON RJ45 connector and four black Neutrik DMX 5-pin connectors, laser engraved 1-4
• Connects to Cat5e cables with Neutrik etherCON adapter (NE8FF/NE8FFX6-W)
• Made with SuperCAT Sound cable which excels in durability and reliability
• 60 inch total length with a 54 inch span

VERSATILE BREAKOUT SNAKE

The SoundTools SuperCAT Sound cable allows the SuperCAT Tails to achieve a new level of simplicity at a lower cost while enhancing reliability and reducing weight. The SuperCAT Sound Tails implement a male cable mount etherCON on one end, terminating to four XLR 3-pin, DMX 5-pin, or quarter-inch connectors on the other end. The SuperCAT Tails can be directly plugged into SoundTools CAT Tails forming a disconnectable four channel male-to-female cable or to create four channel adaptors of differing genders and connector types.

EXTREME DURABILITY

The SuperCAT Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Sound cable is designed with sound in mind; each of the four twisted pairs has its own separate drain wire and shield, and each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response.

3-BAND RELIEF SYSTEM

The 3-band strain relief system designed by SoundTools offers enhanced durability and prevents the shrink-wrap from flaring or slipping at the crucial junction of the four cables.

• Wrap 1: Binds the four nylon mesh covered cables together.
• Wrap 2: Offers support for the transition of the four cables to the SuperCAT Sound Cable.
• Wrap 3: Adds diameter and maximizes adhesion of the shrink tubing the SuperCAT Sound Cable.

MODULAR

The SuperCAT Tails are compatible with all the products in the SoundTools Analog Audio over CAT family, including the SoundTools CAT Box, CAT Rack, CAT Tails, and WallCAT, allowing you to create a comprehensive and versatile modular snaking system. They can also be used with a shield etherCON connector such as the Neutrik etherCON adapter (NE8FF/NE8FFX6-W).

REUSABLE PACKAGING

One of our goals at SoundTools is to minimize waste, and whenever possible, we incorporate reusability into our packaging designs. Each of our SuperCAT Tails are packaged in a sturdy canvas bag, which allows you to not only stay organized while protecting your tools but also makes for a fantastic toiletry bag, sharpie case, or snack holder; the possibilities are endless.

Specifications

• Technical
  • Available in Male or Female DMX connectors
  • Male etherCON connection
  • Compatible with all SoundTools Analog Audio Over CAT5 products
  • Connects to CAT5/6/7 cables with Neutrik etherCON adapter (NE8FF/NE8FFX6-W)
  • AES72-2O compliant
• System Requirements*
  • Analog audio (including phantom power*)
  • DMX signals
  • AES3
  • InterCOM
    • *Requires shielded cable for full functionality
• ​Dimensions
  • Length:
    • Total - 60"
    • Span - 54"
  • Weight - 0.6 lb (0.272 kg)

What's Included

• SuperCAT Sound Tails breakout snake
• Blue SoundTools Canvas bag
• User documentation
