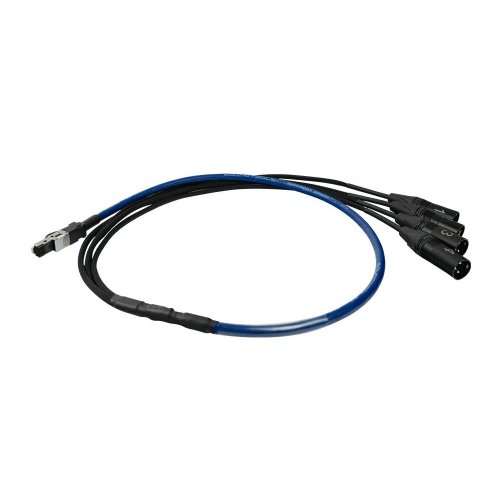

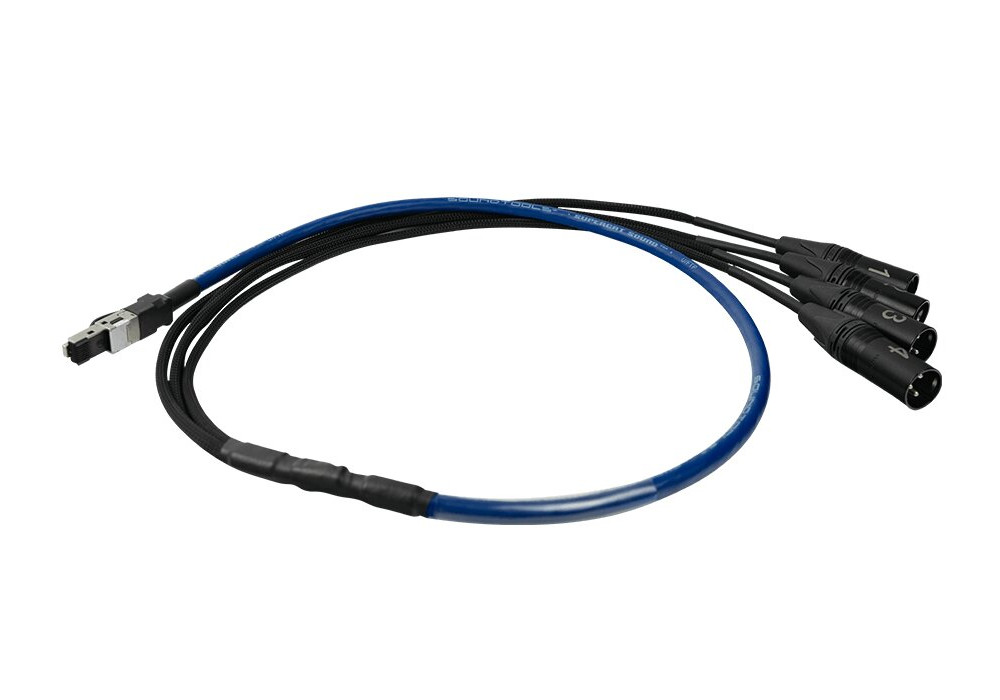

Sound Tools SuperCAT Sound Tails RJ45 Analog Audio Over CAT5 - XLR Male

About: Sound Tools SuperCAT Sound Tails RJ45 Analog Audio Over CAT5 - XLR Male

Speed up load ins and load outs by using less cables and connections with the SoundTools SuperCAT Tails, our easy-to-use four channels over shielded CAT5e breakout cable.

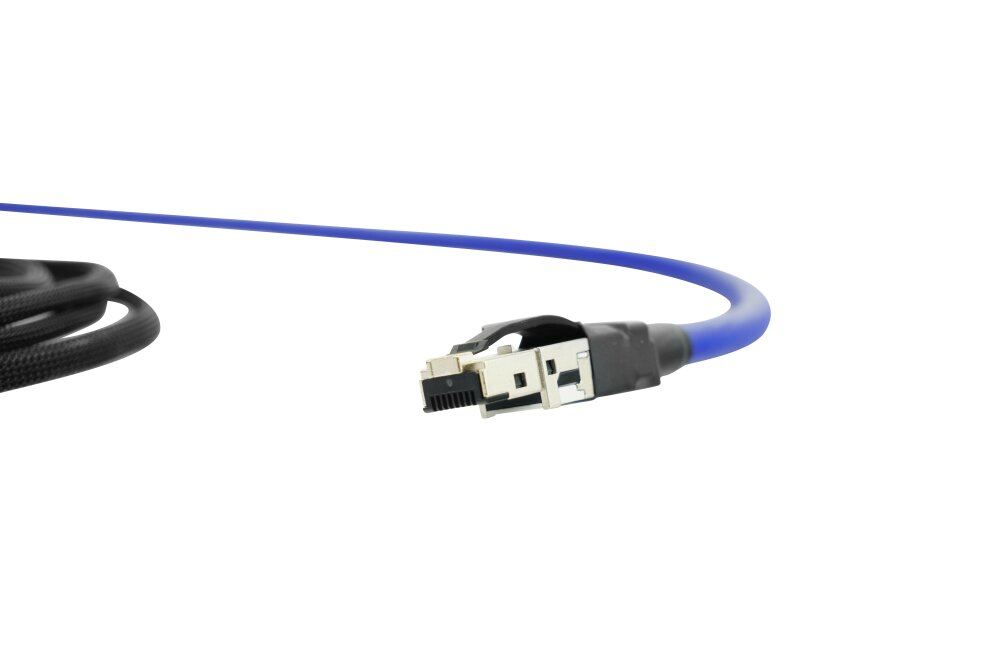

• One Neutrik RJ45 connector and four black Neutrik XLR connectors, laser engraved 1-4
• Connects to Cat5e cables with Neutrik etherCON adapter (NE8FF)
• Made with SuperCAT Sound cable which excels in durability and reliability
• 60” in total length with a 54” span

Function

The SuperCAT Sound Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Tails employ a male RJ45 or etherCON connector that can be plugged directly into numerous SoundTools RATCAT products allowing the SuperCAT Tails to be used as a fanout to four channels of XLR or DMX. The SuperCAT Tails simplify your stage set up by running one slim Cat5e cable instead of four XLR or DMX cables, and can run any mixture of four lines of audio, DMX, COM, or AES3 and is compatible with 48-volt phantom power.

EXTREME DURABILITY

The SuperCAT Tails combine key aspects of both the SoundTools CAT Tails and SuperCAT Sound cable to create a high-quality, durable and cost-effective product specifically aimed to excel in high-impact, touring environments. The SuperCAT Sound cable is designed with sound in mind; each of the four twisted pairs has its own separate drain wire and shield, and each pair is precisely twisted to eliminate crosstalk, reject outside noise, and allow for higher frequency response.

3-BAND RELIEF SYSTEM

The 3-band strain relief system designed by SoundTools offers enhanced durability and prevents the shrink-wrap from flaring or slipping at the crucial junction of the four cables.

• Wrap 1: Binds the four bylon mesh covered cables together.
• Wrap 2: Offers support for the transition of the four cables to the SuperCAT Sound Cable.
• Wrap 3: Adds diameter and maximizes adhesion of the shrink tubing the the SuperCAT Sound Cable.

MODULAR

The SuperCAT Tails are compatible with all the products in the RATCAT family, including the SoundTools CAT Box, CAT Rack, CAT Tails, and WallCAT, allowing you to create a comprehensive and versatile modular snaking system. They can also be used with a shieled etherCON connector such as the Neutrik etherCON adapter (NE8FF).

REUSABLE PACKAGING

One of our goals at SoundTools is to minimize waste, and whenever possible, we incorporate reusability into our packaging designs. Each of our SuperCAT Tails are packaged in a sturdy canvas bag, which allows you to not only stay organized while protecting your tools but also makes for a fantastic toiletry bag, sharpie case, or snack holder; the possibilities are endless.

Specifications

• Technical
  • Available in Male or Female
  • Available with RJ45 or etherCON connection
  • Complatible with all SoundTools Analog Audio Over CAT5 products
  • Connects to CAT5/6/7 cables with Neutrik etherCON adapter (NE8FF)
  • AES72-2O compliant
• System Requirements*
  • Analog audio including phantom power
  • DMX
  • AES3
  • Intercom
    • *Requires shielded cable for full functionality
• ​Dimensions
  • Length:
    • Total - 60"
    • Span - 54"
  • Weight - 0.6 lb (0.272 kg)

What's Included

• SuperCAT Sound Tails Breakout Snake (RJ45/XLR Male)
• SoundTools Canvas Bag
• User Documentation
