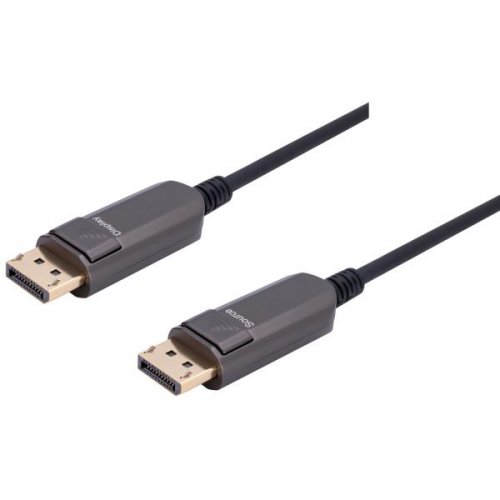

AVShop DisplayPort v1.4 AOC Optical Cable Plenum Rated - 5m (16.5 ft.)
Model: DP-AOC-5
About: AVShop DisplayPort v1.4 AOC Optical Cable Plenum Rated - 5m (16.5 ft.)
CMP Fire Rated
- TechCraft Active Optical DisplayPort Cables use both copper and fiber conductors, for reliable long distance transmission over a lighter and more flexible cable
- With it's advanced optical engine this DisplayPort hybrid cable provides full DisplayPort signal integrity and supports transparent EDID, HDCP and DPCP as well as zero frame delay, no latency, no compression
- DisplayPort 1.4, HBR2, HBR3,HDCP, EDID
- 32Gbps bandwidth
Resolutions
- Up to 8k@60Hz/4k@120Hz/UltraHD/ 2160p(4096x2160)@60Hz, 4:4:4
Audio
- Up to 8 channels with 16 or 24 bits linear PCM 32 to 192 kHz sampling rates
Features
- CMP Fire Rated
- 4k signal transmission up to 100m
- Full HDCP 2.2 / EDID / CEC / 5V support (no HEAC)
Specifications
- Maximun Support Resolution: 8K@60Hz, 4K@144Hz
- Bandwidth 32Gbpz
- 4 differential pairs for data
- Bidirectional AUX Channel
- Highly resistant with EMI and RFI
- Backward compatible with DP1.3 and DP1.2
- No external power supply
Mechanical
- Connector material: Die cast zinc alloy
- Connector material: 24 karat gold plated
- Shielding: Triple shielded (Fiber/Copper Hybrid)
- Inner conductor material: 4x fiber and 8x Copper wire
- Outer sheath material rating: CMP
- Outer sheath diameter: 4.8mm
- Bend radius: 20mm
- Pulling strength: 10kg
- Operating temperature: 14°F ~ 122°F (-10°C ~ 50°C) | 10% ~ 90%, non-condensing
- Storage temperature: -4°F to ~ 140°F (-20°C ~ +60°C) | 10% ~ 90%, non-condensing
- Power consumption: 0.5W (max)
Certificates
- CE
- FCC
- RoHS
