IEC Power Cable 14AWG Shielded - 3 Foot
Model: PW-105C-03SH
About: IEC Power Cable 14AWG Shielded - 3 Foot

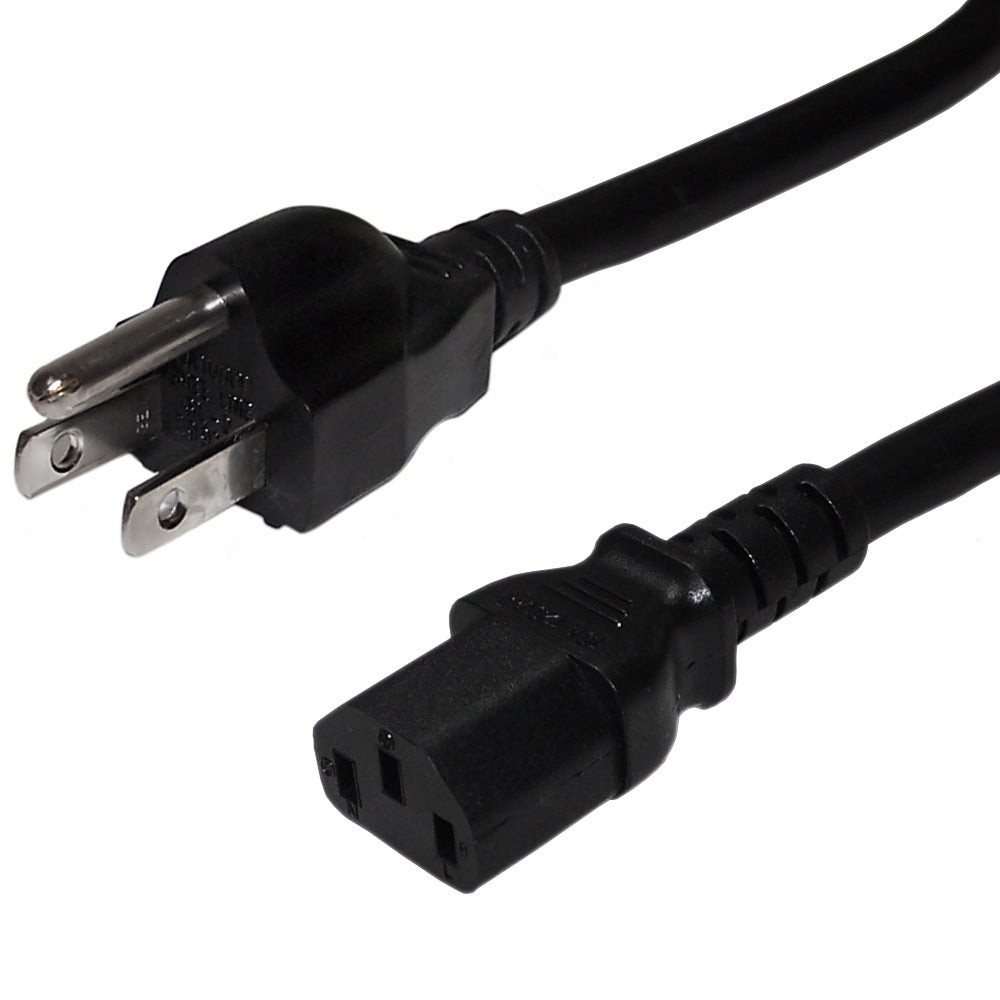

This shielded power cable consists of a 5-15P male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Specifications
- Connector(s)
- Connector A: IEC 60320 C13
- Connector B: NEMA 5-15P
- Performance
- Power Rating - 15 Amp / 125 Volt
- Approvals
- C13: c(UL)us, CSA
- 5-15P: c(UL)us, CSA
- Cable: c(UL)us, CSA
- ISO: ISO 9001:2015, ISO 14000
- Environmental
- RoHS: Yes
- Reach: Yes
- Conflict Minerals: Yes
- Physical
- Color: Black
- Number of Conductors: 3 Conductor
- Wire Gauge: 14 AWG
- Jacket: Heavy Duty SJT
- Shielding: Yes
- Jacket Material: 100% Virgin PVC - Polyvinyl Chloride
- Jacket Fire Rating: FT2, VW-1
- Strain Relief: Molded 100% Virgin PVC
- Temperature Rating: -20 deg C to 105 deg C
