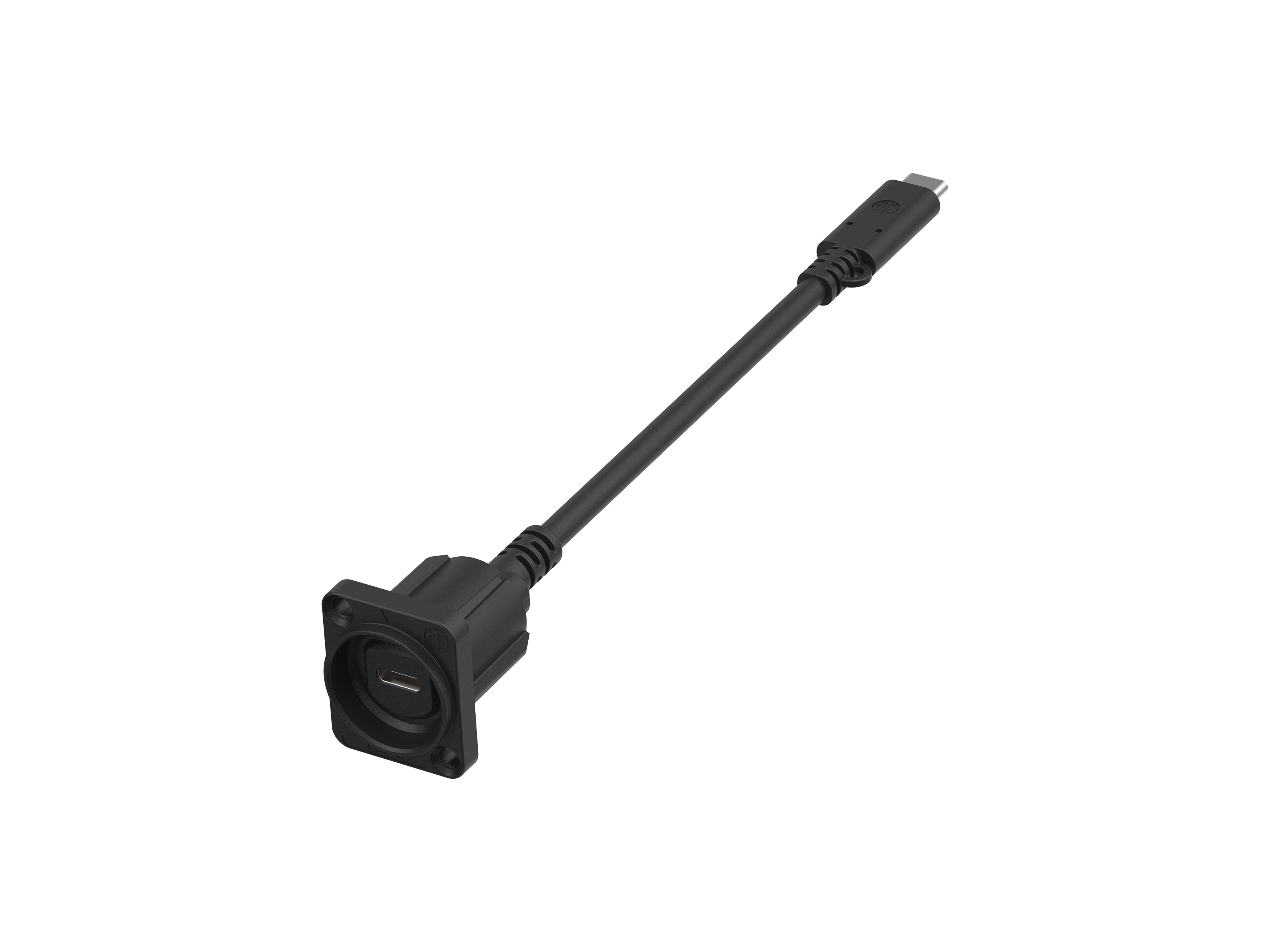

Neutrik USB Type-C 5G D-Shape Fly-Lead Chassis Connector
Model: NAUSBC-5G-FL25
About: Neutrik USB Type-C 5G D-Shape Fly-Lead Chassis Connector
The NEUTRIK USB Type-C 5G chassis connectors are professional-grade, D-shape panel mount connectors featuring an integrated fly-lead patch cable. Designed for robust feedthrough integration in rack systems and devices, these connectors enable reliable USB-C data transmission at up to 5Gbps and support power delivery of up to 100W (2 V / 5A) – ideal for demanding data transfer and charging applications in professional environments.
For a fully optimized solution, the chassis connectors can be seamlessly paired with the essential DATA CABLES product family from NEUTRIK. This range includes three high-performance USB-C cable variants, supporting data rates from 480Mbps to 40Gbps and power delivery from 60W to 240W, ensuring compatibility across a wide spectrum of devices and use cases.
- 100 W (20 V / 5 A) Power Delivery according to USB PD 3.1
- 5 Gbps according to USB 3.2 Gen 1x1
- Rugged D-shape panel mount design (front- and rear-mount capable)
Specifications
- Product
- Connection type: USB Type C
- Description: USB Type C 5G / 100W (f) (m) D-shape fly-lead 25 cm chassis connector
- Electrical
- Rated current per contact: 5 A
- Rated voltage: 20 VDC
- Power delivery: 100 W acc. to USB PD 3.1
- Transmission performance: 5 Gbps acc. to USB 3.2 Gen 1x1
- Mechanical
- Lifetime: 10,000 mating cycles
- Locking device: Without locking device
- Material
- Contact plating: AU
- Contacts: Copper Alloy
- Cable Jacket: Type PVC
- Shell
- Connector: PVC
- Chassis Connector: Polyamide (PA 66)
- Environmental
- Flammability: V-0 acc. to UL94
- Temperature Range: -15°C to +60°C
- Ingress protection class: IP20
