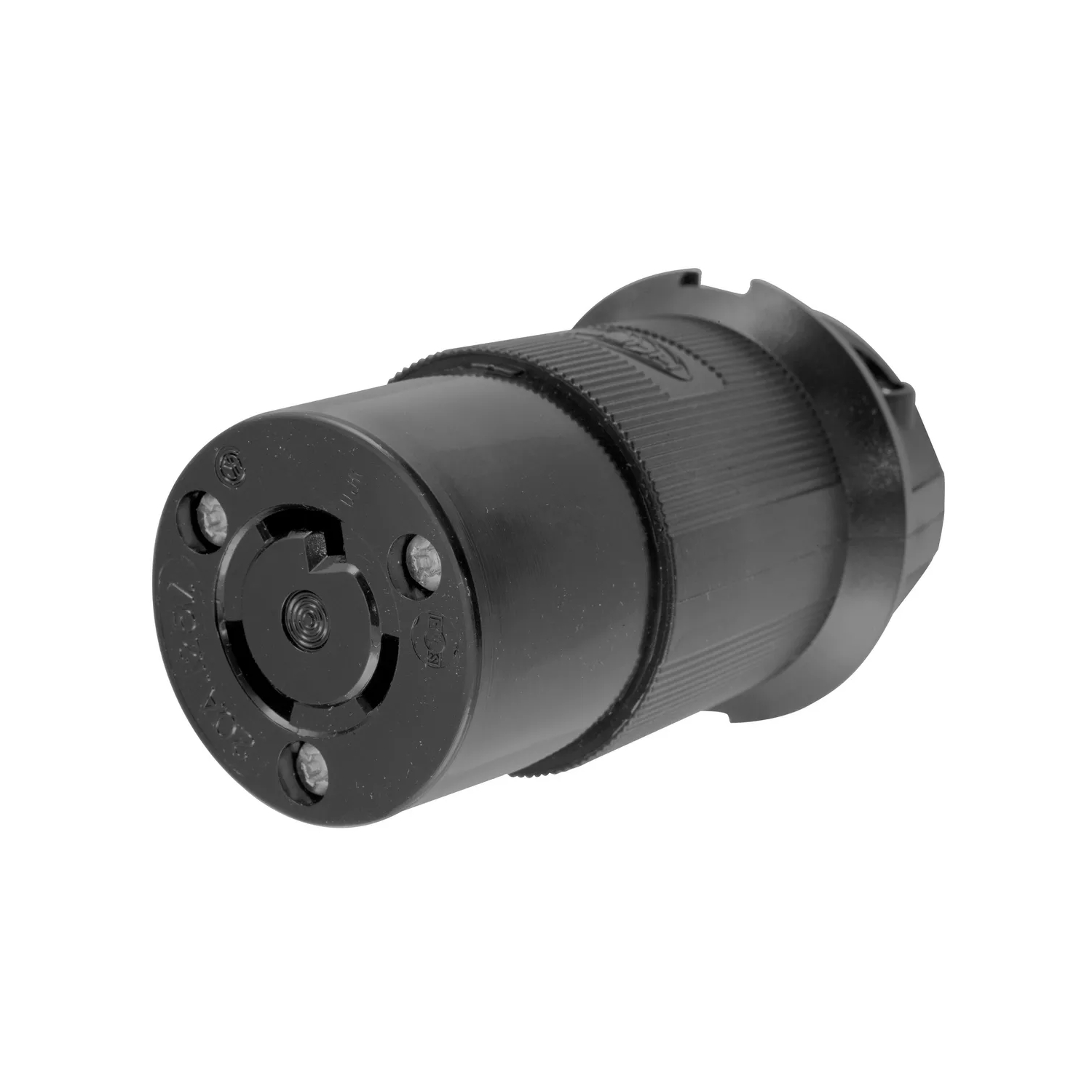

Hubbell EdgeConnect Twist-Lock Female Connector - 20A, 125V
Model: HBL2313STBK
About: Hubbell EdgeConnect Twist-Lock Female Connector - 20A, 125V
Locking Devices, EdgeConnect Twist-Lock, Industrial, Female Connector Body, 20A 125V, 2-Pole 3-Wire Grounding, L5-20R, Screwless Terminal, Black
EdgeConnect Screwless Termination system, simply insert the wire and press the plunger down. No tools are required. That connection is fool-proof and long lasting, to all but guarantee a high quality result. Any qualified installer regardless of level of training can guarantee a high quality result.
- Female Connector Body
- 20A 125V
- L5-20R
- Screwless Terminal
Specifications
- General
- Type: Connector
- Color: Black
- Environmental Conditions: IP20 Suitability
- Material: Nylon
- Mounting Type: Screw Mount
- Series: EdgeConnect Twist-Lock® Series
- Size: Standard Sized Product
- Style: Locking Devices
- Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
- Dimensions
- Size: Standard Sized Product
- Weight: 0.4 lb
- Electrical Ratings
- Current / Amperage Rating: 20 A
- Dielectric Strength: Withstands 3,000V minimum
- Phase: Single Phase
- Voltage Rating: 125 V
- Conductor Related
- Number Of Poles: 2
- Number Of Wires: 3
- Certifications And Compliance
- Environmental Conditions: IP20 Suitability
- Industry Standard(s): Listed to UL 498, Fed.Spec. W-C-596, Certified to CSA C22.2 No.40
- Nema Rating: L21-30R
- Operational
- Temperature Rating: Maximum Continuous 75°C, Minimum -40°C (w/o impact)
UPC: 783585730561
Reviews: Hubbell EdgeConnect Twist-Lock Female Connector - 20A, 125V
Warranty: Hubbell EdgeConnect Twist-Lock Female Connector - 20A, 125V
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
