Ambient ACN-LP Lockit+ Metadata Interface w/ Standard Ext

About: Ambient ACN-LP Lockit+ Metadata Interface w/ Standard Ext

Like the Lockit, the Lockit+ provides all time- code and Sync formats and full ACN compatibility.

The Lockit+ is designed to serve different situations on set or in the studio. With the Standard Extension it can be elegantly operated both from the sound cart and sound bag. In future there will be different extensions available. The built-in server spans a local WiFi, giving users browser-based access to all the Lockit+ features via mobile device or computer. The web interface gives access to advanced generator settings and monitoring of all Lockit devices within the ACN. While the front of the Lockit+ offers the same two outputs you know from the Lockit (Blue TC & ACN Connector / Yellow TC & Sync Con- nector) - the Standard Extension provides additional connections for different setups.

Plug the separately available antenna into a USB port of the Lockit+ to perform a full frequency scan. In the web interface you get concrete suggestions for available frequencies for your transmitters and receivers. The Lockit+ stores key Cooke /i lens metadata frame-accurately in an open file format - at the same time it makes the data accessible live via WiFi or Ethernet. The Lockit+ can extract technical metadata from compatible cameras to broadcast it via WiFi to the Ambient LockitScript App for script supervisors.

+ MODULAR DESIGN

The Lockit+ is designed to serve different situations on set or in the studio. With the Standard Extension it can be elegantly operated both from the sound cart and sound bag. In future there will be different extensions available.

+ WIFI ACCESS

The built-in server spans a local WiFi, giving users browser-based access to all the Lockit+ features via mobile device or computer. The web interface gives access to advanced generator settings and monitoring of all Lockit devices within the ACN.

+ MORE CONNECTORS

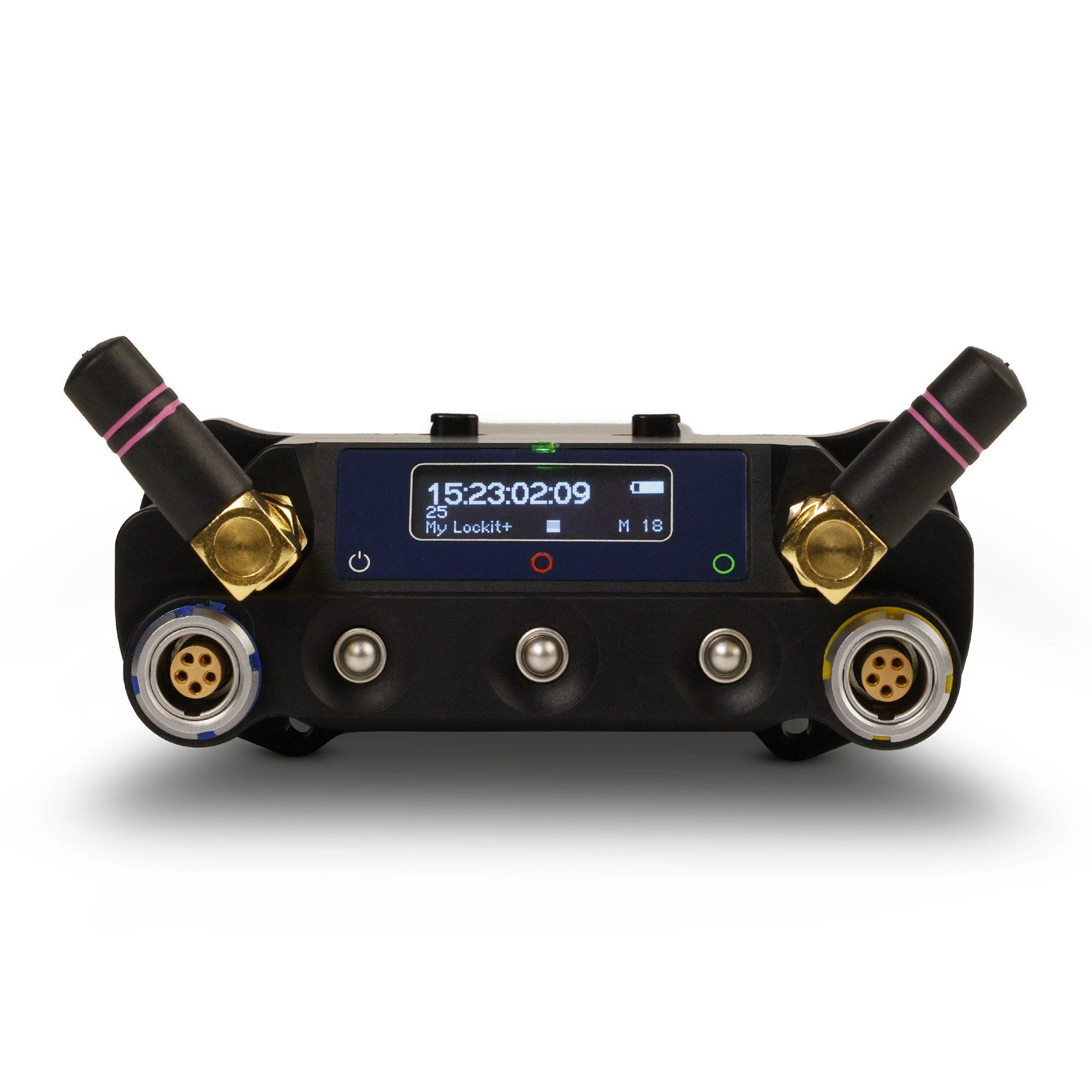

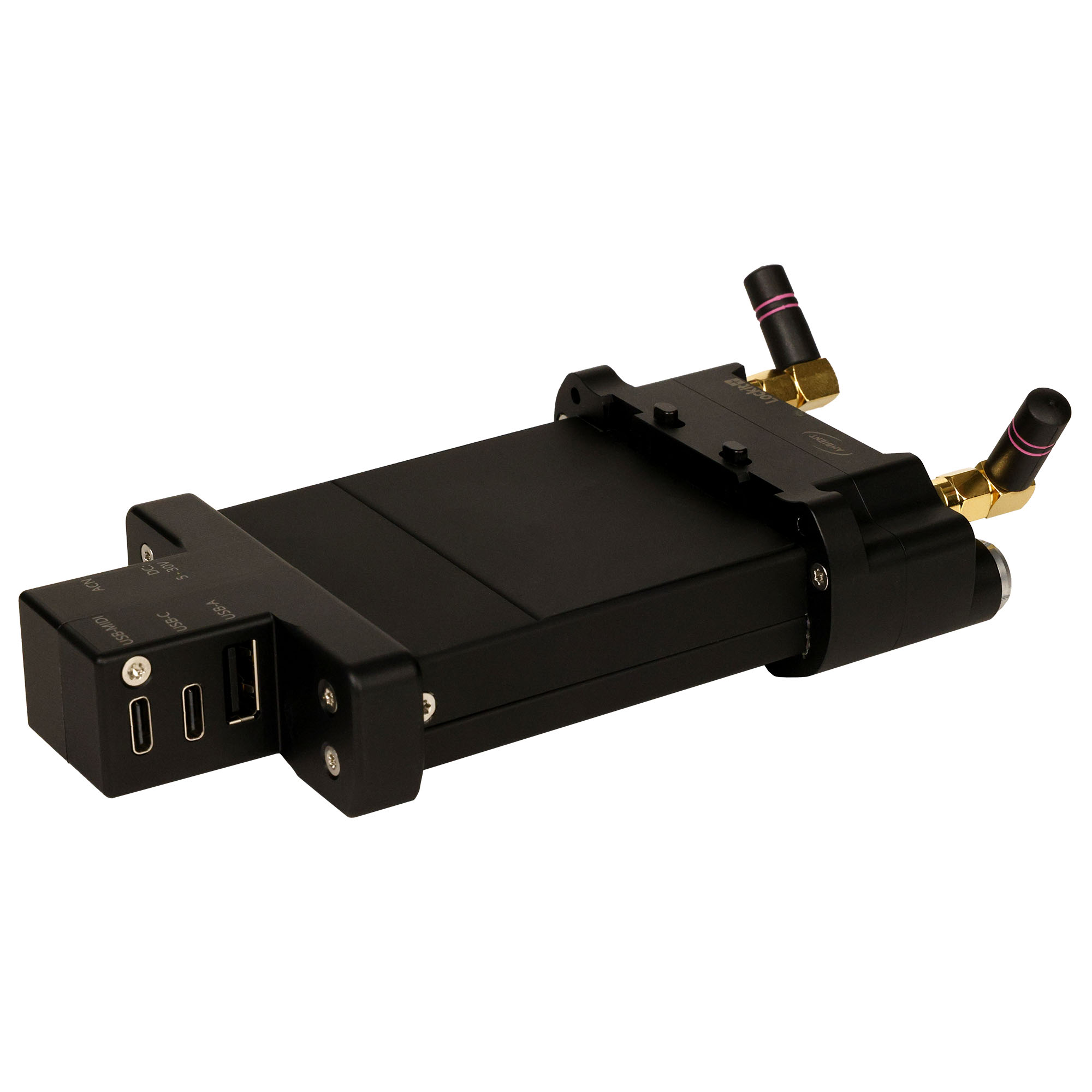

While the front of the Lockit+ offers the same two outputs you know from the Lockit (Blue TC & ACN Connector / Yellow TC & Sync Connector) - the Standard Extension provides additional connections for different setups. In total the Lockit+ with Standard Extension has:

• 2x Blue TC & ACN Connector
• 1x Yellow TC & Sync Connector

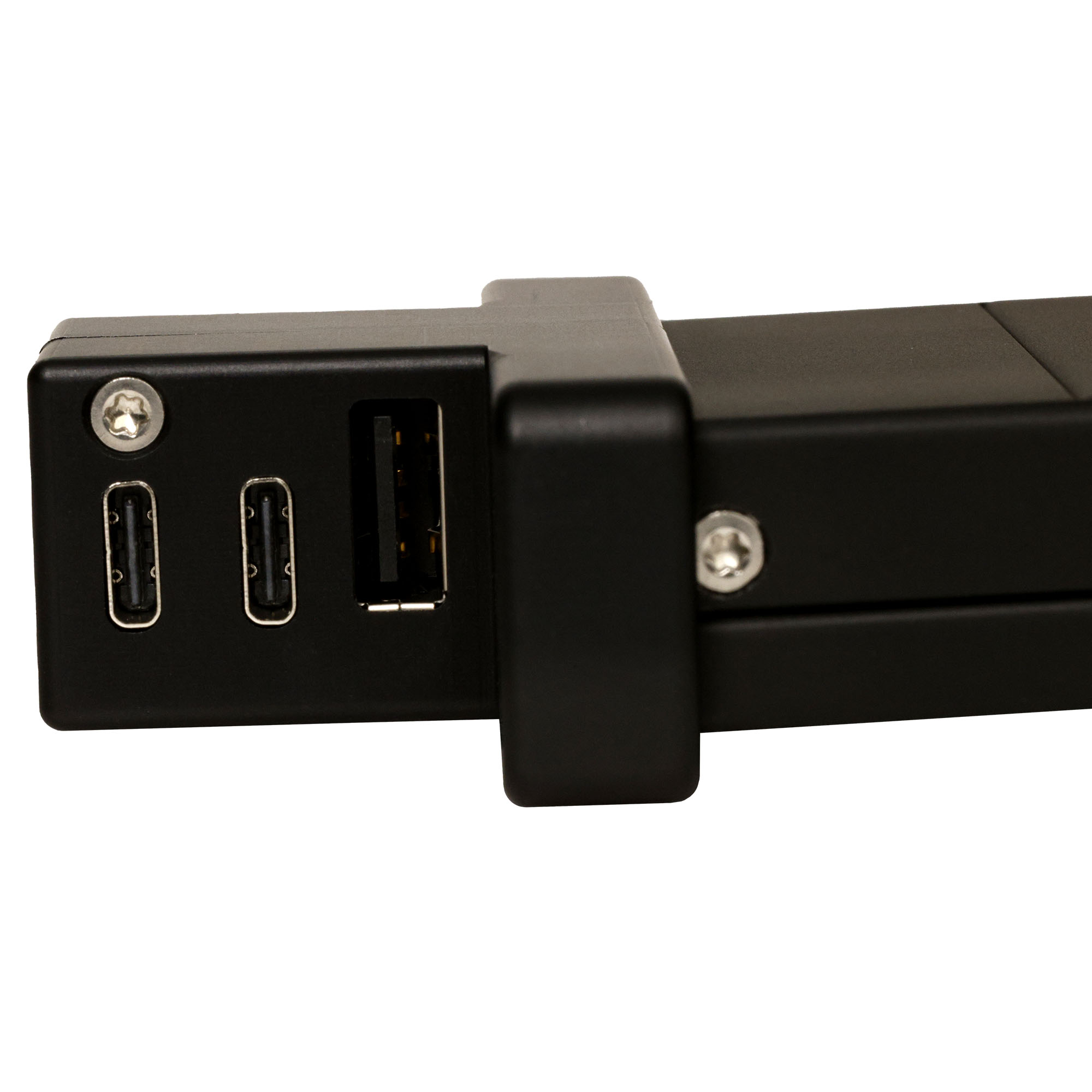

• USB-A connector (Frequency Scanning Antenna)
• USB-C connector (Camera Metadata / Powering)
• USB-C connector for Midi TC (Future Feature)

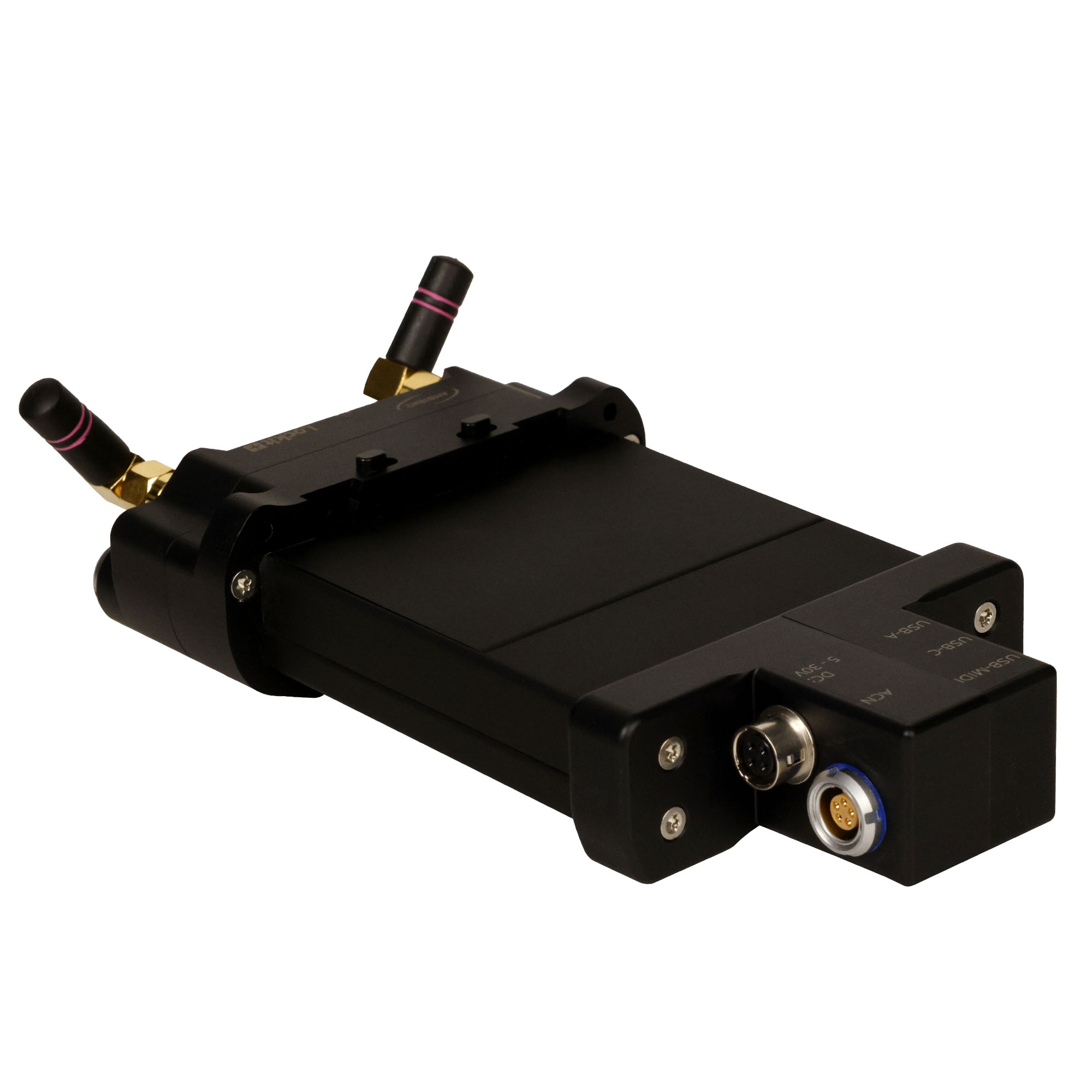

• Hirose (Powering)

+ FREQUENCY SCANNING

Plug the separately available antenna into a USB port of the Lockit+ to perform a full frequency scan. In the web interface you get concrete suggestions for available frequencies for your transmitters and receivers. The fitting RF scanning antenna (ACN-RF) is available in a bundle with the Lockit+ or sold separately.

+ LENS METADATA PROCESSING

The Lockit+ stores key Cooke /i lens metadata frame-accurately in an open file format - at the same time it makes the data accessible live via WiFi or Ethernet. The respective cable is sold separately

+ METADATA HUB FOR LOCKITSCRIPT APP

The Lockit+ can extract technical metadata from compatible cameras to broadcast it via WiFi to the Ambient LockitScript App for script supervisors.

+ FLEXIBLE POWERING

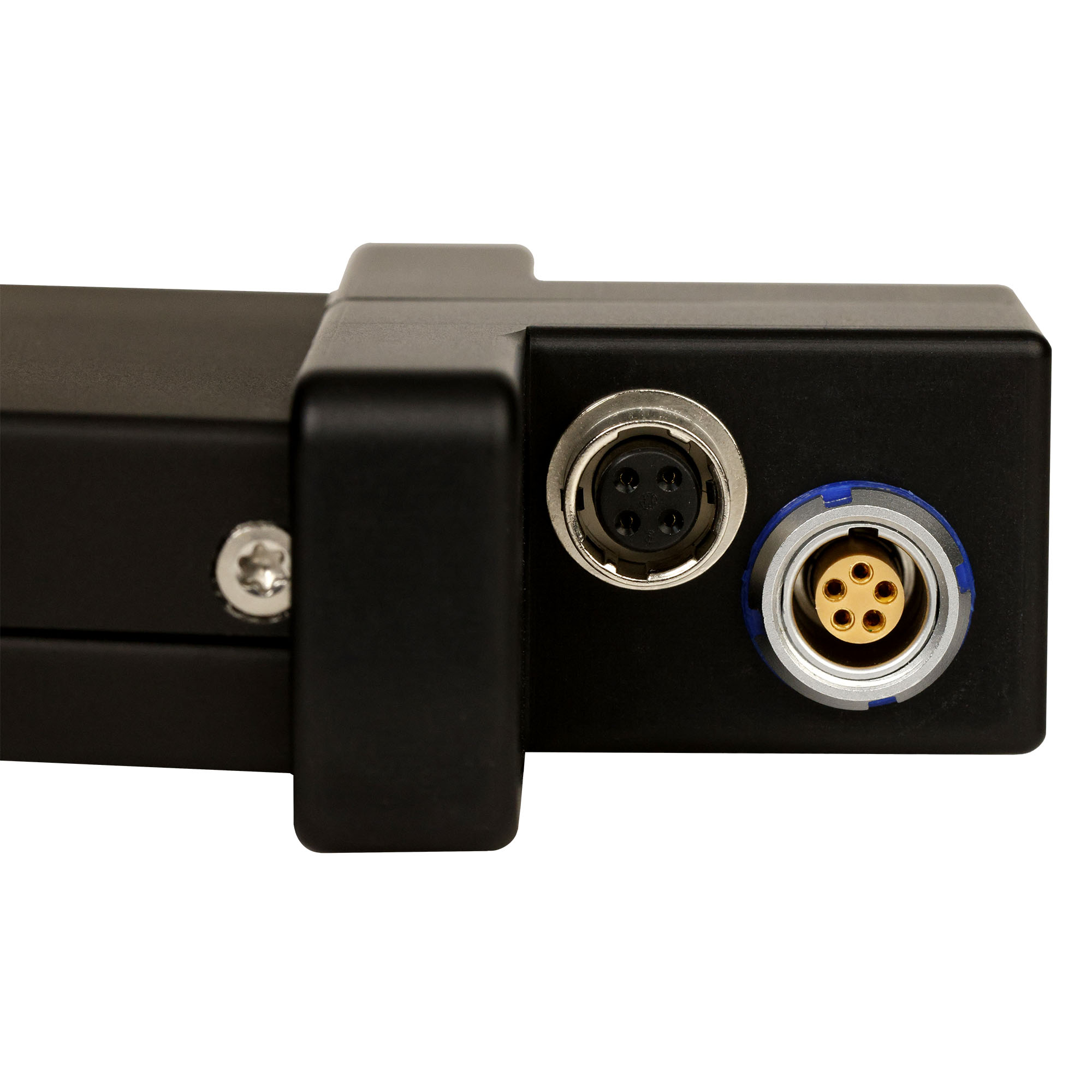

The Lockit+ can be powered by 6 to 24 Volts DC via a Hirose 4-pin connector or via the USB-C socket.

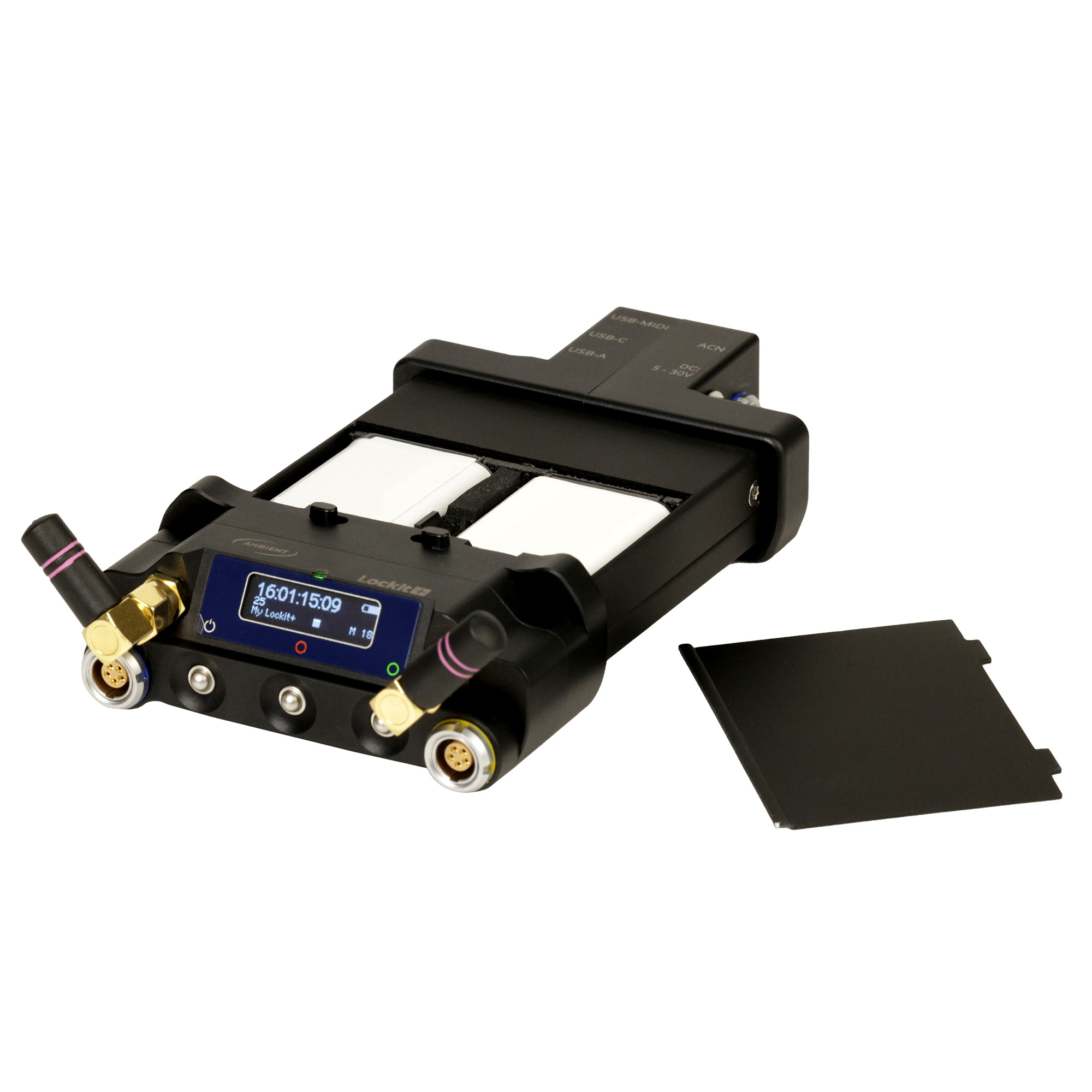

It is also possible to run the Lockit+ only with the two included BX1 batteries. In basic operation the batteries will last for up to 4 hours.
