Blackmagic Design 2110 IP Converter 4x12G PWR

About: Blackmagic Design 2110 IP Converter 4x12G PWR

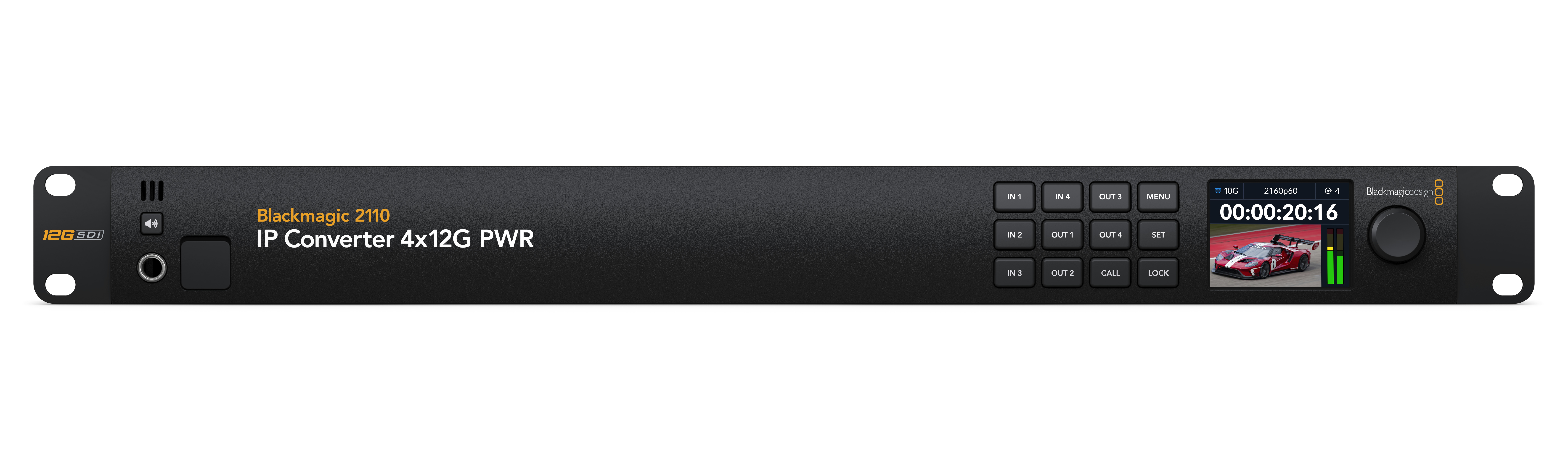

Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections which can also provide power. Its 1RU design includes a control panel with LCD and supports HD and Ultra HD standards up to 2160p60.

Specifications

• Connections
  • Total SDI Inputs - 5
  • SDI Video Inputs - 4
  • SDI Main Program Inputs - 1
  • Total SDI Outputs - 5
  • SDI Video Outputs - 4
  • SDI Main Program Outputs - 1 Loop Out.
  • SDI Rates - 270Mb, 1.5G, 3G, 6G, 12G.
  • SMPTE ST-2110 IP Video Inputs - 4 x 10G Ethernet
  • SMPTE ST-2110 IP Video Outputs - 4 x 10G Ethernet
  • Analog Audio Outputs - 1 x 6.35 mm headphone socket.
  • SDI Audio Inputs - 16 Ch embedded audio on SDI input.
  • SDI Audio Outputs - 16 Ch embedded audio on SDI loop output.
  • SMPTE ST 2110 IP Audio Inputs - 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
  • SMPTE ST 2110 IP Audio Outputs - 16 Ch embedded audio on ST-2110 IP video via 10G Ethernet.
  • Multi Rate Support - Auto detection of SD, HD, Ultra HD and 4K.
  • Reclocking - Yes
  • Ethernet
    • 4x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters.
    • 1x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates.
  • Computer Interface - 1x USB-C 3.0 for configuration and firmware updates.
• SDI Video Standards
  • SD Video Standards - 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
    • 720p50, 720p59.94, 720p60
    • 1080i50, 1080i59.94, 1080i60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    • 1080PsF25, 1080PsF29.97, 1080PsF30
  • Ultra HD Video Standards - 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards - 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • SDI Compliance
  • SDI Video Rates - SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
  • SDI Color Precision - 4:2:2
  • SDI Color Space - YUV
  • SDI Auto Switching - Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
• IP Video Compliance
  • SMPTE 2110-20 (Uncompressed Video) - IGMP v2
  • SMPTE 2110-21 (Traffic Shaping)
    • Sender: Narrow
    • Receiver: Narrow, Wide Synchronous, Asynchronous
  • SMPTE 2110-30 (PCM) - Audio Conformance level: Level C
  • SMPTE 2110-40 (Ancillary Data) - Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
  • Codec - Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
  • Precision Time Protocol
    • IEEE 1588-2008 (PTP v2)
    • ST 2059-1
    • ST 2059-2
  • NMOS IS-04 Discovery and Registration
    • v1.3.2
    • Peer-to-peer via mDNS/DNS-SD
  • NMOS IS-05 Connection Management - v1.1.2
  • NMOS BCP-002-01 - Natural Grouping
  • NMOS BCP-004-01 - Receiver capabilities
• Audio
  • Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
• Control
  • Built in Control Panel - 12 button control panel, 2.2 inch color display and spin knob for setup and menu settings.
• Operating Systems
  • Mac 13.0 Ventura,
  • Mac 14.0 Sonoma or later.
  • Windows 10 and 11.
• Power Requirements
  • Power Supply - 2 x Internal 100 ‑ 240V AC 50/60Hz with IEC C14 mains input.
• Physical Installation
  • 1 rack unit.
• Environmental Specifications
  • Operating Temperature - 5° to 40° C (41° to 104° F)
  • Storage Temperature - -20° to 45° C (-4° to 113° F)
  • Relative Humidity - 0% to 90% non‑condensing

What's Included

• Blackmagic 2110 IP Converter 4x12G PWR
• Welcome wallet with QR code for software download
