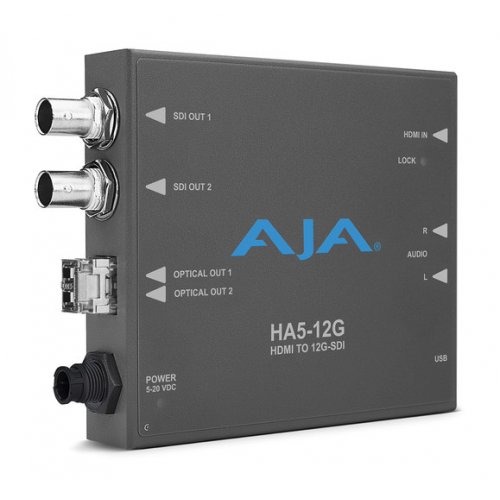

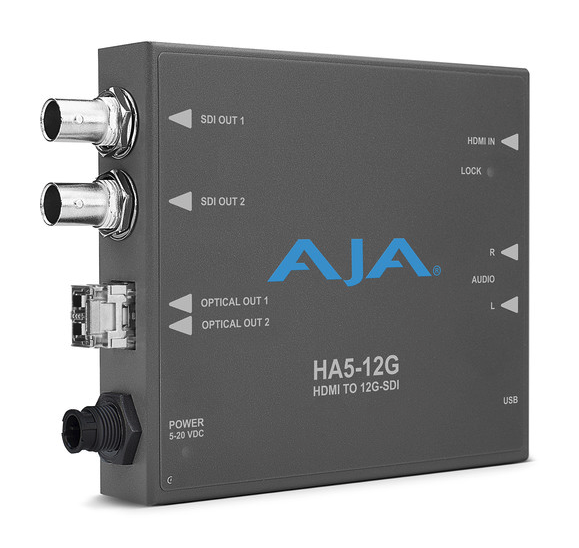

AJA HA5-12G-T HDMI 2.0 to 12G-SDI Conversion with Fiber Transmitter
Model: HA5-12G-T
About: AJA HA5-12G-T HDMI 2.0 to 12G-SDI Conversion with Fiber Transmitter
AJA HA5-12G-T is a compact HDMI 2.0 to 12G-SDI converter equipped with a single-channel 12G LC fiber transmitter. This device enables the transmission of high-resolution 4K/UltraHD signals over long distances, up to 10 km, via a single-mode fiber link, making it ideal for professional broadcast and production environments.
Features
- Converts HDMI 2.0b input up to 4K 60p to 12G-SDI with a second mirrored output
- Includes a single-channel Fiber 12G LC transmitter for extended signal reach
- Supports high frame rates up to 60p at 4:4:4, 4:2:2, and 4:2:0 chroma subsampling
- Offers EDID emulation to ensure continuous signal compatibility
- Analyzes HDR Infoframe data in accordance with HDMI v2.0b/CTA-861-G standards
- Provides simple frame rate conversion between fractional and integer rates
- Selectable audio embedding from HDMI or analog stereo inputs
- Pass-through support for compressed audio formats, including AC-3 and E-AC-3 (Dolby Digital Plus), as well as DD+ Atmos (also known as DD+ JOC)
- Configurable via USB port using AJA's Mini-Config software
- Compact design suitable for various installation environments
- Includes a universal power supply with international plug connectors
- Five-year warranty
Specifications
| Video Input | 1 x HDMI 2.0b Type A connector |
|---|---|
| Video Output | 2 x 12G-SDI BNC (mirrored); 1 x 12G-SDI over LC fiber |
| Audio Input | 1 x HDMI embedded audio; 2 x RCA analog audio |
| Supported Resolutions | Up to 4K/UltraHD 60p |
| Power Supply | 5-16 VDC (universal power supply included) |
| Dimensions (H x W x D) | 1.0 x 2.4 x 4.4 inches (25 x 61 x 112 mm) |
| Weight | 0.3 lb (0.2 kg) |
