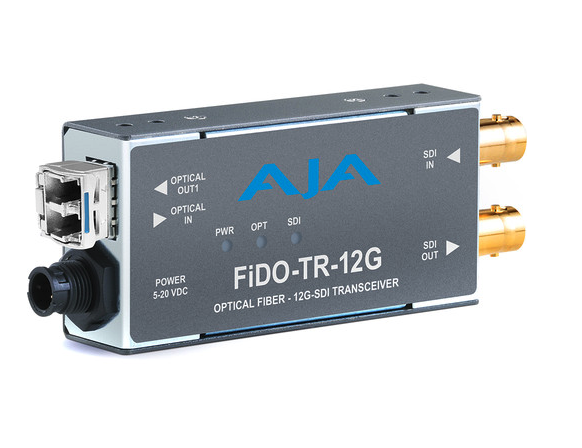

AJA FIDO-TR-12G 1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver
Model: FIDO-TR-12G
About: AJA FIDO-TR-12G 1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver
AJA FiDO-TR-12G is a versatile 1-channel 12G-SDI/LC single-mode fiber transceiver designed to facilitate seamless bidirectional conversion between 12G-SDI and optical fiber. This compact device enables the transmission of high-resolution video signals over extended distances, making it ideal for broadcast, production, and professional AV environments.
Features
- Bidirectional 12G-SDI to single-mode LC fiber conversion
- Supports 12G/6G/3G/HD/SD-SDI formats
- Extends signal reach up to 10 km (32,808 feet) over standard single-mode fiber optic cable
- Compact and rugged design suitable for various installation scenarios
- Universal power supply with international plug adapters included
- Five-year warranty
Specifications
| Video Formats | 270 Mbps to 12 Gbps, format agnostic |
|---|---|
| Video Input | 1 x 12G-SDI BNC; 1 x single-mode LC fiber |
| Video Output | 1 x 12G-SDI BNC; 1 x single-mode LC fiber |
| Nominal Wavelength | 1310 nm |
| Optical Sensitivity | -10 dBm (min @12 Gbps), -14 dBm (min @ 3 Gbps) |
| Optical Power | -5 dBm (min), 0.5 dBm (max) |
| Extinction Ratio | 5.4 dB (min) |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select; all other rates are passed through and not reclocked |
| Dimensions (W x D x H) | 4.6 x 1.71 x 0.85 inches (117 x 43.5 x 21.6 mm) |
| Weight | 0.4 lb (0.2 kg) |
| Power | 4 watts max; uses 5-20 VDC power (universal power supply included) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10-90% non-condensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
UPC: 812321030402
Reviews: AJA FIDO-TR-12G 1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver
Warranty: AJA FIDO-TR-12G 1-Channel 12G-SDI/LC Single Mode LC Fiber Transceiver
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
