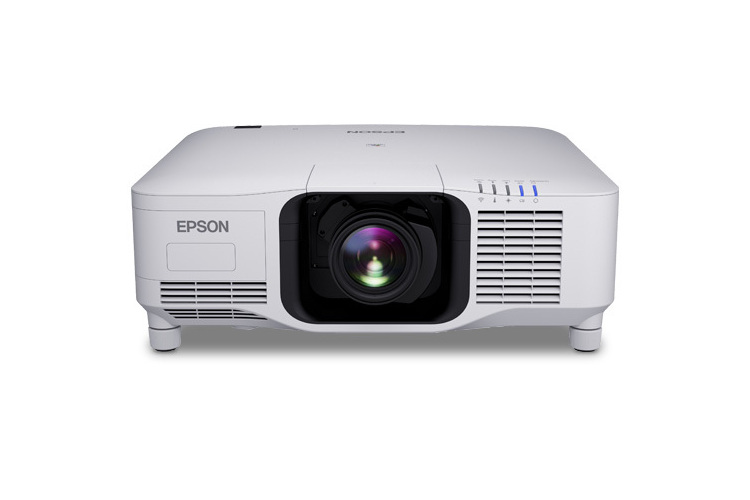

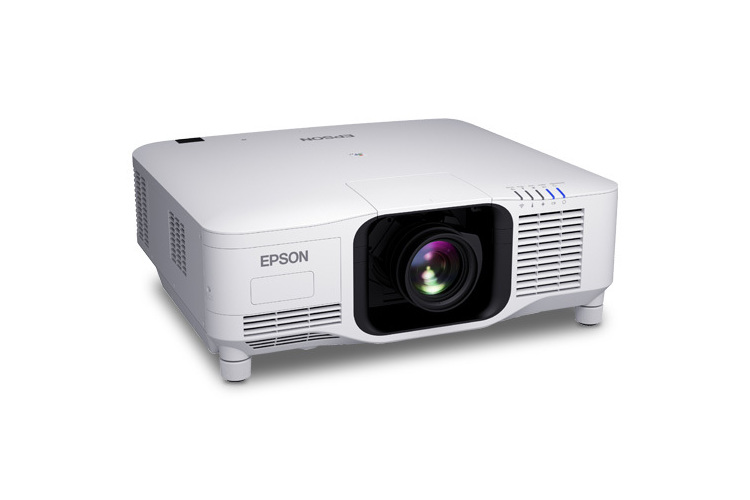

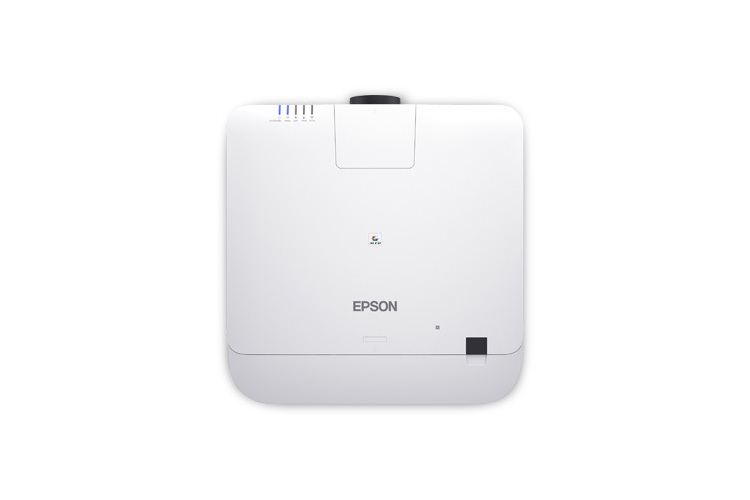

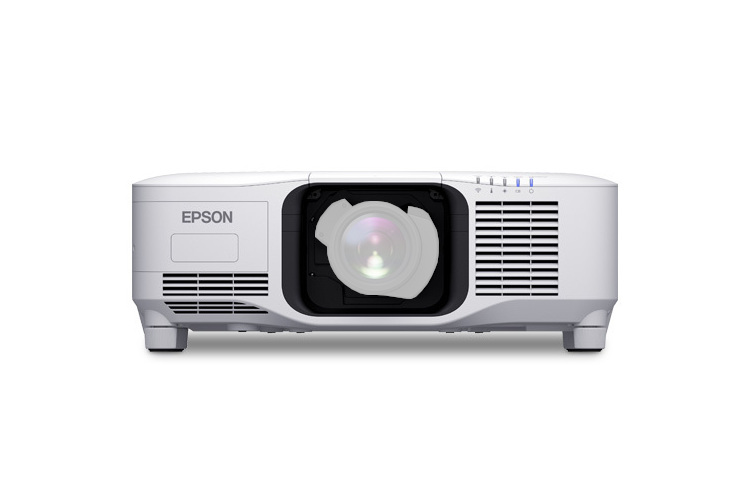

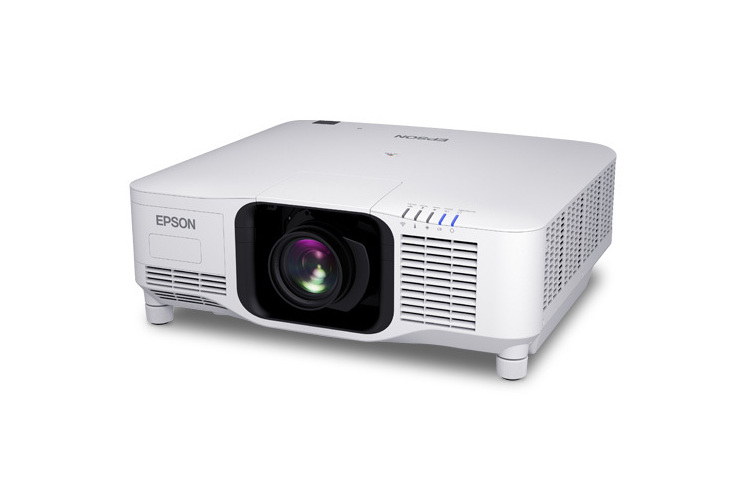

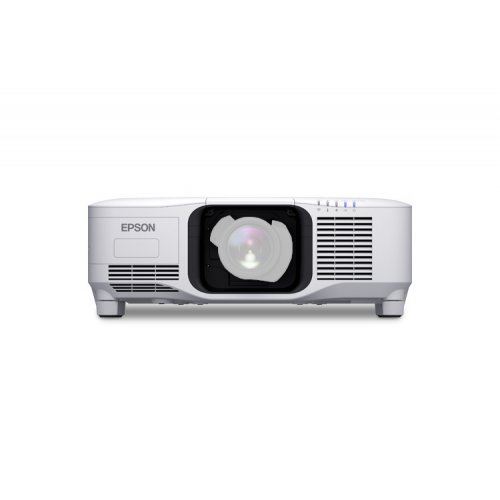

Epson EB-PQ2216 16,000-Lumen 4K 3LCD Laser Projector - White

About: Epson EB-PQ2216 16,000-Lumen 4K 3LCD Laser Projector - White

NOTE: Projector does not include lens.

Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2216W laser projector delivers stunning 4K resolution on-screen. With 16,000 lumens of colour and white brightness, the EB-PQ2216W produces captivating visuals in extraordinary detail. And a high native contrast ratio and 3-chip 3LCD technology means you will enjoy a realistic display enriched with vibrant colours and deep blacks.

• Incredible colour — Epson 3-chip 3LCD technology produces 16,000 lumens of equal white and colour brightness
• 4K resolution on-screen — leverages Epson’s 4K Crystal Motion technology, thermo-controlled panel and double micro-lens array for crystal clear image quality that fully realizes 4K resolution (3840 x 2160)
• Robust, high-reliability design — virtually maintenance-free 20,000-hour laser light source; IP5X-rated hermetically sealed optical and light source module for high dust resistance; filterless cabinet; optimized liquid cooling system
• Stunning image quality — high native contrast ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support and scene adaptive gamma correction
• Simplified installation — 9 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family (Click Here for compatibility chart)

Designed for fixed installation applications and to meet the rigorous demands of live events, the EB-PQ2216W features a filterless cabinet, IP5X-rated hermetically sealed optical and light source unit, and a virtually maintenance-free 20,000-hour laser light source. The projector provides frame interpolation for fast-moving objects, as well as HDR support and scene adaptive gamma correction for lifelike images. The EB-PQ2216W pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and an optional attachable PixAlign camera to streamline multi-projector setups.

• Enhanced connectivity — HDMI two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
• Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback
• Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist, stacking assist function, auto colour calibration and screen matching with or without a connected PC and router
• Versatile power source options — requires 220 V power for full brightness; can operate at 15,500 lumens from a standard 120 V power source for setup and installation
• Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app); easily manage your installed inventory using Epson Projector Management – Connected (EPM-C) from any device with a Web browser
• NFC function built-in — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
• Mechanical shutter — protects projector from damage during laser light shows

Eco Features

• RoHS compliant
• End-of-life options available
• Epson America, Inc. is a SmartWay Transport Partner

Specifications

• General
  • Projection System: High-aperture Epson 3-chip 3LCD technology
  • Projection Method: Front/rear/ceiling mount
  • Driving Method: Poly-Silicon TFT Active Matrix
  • Pixel Number: 2,073,600 pixels (1920 x 1080) x 3 chips
  • Signal Input: Maximum Display Resolution: 4096 x 2160 pixels (resizing display)
  • Native Resolution: 1080p with 4K Crystal Motion (1920 x 1080 x 4)
  • Resolution on Screen: 4K UHD (3840 x 2160)
  • Aspect Ratio: Supports 4:3, 16:10, 16:9*, 21:9*
    • * With vertical image shift control within letterbox area.
  • Pixel Arrangement: Cross stripe
  • Color Brightness: Color Light Output: 16,000 lumens
  • White Brightness: White Light Output: 16,000 lumens
  • Contrast Ratio: Up to 5,000,000:1 (Dynamic Contrast: On)
  • Brightness Uniformity: (Typical) 85%
  • Color Reproduction: Up to 1.07 billion colors
  • Keystone Correction
    • Vertical: ±45 degrees;
    • Horizontal: ±30 degrees
  • Illumination Technology: Laser Phosphor
  • Light Source Life
    • 20,000 hours (Normal Mode)
    • 30,000 hours (Extended Mode)

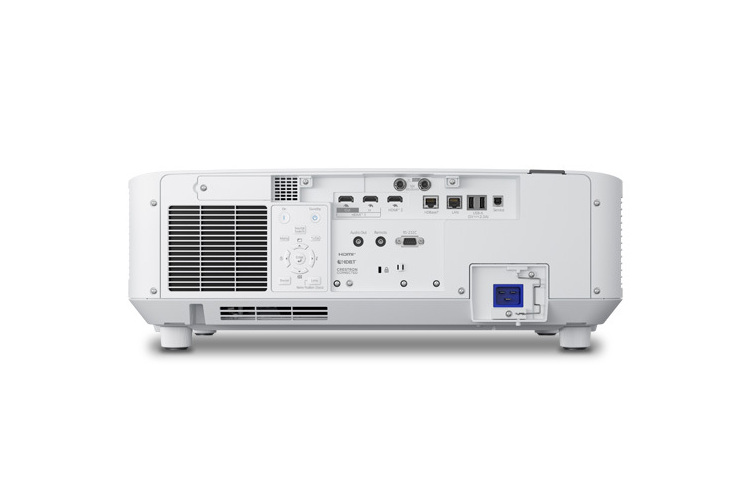

• Interfaces
  • 12G-SDI In/Out
  • HDMI (HDCP 2.3) x 2/HDMI Out x 1
  • HDBaseT x 1
  • Variable Audio Out: Mini Stereo x 1
  • USB Type-B x 1
  • USB Type-A x 2 (5 V, 2.0 A)
  • USB Type-A for Wireless LAN (optional)
  • Serial: RS-232c x 1 (9-pin)
  • Remote Stereo Mini
  • Network: RJ-45
• Projection Lens (Standard)
  • Standard Lens: ELPLM15 (sold separately)
  • Type: Powered shift/focus/zoom
  • F-Number: 2.0 – 2.1
  • Focal Length: 14.8 mm – 17.7 mm
  • Zoom Ratio: Optical Zoom: 1.0 – 1.6
  • Throw Ratio Range: 1.52 – 2.47
  • Lens Shift: Vertical: ±60%; Horizontal: ±18%
• Other Features
  • Operating Temperature: 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
  • Power Supply Voltage
    • 100 – 120 V AC +/- 10%, 50/60 Hz
    • 200 – 240 V AC +/- 10%, 50/60 Hz
  • Power Consumption
    • 1,114 W (Normal/Custom)
    • 784 W (Quiet/Extended)
    • 2.0 W Standby (Network Standby)
    • 0.5 W Standby (Energy Saving)
  • Fan Noise: 44 dB (Normal Mode), 36 dB (Eco Mode)
  • IP Rating: IP5X
  • Security: Security cable hole, lens lock, Kensington lock provision, wireless LAN unit lock
• Video I/O
  • Input Signal: Input Video Signal (HDMI and HDBaseT ports)
    • 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160
  • Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI)
  • Sleep Mode: Yes (with timer)
  • HDMI CEC Control: Yes
• Remote Control
  • Features: Power, Source Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode, Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions, Blend Guides, Multi-Projection, Color Tone Adjust and Memory
  • Operating Angle
    • Angle Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
    • Angle Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +5 degrees
    • Operating Distance: 98 ft
• Dimensions, Excluding Feet (WxDxH): 23.1" x 19.4" x 7.3" (586 mm x 492 mm x 185 mm)
• Weight: 64.3 lb/ (29.2 kg)

What's in the Box

• EB-PQ2216W laser projector
• two cables
  • 1x 200 V – 240 V power cable
  • 1x 100 V – 120 V power cable
• remote control with 2 batteries
• cable cover
• quick reference guide
• warranty sheet
