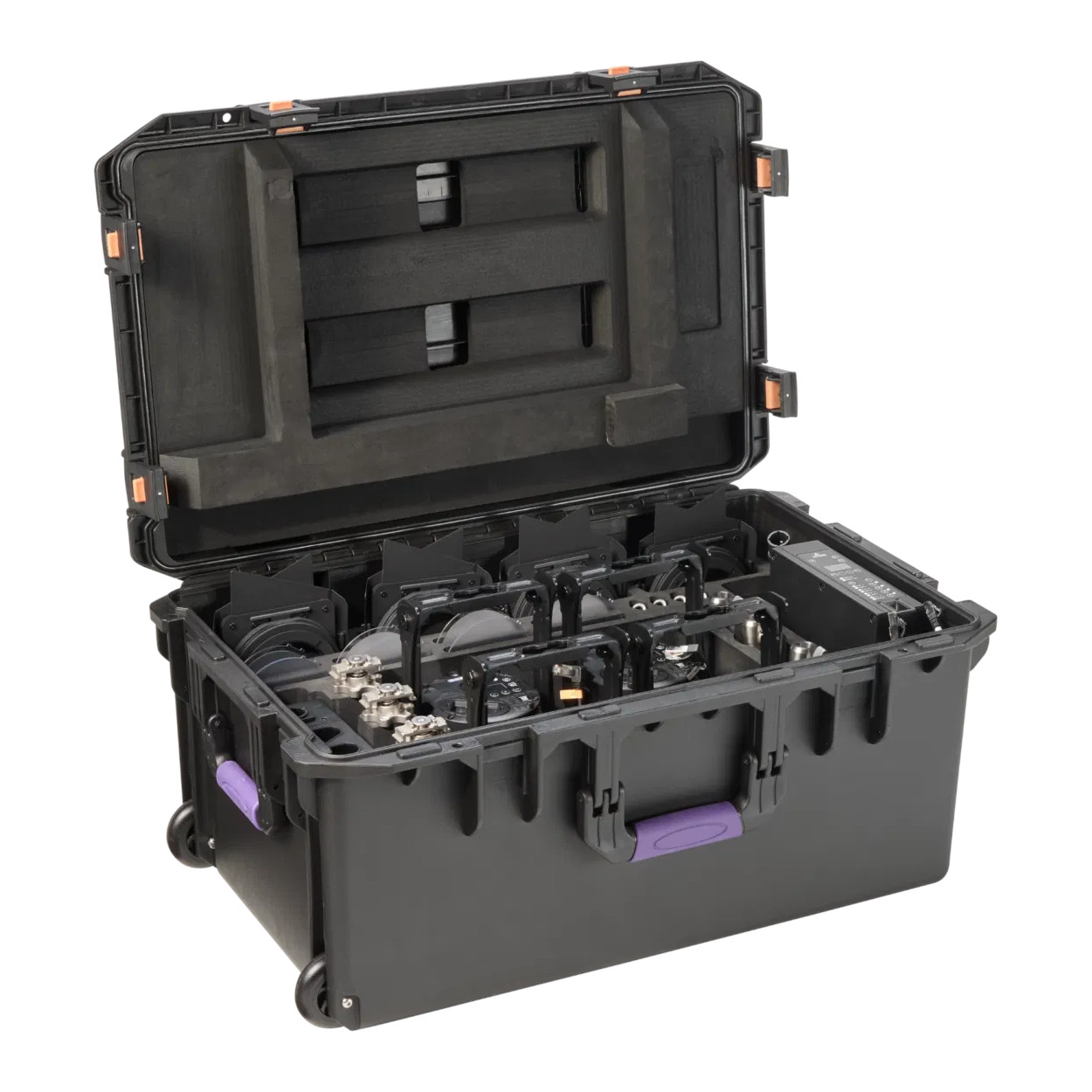

Astera QuikBeam Zoomable Small LED Spotlight 4-Unit PrepCase Kit

About: Astera QuikBeam Zoomable Small LED Spotlight 4-Unit PrepCase Kit

The 4-Unit PrepCase Kit with versatile accessories has everything stored in a durable protective plastic case. Included is a set of 4 QuikBeams with QuikBrick batteries and versatile accessories stored in a durable protective case. Included are 4 Barndoors, the NetBox, filters, cables, and rigging accessories, keeping your setup organized, protected, and ready for use.

Designed to blend in. Engineered to stand out. As a compact spotlight, QuikBeam delivers the power of a 200W Tungsten equivalent, with a 13º–60º Fresnel based zoom, swappable QuikBrick batteries, and built-in PoE.

Powered by the Titan LED Engine, it provides rich, accurate color rendering. Lightweight, versatile, and future-ready, it works perfectly for events of any size, indoors or outdoors, and for film and broadcast sets alike.

• Small in size, big in capability. QuikBeam is a powerful and versatile uplight.
• QuikBeam is lightweight and easy to handle, requiring no extra hands.
• Swappable batteries keep your lights running smoothly with minimal downtime.

FEATURES THAT THINK AHEAD

• HotBeam: HotBeam pushes beyond 13° to deliver exceptional output and center intensity when maximum punch matters, prioritizing performance over a perfectly round beam.
• Threads: QuikBeam comes with a 1 x 1/4" Thread and a 1 x 3/8" Thread for rigging and safety.
• EtherCON connector: QuikBeam accepts ethernet signals and power from any PoE switch.
• SafetyLink: SafetyLink integrates a built-in safety wire for accessories, allowing easy attachment and detachment without extra steel wires.
• Barndoor: The 8-way Barndoor for QuikBeam delivers precise beam shaping with zero unwanted light spill.
• Swappable Battery: QuikBrick is the fully waterproof and swappable battery for QuikBeam.
• Removable Yoke: The removable yoke is a very versatile attachment for tilt adjustment. It has two foldable feet and is equipped with a built-in AirlineTrack for clamp attachment.

SWAPPABLE BATTERY. ENDLESS POSSIBILITIES.

Change the battery, keep going. Our pioneering wireless technology expands into a flexible power ecosystem with more options than ever. With QuikBeam you can swap batteries in seconds, charge multiple QuikBricks at once, or run entirely without one by using PoE. Your creativity never pauses.

QuikBrick, the swappable battery for QuikBeam, powers the fixture in seconds. It supports three charging methods: via PoE while wired, in the ChargingDock, or through its USB-C port.

Faster. More flexible. 100% Wireless and beyond.

EXPLORE THE PACKAGES

• ChargingCase: For large-scale productions and event environments, we offer multiple wooden ChargingCases, with sizes and contents varying by region. Please contact your local distributor below for details.
• 4-Unit PrepCase Kit: Designed for film and broadcast crews, the 4-Unit PrepCase kit offers speed through the integrated, PoE-based NetBox and many creative options through Barndoors, filters and tripod-ready TrackPins. The perfect companion on set.
• 2-Unit BackPack Kit: Designed for owner-operators and small crews, the 2-Unit Backpack Kit delivers true grab-and-go flexibility. Ideal for interviews, documentary work, creator shoots, and fast on-location setups.

POWER OVER ETHERNET. YOUR WAY.

Power over Ethernet (PoE) combines power and data in a single cable, simplifying setups, reducing clutter, and giving you more flexibility. It’s a widely used and future-ready technology that integrates seamlessly with existing networks.

QuikBeam works with or without PoE. With it, cables can reach up to 100 meters, standard sACN and ArtNet signals are supported, and the swappable battery can charge while connected. Lightweight, IP65-rated, and compatible with existing PoE switches. PoE also enables bi-directional communication, so IP or DMX addresses can be set remotely even after installation. With full integration into corporate, audio, and video PoE environments, QuikBeam makes lighting faster, smarter, and more versatile.

We provide two devices to use PoE with QuikBeam, from simply adding power to your data, to prepping, configuring, and monitoring multiple lights at once. In addition, there are third-party options available, as PoE is a well-established technology.

• NetBox: Prep up to 4 QuikBeams while charging their QuikBrick batteries in the case or even 100 m away with the Astera NetBox. IP65-rated and specifically designed to support Ethernet-based workflows and professional rigging conditions, NetBox allows for any software adjustment or App pairing in 10 seconds.
• PowerInjector: The PowerInjector is a compact, lightweight, and cost-effective accessory that supplies power and data to a PoE-based fixture. It features an RJ45 input for data and an RJ45 output to deliver power and data over standard ethernet cables. A great solution for instant power when your QuikBeam is running out of battery.

HOW TO CONTROL

• Built-in CRMX
  • QuikBeam includes LumenRadio’s wireless DMX and RDM, ensuring seamless integration with lighting consoles and other standard controllers. The DMX patch is extremely easy to configure: assign profiles, starting addresses and fixture numbers in no time via the PrepCase Kit or the AsteraApp.
• AsteraApp
  • Take command of your Astera lights! The AsteraApp offers full control over QuikBeam and other Astera fixtures in the same smart ecosystem, while offering setup features and real-time monitoring.
• Blackout Lighting Console
  • QuikBeam is fully integrated in Blackout Lighting Console’s App, allowing users not only to DMX control but also to monitor its battery or configure settings via a connected ART7 AsteraBox WiFi. You can set QuikBeam’s battery runtime, reset, unlink or review firmware version amongst many other options – directly in Blackout.
• Remote Control
  • The WhiteRemote and FX Remote are not only really useful tools to apply different color temperatures, colors, effects and dimming values, but also a simple and easy alternative to pair QuikBeam with the AsteraApp when the PrepCase Kit is not available.
• On your light
  • The control panel offers intuitive control over your QuikBeam. Dedicated buttons offer swift control over brightness, HSI and colors.
• Web interface
  • Use the web interface to view system status and configure your lights. Check which ports deliver data and power and adjust settings such as runtime, intensity, color, and more.

BORN TO BE QUIK. MEET THE QUIK FAMILY.

The QuikFamily includes three versatile fixtures, each designed with its own strengths, output, and applications. While some power, control, and accessories options are shared, each fixture also has its own unique options.

• Compact and lightweight, QuikBeam is a spotlight and uplight powered by swappable QuikBrick batteries. Built-in CRMX and PoE support make it highly flexible, ideal for events, film, broadcast, and mobile setups.
• QuikSpot is a spotlight that offers great balance of size, weight, and output, making it ideal for events, film and broadcast.
• Bright and precise, QuikPunch delivers zero stray light and high-impact illumination. Perfect for crews needing accuracy and a punchy light on events, film, or broadcast productions.

QUICK MOUNTING AND UPLIGHTING

• Removeable yoke. Foldable feet.
  • On the floor or on the truss, the removable yoke is a versatile attachment for the entire QuikFamily. It offers precise tilt adjustment, two foldable feet, and an inbuilt AirlineTrack. And yes, you can mount or release any QuikFamily fixture in a matter of seconds.
• KickStand
  • Angling an uplight or washlight has never been easier. Every QuikFamily fixture features our integrated KickStand on the back of the housing, giving you quick, precise tilt adjustment whenever you’re working without a yoke.
• TrackPin Compact
  • The TrackPin Compact is a small, lightweight rigging accessory designed for the QuikFamily’s integrated AirlineTrack. It keeps the fixture height low when used with the Yoke and pairs perfectly with popular SuperClamps. Easy to adjust, quick to replace, and ideal for tight spaces, it allows fast, reliable mounting wherever you need it.
• TrackSpigot 28/16
  • The TrackSpigot 28/16 is the easiest way to move from floor or truss mounting to a professional tripod. It attaches seamlessly to any QuikFamily removable yoke and supports both a 28 mm pin and a 16 mm receiver. A compact, essential tool for filmmakers and technicians who need fast, reliable mounting options.
• TrackPin
  • The TrackPin is a sturdy 5/8” baby pin for SuperClamps and Gobo Heads, now updated with the same ergonomic star knob as TrackPin Compact and TrackSpigot 28/16. Designed for Astera’s AirlineTrack mounting system, it allows fast, tool-free positioning and works with the PowerStation and all Astera fixtures with integrated airline track.
• FlexCovers
  • FlexCovers are the best solution for corporate events where luminaries must be integrated into the environment. Made out of a flexible, lightweight material and attached via velcro, FlexCovers are available in White and Mirror looks.
• TiltMeter
  • Designed to assist with accurate fixture positioning, the TiltMeter is a software-based tool displayed on the OLED screen. When the Astera button is pressed, the display switches to show only the tilt angle, thanks to the built-in accelerometer. Pressing the button again returns the display to standard mode after focusing is complete.
• Threads
  • Rigging Threads are the ultimate solution for versatile mounting and safe operation. Designed for secure attachment, QuikBeam comes with a 1/4" thread and a 3/8" thread, enabling quick rigging to stands, trusses, or clamps.

ACCESSORIES THAT EXPAND POSSIBILITIES

• Barndoor for QuikBeam: 8-way rotating barndoors with integrated SafetyLink.
• QuikBrick for QuikBeam: QuikBrick is the fully waterproof and swappable battery for QuikBeam.
• QuikBrick Cover for QuikBeam: Remove the battery and keep the cover for IP65 protection.
• ChargingDock for 4 QuikBricks: Charge up to 4 QuikBricks with the ChargingDock.
• Rotatable Elliptical Filter (17º x 46º) for QuikBeam: Beam-shaping and rotatable front accessory for QuikBeam.
• EdgeSoftener Filter for QuikBeam: Filter for a smoother cut when using barndoors.
• TrackPin Compact: Short pin for SuperClamp attachment, compatible with airline tracks.
• TrackPin: 5/8" Babypin, connects to all Astera products with airline track.
• TrackSpigot 28/16: Large 28mm pin and 16mm receiver for tripods, compatible with airline tracks.
• Bolt for AX5: Screw into the AX5 bracket’s 3/8" thread to mount it via SuperClamps and other grips.
• EyeBolt 1/4: Safety mounting point for QuikBeam (Set of 16).
• PoE Extension Cable (10m): 10m extension cable for PoE Astera boxes.

Specifications

• LED Engine: Titan LED Engine
• Colors: RGBMintAmber
• LED Power Draw: 20 W
• Luminous Flux
  • 2 700 K: 1 124 Lumens
  • 3 200 K: 1 190 Lumens
  • 4 000 K: 1 239 Lumens
  • 5 500 K: 1 285 Lumens
  • 6 500 K: 1 224 Lumens
• Candela
  • 2 700 K: 18 545 cd
  • 3 200 K: 19 575 cd
  • 4 000 K: 20 312 cd
  • 5 500 K: 20 663 cd
  • 6 500 K: 20 564 cd
• Light Output
  • 2 700 K @ 3 m: 2 059 Lux
  • 3 200 K @ 3 m: 2 174 Lux
  • 4 000 K @ 3 m: 2 257 Lux
  • 5 500 K @ 3 m: 2 294 Lux
  • 6 500 K @ 3 m: 2 285 Lux
• CRI (Ra) / TLCI 3200 – 6500 K (Output Gain disabled): ≥96
• Output Gain: Yes
• Beam Angle: 12.6° – 58.5°
• Field Angle: 16.9° – 78.2°
• Strobe: 0 – 25 Hertz
• Battery Runtime: up to 20 hours
• Battery Runtime (max. Brightness): 1 h 20 m
• Charging Time (nominal): 2 h 40 m
• DC Input: PoE++
• DC Connector: RJ45
• Ethernet Port Speed: 100 Mbit/s
• Power Consumption (max.): 40 W
• Cable length: up to 100 m
• ArtNet/sACN: via Ethernet
• CRMX Receiver: Built-in
• BluetoothBridge BTB: Built-in
• Wireless Protocols: CRMX, UHF, Bluetooth, WiFi
• Wireless Range
  • CRMX / UHF up to 300 m / 330 yds
  • Bluetooth up to 3 m / 3.3 yds
• RDM Support: via CRMX
• Infrared Control: Yes
• IP Rating
  • Unwired: IP65
  • Wired: IP65
• Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
• Mounting Options: 1/4" – 20 UNC, 3/8" – 16 UNC thread, Yoke (with Airline Track, 3/8" – 16 UNC thread, 1/2" hole)
• ​Dimensions
  • QuickBeam with Yoke (LxWxD): 9.48 x 6.84 x 4.93 inch (241 x 174 x 125 mm)
  • QuickBeam without Yoke (H x Ø): 5.35 x Ø 4.75 inch (136 x Ø 120 mm)
  • PrepCase (LxWxD): 28 x 18.1 x 13.2 inch (710 x 460 x 335 mm)
• Weight
  • QuickBeam: 3.17 lbs (1438 g)
    • w/ Battery: 3.56 lbs (1617 g)
  • PrepCase (empty): 23.5 lbs (10.654 kg)
    • Full: 53.1 lbs (24.08 kg)

What's Included

• 4x QuickBeam LED Spotlight w/ QuikBrick Battery
• 1x PrepCase for QuikBeam
  • 4x RJ45 cables
  • 1x powerCON TRUE1 cable
• 1x NetBox
• 1x ChargingDock
• 4x BarnDoor
• 4x TrackSpigot
• 4x TrackPin
• 4x EdgeSoftener Filter
• 4x Rotatable Filter
• 4x EyeBolt
