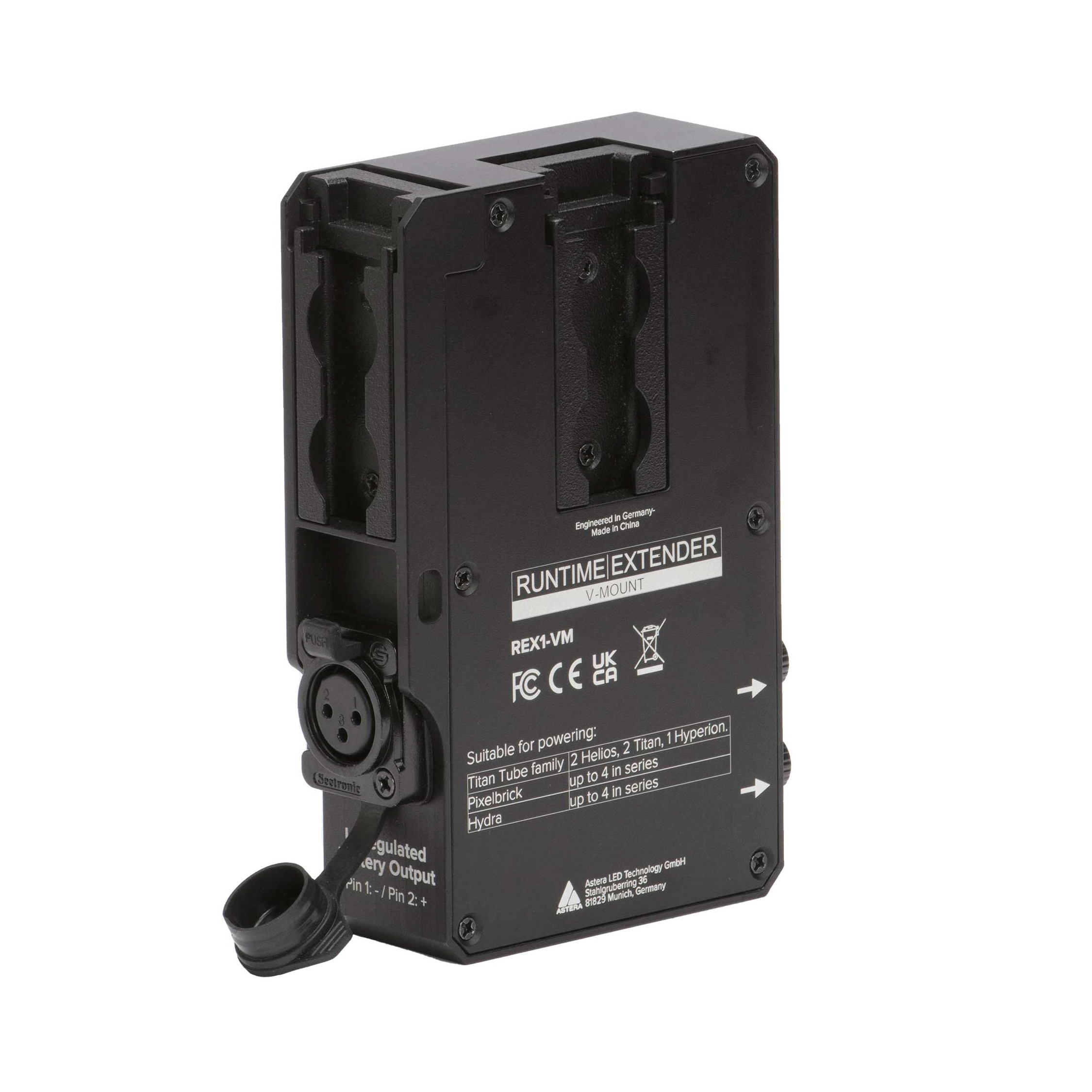

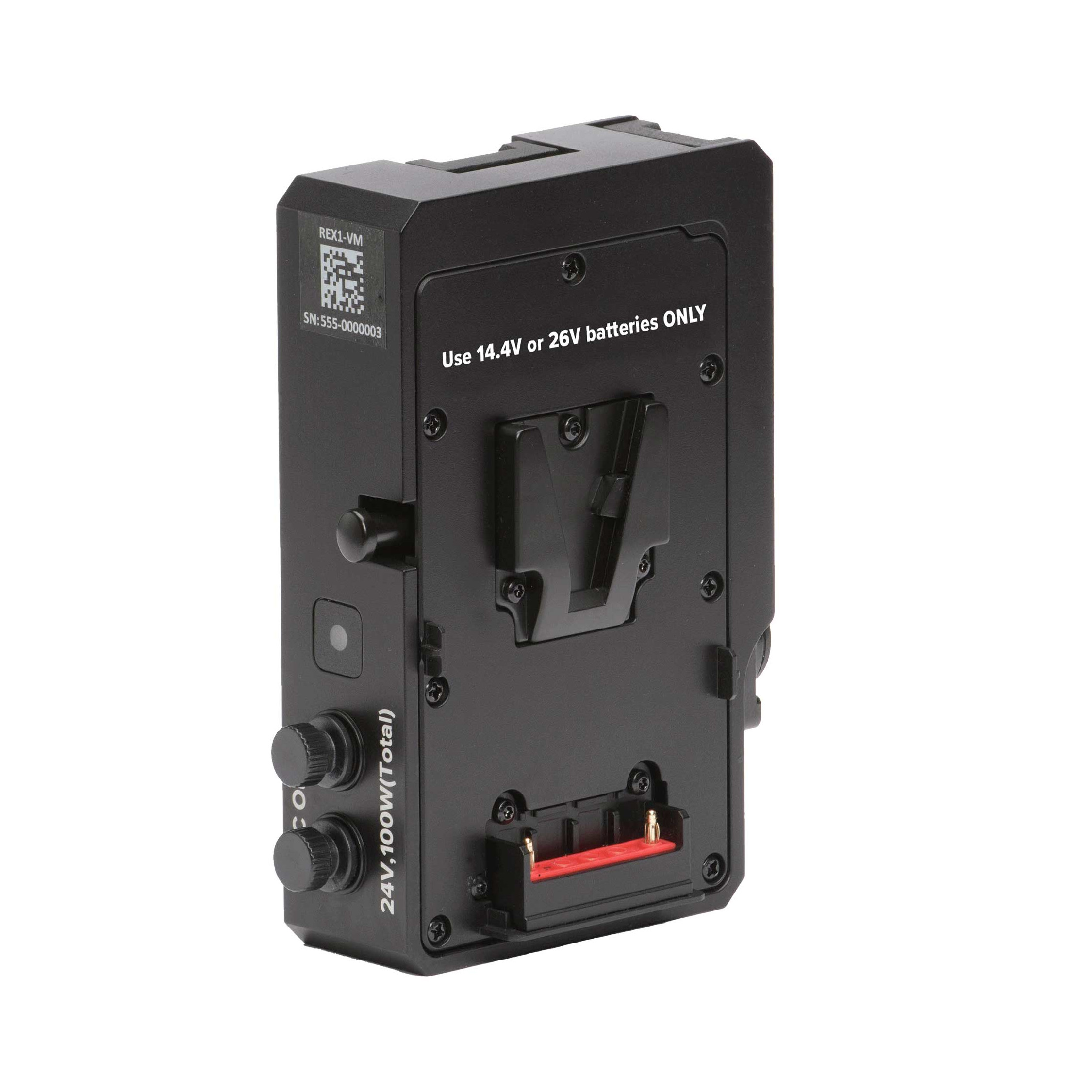

Astera RuntimeExtender Battery Plate - V-Mount
Model: REX1-VM
About: Astera RuntimeExtender Battery Plate - V-Mount
RuntimeExtender is a battery plate to connect standard camera batteries to many Astera lights. This enables you to extend your production and work without worries when shooting films or lighting events. The RuntimeExtender supports a wide range of Astera products.
SUPPORTS 14.4V & 26V BATTERIES
SUPPORTED LIGHTS
- 2x Titan Tube
- 2x Helios Tube
- 1xHyperion Tube
- 4x HydraPanel
- 4x PixelBrick
- 1x PlutoFresnel
- 1x LeoFresnel
MOUNTING & CONNECTING
- HexConnect: Special bolt for mounting RuntimeExtender via SuperClamps and GripHeads. The hexagon shape ensures that the bolt will not untie itself. HexConnect can be inserted via the RuntimeExtender’s Airline Track.
- Airline Track: We have integrated an AirlineTrack into most lights released since 2020. This is our newer generation AirlineTrack which we introduced with the PixelBrick, so a wide variety of grips can be inserted.
- Back-to-back: Connect 2 RuntimeExtenders with 2 batteries back-to-back and mount them with only one Super Clamp wherever needed.
Specifications
- Battery Voltage: 14.4 VDC or 26 VDC
- Battery Runtime: Dependant on third party battery used and type of fixture
- Battery Runtime max. Brightness: Dependant on third party battery used and type of fixture

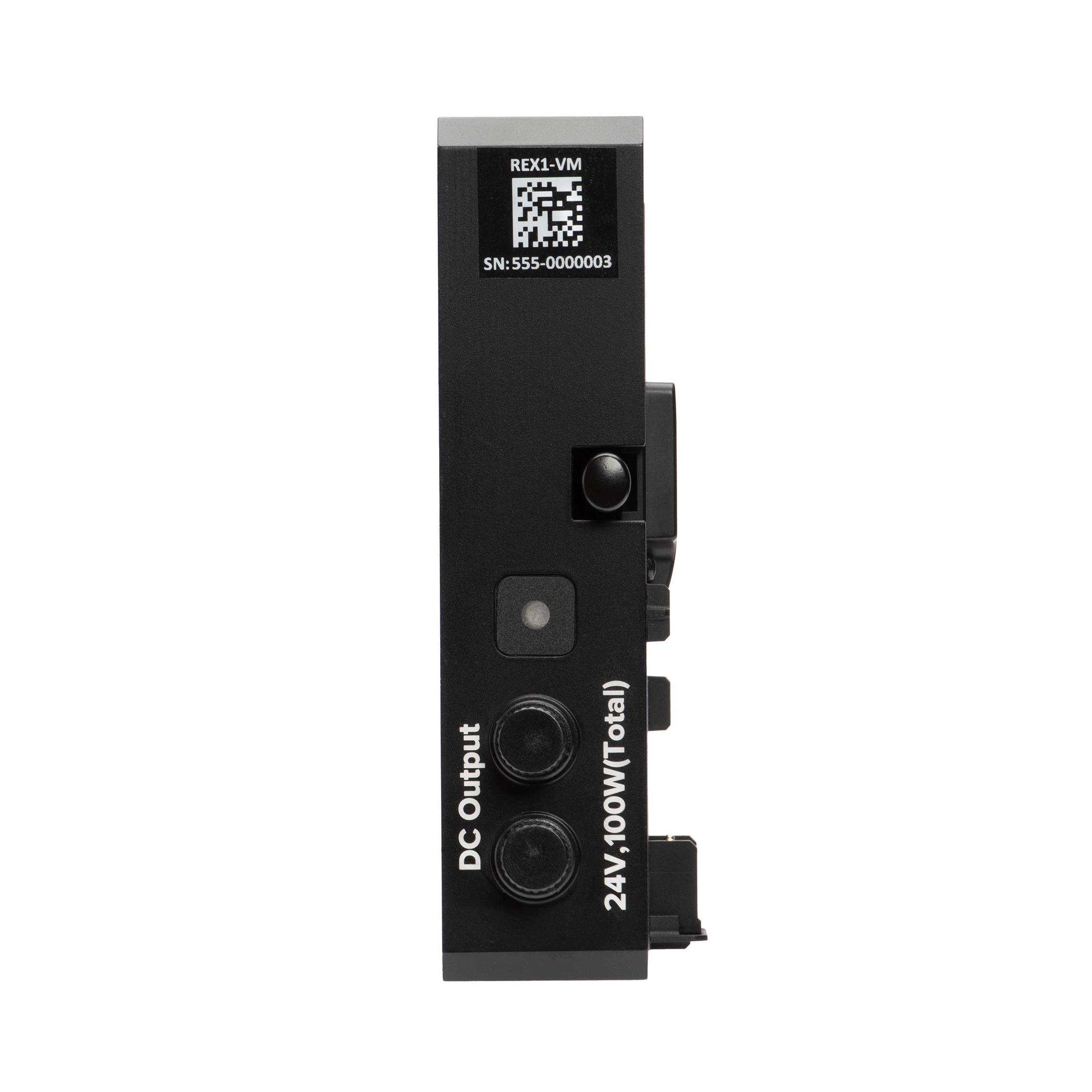

- DC Output on DC Barrel Connectors: 24 VDC – 100 W combined on two outputs

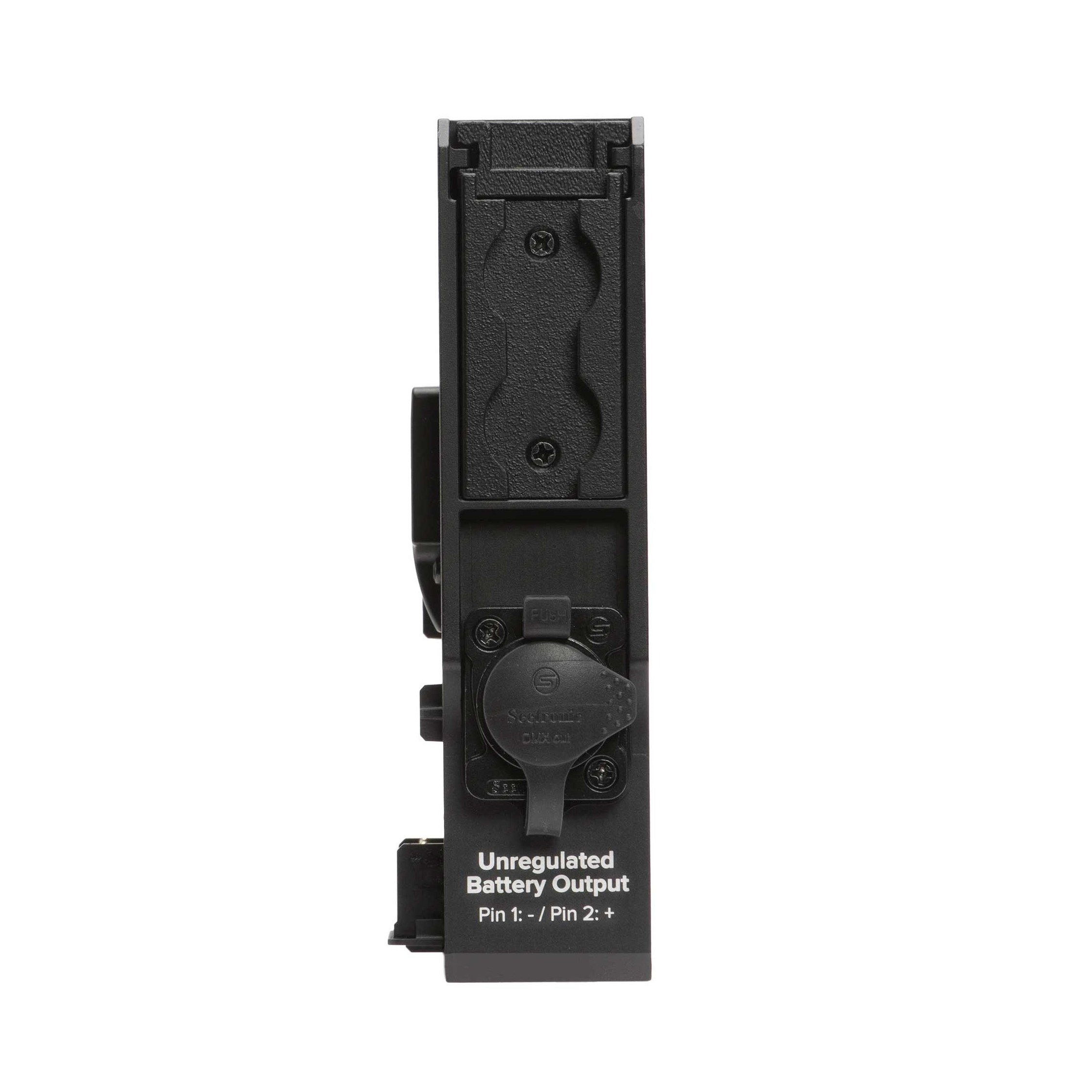

- DC Output on XLR: Direct passthrough from attached battery
- DC Connectors: 2 x 5.5 mm x 2.1 mm / 1 x 3-Pin XLR
- IP Rating: IP20
- Ambient Operating Temperature: 0 – 40 °C / 32 – 104 °F
- Weight: 1.36 lb (617 g)
- Dimensions (L x W x D): 5.8 x 4.45 x 1.79 inch (148 x 112.8 x 45.5 mm)
- Mounting Options: 2 x AirlineTrack compatible with PB15 accessories
What's in the Box
- 1x RuntimeExtender (V-Mount)
- 1x HexConnect
- 1x BrickConnect
- 1x Waterproof Protection Cover
Videos: Astera RuntimeExtender Battery Plate - V-Mount
Reviews: Astera RuntimeExtender Battery Plate - V-Mount
There are currently no product reviews.
Warranty: Astera RuntimeExtender Battery Plate - V-Mount
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
- 2 Years warranty on electronics
- 3 Month warranty on batteries
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Astera do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
