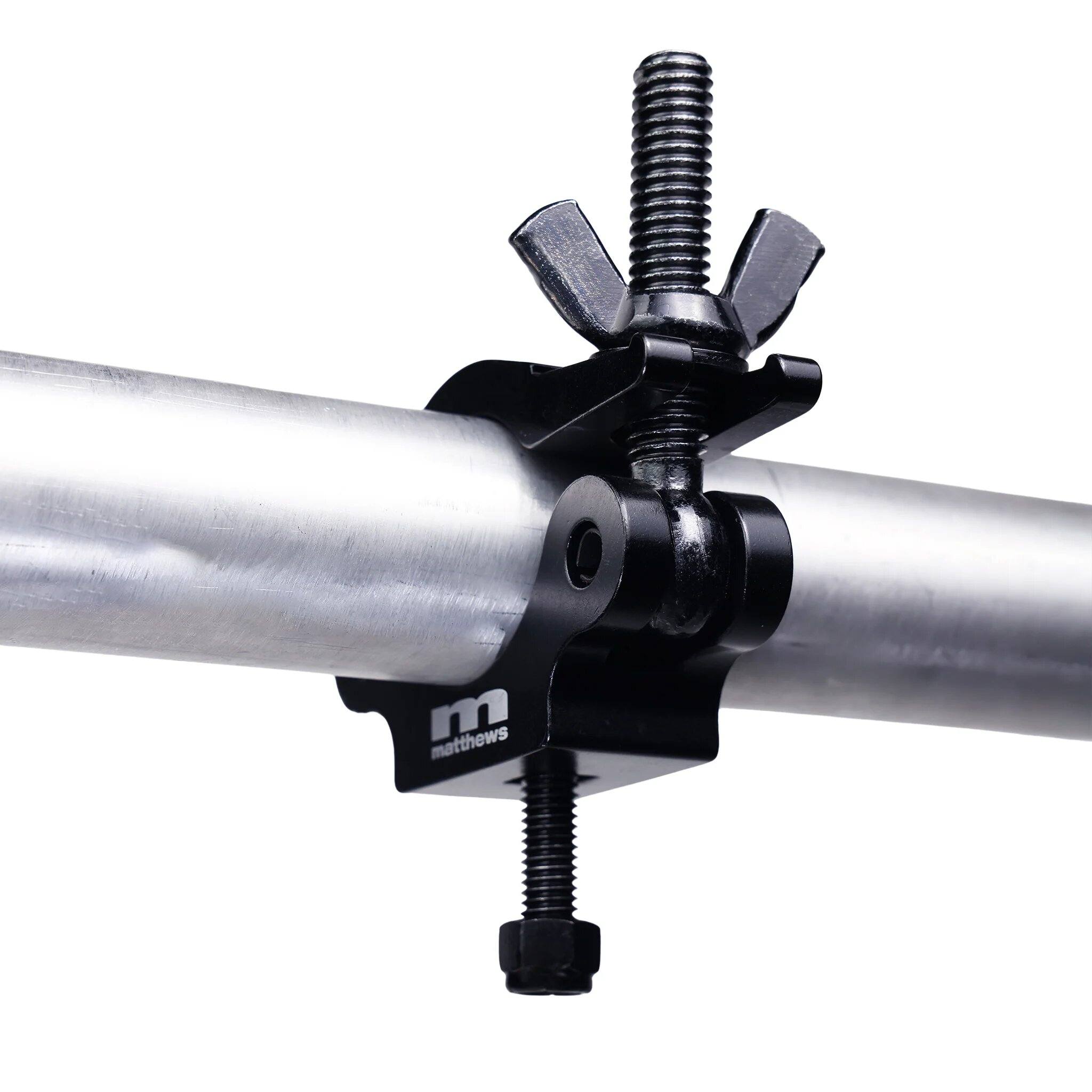

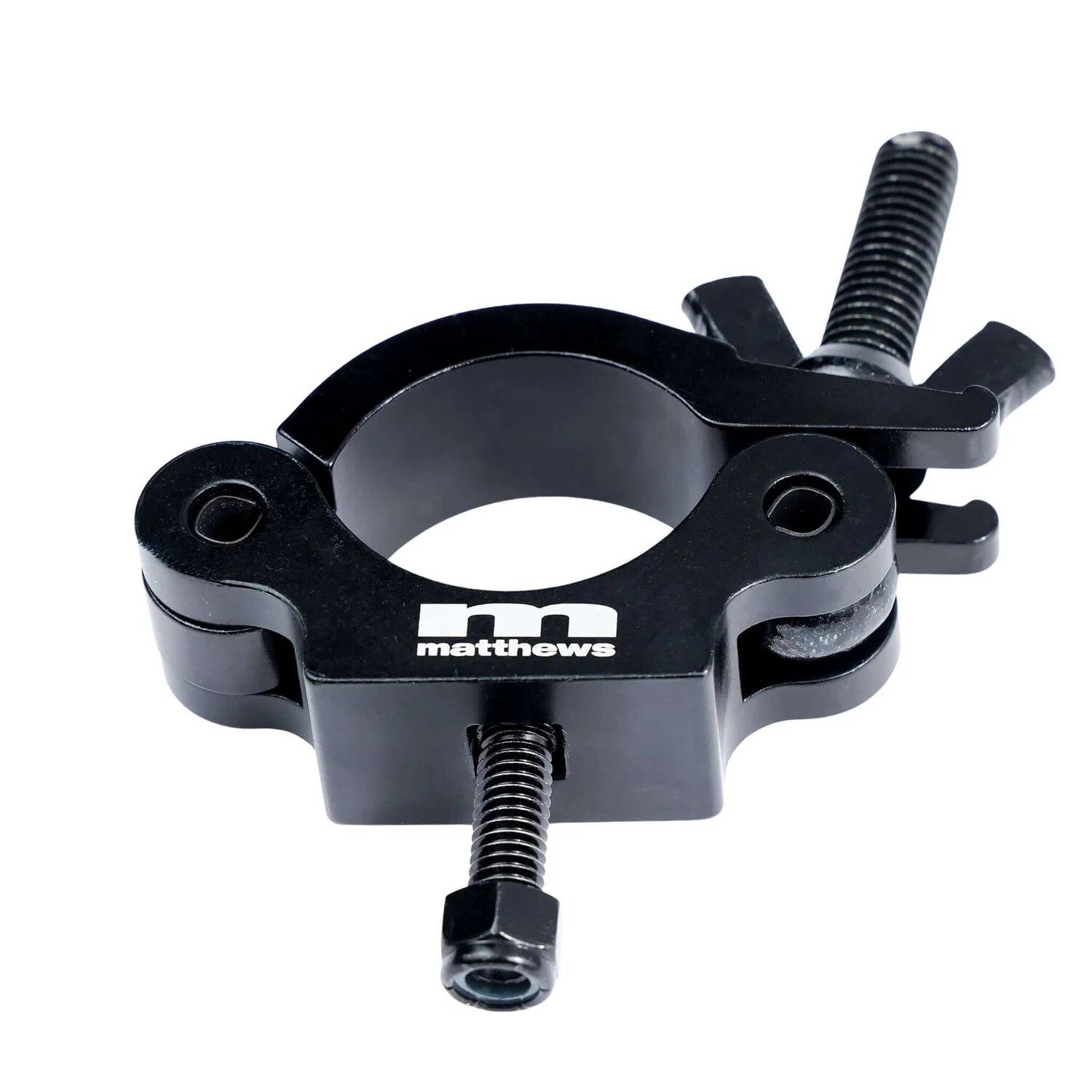

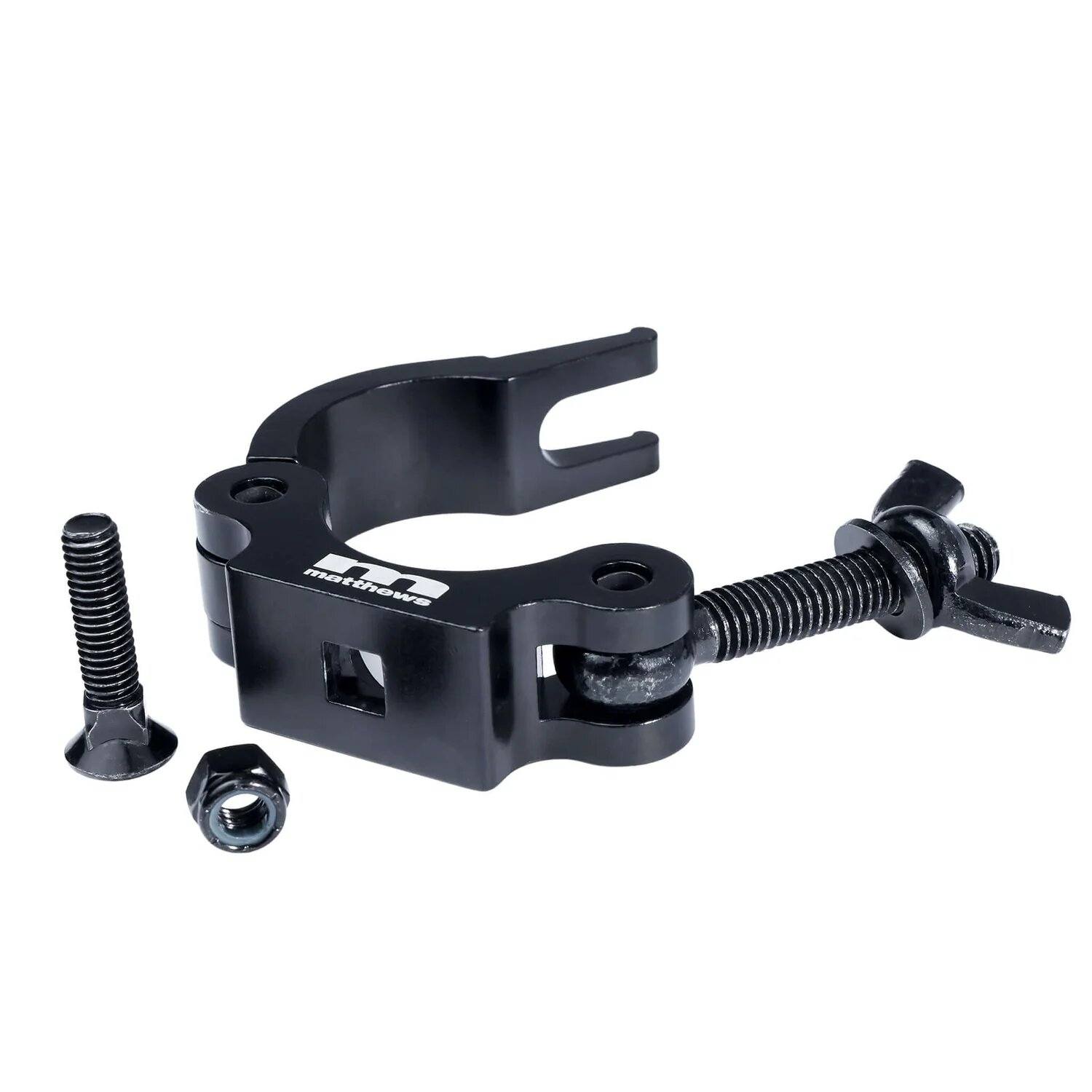

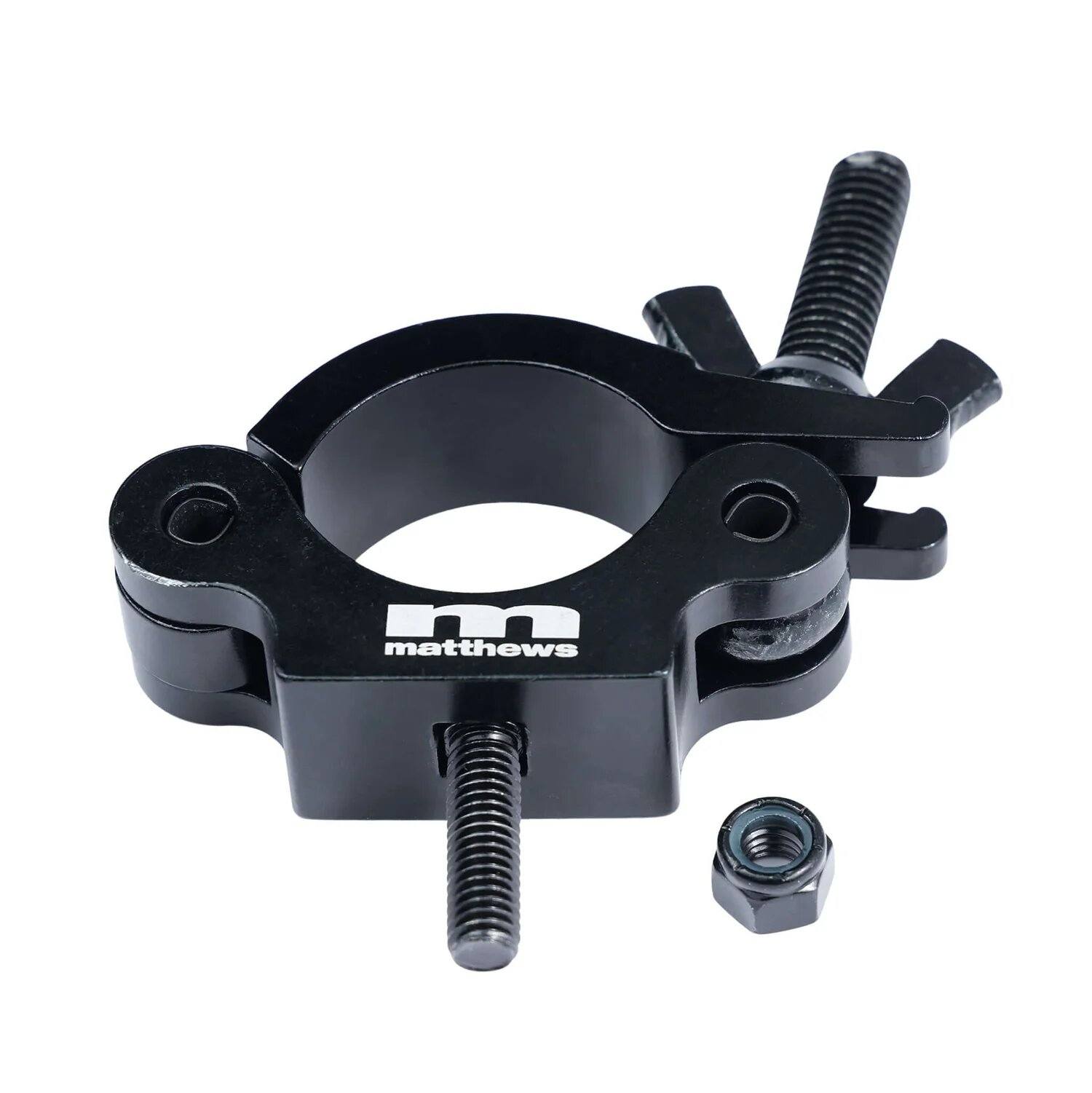

Matthews 3/8in Bolt Aluminum Grid Clamp

About: Matthews 3/8in Bolt Aluminum Grid Clamp

Matthews Studio Equipment is proud to introduce its first Aluminum Grid Clamp collection, engineered for the demanding environments of live production, cinema, and television. These lightweight aluminum clamps make rigging faster and logistics easier without compromising on the legendary strength and reliability that professionals have trusted from Matthews Grid Clamps for decades.

Available in four versatile configurations, the collection supports everything from hanging par cans and building pipe grids to complex multi-angle rigging setups. A standout innovation is the Baby Pin model, which is the only aluminum grid clamp on the market to feature a steel baby pin — engineered to resist crushing where all-aluminum designs fail. All clamps mount to 1.5" (38mm) to 2" (51mm) OD pipe and feature a professional black anodized finish with the iconic Matthews ‘m’ logo.

• Lightweight aluminum construction
• Impressive safe working loads: 500 kg (1,100 lbs) for Right Angle and Swivel clamps; 300 kg (660 lbs) for Single clamps
• Four versatile configurations: standard 3/8" bolt, baby pin with 1/4"-20 thread, fixed right angle, and adjustable swivel
• Industry first: steel baby pin resists crushing under load, solving a critical engineering problem
• CE / TUV certified for professional and touring use
• Wingnut mounting for secure, tool-friendly installation
• Compatible with Patriot Wrench
• Mounts to 1.5" (38mm) to 2" (51mm) OD pipe
• Black anodized finish with distinctive Matthews ‘m’ logo
• Ideal for live production, cinema, and television – permanent installs or touring

Matthews Exclusive - Steel Baby Pin in an Aluminum Grid Clamp

Under repeated load cycles or overtightening, aluminum pins can deform, creating a safety risk and shortening the lifespan of the clamp.

Matthews engineers solved this by fitting a hardened steel 5/8" baby pin into the aluminum body. You get the weight savings of aluminum everywhere it makes sense, and the crush resistance of steel exactly where it matters. The pin also features a safety hole, knurled undercut, and 1/4"-20 female thread — all in a package that no other manufacturer currently offers.

Specifications

• Material: Aluminum
• Finish: Black anodize
• Pipe Capacity: 1.5" (38mm) to 2" (51mm) OD
• Mounting: Wingnuts
• Standard Bolt: 3/8"
• Baby Pin: 5/8" with 1/4"-20 female thread
• Safe Working Load (SWL)
  • Right Angle & Swivel: 500 kg (1,100 lbs)

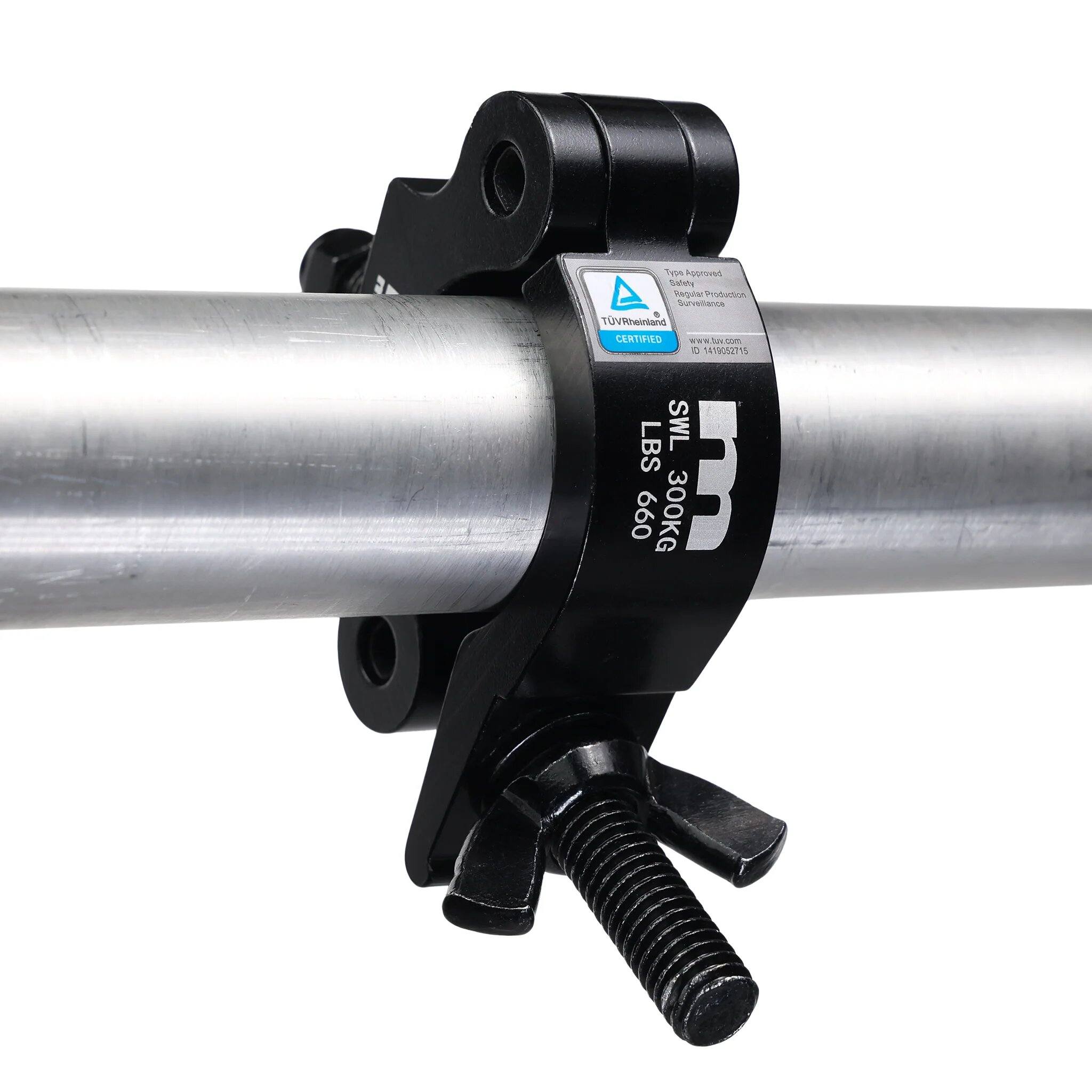

  • Single & Baby Pin: 300 kg (660 lbs)
• 3/8"-16 Clamp
  • Dimensions: 3.71" x 1.2" x 4.82" (9.4 x 3.0 x 12.2 cm)
  • Weight: 1.08 lbs (0.49 kg)
• Baby Pin Clamp
  • Dimensions: 3.17" x 1.2" x 7.21" (8.1 x 3.0 x 18.3 cm)
  • Weight: 1.38 lbs (0.63 kg)
• Swivel Clamp
  • Dimensions: 3.71" x 2" x 8.04" (9.4 x 5.1 x 20.4 cm)
  • Weight: 2.09 lbs (0.95 kg)
• Right Angle Clam
  • Dimensions: 3.71" x 3.71" x 8.03" (9.4 x 9.4 x 20.4 cm)
  • Weight: 2.09 lbs (0.95 kg)
• Compatible Tool: Patriot Wrench
• Certification: CE / TUV Certified
