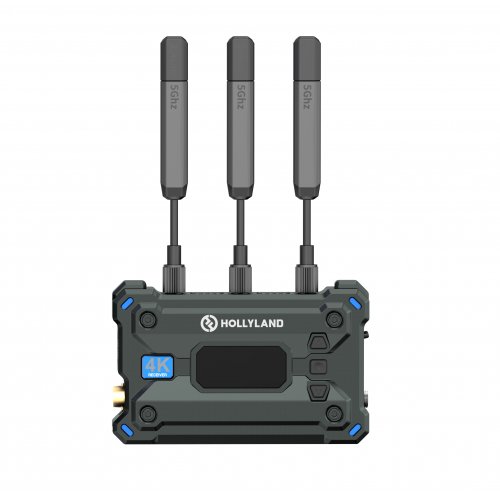

Hollyland Pyro S Wireless Video Receiver

About: Hollyland Pyro S Wireless Video Receiver

Pyro S is a groundbreaking addition to the Hollyland Pyro Series lineup, which redefines wireless video transmission. Pyro S supports both HDMI and SDI input/output and can transmit to up to four receivers simultaneously, with a range of up to 1,300ft (400m) and minimal latency of just 50ms. Pyro S uses advanced Auto Dual-Band Hopping (ADH) technology to ensure reliable transmission and features selectable modes for your real-world shooting needs. Lighter and more durable than traditional models, Pyro S's magnesium alloy shell makes it easier to carry and handle. It's ideal for multi-user monitoring in dynamic shooting scenarios, such as film production, live events, and ENG/EFP applications.

Specifications (Receiver)

• ​Port
  • DC Input: 2.0mm Core Socket
  • HDMI Output: HDMI 1.4b
  • SDI Output: 3G SDI
  • USB-C: USB 2.0 OTG
  • Antenna: SMA Male
• Power Supply
  • Battery Voltage Range: 6.8 – 8.4V
  • DC Voltage Range: 6 – 16V
• Power Consumption - < 8W
• Net Weight - 207g
• Dimensions (LxWxH) - 112 × 71.2 × 34.1mm (4.4 × 2.8 × 1.3in.)
• Input/Output Format
  • HDMI Output
    • 720p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 1080p50/59.94/60
    • 3840*2160 30/25/24/29.97/23.98
  • SDI Output
    • 1080p50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98/24/25/29.97/30
    • 720p50/59.94/60
    • 1080p23.98/24
    • 1080i50/59.94/60
• Operating Frequency
  • 5 GHz Frequency Band
    • 5.150 – 5.250 GHz
    • 5.250 – 5.350 GHz
    • 5.470 – 5.725 GHz
    • 5.725 – 5.850 GHz
  • 2.4 GHz Frequency Band
    • 2.412 – 2.484 GHz
• Transmit Power - /
• Receiver Sensitivity - -85 dBm (Broadcast: -80 dBm)
• Latency - as low as 50ms
• Port
  • DC Input: 2.0mm Core Socket
  • HDMI Input: HDMI 1.4b
  • SDI Input: 3G SDI
  • USB-C: USB 2.0 OTG
  • Antenna: SMA Male
• Bandwidth - 20 MHz (Broadcast: 40 MHz)
• Temperature
  • -10 – 45℃ (working)
  • -40 – 60℃ (storage)

What's in the Box

• 1x Pyro S Wireless Video Transmitter
• 3x Paddle Antenna (2.4 GHz & 5 GHz)
• 1x USB-C OTG Adapter
• 1x User Manual
• 1x Warranty Card
• 1x Packing List Card
• 1x Hollyland Ecosystem Leaflet
• 1x 12V/2A DC Power Adapter
