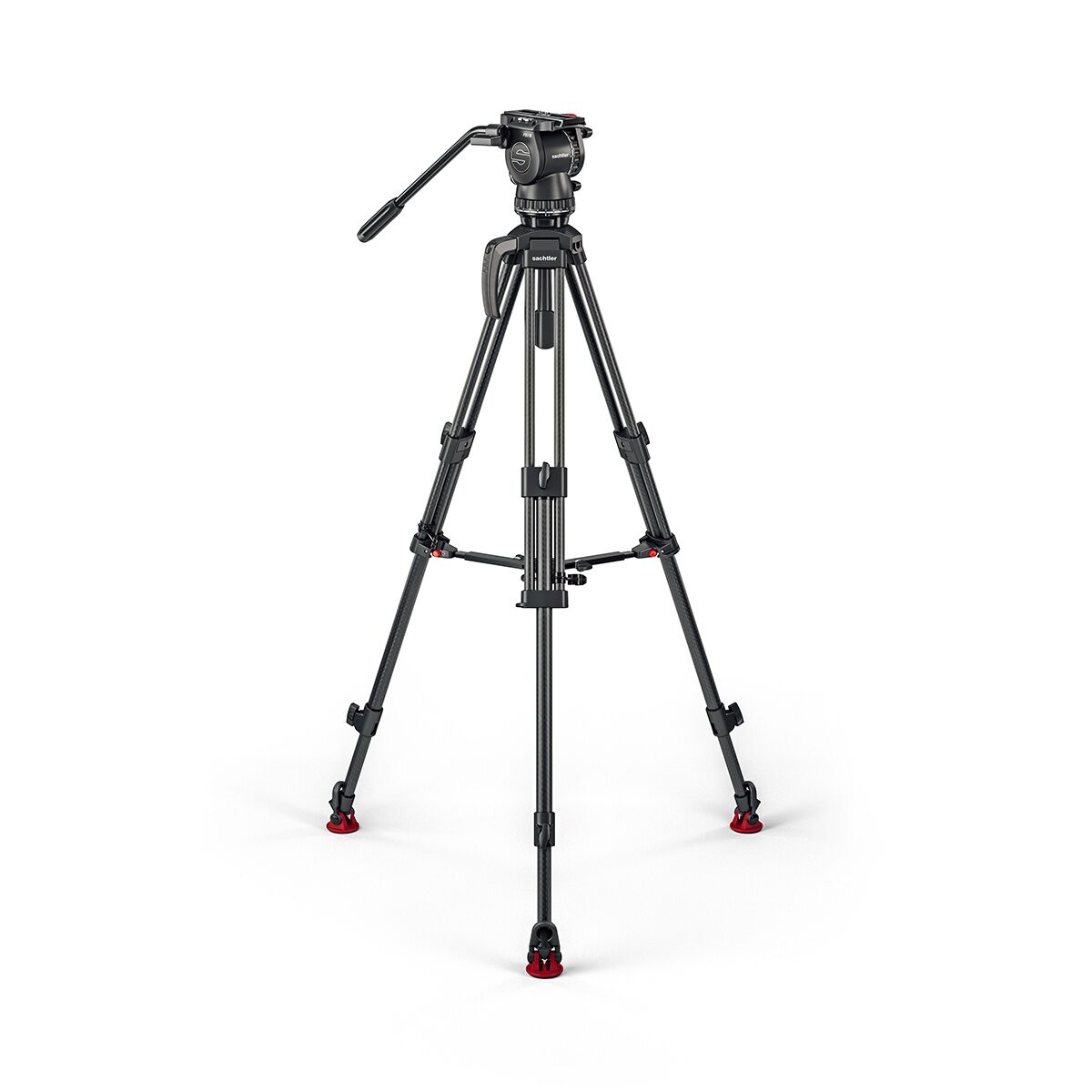

Sachtler System FSB 8 75/2 CF MS Mk II

About: Sachtler System FSB 8 75/2 CF MS Mk II

Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.

• FSB 8 system with 2-stage carbon fibre tripod
• Smooth operation -­ Create precision pans with smooth starts and soft stops
• Finely balanced – Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg
• Always on the level – Innovative illuminated PrismBubble visible from any height – day or night
• Built for endurance – Engineered to the highest standards with tough materials and precision components
• Mid-level spreader, carry handle and padded bag included

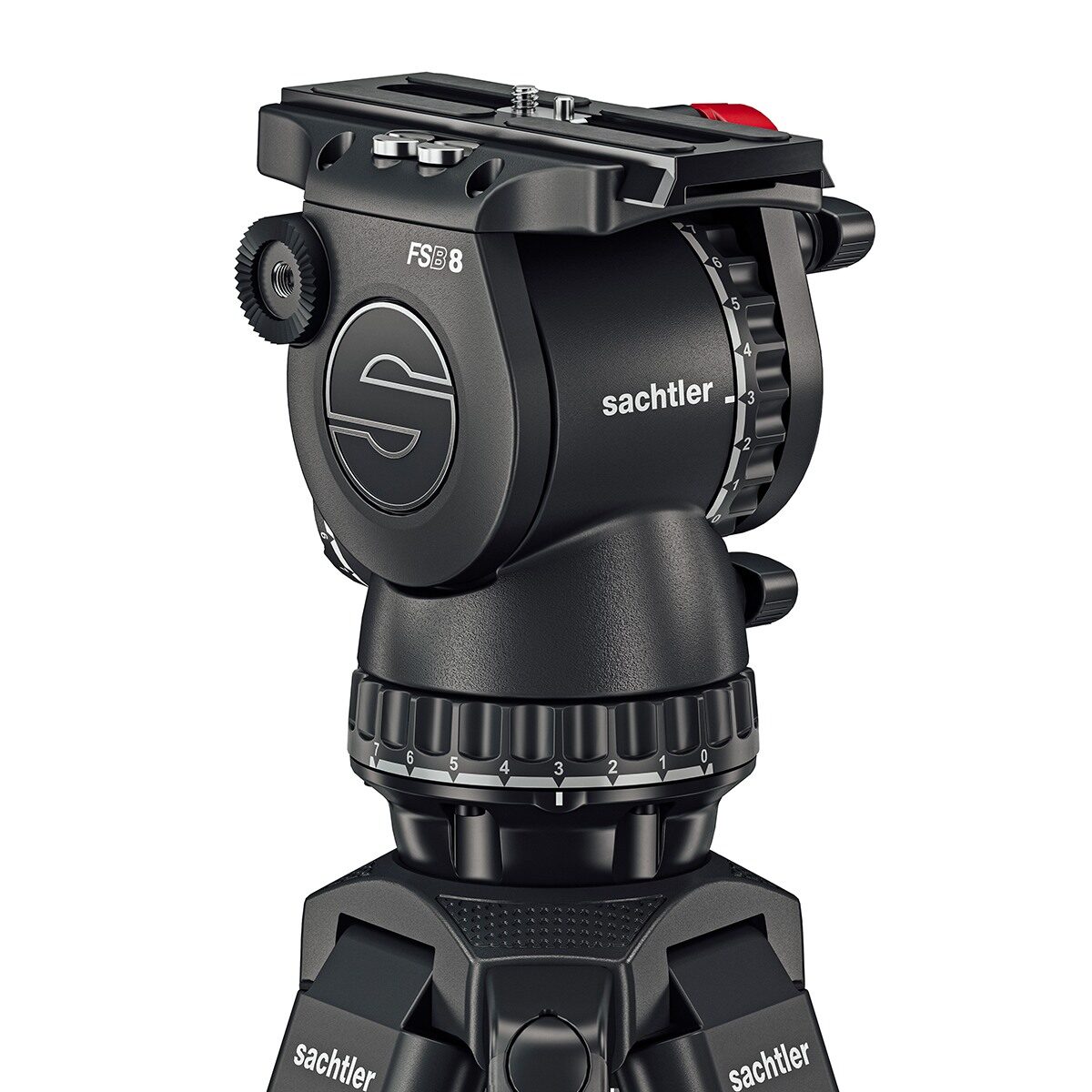

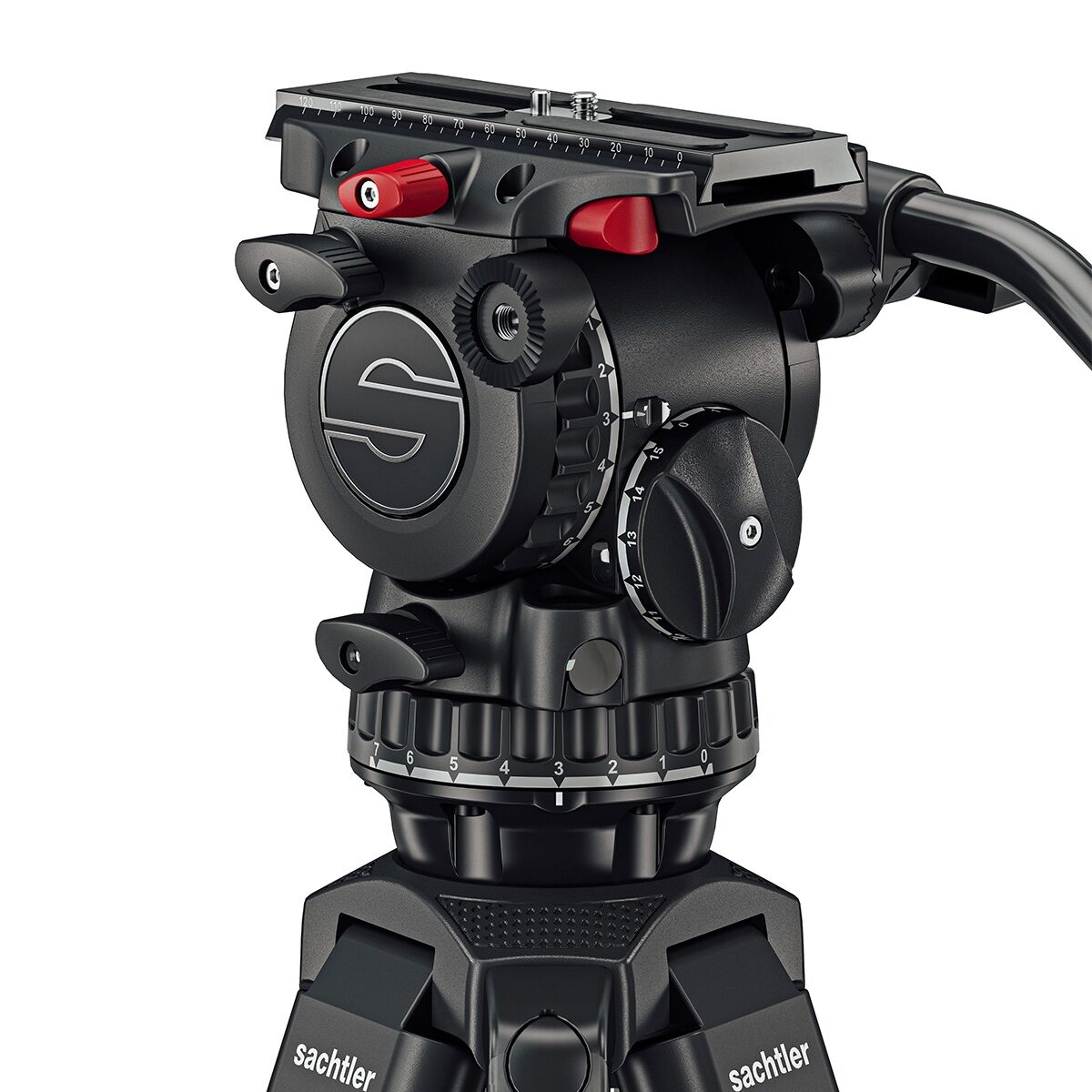

The FSB 8 features Speedbalance technology to finely balance any camera payload from 0kg up to 12kg (26.5lbs). The snap and go side loading mechanism with a sliding range of 120mm (4.7in) makes mounting and positioning accessorised cameras simple. An illuminated PrismBubble is visible from any height – day or night – to help ensure your setup is level.

Create precision pans with smooth starts and soft stops. Patented Sachtler drag always gives you subtle and smooth movement. Seven horizontal and vertical drag settings help you to tune the drag to your payload.

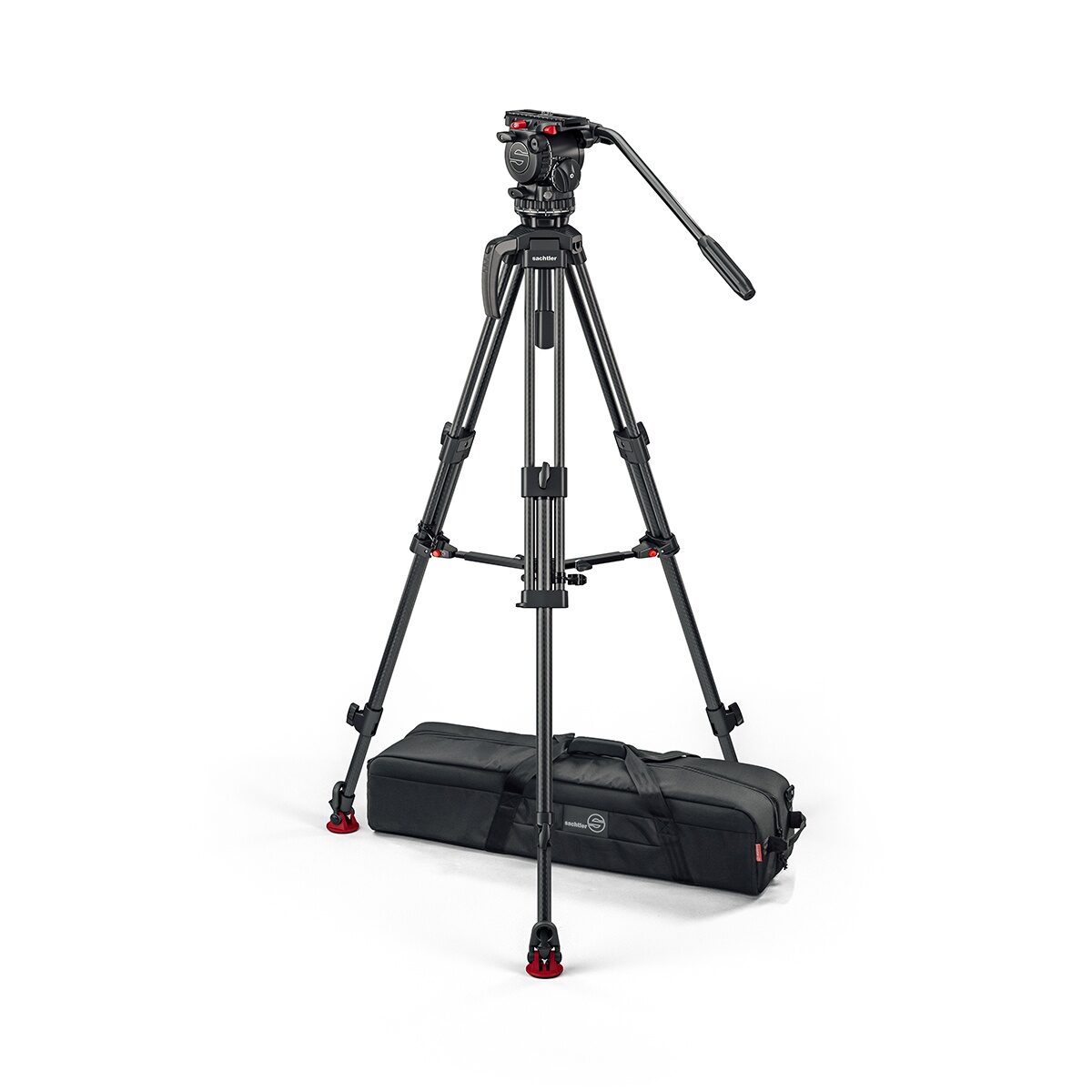

The System includes an ultra-lightweight 2-stage carbon fibre 75mm tripod that keeps the weight to a minimum without sacrificing strength. With three 3/8” accessory mounting points on the tripod bowl you can add extra accessories like a Magic Arm and attach the included carry handle to help move the system around one-handed. The detachable mid-level spreader provides stability even on rough ground, and a padded bag is included for transportation.

Engineered to the highest standards with tough materials and precision components, FSB is built for endurance. With no variation in performance in the widest range of temperatures and environments, FSB is the first choice for busy operators.

Specifications

• Bowl Size - 75 mm with integrated flat base
• Payload - 0 lb to 26.46 lb
• Counterbalance - 15 + 0 counterbalance steps
• Drag - 7 + 0 drag settings
• Weight - 11.02 lb
• Material - Carbon Fibre
• Tripod Stages - 2
• Pan Bar Count - 1
• Sliding Range - 4.72 in
• Tilt Range - 90° to -70°
• Temperature Range - -40 °F to 140 °F
• Transport Length - 34.65 in
• Height - 31.89 in to 67.32 in
• Pan Bar Type - pan bar DV
• Level Bubble - Yes, Prism Bubble
• Camera Plate - Sideload

What's in the Box

• FSB 8 Mk II
• Tripod 75/2 CF Mk II
• Mid-level spreader flowtech 75
• Rubber Feet 75
• Carry handle
• Padded bag 75
