Film Devices 145mm Vibration Isolator Kit with Mounting Platform
Model: VI-145-K
About: Film Devices 145mm Vibration Isolator Kit with Mounting Platform
The 145 mm Vibration Isolator is a load adjustable isolation system designed to be used with a gimbal which dampens camera vibration when shooting from moving vehicles. Includes an additional plate which transform the Isolator into a Camera Mounting Platform.
The cable tie-down blocks are removable to change capacity and for finer adjustments, the cables themselves can be removed. This isolator works well with most gimbals and has a total load capacity up to 18 lbs. Holding force with all 4 magnets up to 280 lbs.

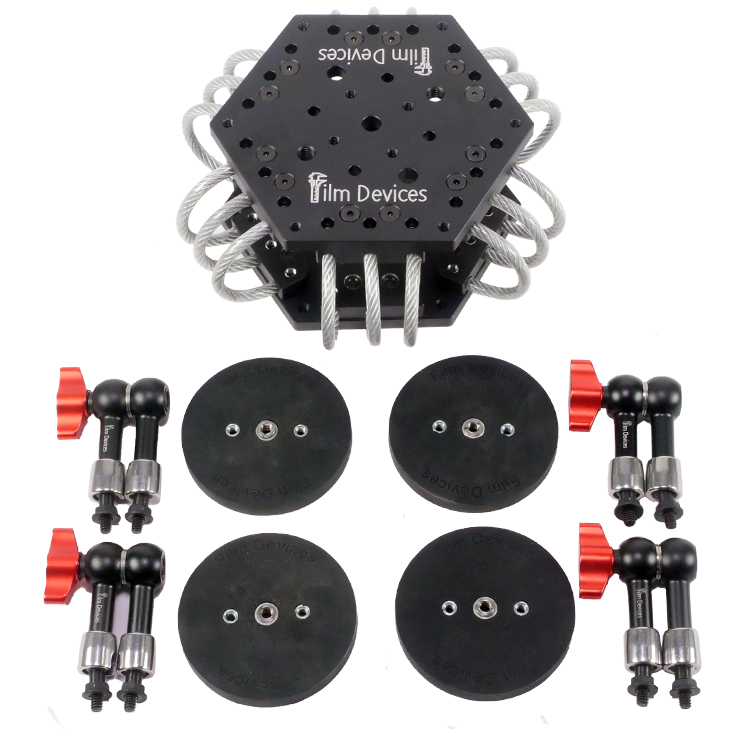

CONTENTS:

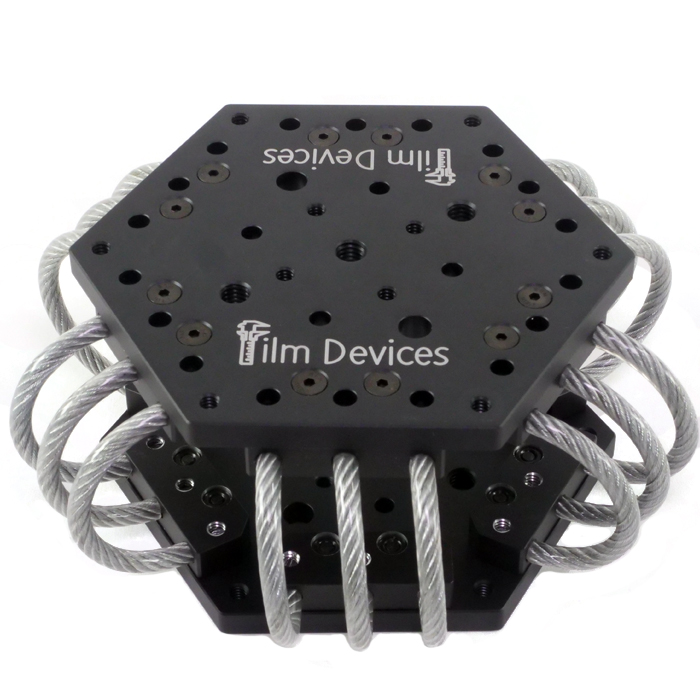

- 1x 145 mm Vibration Isolator: Contains a Variety of 1/4” and 3/8“ Threaded and Non-Threaded Holes. Center Hole on one side is 10 mm Non-Threaded and the other is 3/8” Threaded
- 1x 145 mm Platform Mount: Contains a Variety of 1/4” and 3/8“ Threaded and Non-Threaded Holes
- 4x 88 mm Rubber Coated Magnets: Each containing One (1) 3/8” Thread & Two (2) 5 mm Threads. Up To 70 lb. Force per Magnet
- 4x 7” Articulating Arms
- 1x 7/16” Wrench w/ Misc. Nuts & Washers

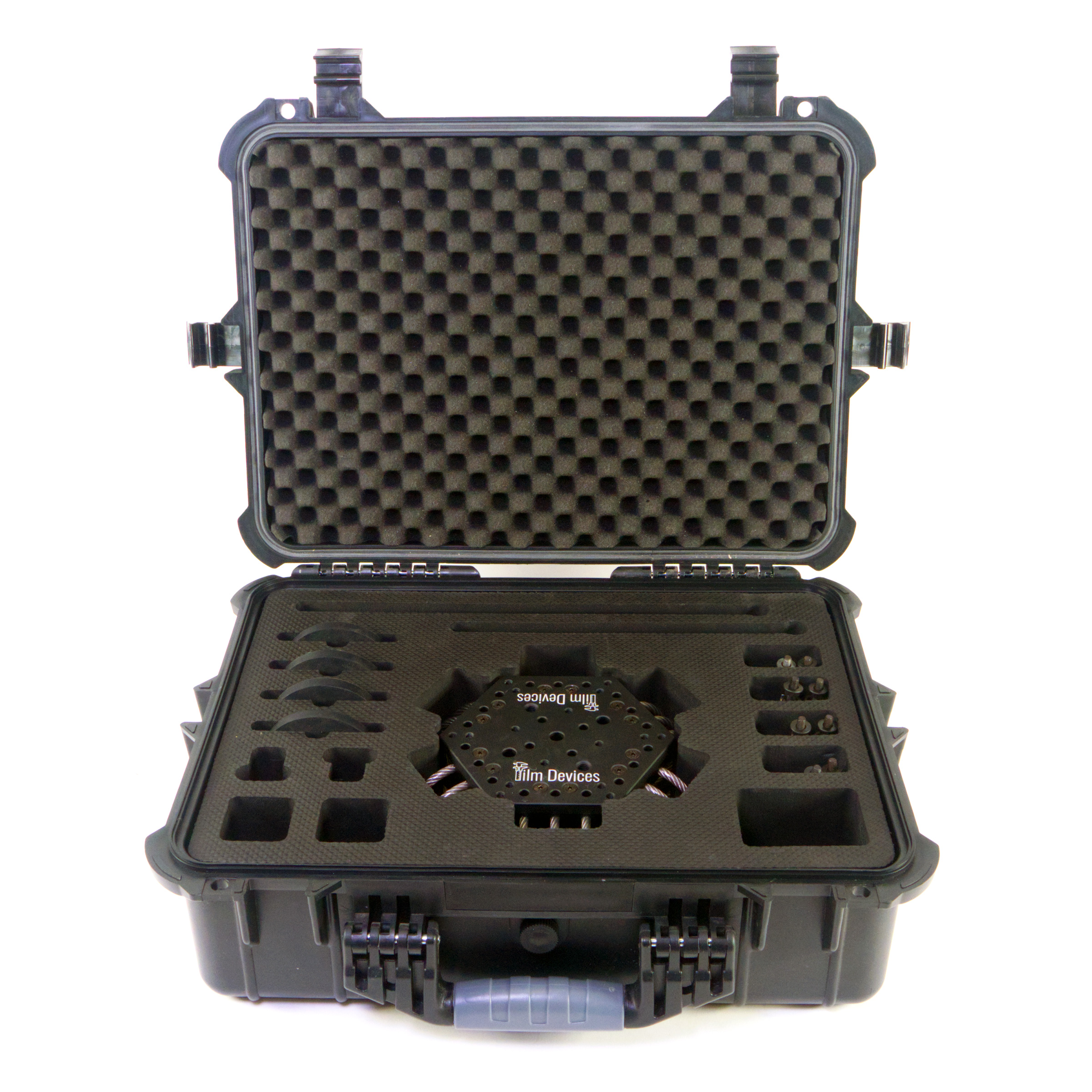

- 1x Industrial Grade Case w/ High-Density Foam Insert
UPC: 850010714134
