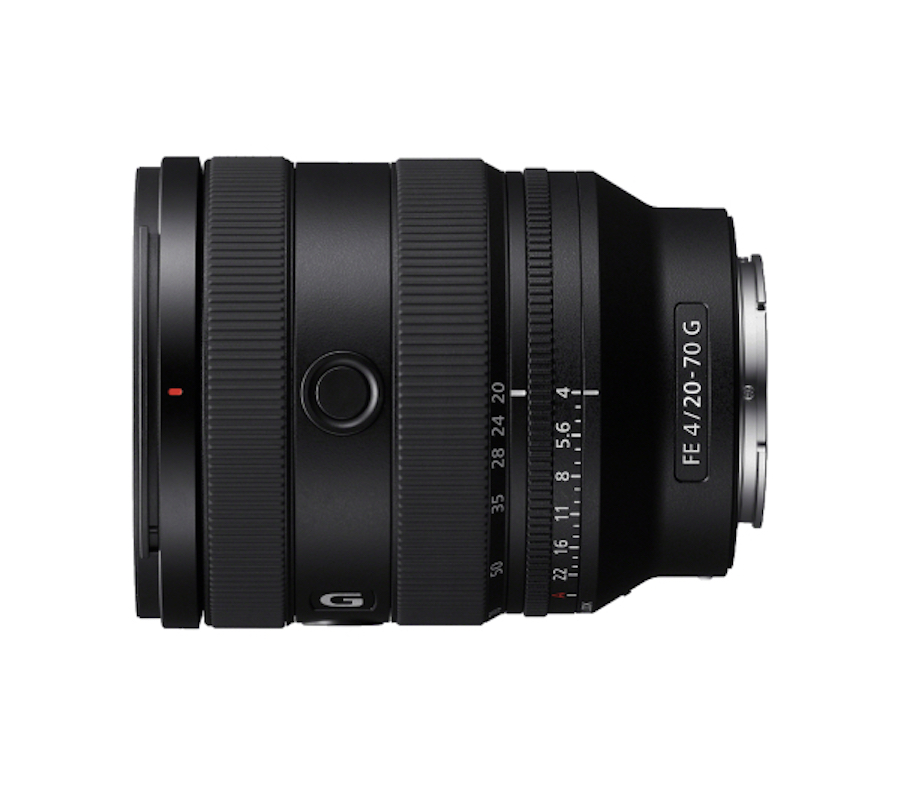

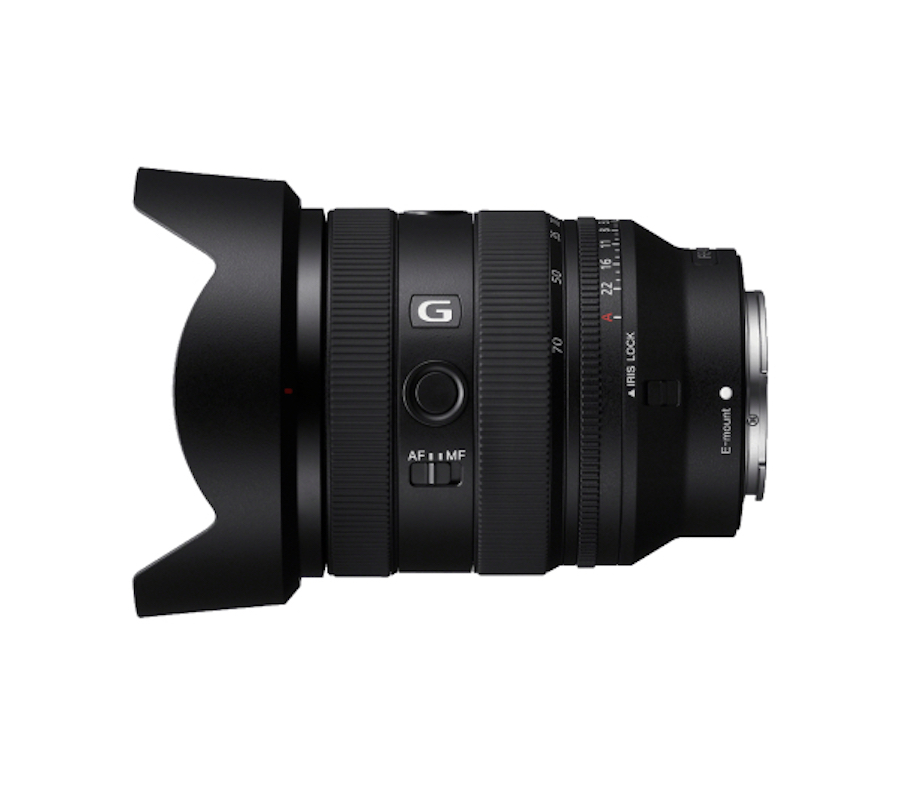

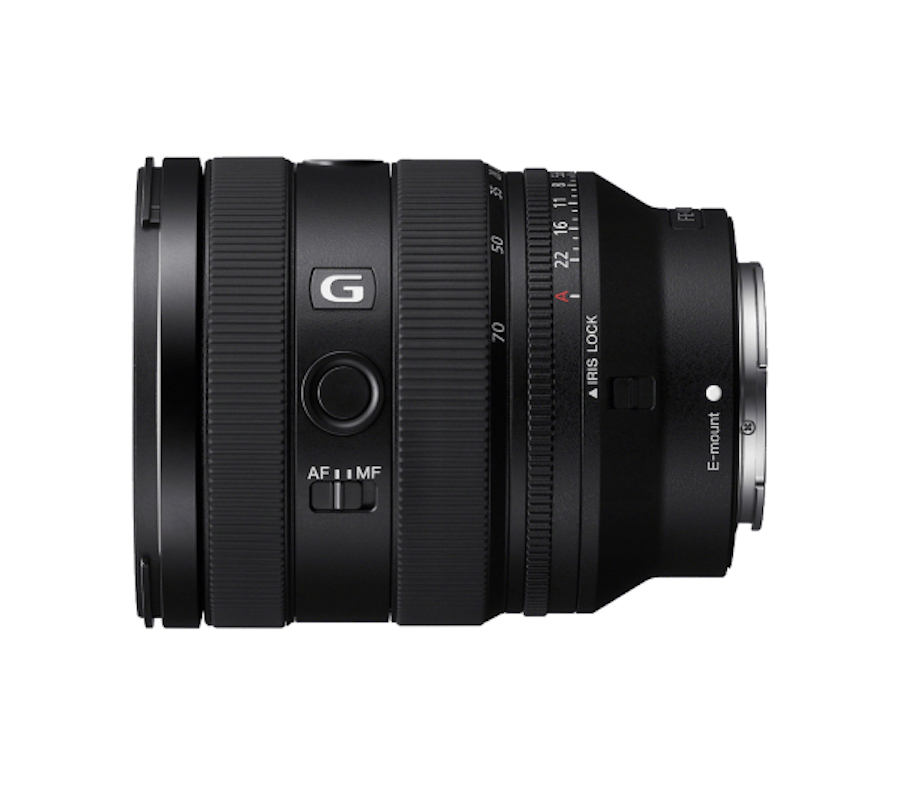

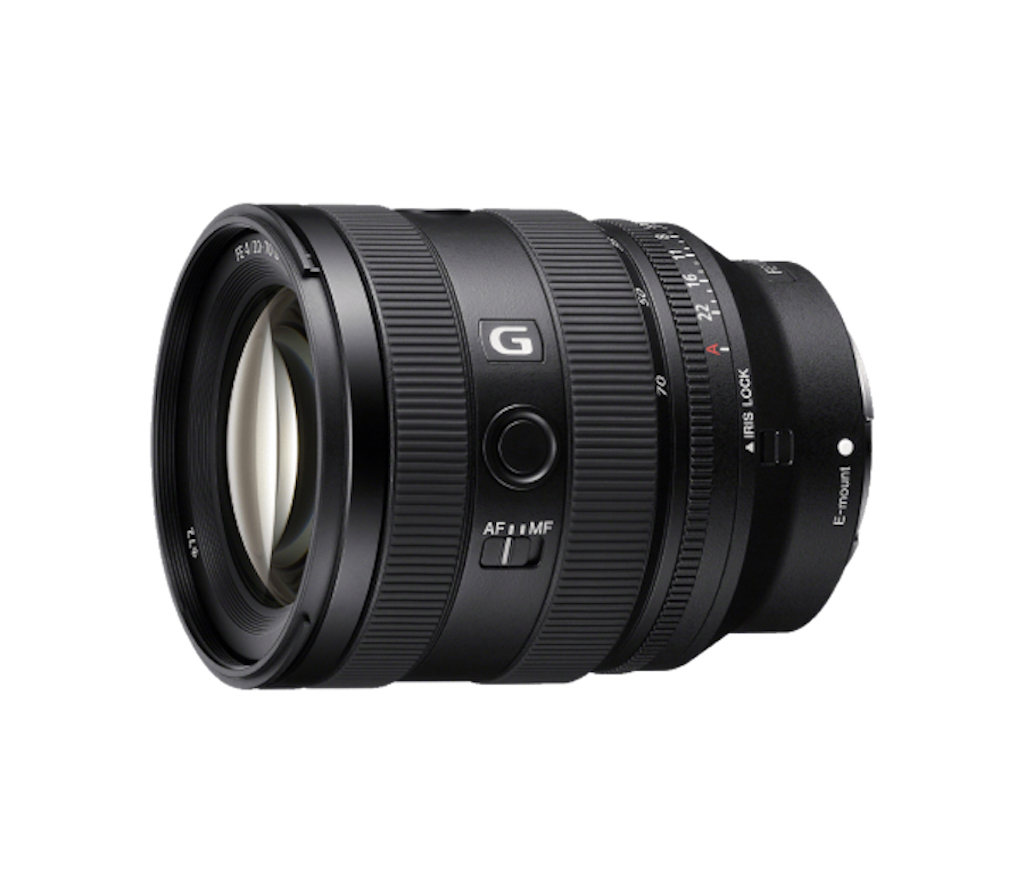

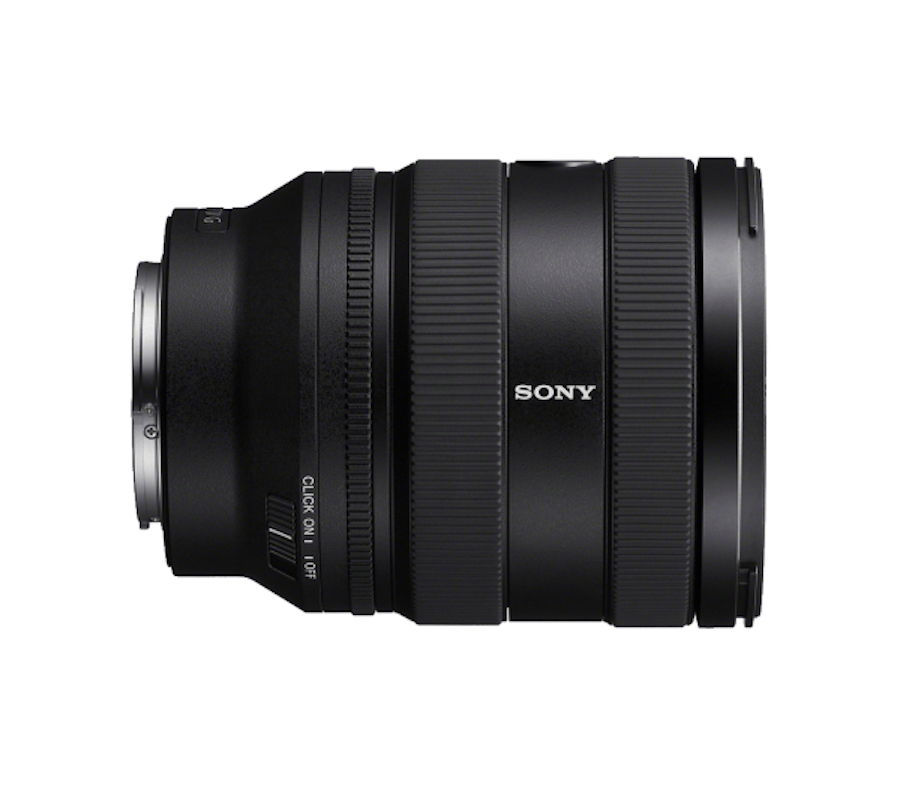

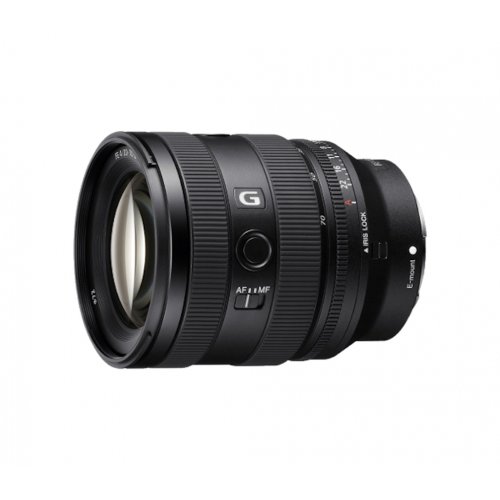

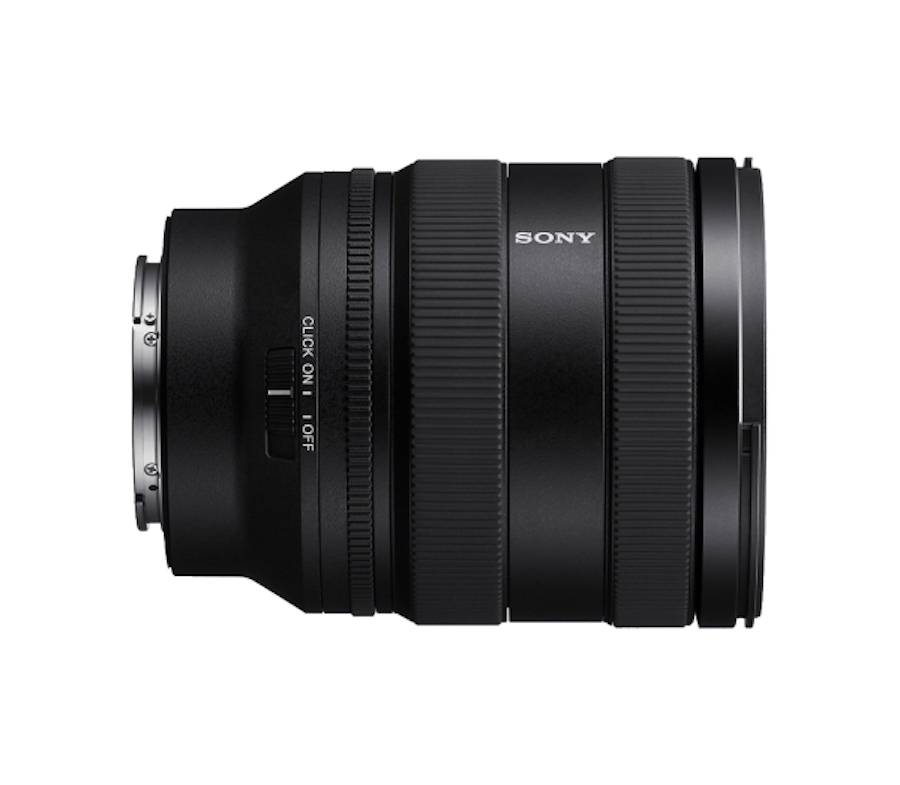

Sony FE 20-70mm F4 G Compact, Lightweight Standard Zoom Lens

About: Sony FE 20-70mm F4 G Compact, Lightweight Standard Zoom Lens

Compact, lightweight standard zoom covers ultra-wide 20 mm to 70 mm - Redefines the standard zoom category with a focal length range that extends from ultra-wide 20 mm to 70 mm in a remarkably compact, lightweight full-frame lens with maximum aperture constant at F4.

Features

• Ultra-wide 20 mm to mid-tele 70 mm zoom range, for a range of movie and still subjects.
• Outstanding G Lens image quality with high resolution at all focal lengths
• Peak performance AF with two XD Linear Motors for precise, fast, quiet focus drive
• Refined movie imagery with minimized focus breathing and focus/axial shift while zooming
• Compact, lightweight design for superb image quality and versatility in any situation
• Excellent close-up performance of 9.8” (25cm) throughout the zoom range (manual focus)
• Constant F4 maximum aperture throughout zoom range for greater flexibility
• Circular aperture with 9-blade iris for naturally rendered bokeh
• Active Mode image stabilization highly effective at ultra-wide 20 mm
• Dedicated aperture ring, click/de-click and iris lock switches
• Customizable focus hold buttons provided in two locations for easy access and control
• ED glass lens elements correct spherical and chromatic aberrations
• Linear Response MF for precise, repeatable manual focus control
• Instant auto/manual focus selection via AF/MF switch
• Front fluorine coating repels fingerprints, dust, water and oil
• Dust and moisture resistant design for reliability in challenging conditions
• Front 72mm threaded for screw-on filters
• Petal shaped, bayonet mount lens hood ALC-SH174 supplied

From ultra-wide 20 mm to 70 mm

With an unprecedented ultra-wide 20 mm to short-telephoto 70 mm zoom range, this versatile lens is an excellent choice for a wide range of movie and still subjects. The ultra-wide 20 mm end of the zoom range maintains a wide angle of view when shooting movies with a 16:9 or 2.35:1 aspect ratio that reduces view angle.

Outstanding G Lens image quality

With two AA (advanced aspherical) elements, one aspherical element, three ED (Extra-low Dispersion) glass elements, and one ED aspherical element, this state-of-the-art lens design corrects both chromatic and spherical aberration for high optical performance right out to the image edges, from ultra-wide 20 mm to 70 mm.

Excellent close-up performance

AA (advanced aspherical) elements help to achieve a minimum focus distance of 0.3 metres (wide) to 0.25 metres (telephoto) when using AF, and 0.25 throughout the zoom range when focusing manually. Maximum magnification is 0.39x for detailed close-ups. Close focus makes it easy to manoeuvre around small subjects to find the idea angle.

Constant F4 maximum aperture

A constant F4 maximum aperture offers greater flexibility in choosing apertures at any focal length. The selected aperture remains constant throughout the zoom range. There is no need to use extreme ISO settings at the telephoto end of the range, and high shutter speeds can be used as needed to achieve the desired effect.

Compact, lightweight, mobile design

This compact, lightweight lens combines state-of-the-art optical design with Sony’s high-thrust XD (extreme dynamic) Linear Motor technology. Used with a compact mirrorless body, it can deliver superb image quality in any situation at focal lengths from ultra-wide to short telephoto. A great choice for shooting with minimum gear.

Peak AF performance for stills and movies

Two XD (extreme dynamic) Linear Motors achieve fast, quiet, smooth focus drive with up to 60% higher AF speed and up to two times better performance while tracking for reliable, precise tracking. Moving subjects are reliably tracked when shooting continuous stills at up to 30fps, and high-frame-rate movie capture is smooth.

Refined movie imagery

Advanced technology reduces focus breathing as well as focus and axial shift when zooming so that distracting image shifts are minimized. XD Linear Motors and a newly developed aperture unit dramatically reduce noise and vibration when shooting movies. The breathing compensation function provided in compatible α series bodies is also supported.

Active Mode supports ultra-wide images

Active Mode image stabilization in α series cameras works effectively at the ultra-wide 20 mm end of the zoom range, providing excellent image stabilization performance while maintaining a wide angle of view. This can be particularly useful for shooting smooth, stable handheld footage while walking.

Aperture ring with click ON/OFF switch

An independent aperture ring offers direct, intuitive aperture control. A click ON/OFF switch allows the aperture click stops to be turned off when smooth, seamless operation is required.

Focus hold buttons and focus mode switch

Customizable focus hold buttons are provided in two locations for easy access and control. Other functions can be assigned to the focus hold button from the body menus to match shooting needs. A focus mode switch makes it possible to switch between autofocus and manual focus on the fly, to quickly adapt to changing shooting conditions.

Dust and moisture resistant design

This lens features a dust and moisture resistant design and a fluorine-coated front element that repels contaminants. All controls, including customizable focus hold buttons and independent rings for focus, zoom, and aperture are designed for smooth, versatile control when shooting stills or movies. A focus mode switch makes it easy to switch between autofocus and manual focus on the fly.

Fluorine front element coating

The front lens element features a fluorine coating that repels fingerprints, dust, water, oil, and other contaminants, while making it easier to wipe off any contaminants that do become attached to the lens surface.​

Specifications

• Lens mount -  Sony E-mount
• Format -  35mm full frame
• Focal-Length (mm) -  20-70
• 35mm equivalent focal-length (APS-C) (mm) -  30-105
• Lens construction (groups-elements) -  13-16
• Angle of view (35mm) -  94°-34°
• Angle of view (APS-C) -  70°-23°
  • With interchangeable-lens digital camera incorporating APS-C type image sensors.
• Maximum aperture (F) -  4
• Minimum Aperture (F) -  22
• Number of aperture blade -  9
• Circular Aperture -  Yes
• Minimum focus distance
  • (m) -  0.3(W)-0.25(T) (AF) 0.25 (MF)
  • (ft) -  0.99(W)-0.82(T) (AF) 0.82 (MF)
• Maximum Magnification ratio (x) -  0,39
• Filter Diameter (mm) -  72
• Image stabilization (SteadyShot) -  - (body-integrated)
• Zoom system -  Manual
• Teleconverter compatibility (x1.4) -  Incompatible
• Teleconverter compatibility (x2.0) -  Incompatible
• Hood Type -  Petal shape, bayonet type
• Fluorine coating -  Yes
• Mount rubber ring -  Yes
• Dimensions dia. x length -  3.01 x 4 in (78.7 x 99 mm)
• Weight (approx.) -  17.3 oz (488 g)

What's in the Box

• FE 20-70 mm F4 G Lens
• Lens Hood : ALC-SH174
• Lens front cap: ALC-F72S
• Lens rear cap: ALC-R1EM
• Soft case
