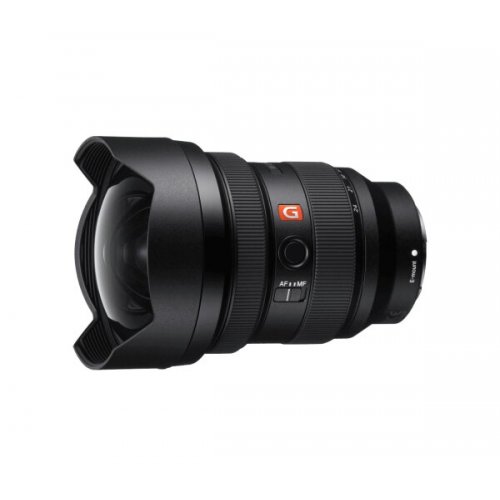

Sony FE 12-24mm F2.8 GM Full-Frame Ultra-Wide Zoom G Master Lens

About: Sony FE 12-24mm F2.8 GM Full-Frame Ultra-Wide Zoom G Master Lens

At the 12-mm end of its range, this FE 12–24 mm F2.8 GM zoom lens offers an ultra-wide angle of view. An innovative optical design works with Sony's advanced XD Linear Motors to deliver outstanding G Master image quality in a lightweight lens that also features fast, precise autofocus, smooth control, and solid reliability.

• World’s widest1 full-frame constant F2.8 at 12-24mm
• F2.8 max aperture provides extraordinary exposure and depth of field
• Spectacular resolution: 3x Extreme Aspheric elements, 1x Aspheric
• 3x ED (Extra-low dispersion) elements suppress chromatic aberrations
• 4x Extreme Dynamic - XD Linear motors for fast, precise autofocus
• Nano AR coating II suppresses reflections, flare and ghosting
• 9-blade circular aperture contributes to gorgeous bokeh
• 11” min. focus distance up to 0.14x magnification for close-up shots
• Dust and moisture resistant for robust reliability
• Compact, lightweight design: ideal for both full-frame and APS-C
• Programmable focus hold button for multiple functions
• Linear Response MF for precise manual focus control
• Instant auto/manual focus selection via AF/MF switch
• Front fluorine coating prevents fingerprints, dust, water and oil
• Rear filter holder expands versatility for sheet type ND filters
• Built for both worlds: Ideal for still and video creators

Ultra-wide F2.8 12–24-mm zoom

The ultra-wide 12-mm angle of view available with this versatile, makes it possible to emphasize distance and create dynamic perspectives that are beyond the scope of the human eye. 12–24-mm zoom with a constant F2.8 maximum aperture is ideal for shooting night scenes, starry skies, and other low-light subjects at low sensitivities without having to use extremely slow shutter speeds.

New optics with the largest XA element

Three XA (extreme aspherical) elements, including the largest ever made for any α lens, combine with one aspherical element in an innovative optical design that achieves stunning G Master resolution throughout the image area.

Minimal aberration enhances sharpness

Two Super ED (Extra-low Dispersion) and three ED glass elements suppress chromatic aberration that can degrade resolution in this type of large-aperture lens, ensuring that color smearing does not occur anywhere in the image area so that maximum sharpness is maintained throughout.

Crisp images in difficult light

A new Nano AR Coating II that can be evenly applied to large lens elements or highly curved element surfaces has been developed to suppress internal reflections that can cause flare and ghosting for clear, crisp imagery. Despite the lens's wide angle of view, Nano AR Coating II maintains high clarity and contrast throughout the entire image, even in difficult light.  ( [A] Conventional coating  [B] Nano AR Coating II  [1] Conventional coating  [2] Nano AR Coating II  [3] Glass  [4] Highly curved glass surface  [5] Reflected light ).

Surprisingly small and lightweight

An innovative optical design with four aspherical elements, including three XA types, plus a mechanical design that features high-performance XD Linear Motors, in a compact 12–24-mm constant F2.8 zoom that weighs only 29.88 ounces. This lens is ideal for landscapes, night scenes, and architecture, while providing extra mobility for active sports shooters who want to use ultra-wide angles.

Gorgeous G Master bokeh

While the extremely high surface precision of the lens's XA elements effectively suppresses onion-ring bokeh, fine tuning of the its spherical aberration characteristics during both design and manufacture, plus a nine-blade circular aperture, contribute to exquisitely smooth, creamy G Master bokeh.

Floating mechanism achieves excellent resolution from infinity to close focus

A floating focus mechanism that divides the lens's focus group into two independently controllable groups is extremely effective in minimizing aberration that varies with focusing distance. Top performance is maintained from infinity to close-up focus, throughout the entire zoom range. The floating mechanism not only contributes to outstanding close-up performance, but also outstanding sharpness with subjects at any distance.

Constant F2.8 maximum aperture for flexible moviemaking

With a constant F2.8 maximum aperture at all focal lengths, aperture does not change while zooming so that exposure, shutter speed, and ISO sensitivity can remain consistent while shooting movies. When used on an APS-C body or with a Super 35 angle of view, the wide end of the zoom range becomes equivalent to 18 mm on a full-frame body, providing a very useful zoom range for moviemaking.

Dust and moisture-resistant design

A dust- and moisture-resistant design provides the reliability needed for outdoor use in challenging conditions.

Fluorine front-element coating

The front lens element features a fluorine coating that repels water, oil, and other contaminants, while making it easier to wipe off any contaminants or fingerprints that do become attached to the lens surface.

Natural, linear manual focus response

Linear Response MF ensures that the focus ring responds directly and linearly to subtle control when focusing manually. Focus ring rotation translates directly to a corresponding change in focus, so control feels immediate and precise.

Fast, precise autofocus and tracking

A total of four XD Linear Motors, two for each of the lens's focus groups, contribute to fast, precise autofocus and tracking that augment the many advantages provided by Sony's native lenses. This advanced system makes full use of the speed potential provided by high-performance camera bodies, making it easier to capture significant moments in the most dynamic sports or other types of action. AF operation is also quiet with minimal vibration.

Rear filter holder

Standard sheet-type ND, color correction, and other filters can be inserted into the lens's rear filter holder for expanded expressive capability. A cutting template for sheet filters is supplied.

Easy manual focus/autofocus switching

A focus mode switch that allows instant switching between auto and manual focus mode can be a great advantage when shooting subjects or situations that require fine manual focus adjustment.

Customizable focus hold button

A conveniently placed focus hold button not only offers easy focus hold control, but can be assigned to a variety of other functions from a menu accessed via the camera body.

Integral lens hood with dedicated lens cap

An integral lens hood effectively blocks off-axis light that can cause flare and ghosting. The supplied lens cap covers the hood, attaching easily and locking securely with the hood at any angle.

Specifications

• Fluorine coating -  Yes
• Mount rubber ring -  Yes
• Maximum aperture (F) -  2.8
• Minimum Aperture (F) -  22
• Maximum Magnification ratio (x) -  0.14
• Dimensions dia. x length (mm) -  97.6 x 137
• Dimensions dia. x length (in.) -  3-7/8 x 5-1/2
• Weight (approx.) (g) -  847
• Weight (approx.) (oz.) -  29.9
• 35mm equivalent focal-length (APS-C) (mm) -  18-36
• Lens construction (groups-elements) -  14-17
• Angle of view (APS-C) With interchangeable-lens digital camera incorporating APS-C type image sensors. -  99°-61°
• Angle of view (35mm) -  122°-84°
• Number of aperture blade -  9
• Circular Aperture -  Yes
• Minimum focus distance (m) -  0.28
• Minimum focus distance (ft) -  0.92
• Image stabilization (SteadyShot) -  - (body-integrated)
• Zoom system -  Manual
• Teleconverter compatibility (x1.4) -  Incompatible
• Teleconverter compatibility (x2.0) -  Incompatible
• Hood Type -  Petal shape, fixed type

What's in the Box

• Lens hood : Integral petal-style (non-removable)
• Lens cap: Supplied Lens rear cap: ALC-R1EM
• Rear Filter Holder: Filter template
• Case: Padded case
