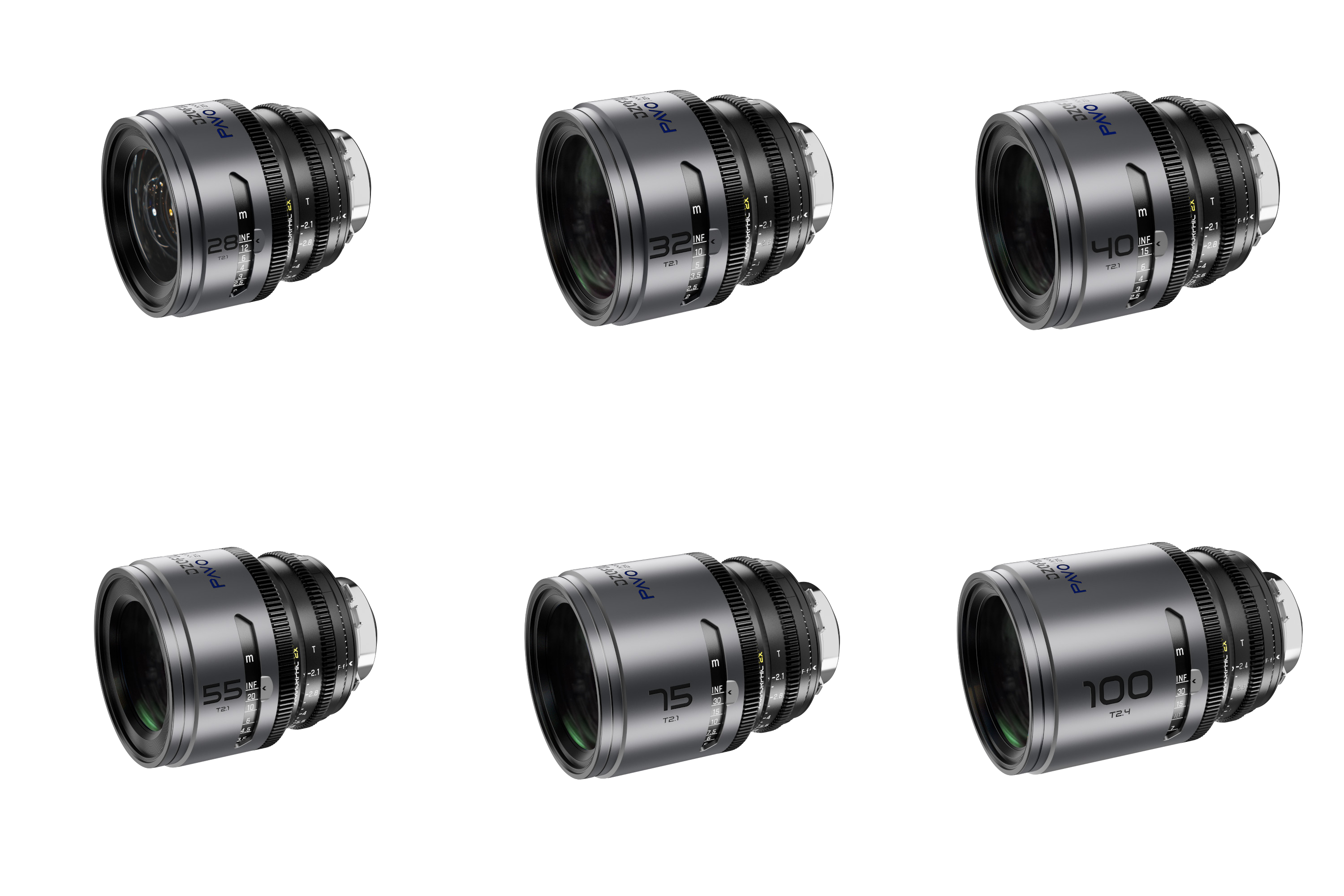

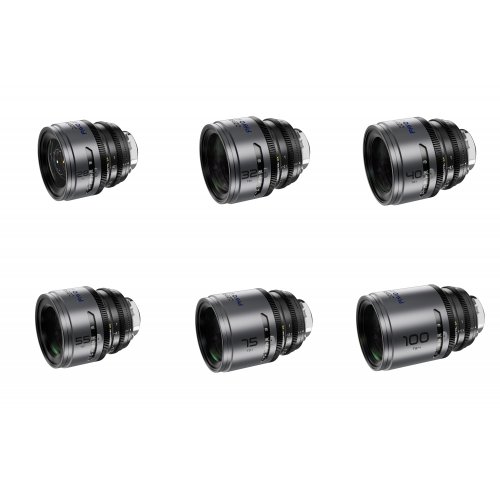

DZOFilm Pavo 2x Anamorphic 6-Lens Kit w/ PL&EF Mounts (Blue Coating)
Model: DZO-PA6PLIB
About: DZOFilm Pavo 2x Anamorphic 6-Lens Kit w/ PL&EF Mounts (Blue Coating)
The entire Pavo lineup features a 16-blade aperture (28mm with 14 blades), effortlessly delivering the classic oval-shaped bokeh of anamorphic imagery. Advanced optical design ensures precise control over chromatic aberration and distortion, guaranteeing sharp and clear resolution from center to corner with vibrant and natural color rendition. The soft elliptical bokeh, along with smooth background blur, adds an artistic touch to the visuals, enhancing their cinematic appeal.
Unparalleled Compact Anamorphic
While providing comprehensive coverage of practical focal lengths, the Pavo series remains lightweight and compact, with weights ranging from 1.2 to 2 kg.
These lenses are compatible with gimbals, steadicams and drones, allowing for a wide range of shooting settings, from handheld to aerial, catering to both indie filmmakers and large-scale productions.
2X Compression Factor for Authentic Anamorphic
The PAVO series comprises 28mm to 180mm focal lengths with a 2X compression ratio. This expansion of the cinematic scope allows for the inclusion of additional details, resulting in a more dramatic depth of field.
It achieves a genuine anamorphic look that immerses viewers in a visually spectacular world, while maintaining a harmonious and unified visual style across the entire series, making it the ideal choice for professional film production.
Futuristic Design, Dual Flare
PAVO offers two different horizontal flare colors, Blue and Neutral, to cater to a wide range of movie genres and visual styles. The dark gray exterior design takes inspiration from the futuristic aesthetics of iconic sci-fi spaceships and blends the essence of modern design into its construction.
The Blue version is adorned with cobalt ink, while the Neutral version is elegantly embellished with vermilion ink.
Superb Visuals for Immersive Brilliance
PAVO provides exceptional resolution with precise control, ensuring negligible breathing effects even at longer focal lengths. The innovative design minimizes chromatic aberration, resulting in sharp, crisp images with accurate color rendering. PAVO provides a smooth transition between in-focus and out-of-focus images with a characteristic anamorphic look.
Versatile Design, Flex Adaptation
PAVO lenses feature a built-in back-focus adjustment, enabling precise adjustments while the lens is mounted, streamlining operational processes. Additionally, these lenses can adapt to full-frame cinema cameras using the Marlin 1.6X Expander, broadening compatibility across various shooting scenarios and meeting the demands of professional film production.
Specifications

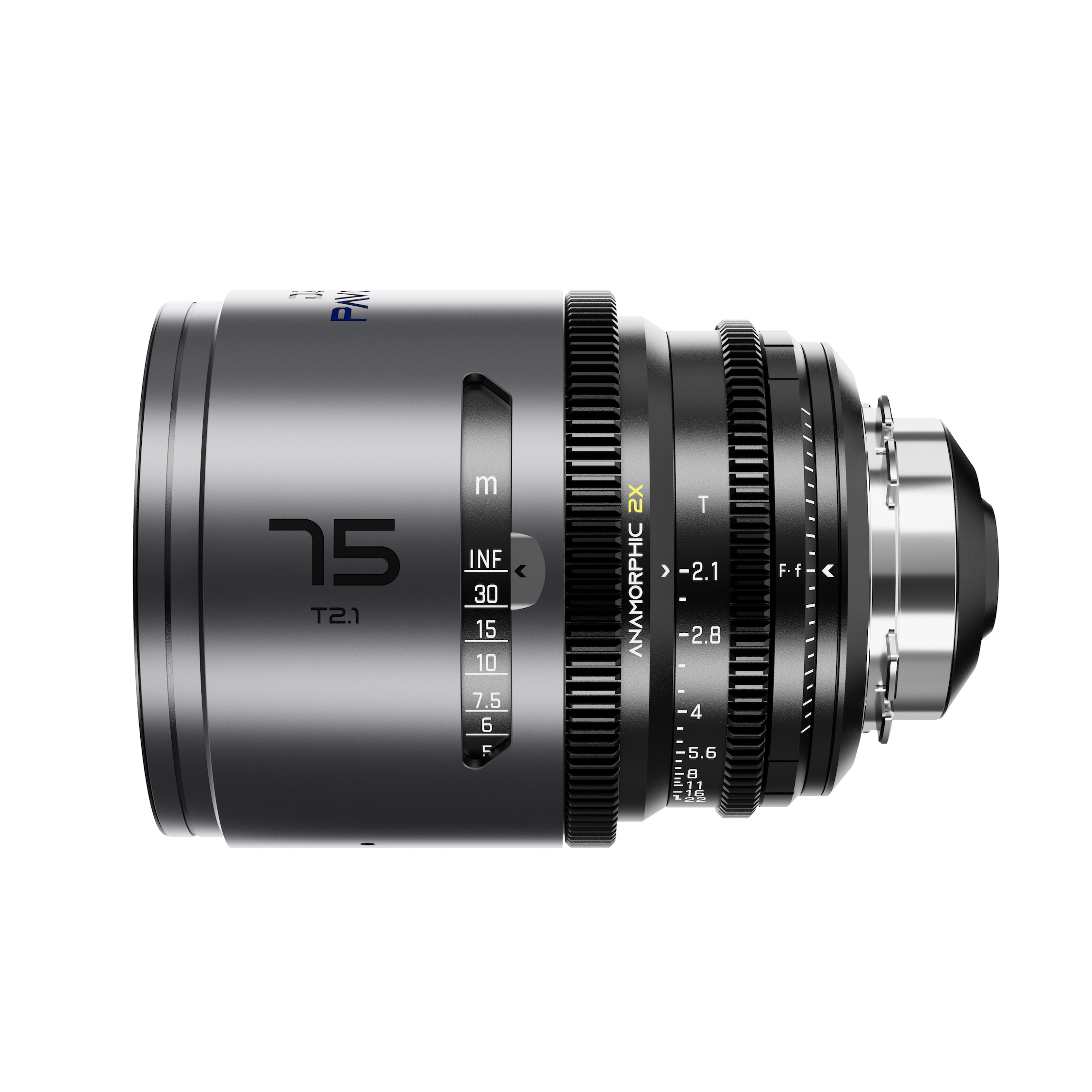

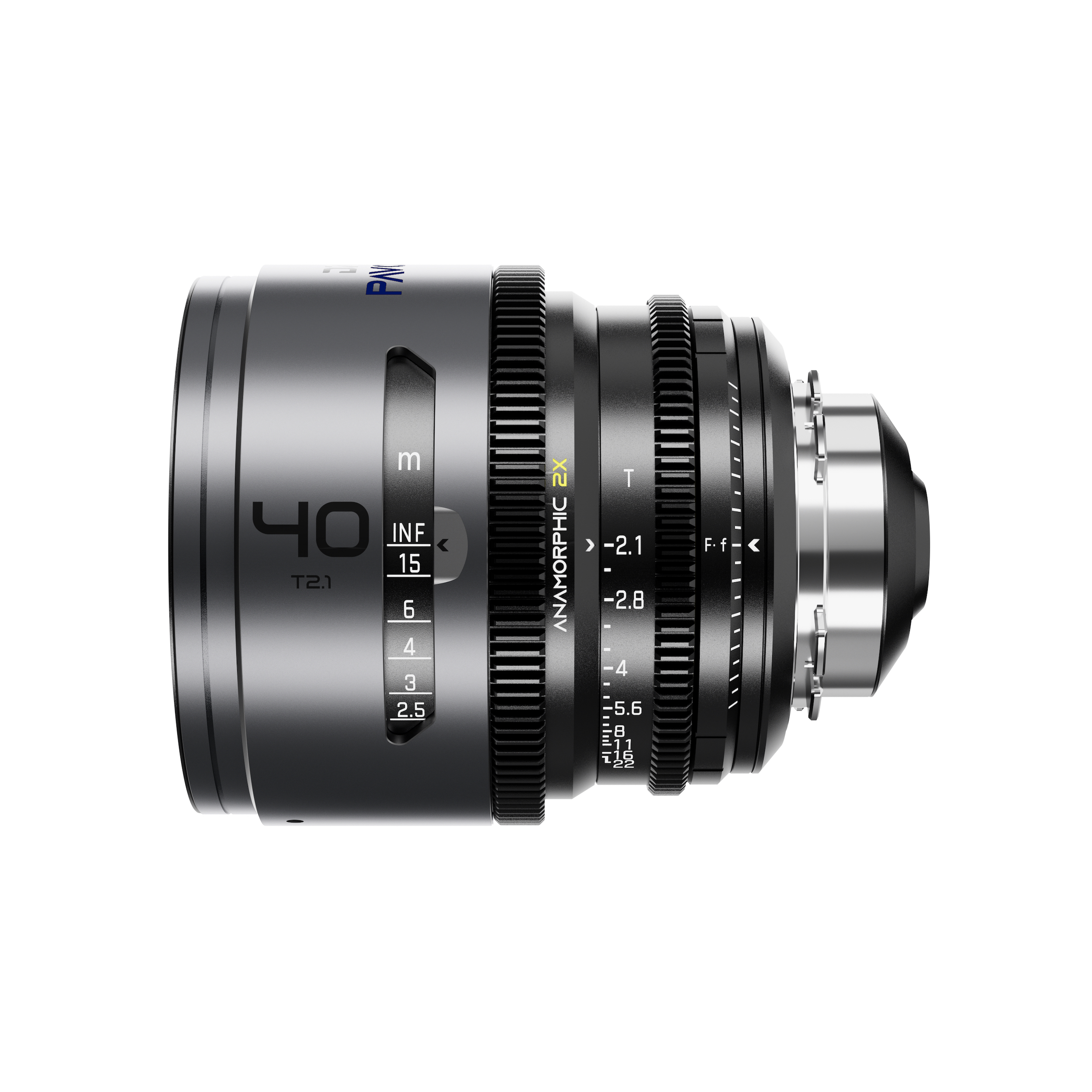

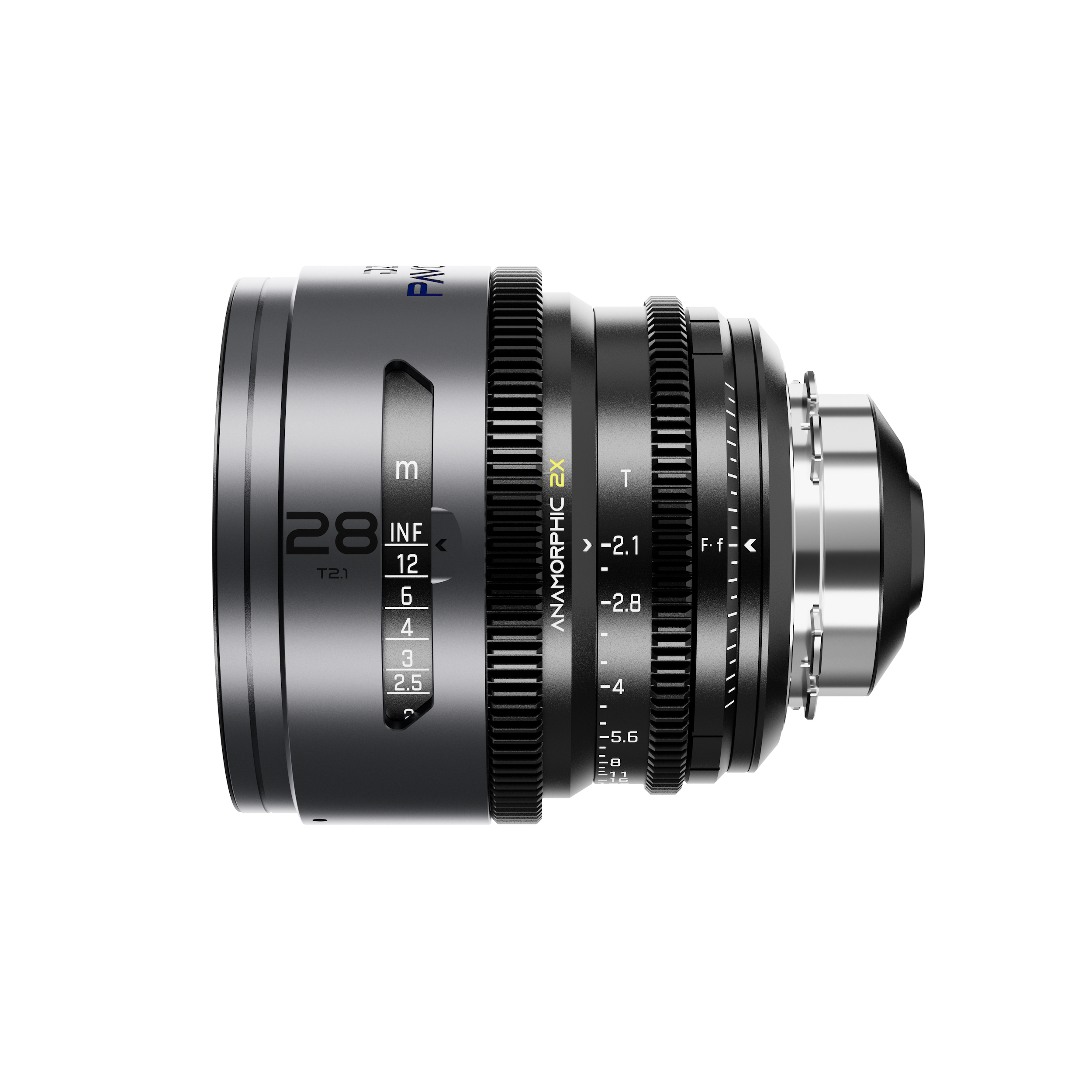

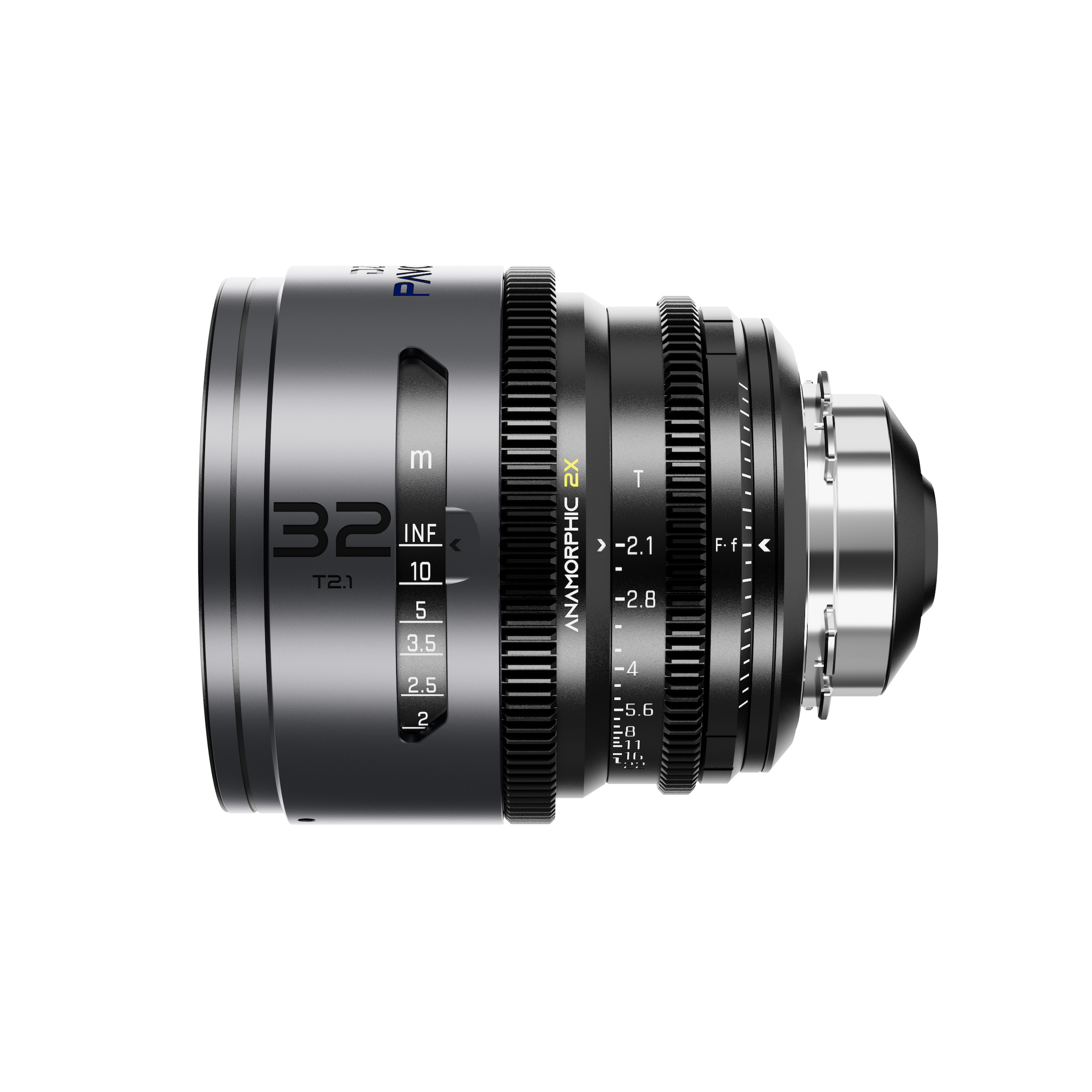

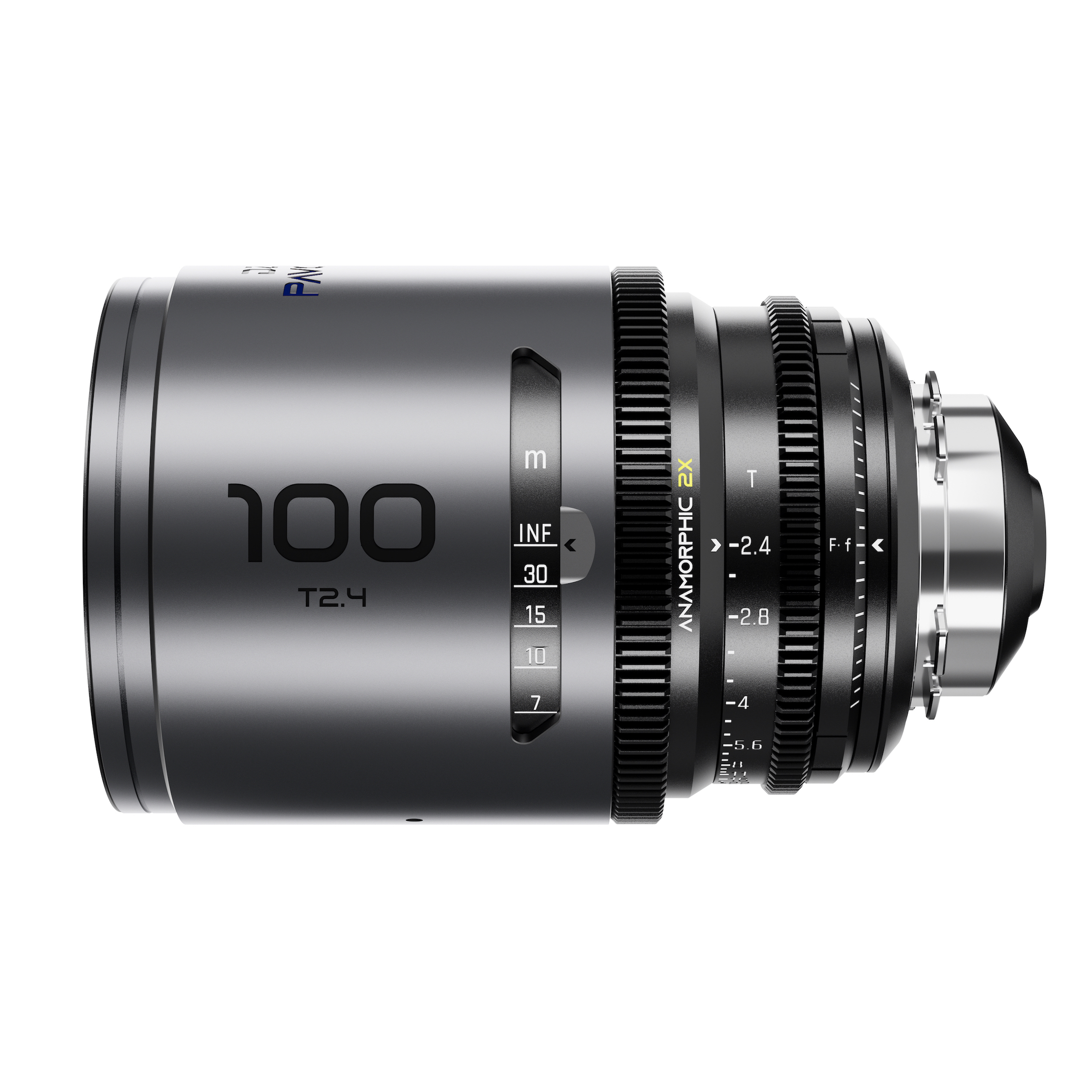

| Focal Length | 28 mm | 32 mm | 40 mm | 55 mm | 75 mm | 100 mm |
|---|---|---|---|---|---|---|
| Colour Space | Grey + Black | Grey + Black | Grey + Black | Grey + Black | Grey + Black | Grey + Black |
| Flare Option | Blue | Blue | Blue | Blue | Blue | Blue |
| Mount | PL / EF | PL / EF | PL / EF | PL / EF | PL / EF | PL / EF |
| Aperture | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.1-T22 | T2.4-T22 |
| Image Circle | φ31.5mm (S35) | φ31.5mm (S35) | φ31.5mm (S35) | φ31.5mm (S35) | φ31.5mm (S35) | φ31.5mm (S35) |
| Construction Of Optics | 15 Elements in 13 Groups | 15 Elements in 14 Groups | 14 Elements in 13 Groups | 14 Elements in 13 Groups | 15 Elements in 14 Groups | 14 Elements in 13 Groups |
| Flange Distance | 52mm (PL) / 44mm (EF) | 52mm (PL) / 44mm (EF) | 52mm (PL) / 44mm (EF) | 52mm (PL) / 44mm (EF) | 52mm (PL) / 44mm (EF) | 52mm (PL) / 44mm (EF) |
| Close Focus (From Sensor Plane) | 0.4m / 1ft 4in | 0.4m / 1ft 4in | 0.45m / 1ft 6in | 0.6m / 2ft | 0.84m / 2ft 9in | 0.95m / 3ft 1in |
| Squeeze Factor | 2X | 2X | 2X | 2X | 2X | 2X |
| Iris Control | Manual (79°) | Manual( 59°) | Manual (58°) | Manual( 63°) | Manual (67°) | Manual (76°) |
| Focus Control | Manual (270°) | Manual (270°) | Manual (270°) | Manual (270°) | Manual (270°) | Manual (270°) |
| Front Dia. | φ95mm / 3.74" | φ95mm / 3.74" | φ95mm / 3.74" | φ95mm / 3.74" | φ95mm / 3.74" | φ95mm / 3.74" |
| Length (From Lens Front To Flange Plane) | 106.3mm / 4.19" | 105.7mm / 4.16" | 107.6mm / 4.24" | 108.4mm / 4.26" | 126.9mm / 4.99" | 143.1mm / 5.63" |
| Iris Blade | 14 | 16 | 16 | 16 | 16 | 16 |
| Filter Size | M86 | M86 | M86 | M86 | M86 | M86 |
| Gear Pitch | 0.8 Mod | 0.8 Mod | 0.8 Mod | 0.8 Mod | 0.8 Mod | 0.8 Mod |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Weight | ≈1203g | ≈1278g | ≈1300g | ≈1262g | ≈1466g | ≈1654g |
What's in the Box

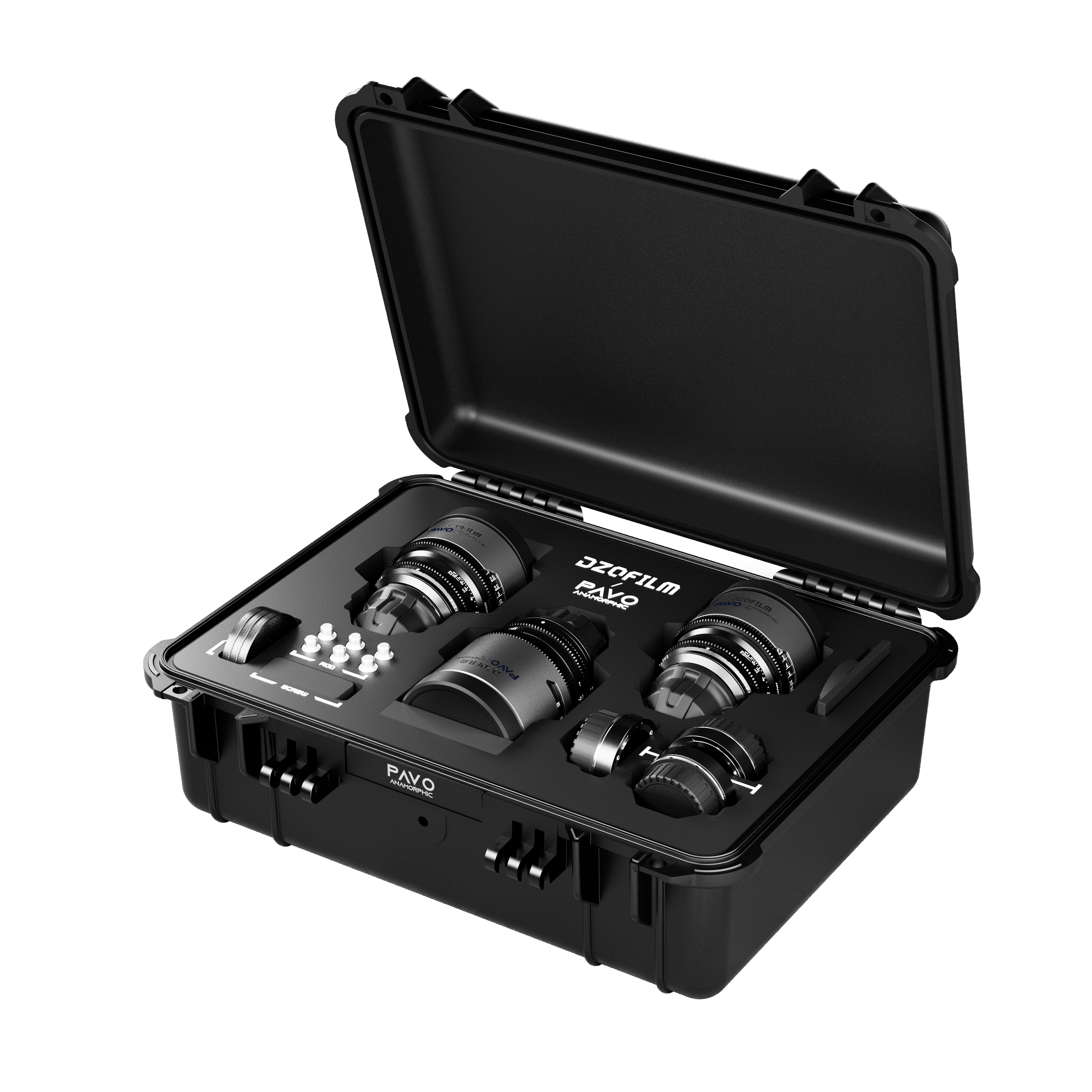

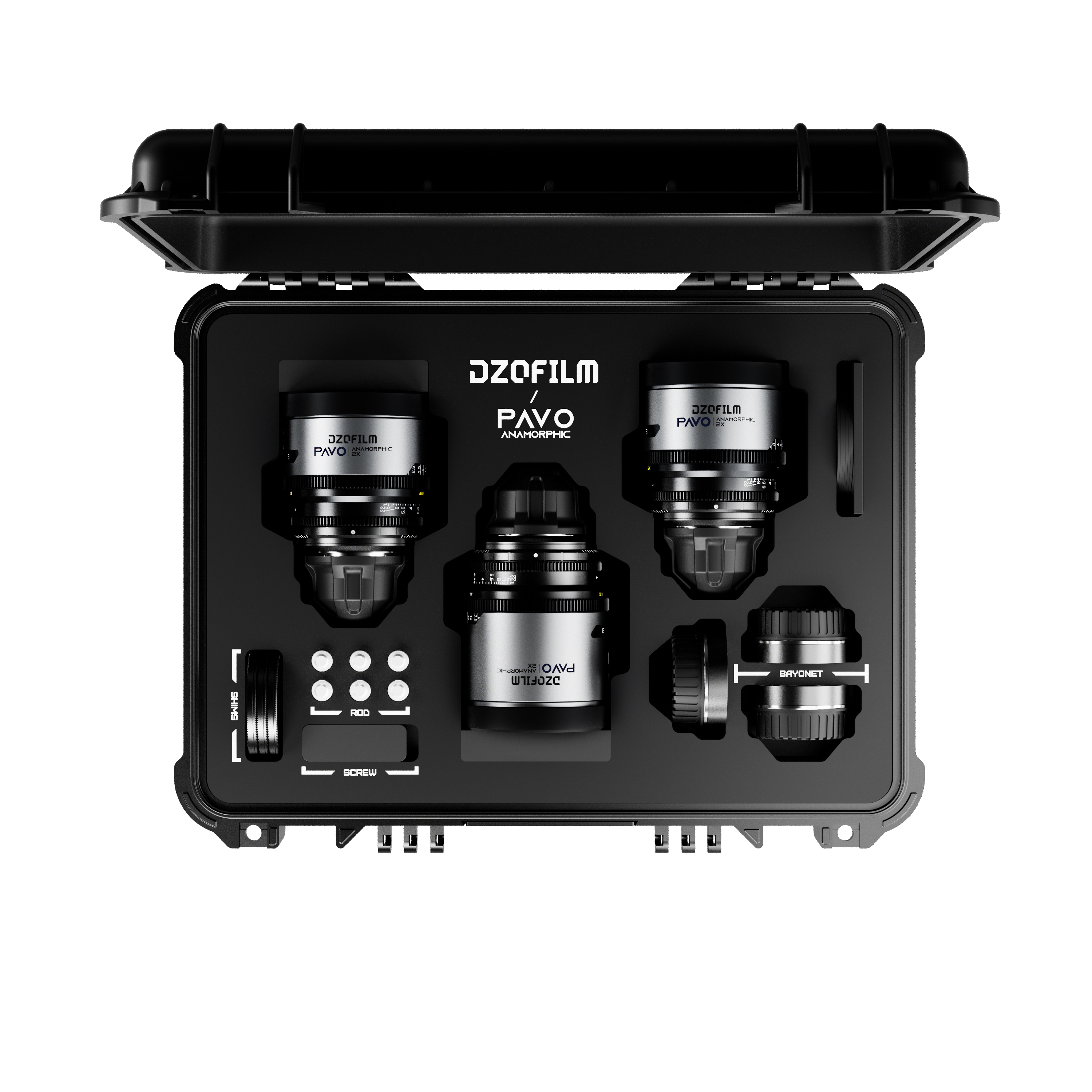

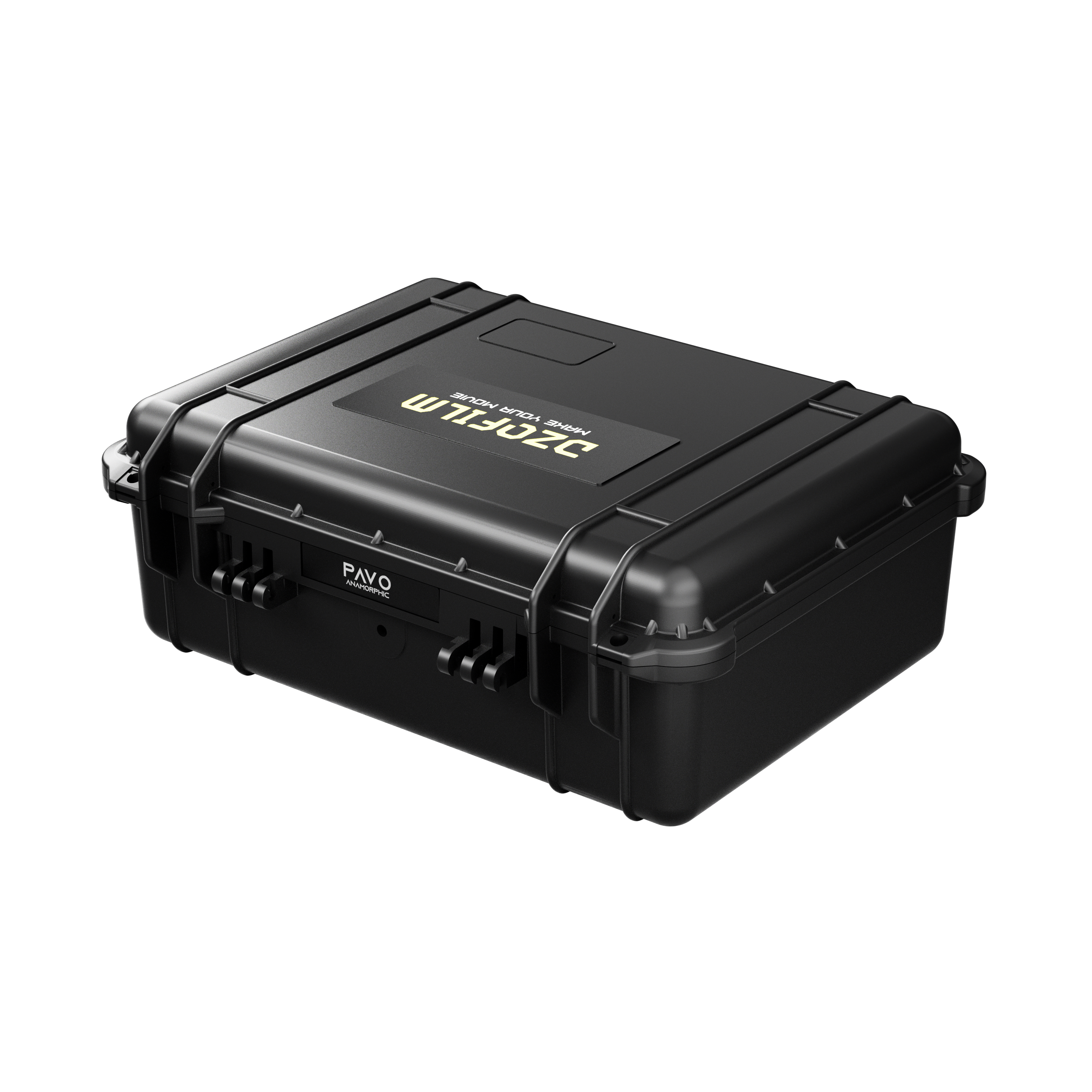

- 2x Hard Case; Each contains
- 3x PL lens
- 3x Front Cap
- 3x PL Rear Cap
- 3x EF Bayonet
- 3x EF Rear Cap
- 6x (Packs) Screws
- 3x (Set) Shims
- 3x Screwdriver
- Stickers
- Warranty card
