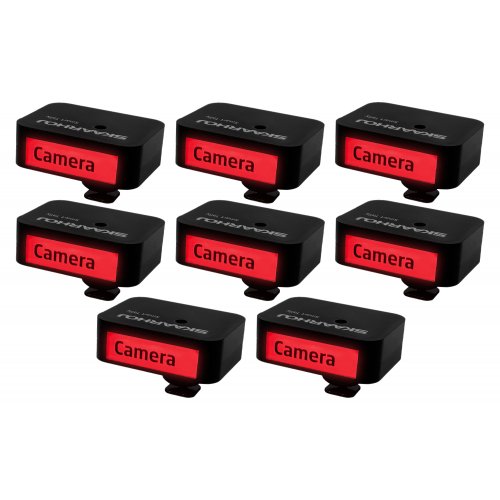

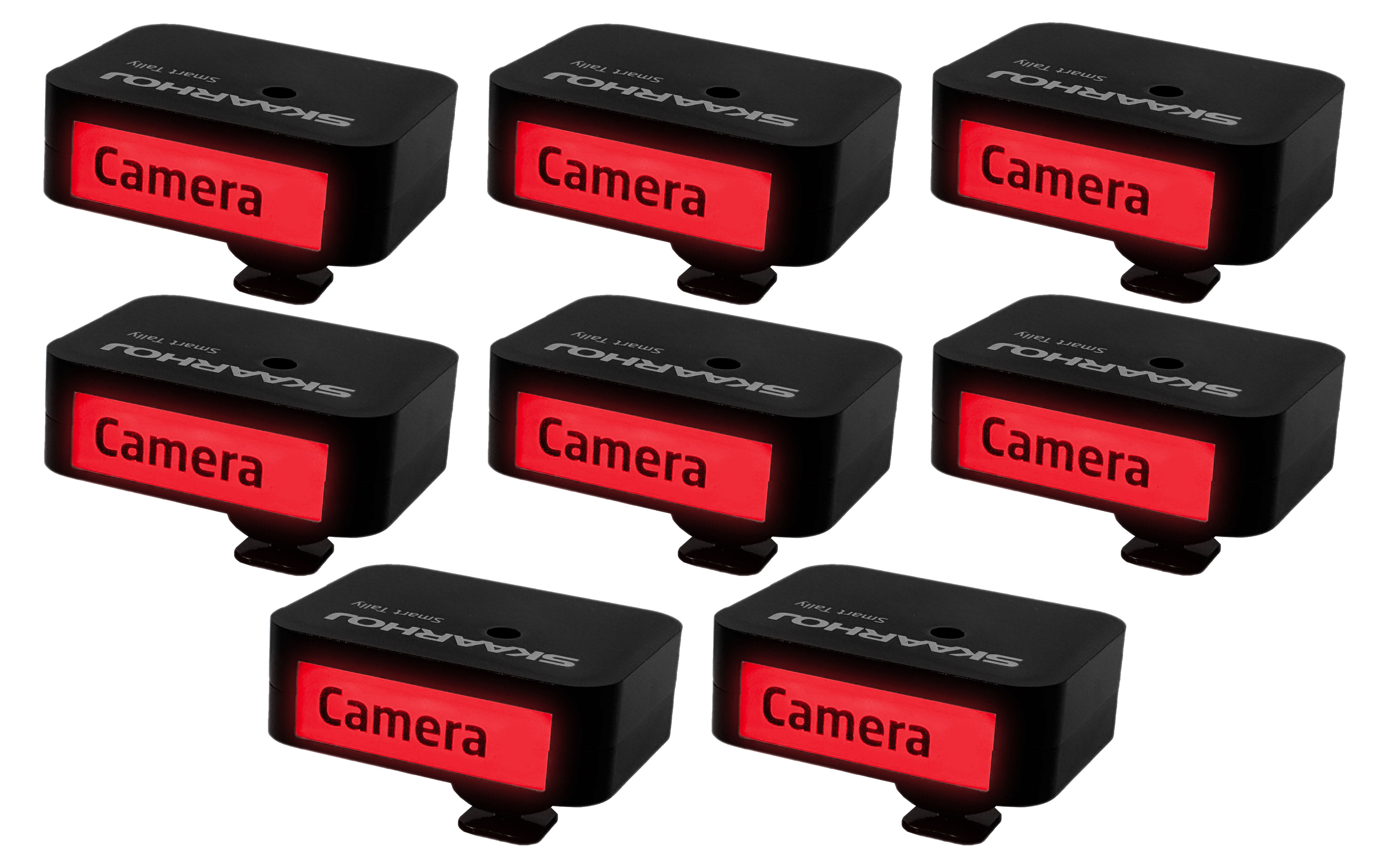

SKAARHOJ Smart Tally PoE Tally Lamp w/ Raw Panel, TSL & HTTP Control - 8 Pack

Model: SMART-TALLY-V1-X8

SKAARHOJ Smart Tally PoE Tally Lamp w/ Raw Panel, TSL & HTTP Control - 8 Pack
$3,798.00 CAD
Find it for Less? Let us Know.
  • Free Shipping!
  • Not In-Stock - Available to Order
  • Not yet reviewed

More models to choose from:

4-Pack$2,010.00
8-Pack$3,798.00
10-Pack$4,469.00
Single$559.00


About: SKAARHOJ Smart Tally PoE Tally Lamp w/ Raw Panel, TSL & HTTP Control - 8 Pack

Smart Tally is a flexible, network-connected tally lamp designed for live production. Powered via PoE, it delivers bright front and rear indicators and is controllable over SKAARHOJ Raw Panel (TCP), TSL (v3.1 and v5.0 over UDP) and a simple HTTP API. An intuitive web UI handles configuration, monitoring and quick testing. The Pro version adds three panel buttons, a relay output, an opto-isolated input and RS-485, making it a compact cueing and automation node for complex setups.

Features

  • Ethernet connectivity with Power over Ethernet (PoE).
  • Supports SKAARHOJ Raw Panel (TCP port 9923) with mDNS discovery.
  • Native TSL (v3.1 and v5.0) listener for UDP tally control.
  • HTTP endpoints for tally, relay and button simulation.
  • Bright multi-colour front/rear LEDs with simple label slots.
  • Pro model: three buttons, GPI/opto input, relay output and RS-485 serial bridge.
  • Designed and manufactured in Denmark.

Benefits

  • Clear on-air/preview feedback with bright front and rear indicators.
  • Single-cable deployment with Ethernet and PoE power.
  • Multiple control paths: Raw Panel (TCP), TSL 3.1/5.0 (UDP) and HTTP API.
  • Pro version adds physical I/O (buttons, relay, opto-input, RS-485) for automation.
  • Fast, browser-based setup and seamless integration with SKAARHOJ Reactor.

Specifications

  • Connectivity
    • Networking: 100 Mbit Ethernet w/Power over Ethernet (PoE IEEE802.3af)
    • Power Supply: 12V DC Jack 5.5mm x 2.1mm x 10mm Center Positive PoE IEEE802.3af/t
    • Service Port: Micro USB for updating firmwares and setting manual IP
  • Software
    • Platform: Link IO
    • Licenses: N/A
  • Weight (each): 96 g

What's In The Box

  • 8x Smart Tally Lamp
  • 12V Power Supply
  • Micro USB Cable
  • Getting Started Guide

UPC: 5714074003854
