Blackmagic Design HyperDeck Studio HD Mini

Model: HYPERD/ST/DAHM

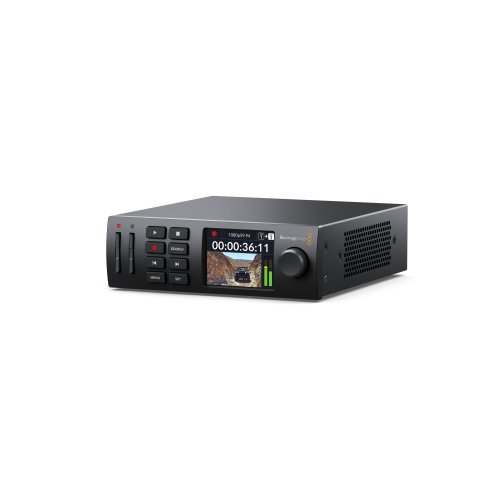

Blackmagic Design HyperDeck Studio HD Mini
Blackmagic Design HyperDeck Studio HD Mini
Blackmagic Design HyperDeck Studio HD Mini
  • Free Shipping!
  •  More Coming Soon! Contact us for Lead Time
  • Not yet reviewed

More models to choose from:

HD Mini$695.00
Studio HD Plus$975.00
Studio HD Pro$1,395.00
Studio 4K Pro$2,095.00



About: Blackmagic Design HyperDeck Studio HD Mini

The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!

The miniaturized design of HyperDeck Studio Mini includes a built in power supply so you don’t have to carry around an external power brick! Simply plug it into an AC mains outlet and start recording and playing back video. With an auto switching international power supply that works with 100-240V AC, you can use it anywhere in the world! All models of HyperDeck Studio include both AC and DC power connections. The HyperDeck Studio HD Mini model has a 12V DC power input with locking connector and all other models have a broadcast style 4 pin XLR 12V DC power connection. The HyperDeck Studio 4K Pro has two separate AC power supplies for total redundancy.

Connections

  • SDI Video Inputs: 1
  • SDI Video Outputs: 1
  • SDI Rates: 270Mb, 1.5G, 3G.
  • HDMI Video Outputs: 1
  • Screen: 2.2 inch LCD
  • Timecode Connections: 1 x BNC In, 1 x BNC Out.
  • Reference Connections: 1 x BNC In, 1 x BNC Out, Tri-Sync or Black Burst.
  • SDI Audio Inputs: 16 channels embedded audio.
  • SDI Audio Outputs: 16 channels embedded audio.
  • HDMI Audio Outputs: 8 channels embedded audio.
  • Remote Control: 1 x RS-422 In.
  • Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
  • Ethernet: 1Gb/s
  • Computer Interface: 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates.

Standards

  • SD Video Standards
    • 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards
    • 720p50, 720p59.94, 720p60
    • 1080i50, 1080i59.94, 1080i60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 2K DCI Video Standards
    • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI,
    • 2Kp29.97 DCI, 2Kp30 DCI
  • SDI Compliance
    • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084 and SMPTE 2108‑1.
  • SDI Metadata Support
    • HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
  • Supported HDMI Formats
    • 525i59.94 NTSC, 625i50 PAL,
    • 720p50, 720p59.94, 720p60,
    • 1080i50, 1080i59.94, 1080i60,
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
    • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
    • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30,
    • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
  • Audio Sampling
    • Television standard 24‑bit, 48 kHz sample rate.
  • Video Sampling
    • 4:2:2 YUV
  • Color Precision
    • 10‑bit
  • Color Space
    • REC 601, REC 709, REC 2020.
  • HDR Support
    • Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
  • Multi Rate Support
    • Auto detection of SD and HD.
  • Copy Protection
    • HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

  • Media: 2 x SD card slots 1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI.
  • Media Type: UHS-I and UHS-II SD cards.
  • Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

  • ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all progressive formats up to 1080p60.

Control

  • Built in Control Panel: 8 buttons for transport and device control with search dial and 2.2 inch color display.
  • External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.

UPC: 9338716007114

Reviews: Blackmagic Design HyperDeck Studio HD Mini

There are currently no product reviews.


Warranty: Blackmagic Design HyperDeck Studio HD Mini

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Cameras: 1 Year

ATEM: 1 Year

Ultrastudio (Except Mini): 3 Years; Ultrastudio Mini: 1 year

DeckLink: 3 Years

Mini Converters: 3 Years
