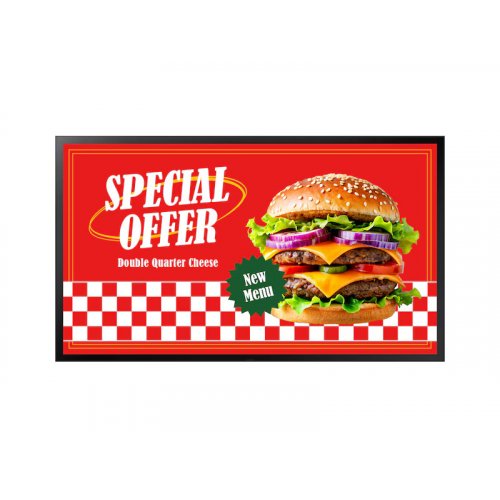

Samsung OH46DX Full Outdoor High-Bright Signage - 46in

About: Samsung OH46DX Full Outdoor High-Bright Signage - 46in

Samsung OHDX series is built for tough environments, allowing you to captivate your audience daily by effectively delivering your business message beyond the storefront. Even in varying weather, the OHDX ensures your brand presence stays powerful and memorable with a dynamic customer experience.

• Verified by UL Solutions Outdoor Visibility
• Heat dissipation structure
• 2nd Glass Installable Structure

Verified by UL Solutions Outdoor Visibility - Eye-catching visuals anytime, anywhere

With a brightness level 3,500nits(peak 4000nit) delivering 24/7 performance, the OHDX series is designed to provide clear and vivid content in outdoor environment. OHDX is verified by UL for outdoor visibility brightness, ensuring your message is effectively communicated even in direct sunlight.

Auto Brightness Sensor - Optimized visibility and efficiency at any time

The Auto Brightness Sensor enables the OHDX Series to efficiently operate by seamlessly adapting its brightness in response to changing light conditions throughout the day, maintaining optimal visibility and legibility that elevates the viewing experience.

Heat dissipation structure - Maintain optimal temperature in the challenging outdoors

Featuring an advanced heat dissipation system for air circulation, the OHDX series' design will bring effortless performance in a hot summer's day. The display's effective cooling measures help ensure stable performance in tough environments.

2nd Glass Installable Structure - Second glass installation comptability

Get more protection for the OHDX with an optional compatible protective glass addition. Featuring an enhanced heat dissipation structure, the OHDX will deliver performance even when using the protective glass add-on, if desired.

• * Additional glass layer not included, must be purchased separately through a third party

IP56 - Designed for all-weather conditions

With certified IP56-rated protection, OHDX series delivers a dust resistant and water resistant design to protect the display. This helps deliver dependable operation in a variety of outdoor conditions for consistent performance.

• * IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).* Images and enclosure are simulated and for illustration purpose only.

IK10 - Robust screens

The OHDX series is rated IK10 for additional peace of mind.

• * The IK European strength test rating uses a 0-10 scale (10 indicating the highest possible protection) to measure the degree of resistance against external impact.

Slim depth - Minimum space with maximum outdoor impact

Composed of a single display with a light and slim design, the OHDX series can be easily customized to suit various external environments by eliminating the need for a separate casing.

SmartThings Pro - Empower your business with smart control

Samsung SmartThings now extends beyond the home, integrating into business environments. SmartThings Pro* connectivity enhances convenience, safety, and energy tracking across various business settings, from small personal shops to large companies and hotels.

• * Images regarding SmartThings Pro are simulated for illustrative purposes.
• ** Actual UI may differ and is subject to change without notice.

Samsung VXT - Change the way to manage your display

The cloud-based Samsung VXT brings together content management and remote device management capabilities, allowing you to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

• * Samsung VXT must be purchased separately.

Specifications

• Display
  • Diagonal Size: 46"
  • Panel Type: VA
  • Resolution: 1,920 x 1,080
  • Pixel Pitch (HxV): 0.53 x 0.53
  • Brightness (Typ): 3,500 (Peak 4,000 )
  • Contrast Ratio: 6,000:1
  • Viewing Angle (H/V): 178/178
  • Response Time (ms): 6ms
  • Colour Gamut: 72 %
  • Glass Haze: 0 %
  • H-Scanning Frequency: 15~135kHz(HDMI)
  • Maximum Pixel Frequency: 594MHz(HDMI)
  • V-Scanning Frequency: 24~75Hz(HDMI)
  • Contrast Ratio (Dynamic): Mega
  • Operation Time Support: 24/7
• Connectivity
  • HDMI In: 2
  • Version of HDMI: 2
  • Version of HDCP: 2.2
  • USB: 2
  • HDBaseT In: Yes
  • Audio Out: Stereo Mini Jack
  • Power Out: No
  • RS232 In: Yes
  • RS232 Out: Yes
  • RJ45 In: Yes
  • RJ45 Out: Yes
  • WiFi: Yes (External)
  • Bluetooth: Yes (External)
• Power
  • Power Supply: AC100-240V 50/60Hz
  • Power Consumption (On Mode): 480 W
  • Power Consumption (Sleep Mode): 0.5 W
• Operation Conditions
  • Temperature: -30℃~ 50℃
  • Humidity: 10 ~ 80%, non-condensing
• Mechanical
  • VESA Mount: 995 x 500 mm
  • Bezel Width: 24.9mm (T/B/L/R)
  • Bezel Colour: Slate Black
  • Glass Thickness: 3T
  • Glass Film: AG, AR/IR, SRF
• Optional Feature
  • Protection Glass: Yes
• SoC
  • OS Version: Tizen 8.0
  • Flash Memory Size: 8GB
• Certification and Compliance
  • EMC: Class A
  • Safety: 60950-1, 62368-1
• Physical
  • Dimension (WxHxD): 42.09 x 24.55 x 2.72 inch (1069.0 x 623.6 x 69.0 mm)
  • Weight: 62.17 lbs (28.2 kg)
