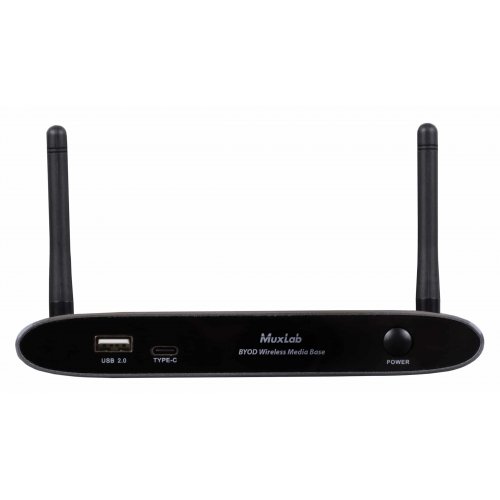

Muxlab MuxMeet Share Base-1 Wireless Presentation Module

About: Muxlab MuxMeet Share Base-1 Wireless Presentation Module

MuxMeet Share Base-1 is a wireless presentation module, which aims to replace the traditional Pro-AV switch found in typical meeting rooms and huddle spaces, not only at a lower cost and without the hassle of cables, but also with more powerful presentation and collaboration capabilities. The module allows meeting participants to bring their own devices, be it Windows, Mac or Chrome OS devices, iPads, iPhones, Android tablets, or Android phones, and share content on their screen or projector no matter where they are in the room, it also allows you to easily collaborate with others without any personal contact. In this post-pandemic environment, MuxMeet Share Base-1 helps participants collaborate safely and normally, while respecting social distancing.

The MuxMeet Share Base-1 makes sharing content in a meeting an easy and enjoyable experience, encouraging all participants to collaborate regardless of their connection type. iOS devices stream natively via AirPlay, Android users can download the MuxlabBYOD app from Google Play, Chrome OS devices stream to the desktop or to tabs directly on a Chrome browser, and Windows and Mac laptop users can download the MuxlabBYOD app on their computer from the MuxMeet Share Base-1 unit website. In addition, users can also wirelessly share content with the push of a button if they use an HDMI or USB-C Dongle. (Dongles sold separately).

MuxMeet Share Base-1 allows multiple presenters to share content simultaneously. The unit features annotation, moderator management, and touch screen control, providing a true interactive experience. Its easy operation makes MuxMeet Share Base-1 the number one choice when implementing meeting rooms in corporate institutions, educational facilities, or huddle spaces. The result is more efficient and productive meetings.

• Pure wireless presentation experience, bring your own device with no cable mess
• Supports native wireless mirroring protocols like Airplay, Miracast, and Chromecast
• Supports HDMI and USB-C dongles for wireless presentations
• Supports Android, MAC and Windows APP for wireless presentations
• Supports 4 split screen views
• PoE supported
• Supports whiteboard and annotation
• Customizable home screen page
• Central management platform available

Specification

• HDMI Output - 1 x HDMI 19-pin female connector
• Video Output Resolution - 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz
• Format Compliance - HDMI 1.4 / HDMI 2.0
• Video Capacity
  • 1080P @ <60Hz Airplay for iOS devices
  • 1080P @ <60Hz “MuxLab BYOD” App
  • 1080P @ <60Hz for dongles
• HDCP - HDCP 1.4 / HDCP 2.2
• Analog Audio Output - 1 x 3.5mm PC audio female connector
• Lan Port - RJ45 x 2: 1000Mbps x 1, 100Mbps x 1
• USB Interface - USB3.0x1,USB2.0x1,USB-Cx1
• Audio Input - AirPlay, Windows/MAC, WMH
• Control Connectors - 3.5mm Phoenix terminal / RS232 interface
• Number of window simultaneous on screen - ≤ 4+14 (4main windows + 14 thumbnail windows)
• Number of simultaneous connections - ≤ 16
• Data rate in wireless - Up to 1200Mbps
• Video Playback Frame Rate - 20-60 FPS
• Latency - <100ms, Min 20ms
• Wireless Transmission Protocol - WIFI IEEE 802.11 a/g/n/ac
• Frequency Band - 2.4GHz&5GHz
• WIFI Antenna - MIMO 2x2
• Operating Temperature - -20°C ~ +60°C (-4°F ~ +140°F)
• Humidity (Storage / operating) - 20%-90% (non-condensing)
• DC Power - 12V / PoE
• PoE Standard - IEEE802.3af
• Power Consumption - 10W (MAX)
• Unit Dimension (DxWxH) - 3.74” x 6.49” x 0.95” (95mm x 165mm x 24.5mm)
• Unit Weight - 0.4 lbs (0.18Kg)
