DSAN VC-2000 V2.0 VideoClock

About: DSAN VC-2000 V2.0 VideoClock

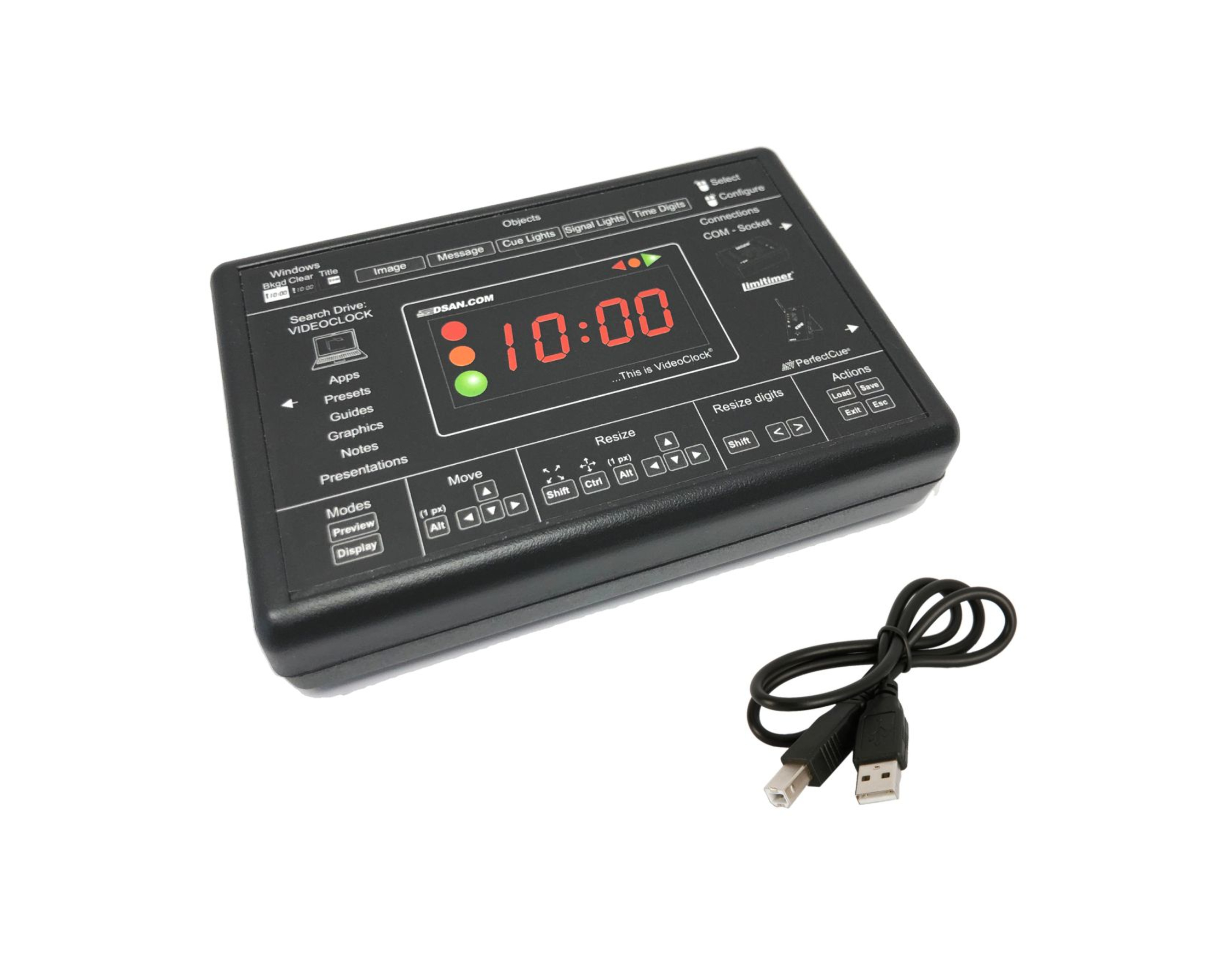

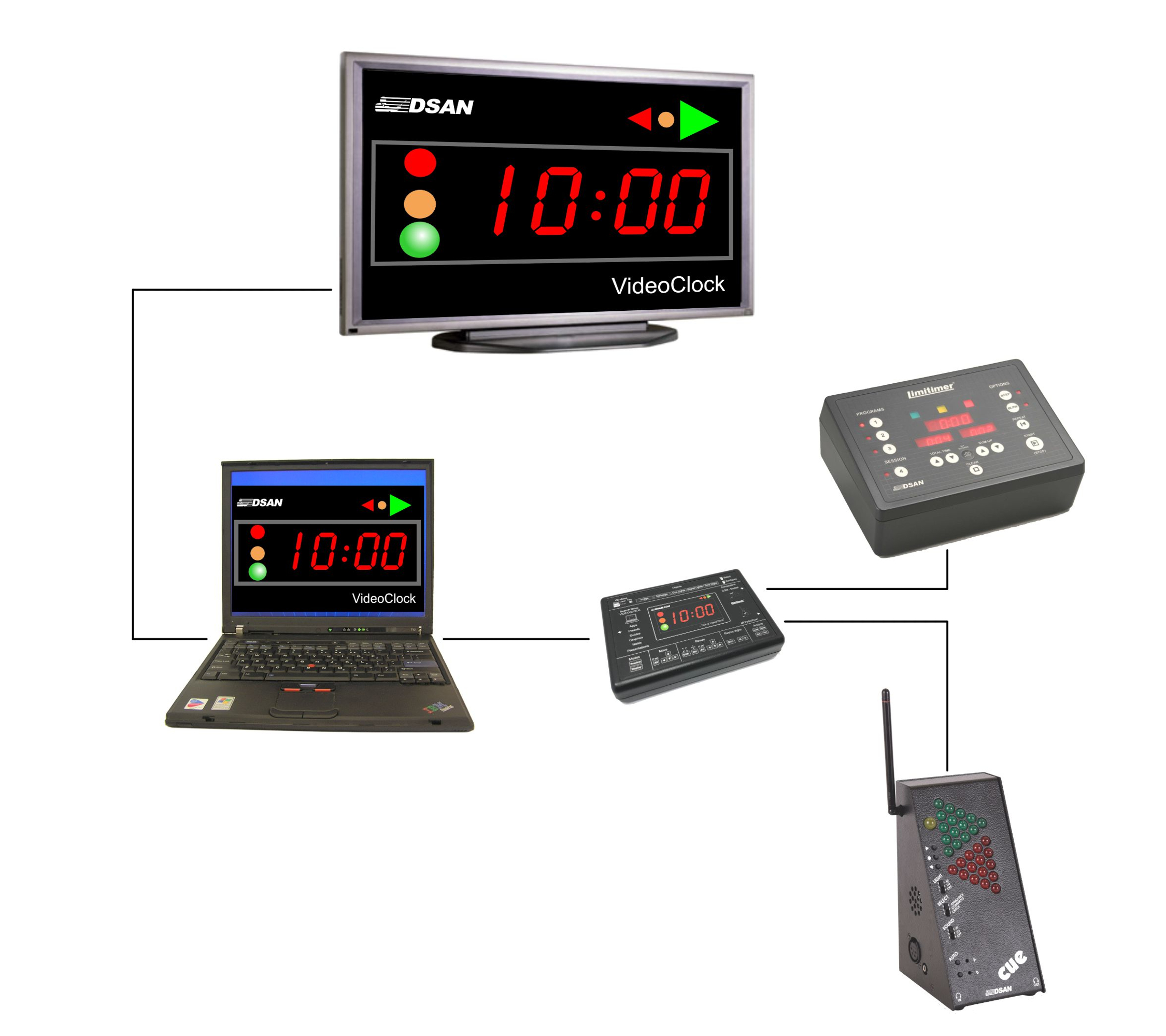

VideoClock is a Cat-5—USB dongle that passes serial data from any DSan timer or cuelight product to companion software running on a Windows PC. The software can also process device data received from a network source*.

• *Requires Network Extender Model IP-2000X-LT or IP-2000X-PC configured as a server.

The VideoClock application parses the device data, then graphically configures data elements (time remaining, phaselights, cues, etc) according to user-controlled parameters of size, color, background, position, and transparency. The resulting output may be displayed alone or on top of other running applications such as PowerPoint . If displayed alone, a window background color may be selected and keyed to be transparent so that the output can be mixed with another video signal such as a TV broadcast.

The software application need not be installed on the PC. When the VC-2000 dongle is connected via USB, an embedded drive is enumerated. The application and your custom setups can reside there. A setup program is available to install the software. This enables it to run faster and eliminates the need for the dongle when sourcing data over a network.

Pre-configured setups are included with the VC-2000-2 dongle. They can be opened to display data immediately from a connected Limitimer or PerfectCue. Also included are custom fonts that can display time remaining at full screen width.

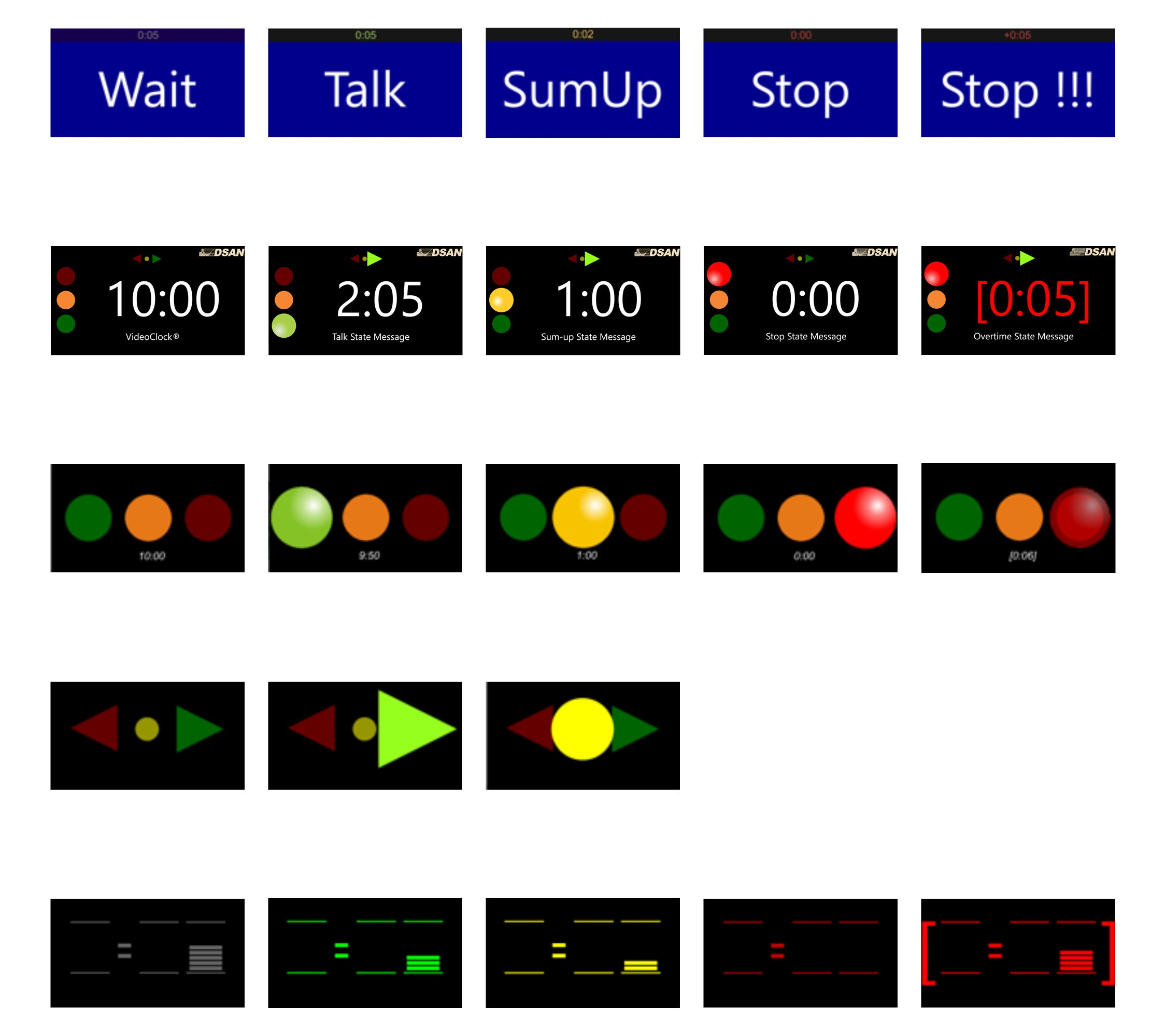

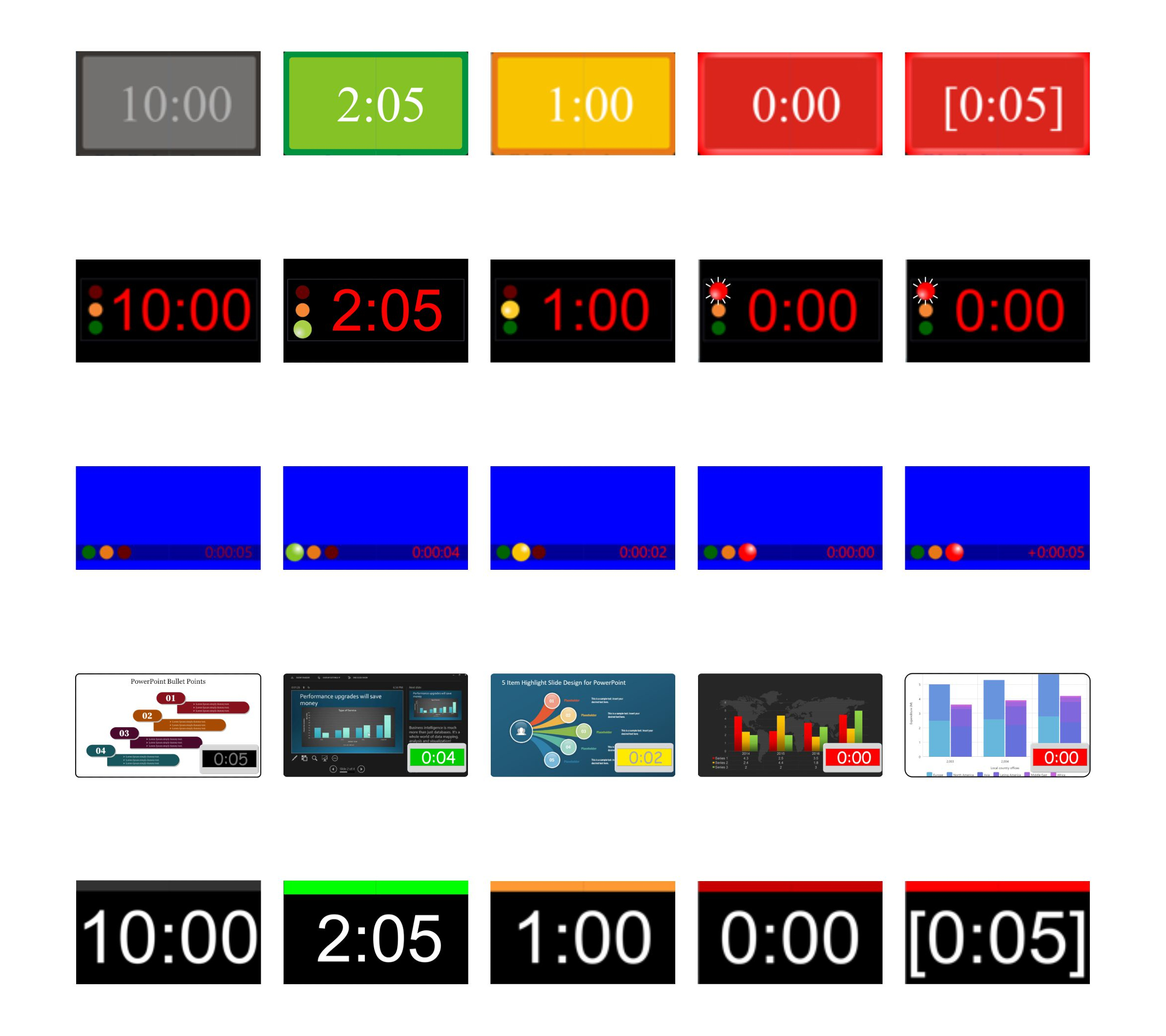

• Make time digits as large as needed
• Simulate traffic light
• Full-screen color defines program phases
• VideoClock can run on top of presentation applications
• Background color can be keyed for transparency
• Create abstract time display
• Slide change cues
• Messages on-the-fly or synced to program phases
• Cues, time, phase lights, messages and images on one screen
• Cue lights can be latched for manual display

Specifications

• Size (LxWxH): 3 x 4 x 1 inch
• Weight: 0.25 lbs (113g)
