DSAN IP-2000X V2.0 Network Extender
Model: IP-2000X V 2.0
About: DSAN IP-2000X V2.0 Network Extender

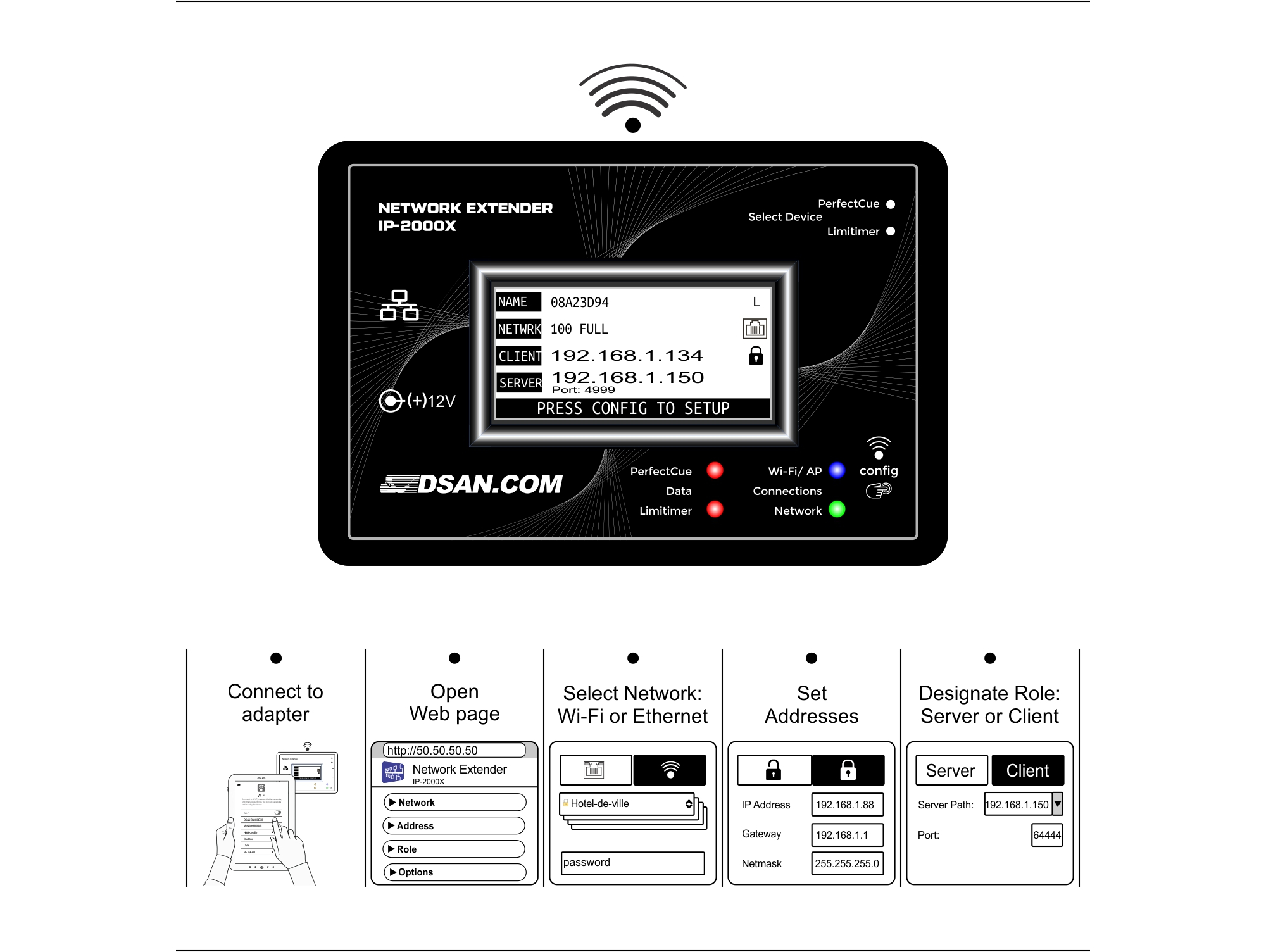

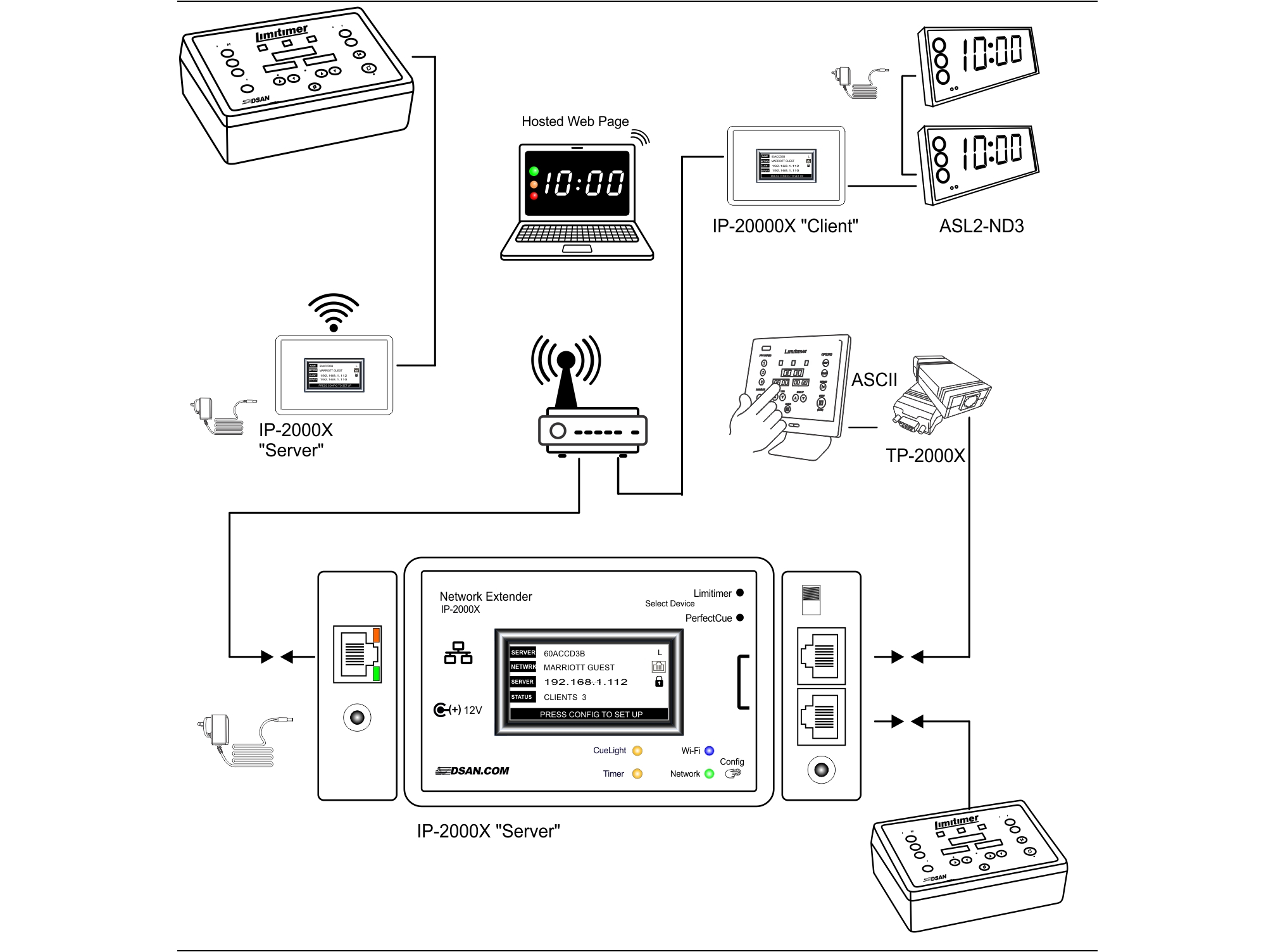

IP-2000X is a serial-to-Ethernet adapter that connects Limitimer speaker timers or PerfectCue cue lights across local and wide-area networks*. It configures through a built-in Web server — connect to its Wi-Fi access point or scan the on-screen QR code, no app install required. In server mode, a single IP-2000X supports up to 7 networked clients.
- It is configured via an embedded Web server accessed through any mobile or desktop browser.

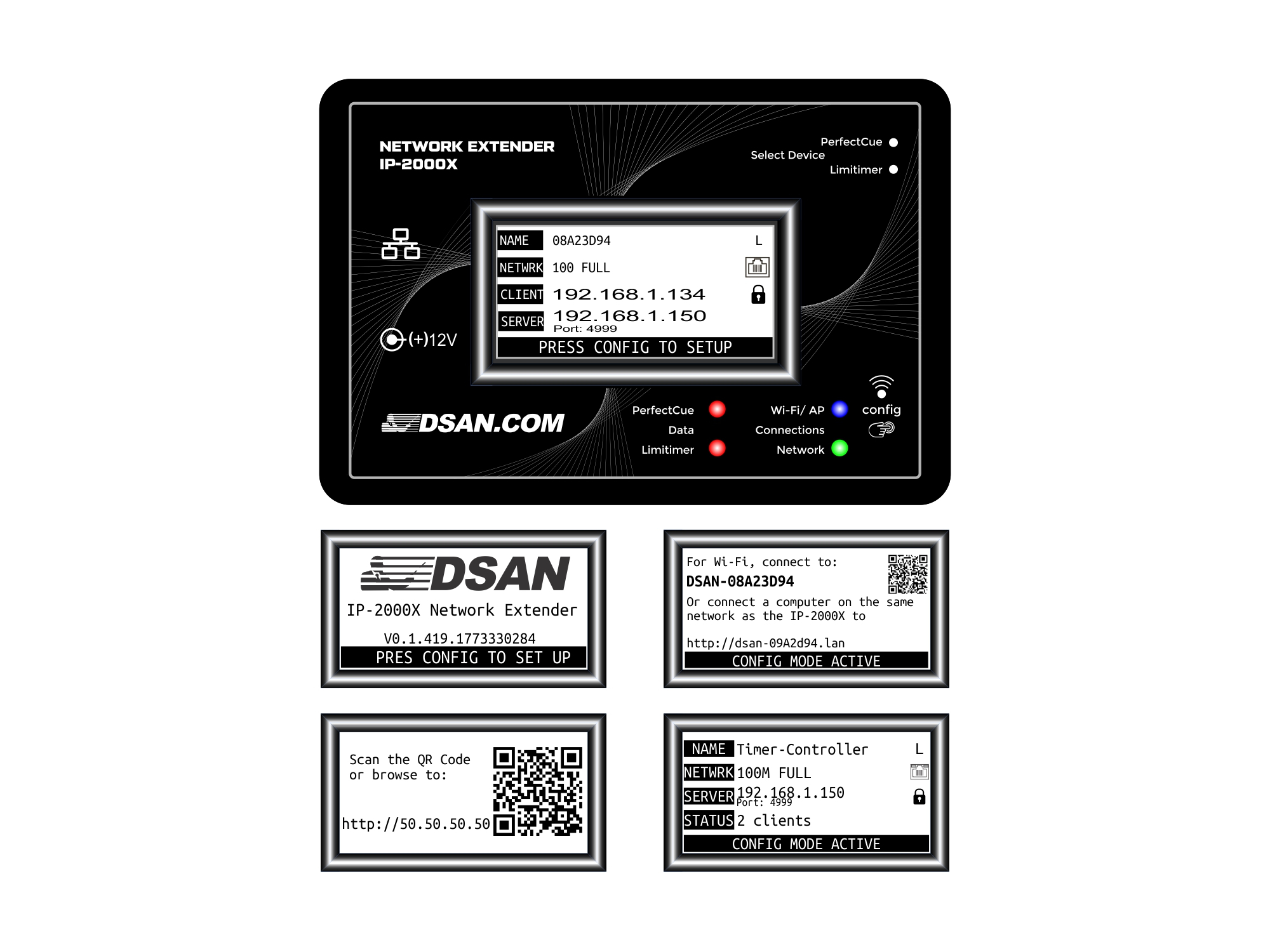

- An e-ink display shows settings, connections and setup prompts.
- Panel mounted LEDs indicate network connection status.
- 12V power is supplied to or from connected devices.
- Over-the-air (OTA) updates can be accessed at dsan.com/networking.
- *Wide-area connections may require network router configuration
Specifications
- Size (LxWxH): 4.38 x 2.75 x 1.1 inch
- Weight: 0.25 lbs (113g)
- Power: 12V via connected powered devices or provided supply (110/220V)
- Configuration: Via embedded Web server

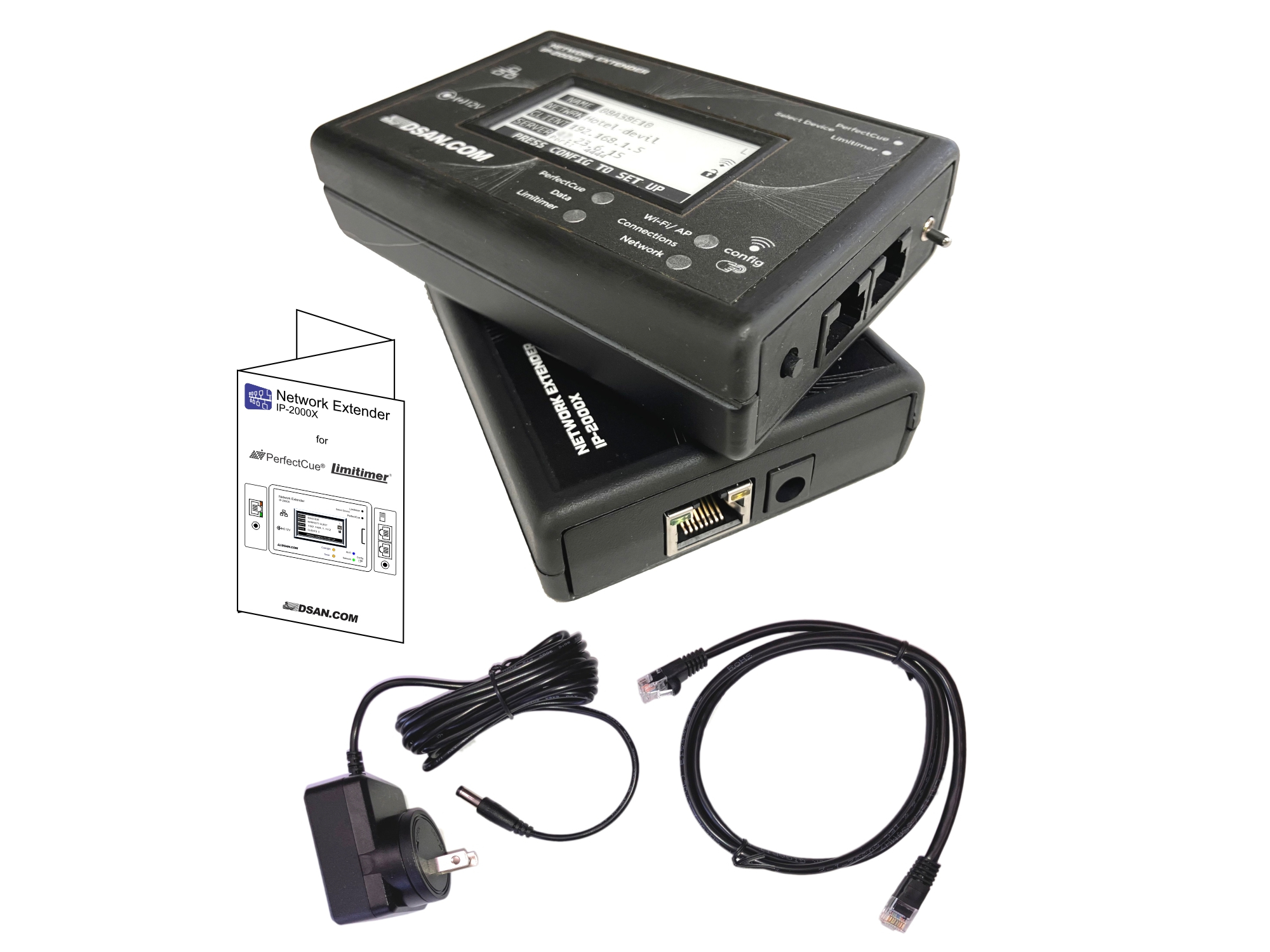

- Other: 7-foot Cat 5 cable provided

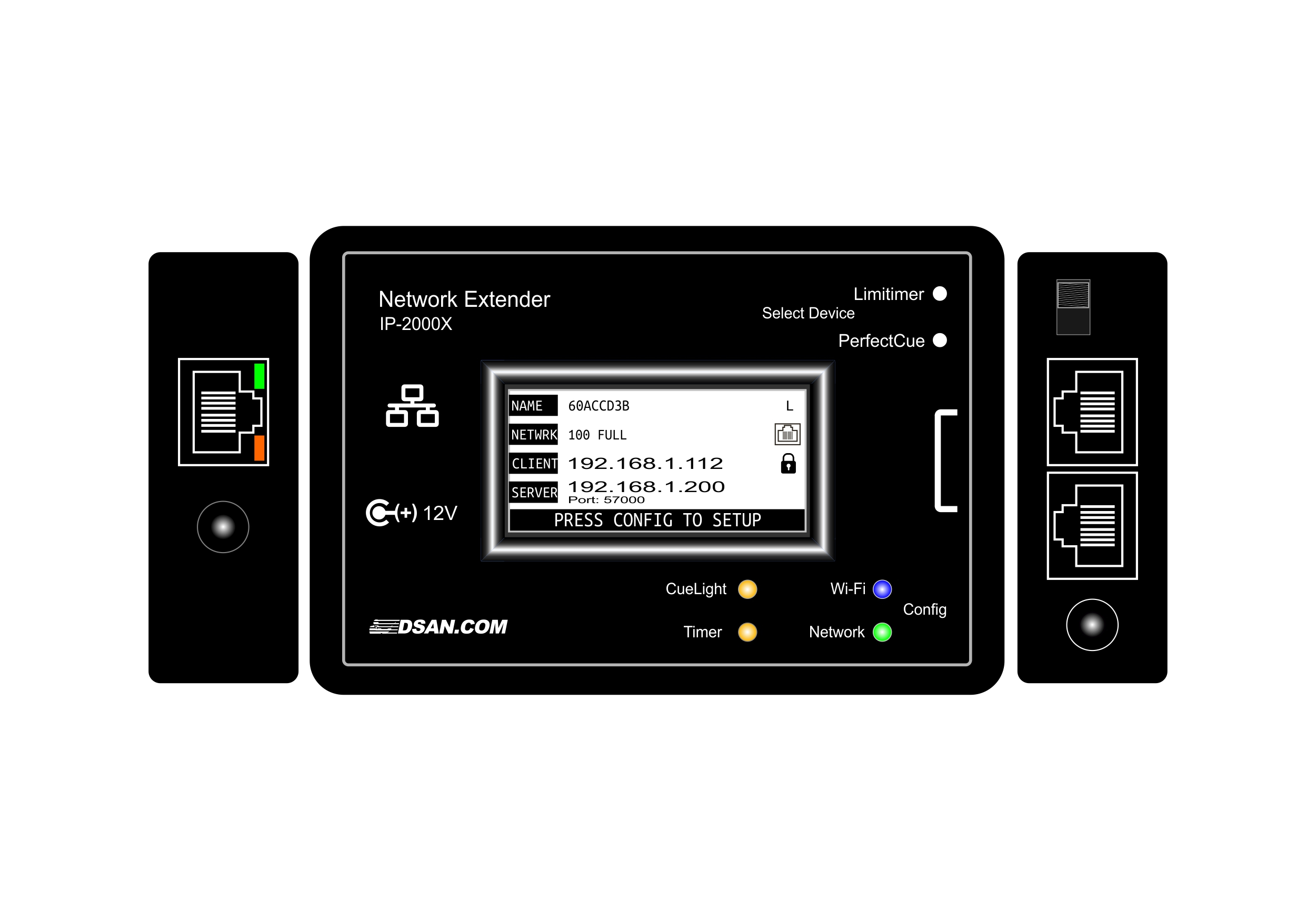

- Ports:
- 1 RJ45 for timer – input | output
- 2 RJ45 for signal lights – output only
- 1 RJ45 for Ethernet
- Switches
- 1 push button: start Wi-Fi access
- 1 toggle: time-of-day, timer, or none
- Wi-Fi: 802.11 b/g; 2.412-2.484 GHz
- Ethernet: Up to 100Base-T
