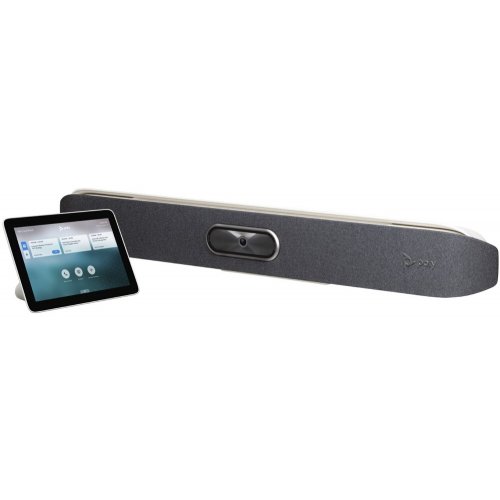

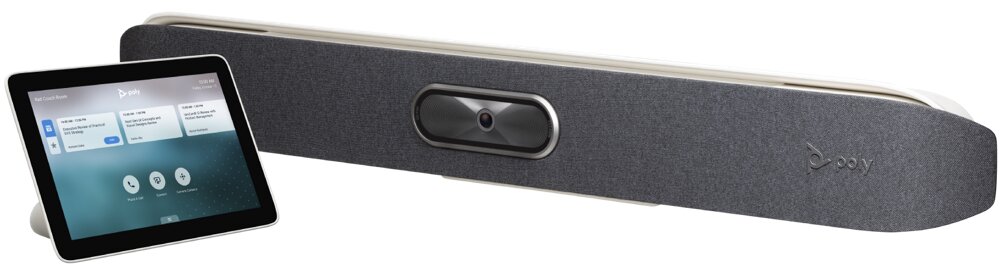

Poly Studio X50 All-In-One Video Bar for Medium Rooms w/TC8 Touch Screen Control
Model: 83Z47AA#ABA
About: Poly Studio X50 All-In-One Video Bar for Medium Rooms w/TC8 Touch Screen Control
Make your video conferencing easier and more powerful. The Poly Studio X50 includes legendary audio and video performance in a simple all-in-one video bar. Offer true meeting equality with pinpoint-accurate automatic framing and tracking modes, distraction-free audio technology, and life-like 4K UltraHD video. There’s no PC required, either: Cloud video apps are built right in, offering familiar controls, and supports the leading cloud video services. And with Poly Lens, deployment, management and analytics are a breeze for IT.
- 4K UltraHD video.
- Stereo speakers that deliver immersive room-filling audio.
- Poly DirectorAI smart camera technology.
- Poly NoiseBlockAI and Acoustic Fence smart audio filtering technologies.
- Seamless native experience on leading cloud video services.
Features
- RICH, ROOM FILLING AUDIO - High performance stereo speakers with a unique acoustic chamber design delivers rich audio that reaches all parts of the room.
- ADVANCED MICROPHONE DESIGN - Unique second order gradient microphones pick up all corners of the room with incredible clarity.
- SMART CAMERA - Feel connected with production-quality camera framing and tracking that keeps the visual focus in the right place throughout the conversation.
- NOISE BLOCKING INNOVATIONS - Keep distracting noise and outside conversations from disrupting your meeting with Poly NoiseBlockAI and Acoustic Fence.
- CLOUD VIDEO SOFTWARE BUILT RIGHT IN - No PC or Mac needed for always-on connectivity to your favorite video platforms.
- DUAL DISPLAY SUPPORT - Connect two monitors to see both people and content in full size.
Benefits
- Get any mid-sized meeting room up and running in minutes, with a simple setup process and all-in-one design.
- Catch even the smallest details with its 4K UltraHD 120-degree FOV camera.
- Surround everyone with the rich, legendary sound with stereo speakers that deliver immersive room-filling audio.
- Enjoy a seamless native experience on all the leading cloud video apps — no PC or separate gateway required.
- Ensure everyone is seen clearly with Poly DirectorAIs pinpoint-accurate automatic framing technologies.
- Keep distracting noises and side conversations from interrupting your meetings with Poly NoiseBlockAI and Acoustic Fence technologies.
GIVE YOUR MID-SIZED ROOM C-SUITE QUALITY
Experience board-room-quality audio, and knock-your-socks-off video, for mid-sized rooms. The Poly Studio X50 all-in-one video bar is radically simple to use, with support for leading cloud video services built right in — no PC or Mac required. Voices are crisp and clear. Video feels natural. And wireless content sharing lets users collaborate without cables or pucks.
NO PC, NO MAC, NO HASSLE
Get your medium sized conference rooms up and running in moments. No PC or Mac is required, and cloud service platform support is built right in. It’s easy to install, and ideal for rooms up to 10 participants.
FEEL MORE PRODUCTIVE IN A MEETING THAN EVER BEFORE
It’s easy to keep your eye on the action with intelligent camera framing and NoiseBlockAI technology — all powered by machine learning, while providing room-filling sound from stereo speakers. Get exquisite vocal pickup from our next gen microphones. Easily share content over wired or wireless connections. Dual monitor offers great flexibility.
YOUR CHOICE OF LEADING VIDEO PLATFORMS
Poly Studio X50 video bar features native support for Video-as-a-Service (VaaS) platforms, including Zoom and Microsoft Teams, without the need for a PC. Plus, it has H.323 and SIP support for easy connection to any standards-based video solutions for VaaS gateway.
INTELLIGENT INSIGHTS, SCALABLE MANAGEMENT
Poly Lens works in conjunction with Microsoft Teams Admin Center to allow IT teams visibility and control over Teams Rooms on Android, as well as voice and headset devices. Deploy, configure, update, and get valuable insights from the cloud. Poly Lens makes it simple.

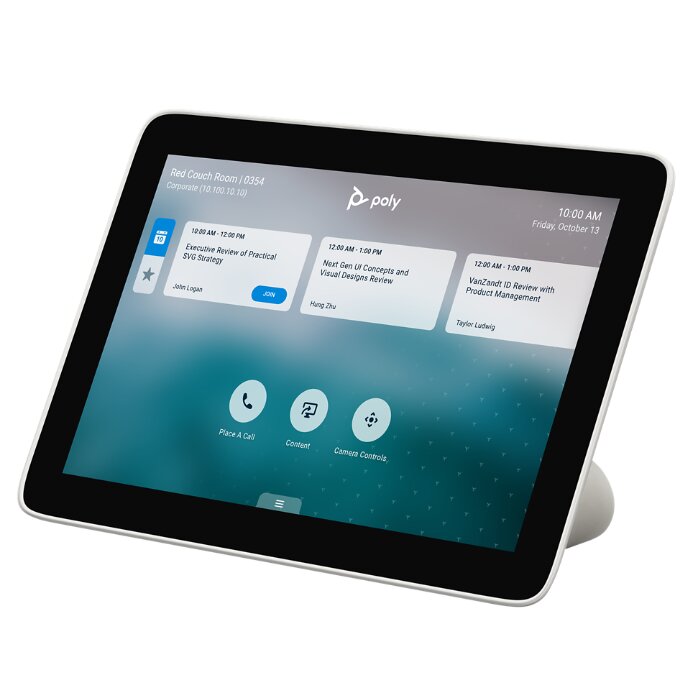

This intuitive touch interface provides easy access to Poly video conferencing solutions. The sleek design features an 8” high-resolution touch display to ensure that the control options are clear and accessible. A single cable carries both power and data to reduce clutter. After using the Poly TC8, you’ll never stress about getting your meeting going again. Having confidence that you can easily initiate, join, or share content lets you focus on better collaboration.
- Integrated calendar for one touch to join a call
- Easily share content, adjust the camera, and change participant layouts
- Compatible with Poly Studio X family and Poly G7500
Specifications
- Poly Studio X50
- VIDEO STANDARDS AND PROTOCOLS
- • H.264 AVC, H.264 High Profile, H.265, H.239
- VIDEO INPUT
- 1x HDMI
- VIDEO OUT
- 2x HDMI
- Touch display compatible
- PEOPLE VIDEO RESOLUTION
- 4K, 30 fps (TX and RX) from 2048 Kbps
- 1080p, 60 fps from 1740 Kbps
- 1080p, 30 fps from 1024 Kbps
- 720p, 60 fps from 832 Kbps
- 720p, 30 fps from 512 Kbps
- CONTENT VIDEO RESOLUTION
- Input
- UHD (3840 x 2160)
- HD (1920 x 1080p)
- WSXGA+ (1680 x 1050)
- UXGA (1600 x 1200)
- SXGA (1280 x 1024)
- WXGA (1280 x 768)
- HD (1280 x 720p)
- XGA (1024 x 768)
- SVGA (800 x 600)
- Output
- UHD (3840 x 2160)
- WUXGA (1920 x 1200) - HD (1920 x 1080)
- WSXGA+ (1680 x 1050) - SXGA+ (1400 x 1050)
- SXGA (1280 x 1024)
- HD (1280 x 720)
- XGA (1024 x 768)
- Content frame rate
- 5–60 fps (up to 4K resolution at 15 fps in call)
- Input
- CONTENT SHARING
- Apple Airplay
- Miracast
- HDMI input
- Whiteboarding
- CAMERA
- 121° DFOV, 110° HFOV
- 5x digital zoom
- UHD 2160p (4K) capture resolution
- Automatic meeting experience powered by Poly DirectorAI including group framing and speaker framing
- Secondary cameras can be added via USB and HDMI
- AUDIO
- Poly NoiseBlockAI technology
- Poly Acoustic Fence technology
- AUDIO INPUT
- 3x MEMS microphones, plus 2x 2nd order microphones
- 1x HDMI
- 1x 3.5 mm line-in
- Input for optional expansion microphone
- MICROPHONES
- 3x MEMS microphones, plus 2x 2nd order microphones
- Up to 25 ft of microphone pick up range
- Optional expansion microphone available (p/n 2200-69631-001)
- AUDIO OUTPUT
- Stereo speakers
- Power Handling (RMS) 20 Watts
- Power Handling (MAX) 40 Watts
- Sensitivity 86.1 dB
- 3.5 mm audio output
- 1x HDMI
- Stereo speakers
- OTHER INTERFACES
- 2x USB-A (3.0)
- 1x USB-C
- Bluetooth 5.0*
- WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency*
- AUDIO STANDARDS AND PROTOCOLS
- 22 kHz bandwidth with Polycom Siren 22 technology
- 20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
- 14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
- 7 kHz bandwidth with G.722, G.722.1
- 3.4 kHz bandwidth with G.711, G.728, G.729A
- NETWORK
- IPv4
- IPv6
- 1x 10/100/1G Ethernet
- Auto-MDIX
- H.323 and/or SIP up to 6 Mbps running Poly Video App
- Polycom Lost Packet Recovery (LPR) technology
- Dynamic bandwidth allocation
- Reconfigurable MTU size
- Web proxy support—Basic, Digest, and NTLM
- SECURITY
- Media encryption (H.323, SIP): AES-128, AES-256
- H.235.6 support
- Authenticated access to admin menus, web interface, and API
- BFCP
- Local account password policy configuration
- Security profiles
- Local account and login port lockout
- Secure defaults
- Remote logging with support for TLS
- Active directory external authentication
- OPTIONS
- VESA mount kit • Stand
- Poly TC8 (Included)
- Poly TC10
- Poly Bluetooth remote control
- Poly Trio
- Studio Extension Microphone
- TAA, JITC and no radio versions available*
- INTEROPERABILITY
- Zoom Certified
- Microsoft Teams Certified
- Google Meet Certified
- All cloud service providers through Poly Video App Mode
- USB device mode
- Support for native 3rd party applications includes Zoom, Microsoft Teams, Google Meet, BlueJeans, Dialpad, GoToRoom, and RingCentral
- DIGITAL SIGNAGE
- Raydiant
- Appspace
- ELECTRICAL
- Auto sensing power supply
- Typical operating voltage/power
- 37 VA @ 120 V @ 60 Hz
- 37 VA @ 230 V @ 50/60 Hz
- Typical BTU/h: 65
- ENVIRONMENTAL SPECIFICATION
- Operating temperature: 0 to 40 °C
- Operating humidity (non-condensing): 15 to 80%
- Non-operating temperature: -40 to 70 °C
- Non-operating humidity (non- condensing): 5 to 95%
- Maximum altitude: 16,000 ft
- PHYSICAL CHARACTERISTICS
- 30 W x 4 H x 4 D (Inches) / 762 W x 102 H x 102 D (MM)
- 5.6 lbs/2.54 kg
- MANAGEABILITY
- Cloud: Poly Lens service
- WARRANTY
- One-year return to factory parts and labor
- NOTE
- *Not available on no radio versions
- VIDEO STANDARDS AND PROTOCOLS
- POLY TC8 Touch Screen Control
- PHYSICAL CHARACTERISTICS
- Physical dimensions: 8.07” W x 4.84” H x 3.11” D in / 205 W x 123 H x 79 D mm
- Weight: 812 g (1.79 lb)
- Micro-B USB 2.0 (diagnostics)
- Mechanical locking mechanism (Kensington lock)
- OPERATING ENVIRONMENT
- Temperature: 0 to 40 °C (32 - 104 °F)
- Non-operating: -20 to 60 °C (-20 - 140 °F)
- ALTITUDE
- Operating: 0 to 10,000 ft ASL
- Non-operating: 0 to 35000 ft ASL
- COMPATIBLE SYSTEMS
- Poly G7500 (min 3.0 software)
- Poly Studio X30 and Studio X50
- USABILITY
- Display: 8-inch screen
- Aspect ratio: 16 x 10
- Resolution: WXGA (1280 x 800)
- Designed with built-in stand support—no external stand required
- Viewing angle: 75 degrees (U/D/L/R)
- Positioning/placing angle: 60 degrees
- Tap and touch control to access call controls and administrative menus
- Intuitive user interface
- TECHNOLOGY
- Capacitive touch sensor supports multi-touch functionality
- Direct API command through network • LCD panel with LED backlighting
- IPS (In-Plane Switching)
- Ultra Sonic Emitter (for auto pairing)
- ELECTRICAL
- Power over Ethernet (PoE), compatible with IEEE 802.3af Class 3
- Low-power sleep mode
- WARRANTY
- One-year return to factory parts and labor
- 90-day software warranty
- PHYSICAL CHARACTERISTICS
What's in the Box
- Poly Studio X30
- Power Supply
- HDMI cable
- Ethernet cable
- Wall mount
- Privacy cover
- Poly TC8
- RJ45 (LAN) cable
- Setup sheet
- Warranty statement
UPC: 197497448870
