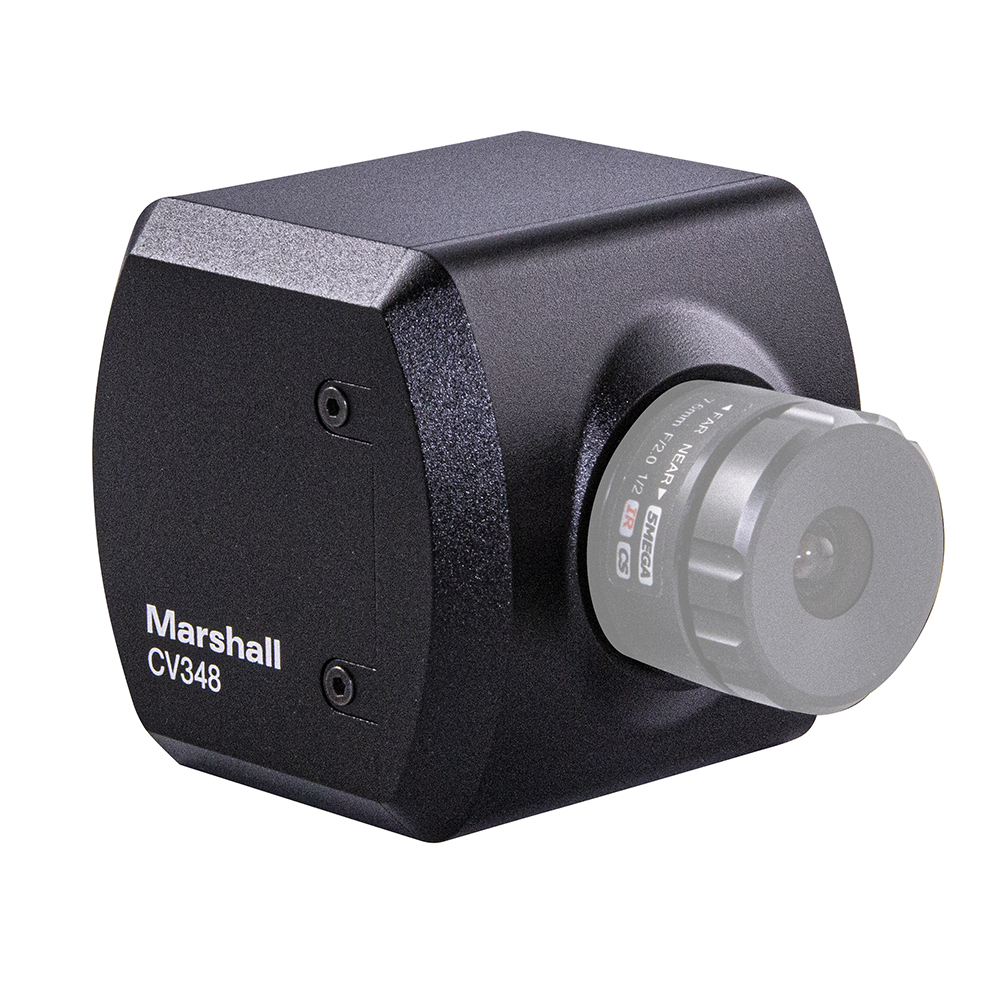

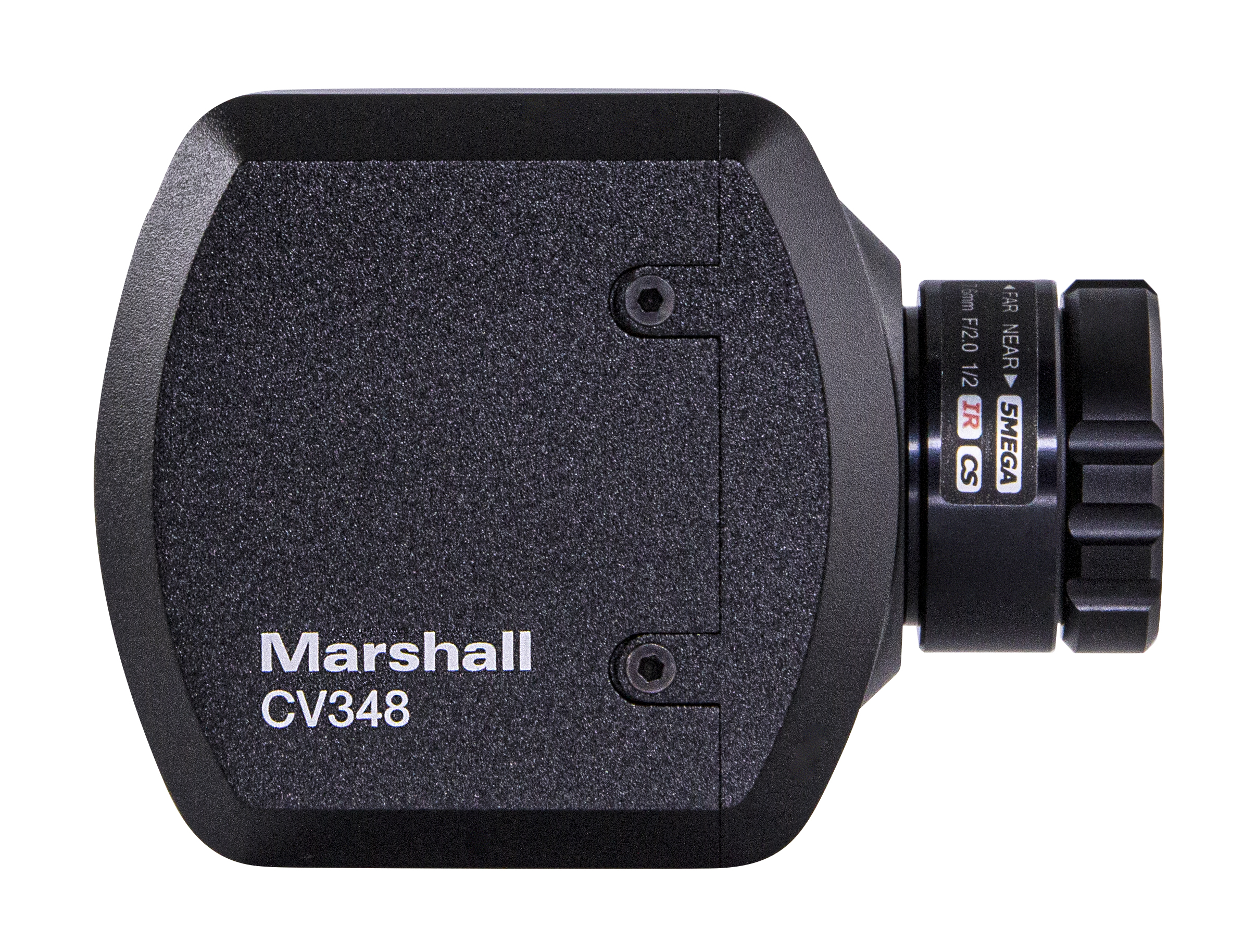

Marshall CV348 3G/HD-SDI Compact POV Camera (No Lens)

About: Marshall CV348 3G/HD-SDI Compact POV Camera (No Lens)

The Marshall CV348 POV Camera is built around a next generation Sony sensor with over 2.2 million pixels, larger pixel size and square pixel array. CV348 delivers exceptional 10 bit 4:2:2 color video performance (BT.709) from a durable aluminum alloy body, flexible CS lens mount and rear connection protection wings. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability. Choose full HD resolutions up to 1080p (progressive), 720p (progressive) and 1080i (interlaced) with a wide selection of framerates available in 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps serving a variety of Broadcast and proAV applications worldwide.

New Sony 1/2.8" Solid State Sensors with Square Pixel Array

The next generation Sony sensors provide clear HD (4.2.2) images with accurate color from larger pixels even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured. Advanced ITU-R BT.709 improves color depth and video performance across the board.

Expanded Remote Adjust & Match with Color Matrix

Marshall has expanded remote adjust and match refinement features on these new Sony sensor models with Color Matrix and more refinement steps of exposure and a suite of Visca over RS485 commands. Remote adjust and match the CV348 from a Marshall Touchscreen RCP, free downloadable Camera Control Software, or 3rd party control decks like Cyanview, Skaarhoj and more.

Durable, Flexible, Powerful

The durable CV348 body is chiseled from one block of aluminum alloy with rear panel connector protection. CV348 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, eSports, indoor or outdoor sporting events, church production and other dynamic lighting environments.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

• 2.2 Megapixel (1/2.8") 16:9 HD color performance
• Durable Body with CS/C lens mount (lens sold separately)
• 3GSDI (BT.709, 4.2.2, 10bit) output
• Interlaced/Progressive Resolutions: 1920x1080p, 1920x1080i and 1280x720p
• Framerates Supported in all formats: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
• Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party
• Micro-USB port for firmware upgrades in the field (downloadable from website)
• Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current

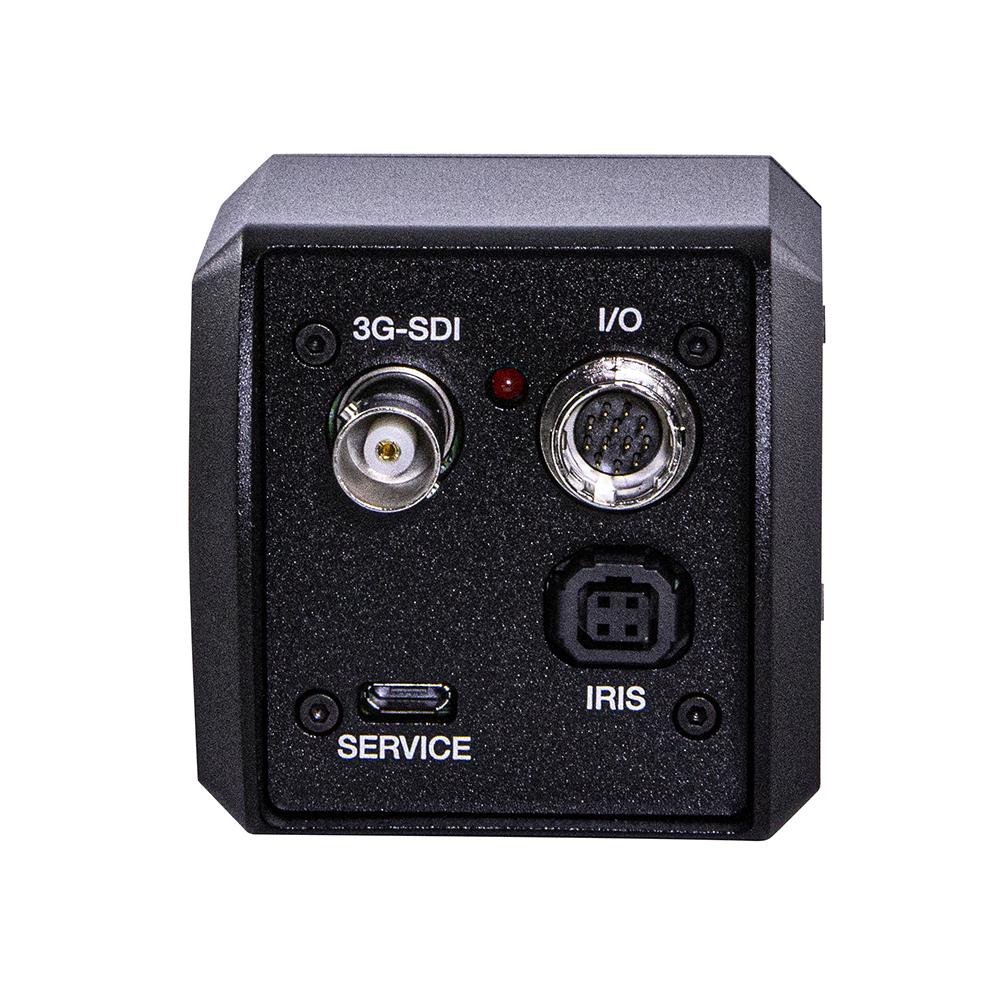

• Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power
• Power Draw: 3.8W (12V) with wide 7~15V range for alternative power sources
