The Light Source 12 inch Mega Truss Pick, 1 ton

Model: TLC MTP12

The Light Source 12 inch Mega Truss Pick, 1 ton
  • Free Shipping!
  •  In Stock - Ship or Pick-up
  • Not yet reviewed




About: The Light Source 12 inch Mega Truss Pick, 1 ton

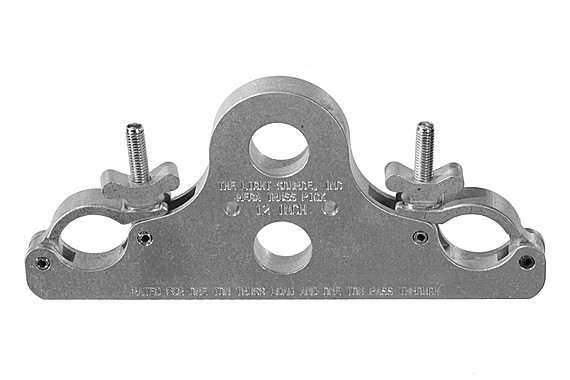

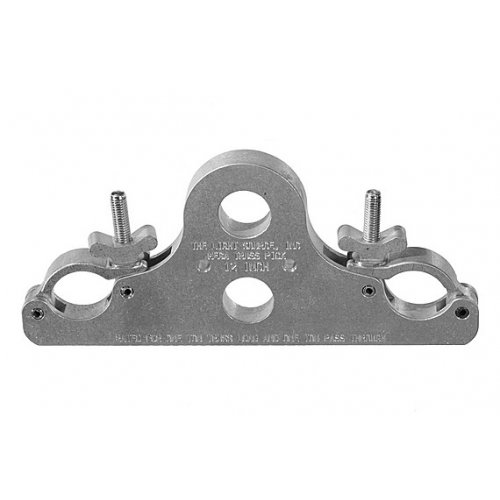

The Mega-Truss Pick is CNC machined from solid 1″ × 6″ 6061 T-6 aluminum billet. Two pockets cut into the Mega-Truss Pick have coupler style aluminum pivoting links, half inch swivel bolts, and our solid wing nuts to completely wrap around the truss tube to secure it.

The Mega-Truss Pick has one top and one bottom rigging hole for attaching the truss to a shackle, motor, or chain hook. The Mega-Truss Pick will suspend up to one ton of truss load, plus an additional one ton load suspended under the truss. The Mega-Truss Pick weighs less than 4 pounds for the 12" truss version. Fits 5/8" Shackle and larger. Other models are available for 16", 18", 24", and 30" truss.

**Please note that these do not fit a Global Truss or Applied Truss. See Global Truss Picks for correct part # to order. For Applied Truss you will need to call us with specifications.**

Safe Vertical Working Load

1 ton truss / 2 ton total

Hardware

1/2"-13 steel swivel eyebolts, with our solid aluminum wing nuts.

Dimensions

1" thick x 6" tall x 13-3/8" long
Single Hole (actual hole )- 1.5" wide
Multi Hole (actual hole)- 5/8" wide

Weight

4.15 lbs
