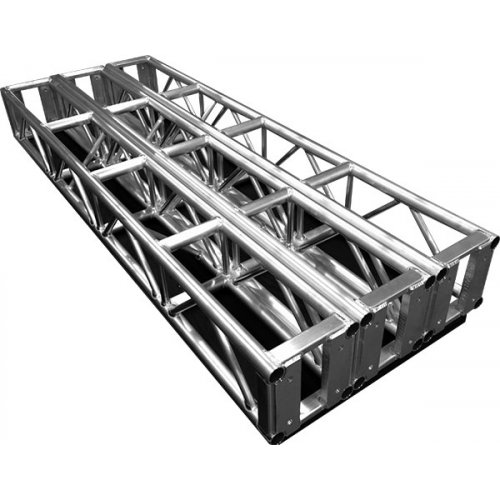

12in Box Truss (Bolt Together) - 6ft

Model: 12BT6-L

Canadian
12in Box Truss (Bolt Together) - 6ft
Call for Price
  • Shipping Charges Apply
  • Not In-Stock - Available to Order
  • Not yet reviewed
Not Available for Purchase Online. Please contact for details



About: 12in Box Truss (Bolt Together) - 6ft

Production grade 12" box trussing with L Style Gusset Plates.

This truss is designed to work with 2" x 5/8" Bolts (must be rated with rated washers).

Loading information:

12" Box Truss Allowable Loading Conditions
Uniformly Distributed Load Center Point Load
Span Load Deflection Load Deflection
ft M lbs/ft kg/M lsb kg In mm lbs kg In mm
8' 2.44 550 818.00 4400 1993 0.08 2.03 2600 1179 0.09 2.23
16' 4.88 130 193.30 2080 942 0.30 7.50 1320 598 0.30 7.62
24' 7.32 70 104.90 1680 759 0.65 16.25 800 362 0.55 13.97
32' 9.76 40 59.90 1200 544 1.37 34.80 600 272 1.09 27.69
40' 12.20 21 31.20 840 381 1.80 45.72 426 193 1.53 38.86

Specifications:

  • Bolt Patters - 6.75" x 6.75"
  • Main Chords - 2" x 1/8" 6061 Aluminum Tube
  • Diagonal Chords (if applicable) - 1"OD x 1/8" 6061 Aluminum Tube
  • Recommended bolt - 2" x 5/8"  High Tensile Hex Bolt - TB2-5/8
  • Works with Truss Pick - TPK-12
  • Works with Floor Bases - SFB-22 and SFB-22P
