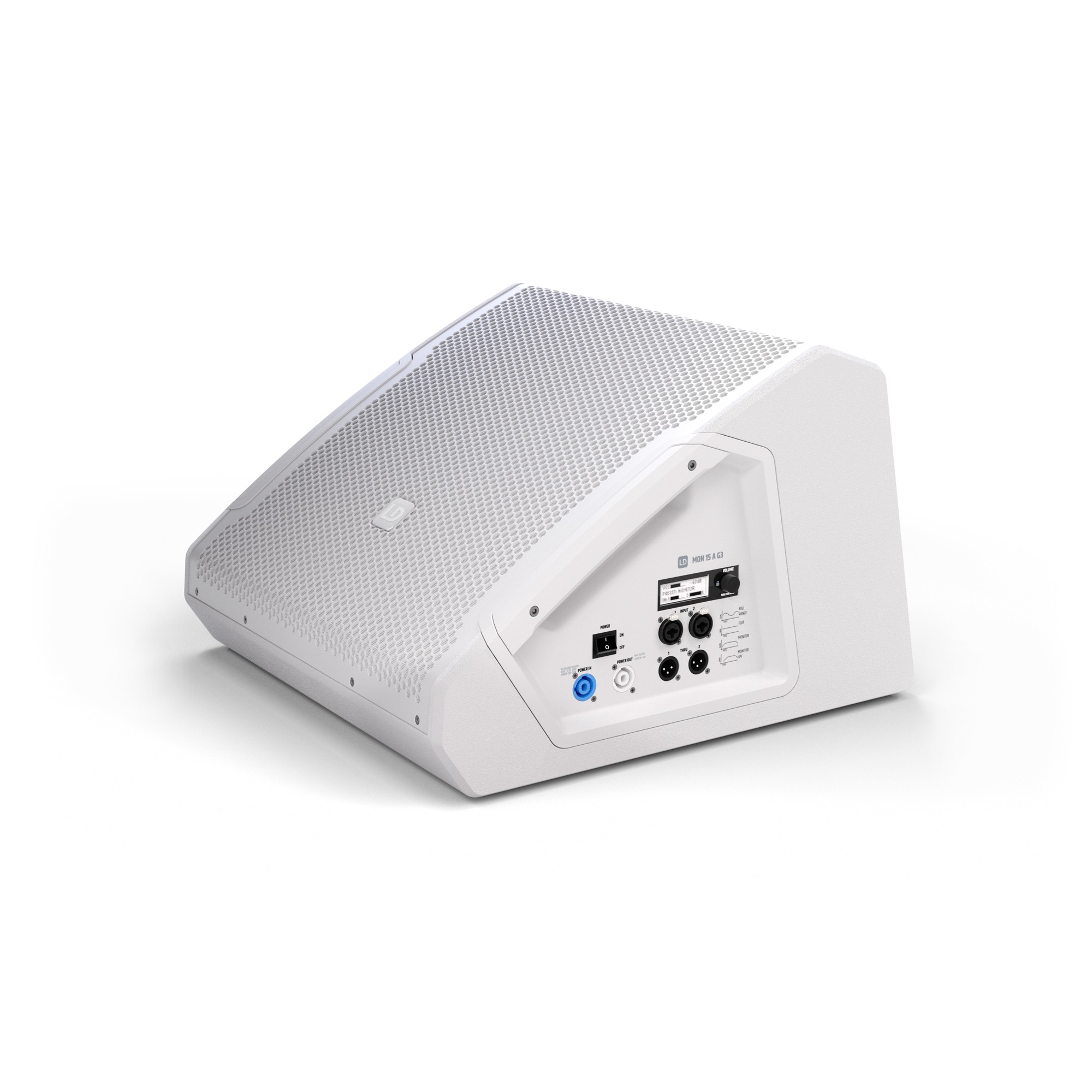

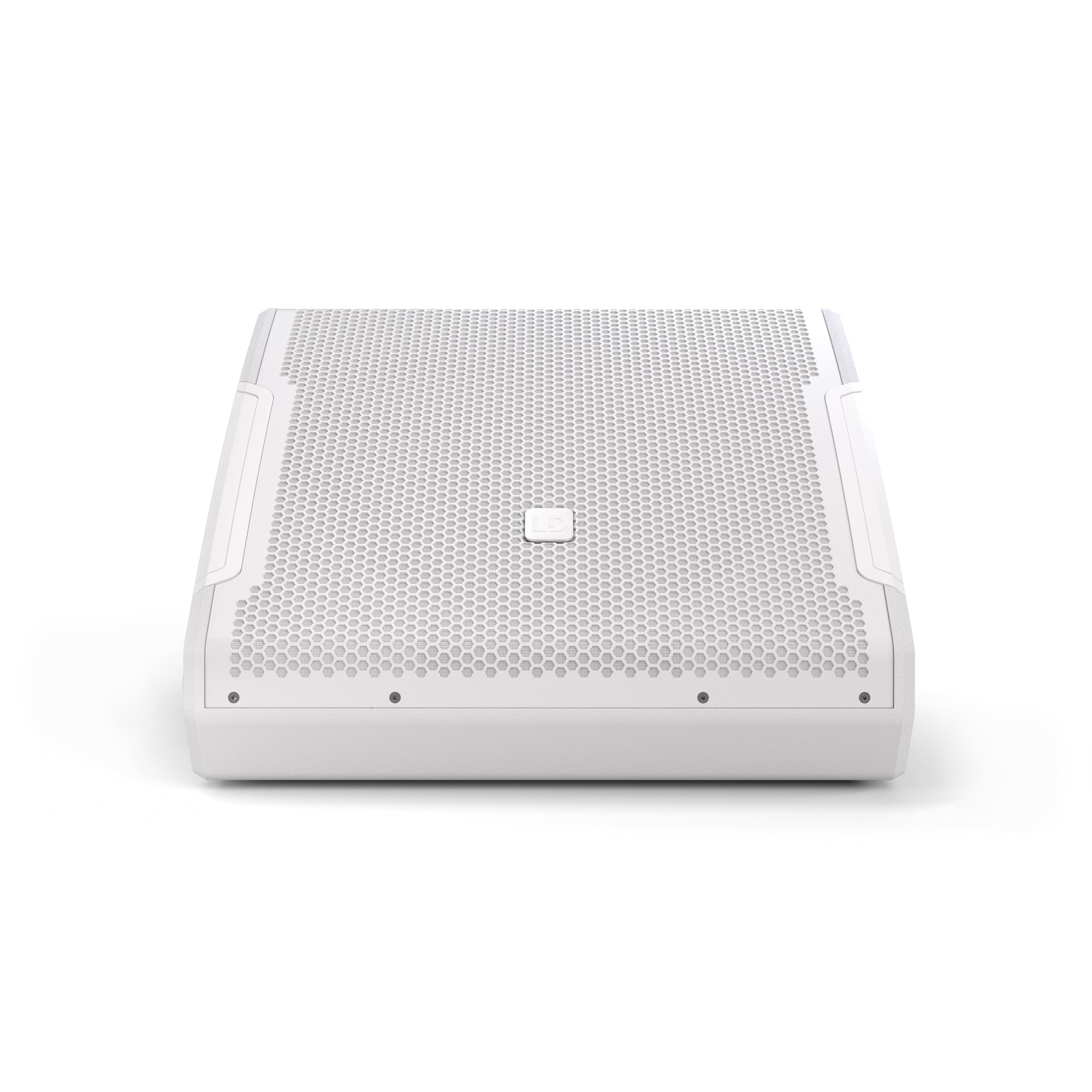

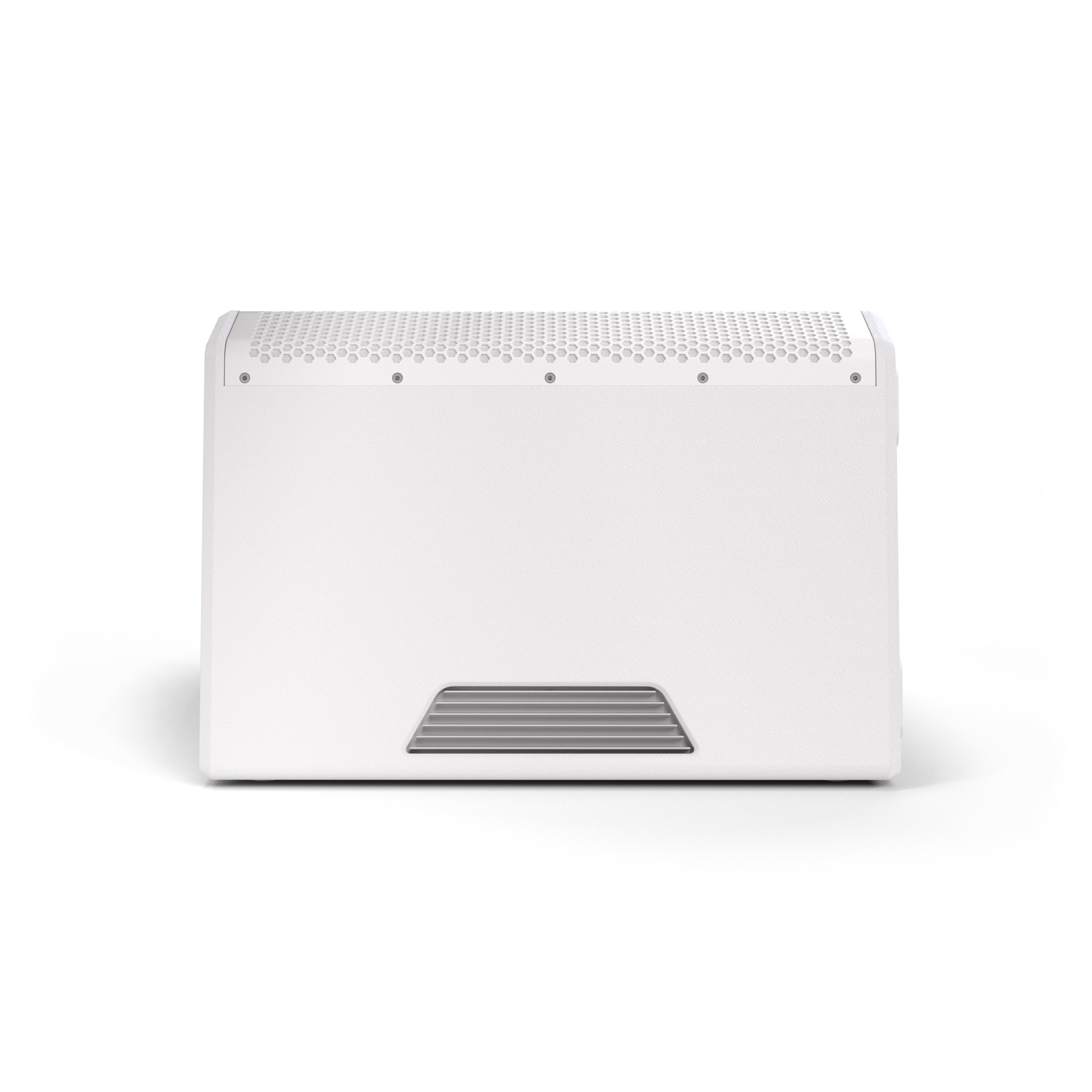

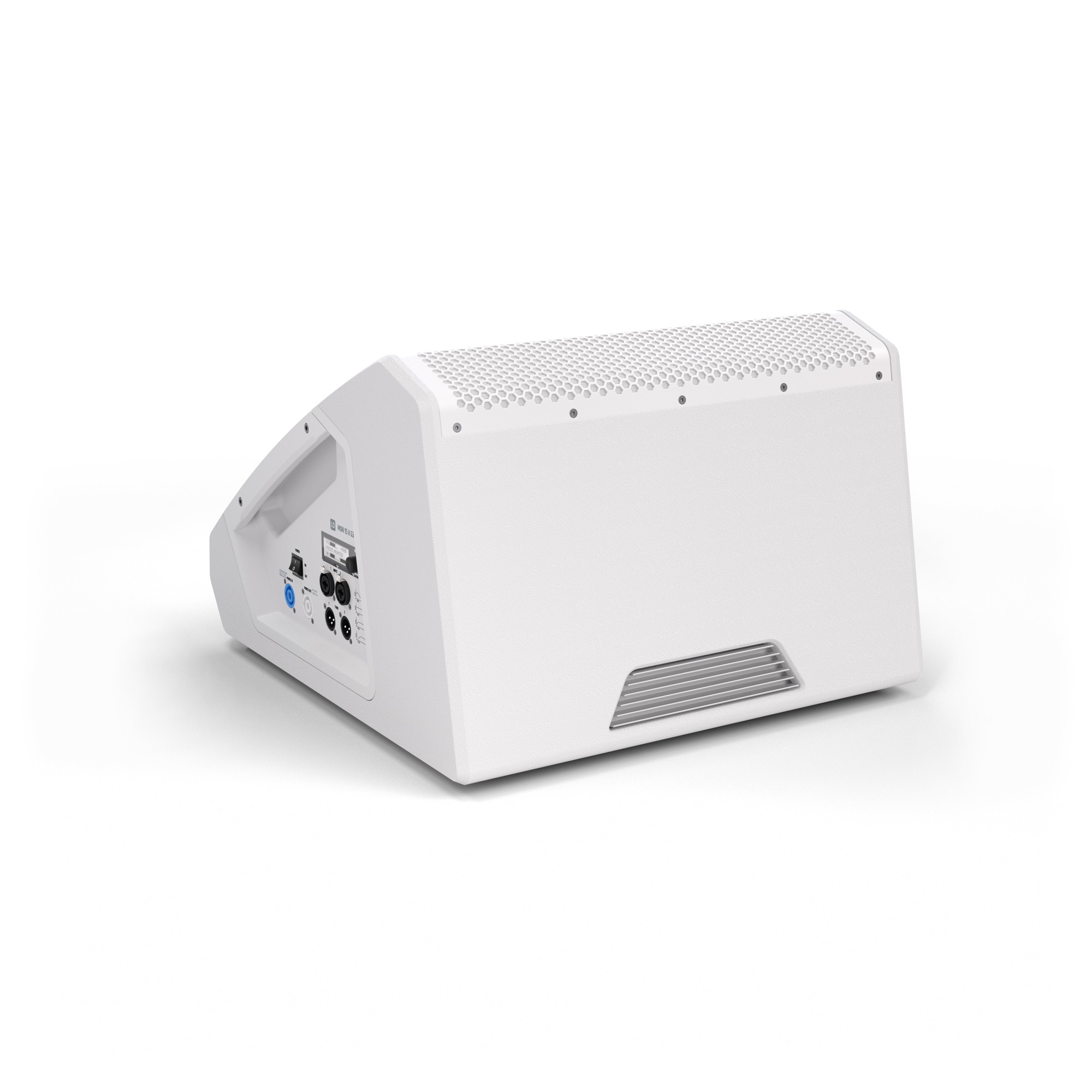

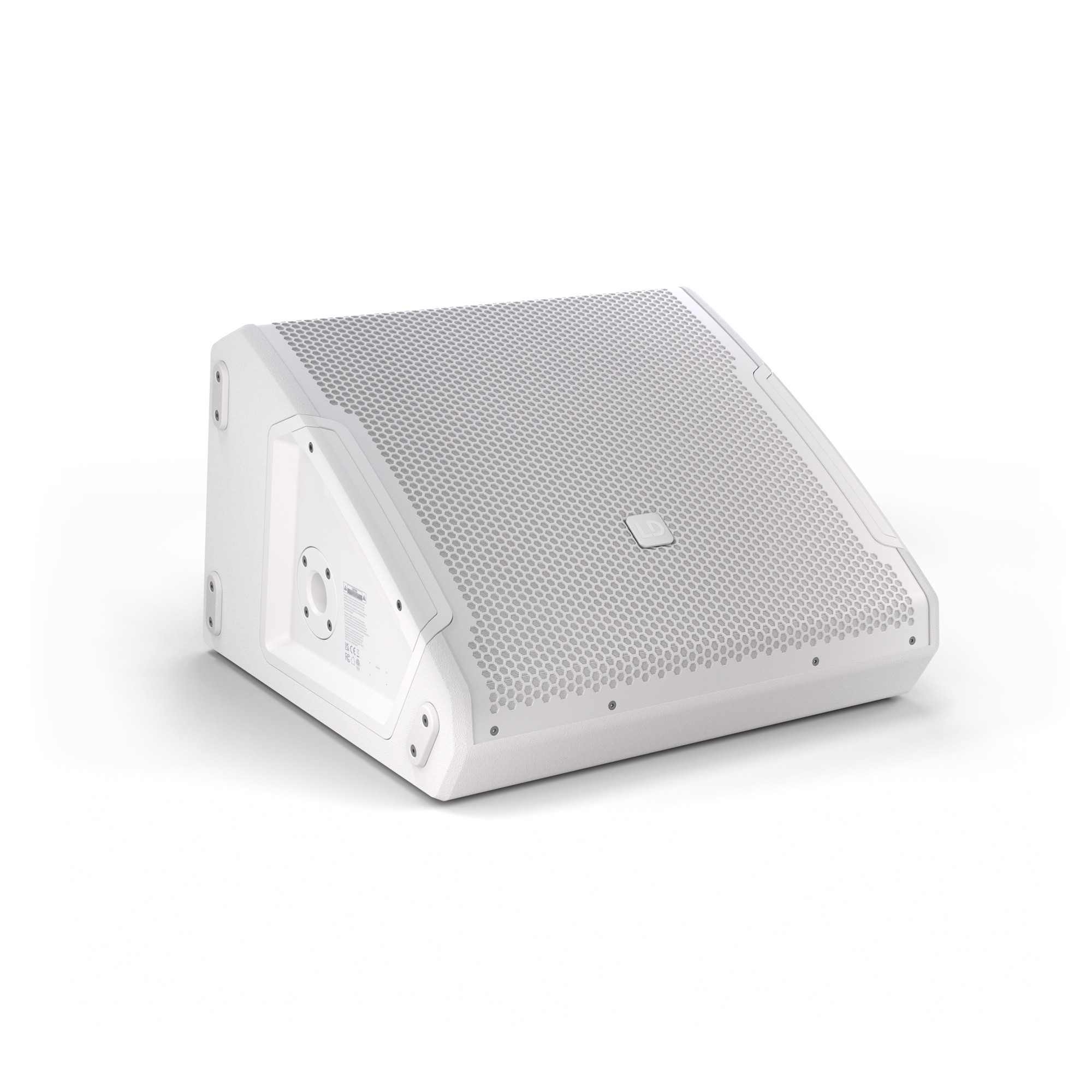

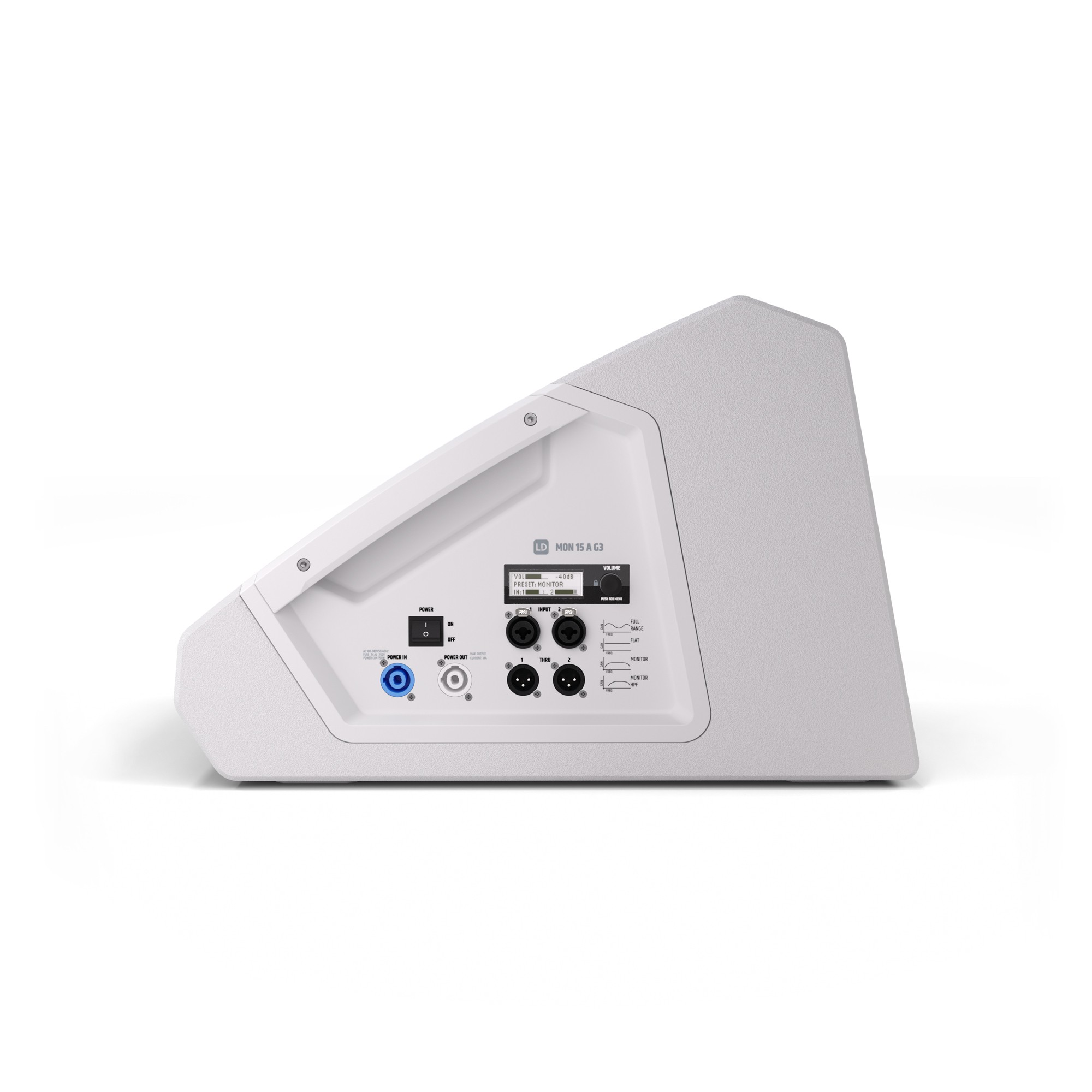

LD Systems STINGER MON 15 A G3 W 15-Inch Powered Coaxial Stage Monitor - White

About: LD Systems STINGER MON 15 A G3 W 15-Inch Powered Coaxial Stage Monitor - White

The MON 15 A G3 W is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

• Compact high-performance stage monitor with top-of-the-range technologies
• Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL
• Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
• 15" woofer with 3" voice coil
• Optimised, practical radiation pattern due to 50° x 90° CD horn
• DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
• 3-band EQ, Notch filter, 4 application presets and delay function
• PowerCON compatible loop-through professional power connection
• 35 mm speaker stand flange for FOH applications
• Durable Polyurea coating and heavy-duty front grille

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 W the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

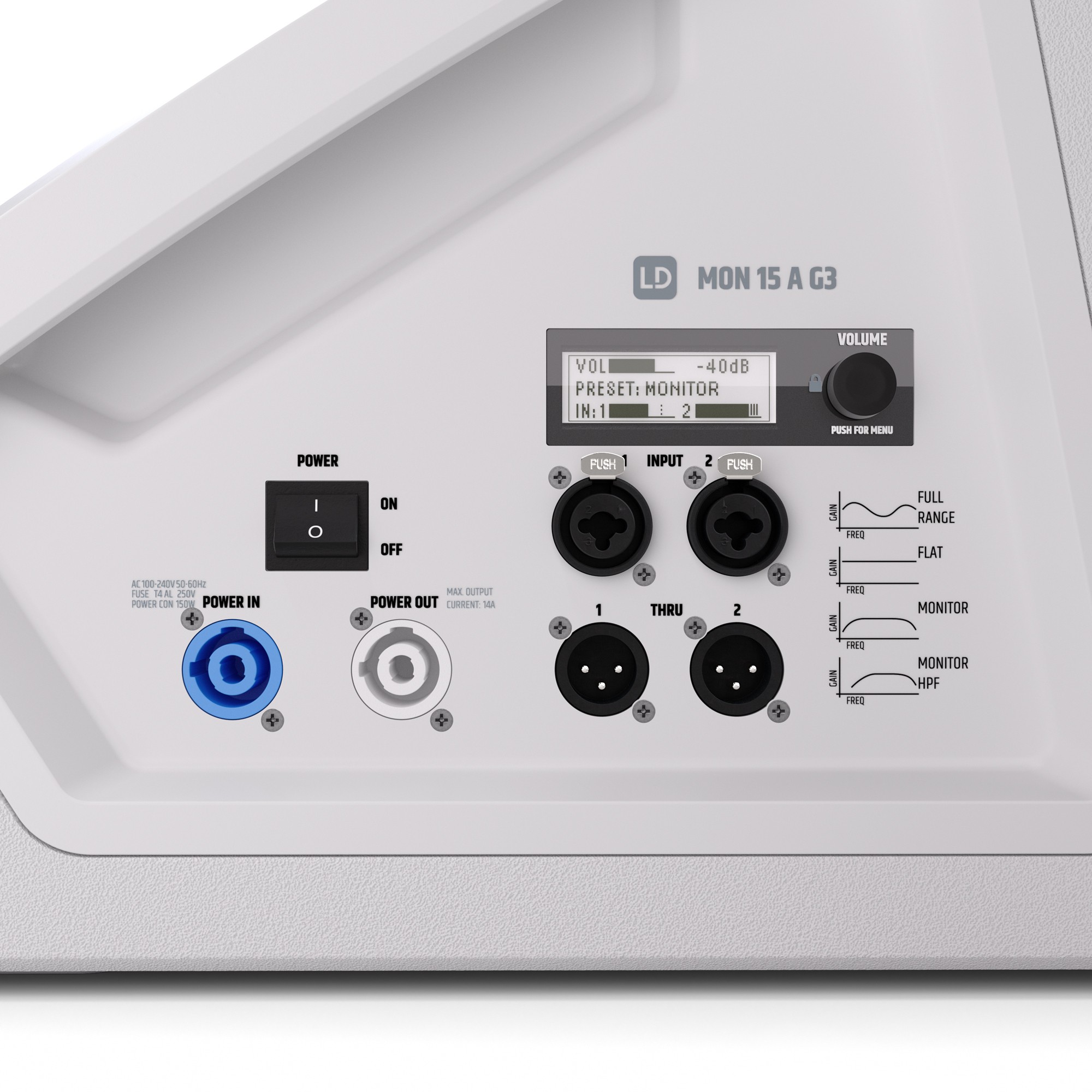

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Specifications

• General
  • Product type -  Stage monitors
  • Type -  Powered
  • Color -  White
  • System output (RMS) -  300 W
  • System output (Peak) -  1200 W
  • Max. SPL Average (Sine burst) -  122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
  • Max. SPL Peak (Sine burst) -  129 dB (fullspace @1m, 10% THD)
  • Frequency response (-3 dB) -  58 - 18000 HZ
  • Frequency response (-10 dB) -  48 - 20000 Hz
  • Crossover frequency -  1300 Hz
  • Monitor angle -  33°
  • Dispersion (HxV) -  50° x 90°
  • Features -  3-band EQ (High, Mid, Low), Delay line, Notch filter
  • Dimensions (WxDxH) -  19.88 x 20.35 x 13.39 Inch (505 x 517 x 340 mm)
  • Weight -  51.04 lbs (23.15 kg)
• Low/mid woofer
  • Low/mid Woofer dimensions -  15" (381 mm)
  • Woofer magnet -  Ferrite
  • Woofer brand -  Custom-made
  • Woofer type -  Coaxial loudspeaker
  • Woofer voice coil -  3" (75 mm)
  • Cabinet construction -  Bass Reflex
  • Cabinet material -  15 mm Birch Plywood, 15 mm MDF
• HF
  • Horn -  CD Horn
  • Tweeter dimensions -  1" (25.4 mm)
  • Tweeter magnet -  Ferrite
  • Tweeter brand -  Custom-made
  • Tweeter voice coil -  1.75" (44.45 mm)
• Amplifier module (integrated)
  • ​Amplifier -  Class D
  • Protection circuits -  Multiband limiter, over voltage, over-current, thermal overload
  • Operating Temperature -  0 - 40 °C
  • Humidity Range -  < 80 % ( non-condensing )
  • Fuse -  T4AL 250 V
  • Controls -  On / off switch, Rotary/push encoder
  • Indicators -  LC display
  • Operating voltage -  SMPS
  • Operating voltage -  100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption -  150 W
  • Power in / out -  PowerCON compatible
  • Line inputs -  2
  • Line input connectors -  6.3 mm jack, XLR - combo
  • Line thru -  2
  • Line through connector -  XLR
