BassBoss Sublim8 4000W 3-Way Column PA Speaker w/ 18in Sub - White

About: BassBoss Sublim8 4000W 3-Way Column PA Speaker w/ 18in Sub - White

The Sublim8 is a fully re-imaged column; Deep, rich, crystal-clear, high output in a stealthy form factor that fits into any aesthetic and environment. This 3-Way Self-Powered Full Range Column Speaker System and Subwoofer Package delivers exceptional coverage and fidelity along with super high output in a compact ready to roll package . The column-format section features dual 8” mid-ranges and a 3” voice coil, 1.4” throat compression driver on an isophasic wave guide. The Integrated comprehensive DSP, 96kHz sampling rate, push button presets, and the BASSBOSS ControlBASS software application ensures ease of deployment, optimal sonic performance, and provides host of embedded features. The included wheel cart allows for efficient and streamlined transport.

Sleek Not Weak

The power and performance that columns always promised but never delivered. It’s what column speakers always should’ve been. We call it the Column Crusher!

So Sexy So Stylish

Refined on the outside, rugged on the inside: Sublim8 is at home in elegant spaces but tough enough for touring. Waterproof cones, IP-rated connectors, and pro-grade DSP mean it’s ready for anything.

Ready to Roll

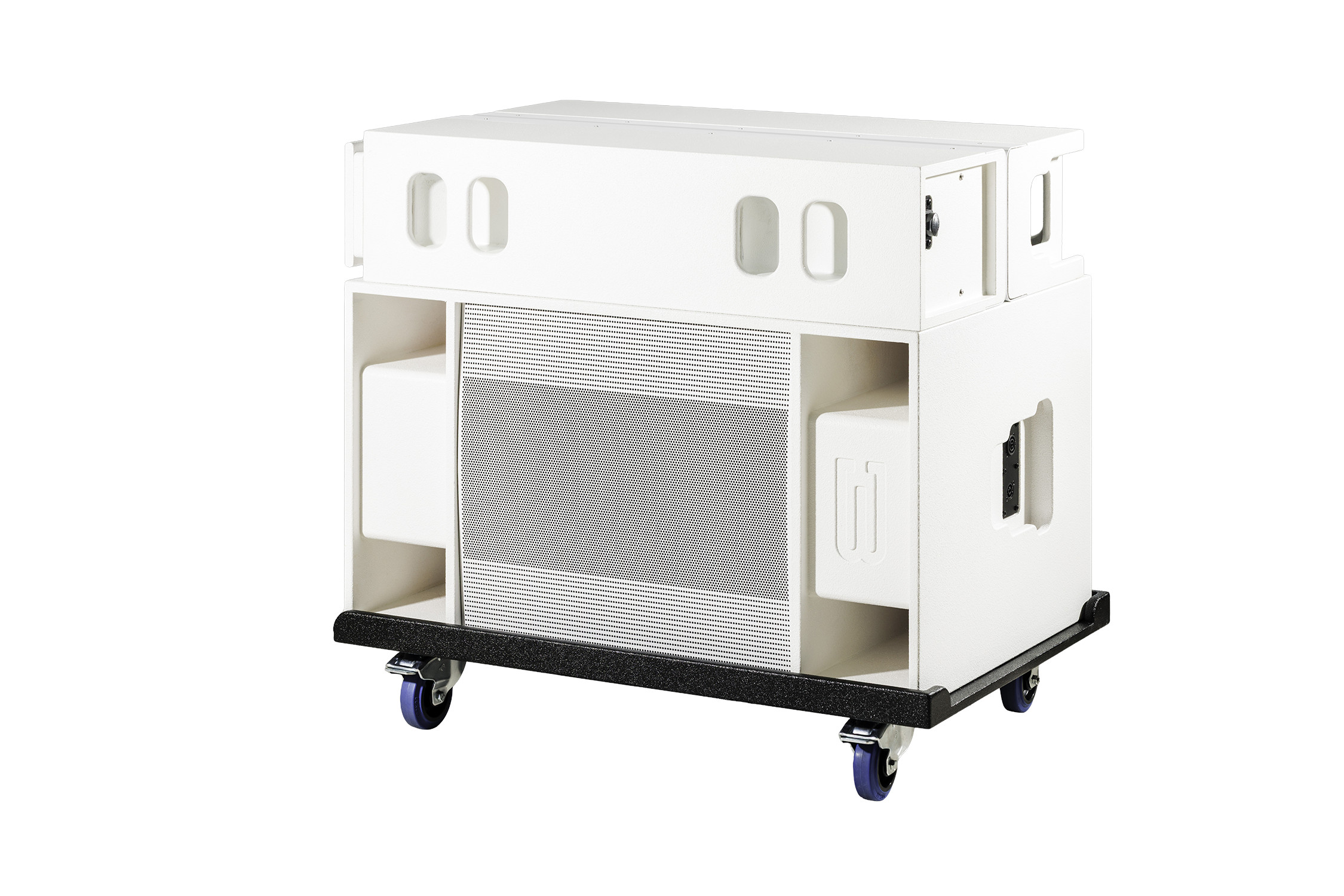

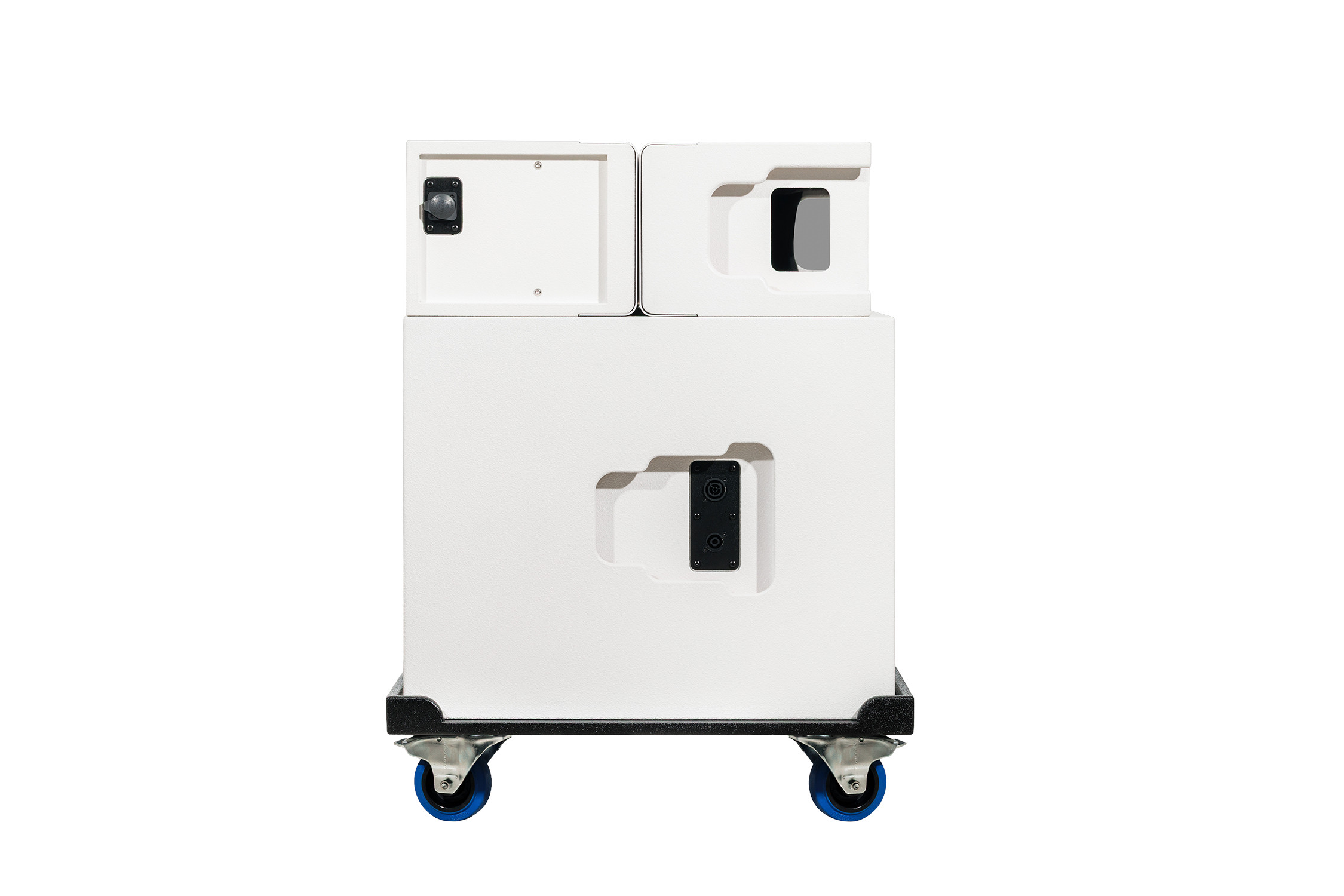

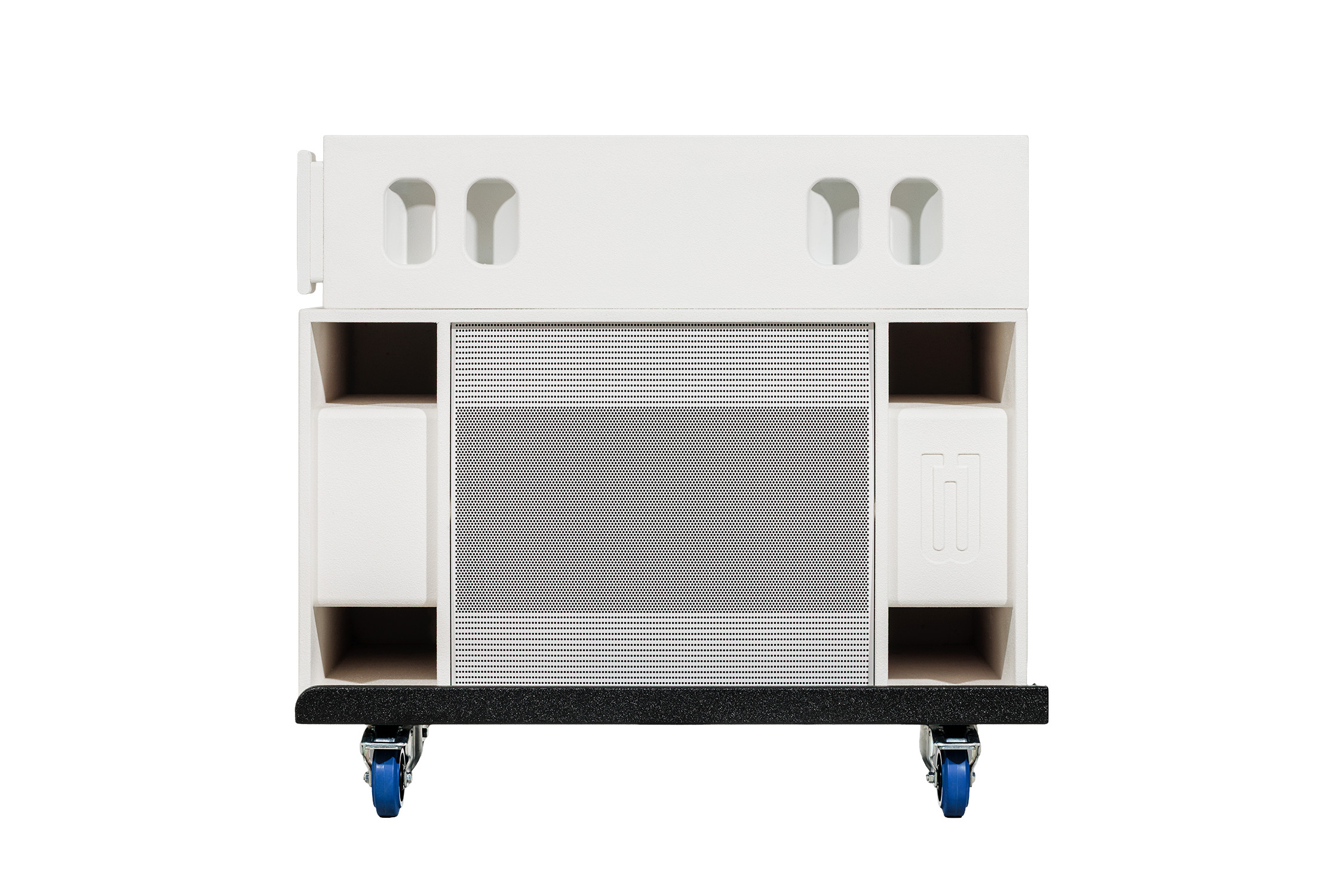

Sublim8 comes with a fitted cover for each section and rolling cart, making setup and transport just as refined as the design. Quick load-ins, quick load-outs, and fewer headaches: built for working pros who need the best.

Light It Up!

Sublim8 provides power and mounting connections for a top-mounted light fixture, such as a small moving head or wash/derby fixture. This further simplifies setup and improves sightlines, removing the need for truss towers.

Power of MK3

• MK3 Amp Update
  • ​There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind.
• MK3 Enhanced DSP
  • ​The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS Software
  • ​ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.

Specification

• Acoustical
  • Loudspeaker Description: Self-powered, 3-Way Active Full Range Loudspeaker Column
  • Frequency Response (±3 dB): 35Hz - 19,000Hz
  • Maximum Measured SPL: 130 dB (half-space)
  • Max calculated SPL (Peak): 133 dB (half-space)
  • Nominal Dispersion (H° x V°): 120 x 20
• Electrical
  • Amplification: 4000W Class D (2400W LF + 800W MF + 800W HF)
  • Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage capacity for up to 100 presets
  • Electrical Input Connector, Amp: Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
  • Electrical Connector, Mains: USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided
  • Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
  • Current Draw, Nominal: 5.4A @ 120V (nominal), 2.5A @ 240V (nominal)
  • Display: LEDs for Power on/ready, Signal, -12dB, -6dB, Limiter Active, Thermal, Protect and LAN Link Active. Eight LEDs indicating selected preset
  • Signal Input Connector: XLR-F
  • Signal Output Connector: XLR-M (Direct pass-through, unprocessed)
  • LAN Connectors: EtherCON RJ45 (x2) with 2-port Ethernet switch
• Physical
  • Enclosure Type: 3-Way Full-Range Loudspeaker System. Vented direct radiator subwoofer cabinet, vented direct radiator mid-bass cabinet with Isophasic waveguide loaded High Frequency section and an interlocking spacer.
  • Transducer LF: 1 x 18 in. diameter (450mm) neodymium motor woofer with 4 in. (100mm) voice coil, waterproof cone
  • Transducer MHF: 2 x 8” diameter (210mm) neodymium motor woofers with dual 2” (51mm) voice coils and waterproof cones
  • Transducers, HF: 1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4” (35mm) exit mounted to isophasic wave guide
  • Cabinet Construction: CNC machined 15 and 18mm Birch plywood with extensive bracing and dado joinery. 3 interlocking sections: sub, spacer and top. 6 handles (2 per section).
  • Suspension Points: None. Attachment to secure a light fixture is provided in the top section.
  • Exterior Finish High-pressure, bonded polyurea coating. Rugged, waterproof. Black or white
  • Grilles Perforated, powder-coated steel with hydrophobic backing
  • Dimensions
    • Sub: 36 x 19.75 x 24 inch (91.44 x 50.17 x 60.96 cm)
    • Spacer: 36 x 8.5 x 11.25 inch (91.44x 21.59 x28.58 cm)
    • Top: 36 x 8.5 x 11.25 inch (91.44x 21.59 x28.58 cm)
    • Assembled: 106 x 19.75 x 24 inch (269.2 x 50.2 x 61 cm)
    • Transport: 34 x 37 x 25.75 inch (86.36 x 93.98 x 65.41 cm)
  • Weight
    • Sub: 100 lbs (45.45kg)
    • Spacer: 22 lbs (10kg)
    • Top: 39 lbs (17.6kg)

What’s Included

• Subwoofer cabinet
• Mid-high cabinet
• Spacer cabinet
• Pass-though speaker interconnect cable
• Pass-through power cable (for lighting)
• Transport Dolly Cart with 4 locking 4” casters
• Subwoofer Cover
• Mid-high cover
• Spacer Cover
• 15-foot (5m) Power Cord
• Owner’s Manual
• Warranty Registration Card
