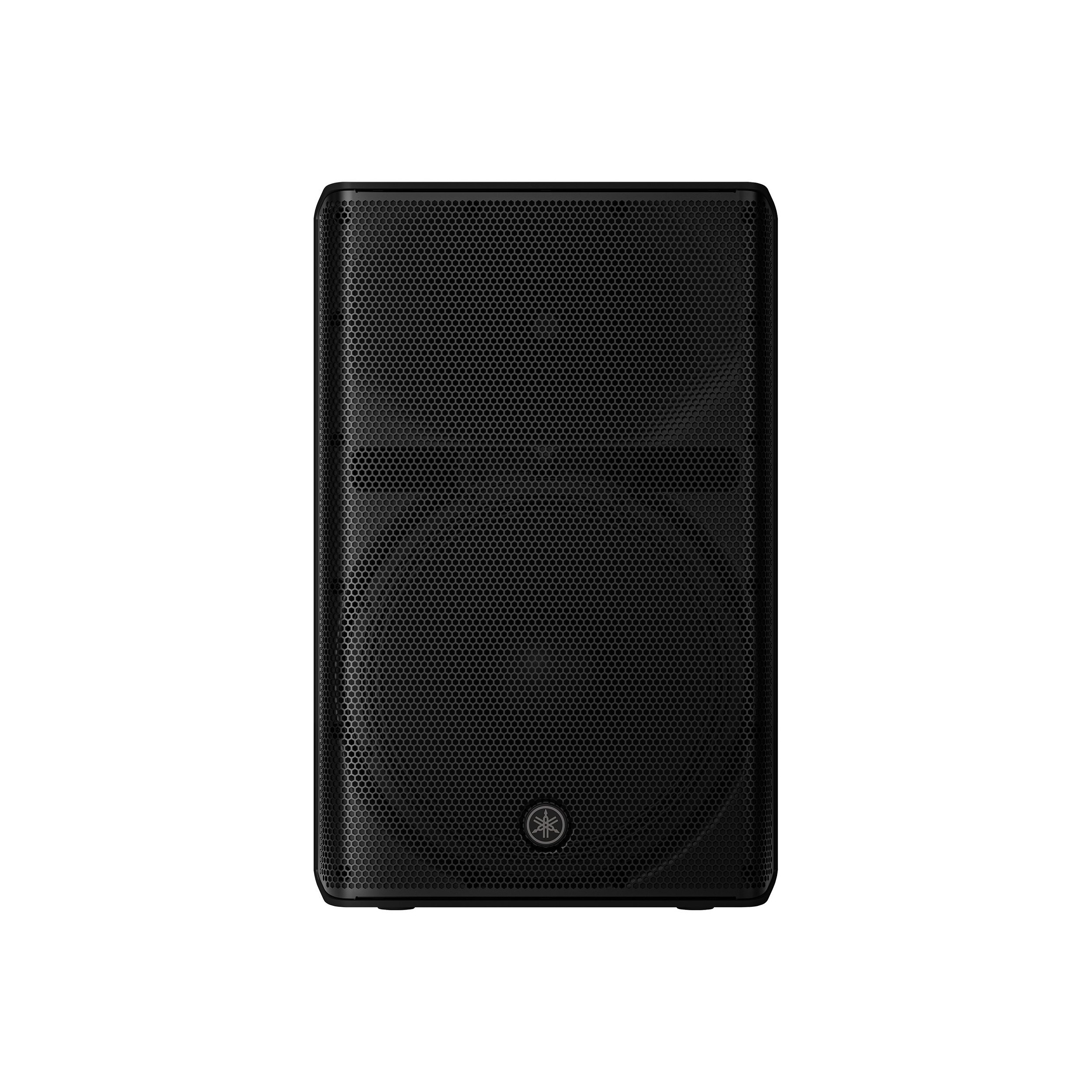

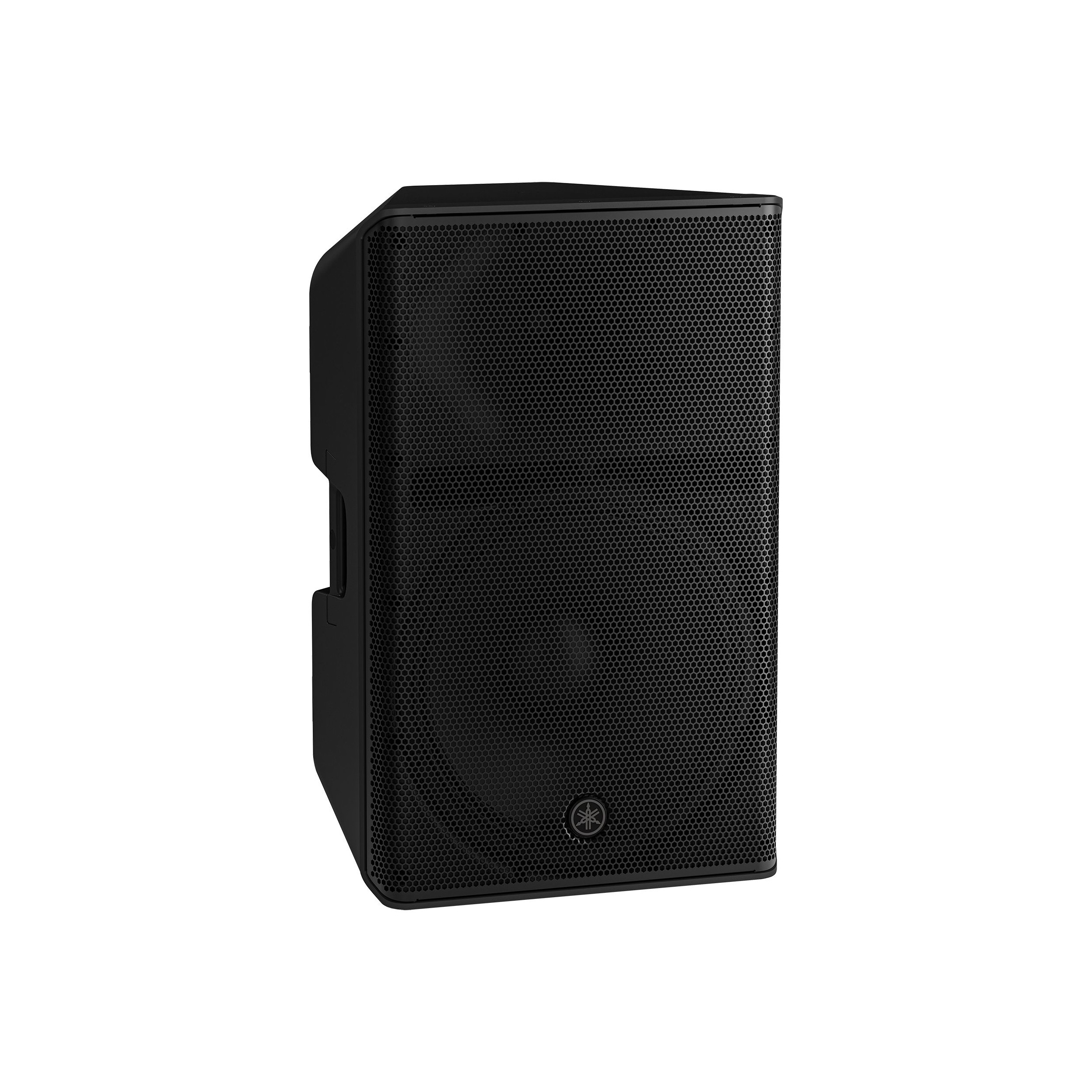

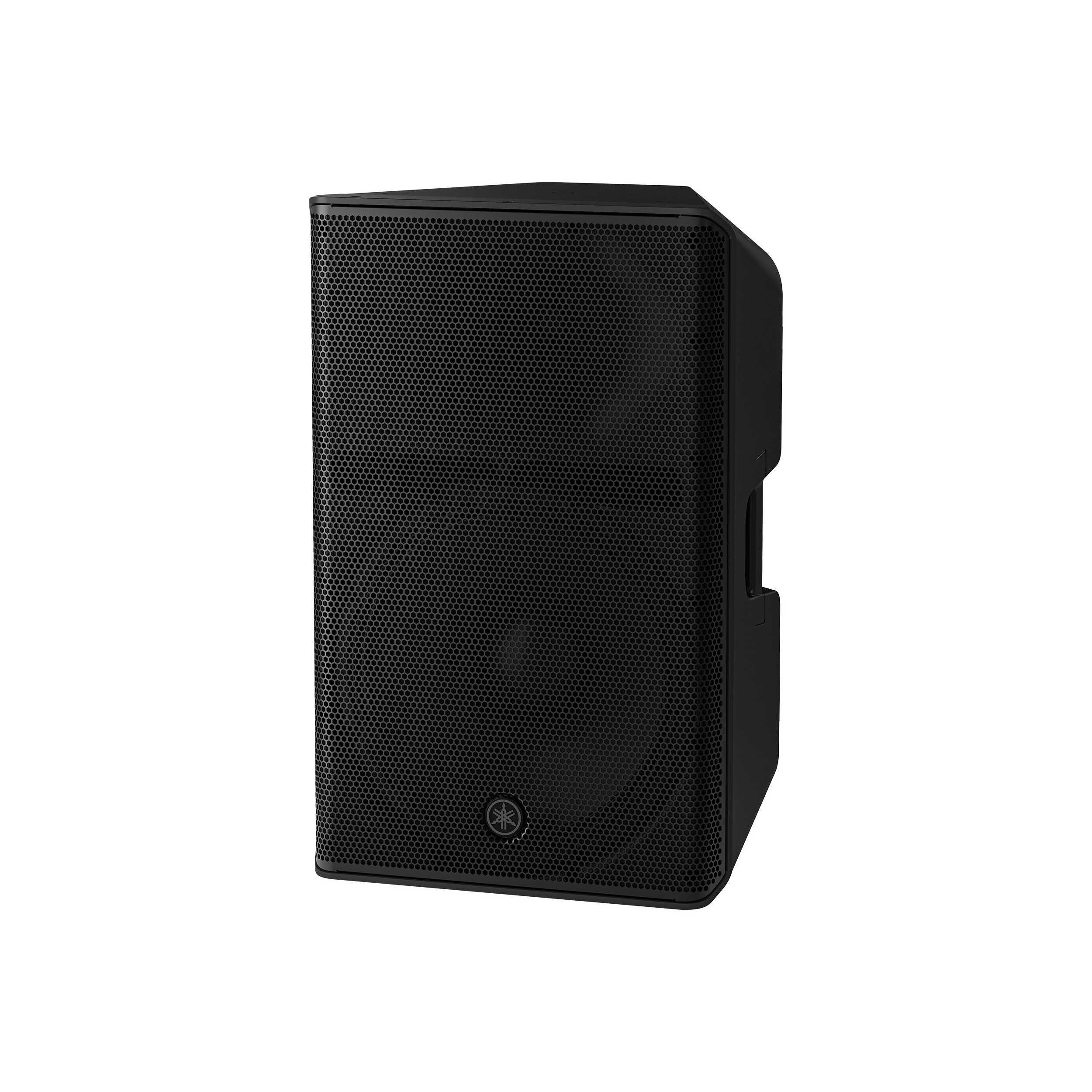

Yamaha CXR15 mk3 2-Way Passive Loudspeaker

About: Yamaha CXR15 mk3 2-Way Passive Loudspeaker

The CXR15 mk3 is a 2-way loudspeaker that delivers the lowest frequencies in its lineup with exceptional clarity, precision, and impressive output capability. This combination of deep low-end and substantial power make it ideal as a main, front-of- house speaker for DJ events or live performances that demand a strong low frequency presence.

• 15" LF + 1.75" HF proprietary high-durability speaker units
• The large-diameter horn secures directivity control across a wide frequency range
• Optimized port positioning reduces standing wave effects
• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
• Optional UB-DXR15A U-bracket allows both for vertical or horizontal use
• Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
• Rigging points for use with eye bolts
• Dual-angle pole sockets offer both 0° or a -7° down tilt

Sound Changes Everything

Often, the trajectory of a band, a brand, a business, or a career can be distilled down to a single pivotal moment that changed everything. When these moments arrive it’s imperative to ensure that the audience is experiencing the full range of an artist’s or speaker’s expression and the sheer passion of their performance. The CXR mk3 Series are the passive models of Yamaha’s updated DXR mk3 Series loudspeakers, contributing to the legacy of power and premium sound established by one of Yamaha’s most celebrated loudspeaker lineups. The series sees a significant improvement in acoustic performance, speaker design, and flexibility, making it equally at home in portable applications or fixed installations. Equipped with Yamaha’s own high-durability LF/HF speaker units, a lightweight, high-performance molded enclosure, and an updated horn and port design that enhances high-frequency directivity and optimizes low-frequency response, the CXR mk3 Series will empower users with the capability and confidence they need for those crucial moments when sound makes all the difference in the world.

Significant improvement in acoustic performance

• Yamaha Proprietary High-Durability LF/HF Speaker Units: All DXR/CXR mk3 loudspeakers are equipped with Yamaha’s own high-durability, custom LF/HF speaker units. The LF unit ensures highly symmetrical front-rear movement for linear bass reproduction, while the HF unit features a polyimide diaphragm that eliminates audible distortion while providing exceptional durability—thus achieving both superior acoustic performance and outstanding reliability.
• Enhanced High-Frequency Directivity and Optimized Low-Frequency Response: The large-diameter horn secures directivity control across a wide frequency range. Optimized port positioning also reduces standing wave effects, resulting in smoother and more accurate low-frequency response.
• Lightweight, High-Performance Molded Enclosure: Utilizing a lightweight, high-strength, form-injection molded enclosure, the design achieves both weight reduction and attenuation of cabinet resonance that can result in bass loss. The ergonomically designed enclosure offers not only aesthetic appeal but also outstanding usability.

Intelligent processing to maximize system performance

When paired with Yamaha PX Series amplifiers, CXR & CXS mk3 Series loudspeakers unlock precision‑engineered tuning presets that maximize clarity, headroom, and overall system efficiency. With firmware V1.66 or later, PX amplifiers deliver fully optimized processing tailored specifically for CXR and CXS mk3 performance, ensuring tighter control, smoother response, and superior sonic accuracy across demanding applications. (*Supported firmware is V1.66 or later)

Usability Pursued to the Utmost

• Symmetrical design: The design supports mirror placement for all models when floor-mounted, allowing symmetrical HF positioning for precise stage monitoring.
• Dual-Angle Pole Socket: All DXR/CXR mk3 series models features pole mount sockets with both horizontal (0°) and 7° down-angle positions, enabling focused coverage for clearer sound delivery to the audience.
• Rubber-Coated Handles: Handles are fitted with rubber surfaces for improved grip and reduced heat impact, greatly enhancing comfort during transport and setup.
• Optional U-Bracket: Optional U-brackets are available for fixed installations, supporting both vertical and horizontal mounting. Compatible with K&M wall/ceiling brackets for flexible installation.
• Multi-Function Speaker Covers: Optional speaker covers are available for all models, protecting speakers from scratches, dust, and dirt during transport and storage, as well as from unexpected weather during outdoor performances.
• Eyebolt Rigging Points: Rigging points compatible with commercial eyebolts are provided, allowing flexible installation with wires and shackles.

Specifications

• Speaker type: 2-way Speaker, Bass-reflex
• Frequency range (-10dB): 50 Hz - 20 kHz
• Coverage area: H90° x V60°
• Crossover: 1.8 kHz
• Nominal impedance: 8Ω
• SPL
  • Sensitivity (1W; 1m on axis): 95 dB SPL
  • Peak (Calculated): 126 dB SPL
• Components
  • LF
    • Diameter: 15" cone
    • Voice Coil: 3"
  • HF
    • Diaphragm: 1.75"
    • Type: 1" throat compression driver
• Power rating
  • NOISE: 300 W
  • PGM: 600 W
  • PEAK: 1200 W

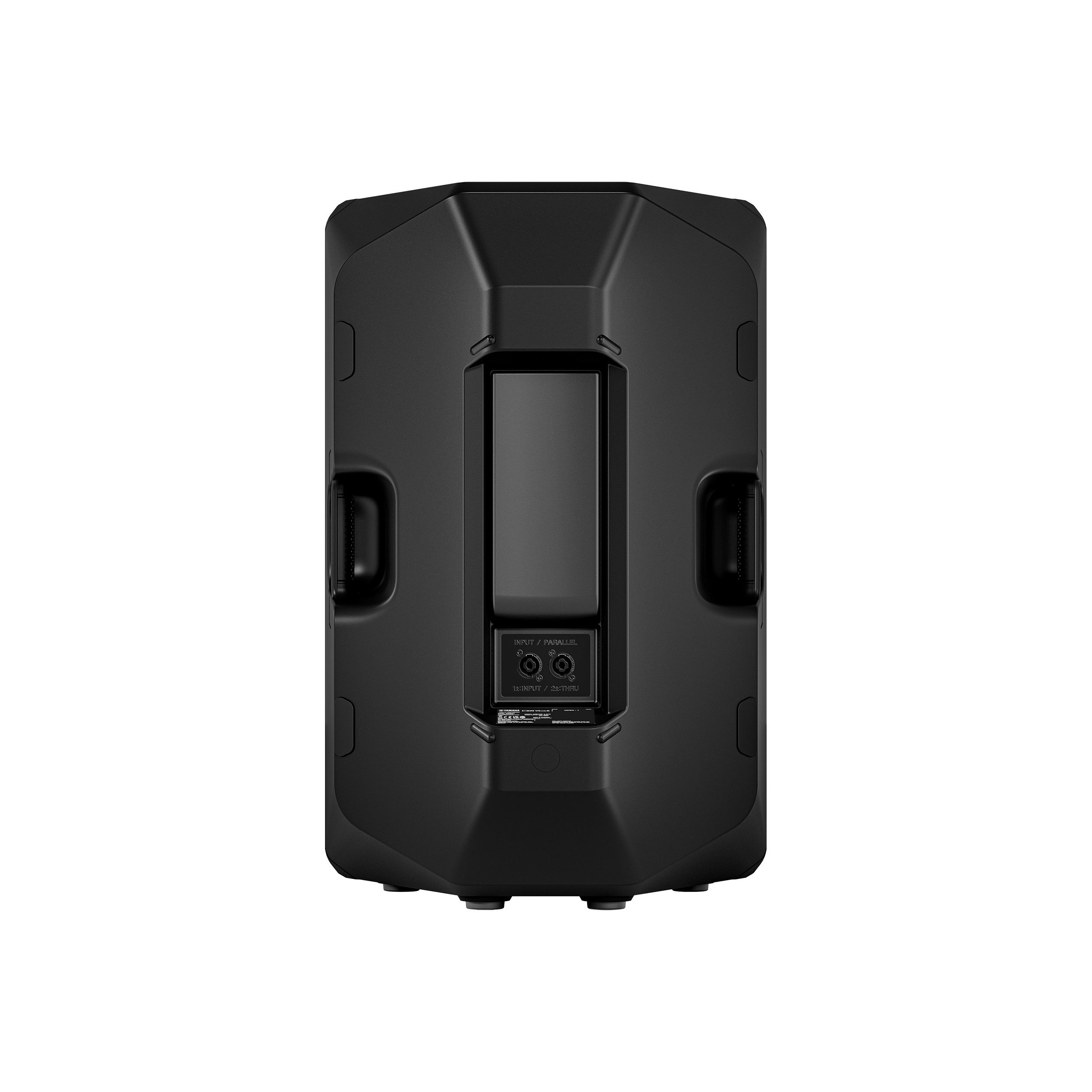

• I/O connectors: SpeakON NL4MP x 2 (parallel connected)
• Cabinet material: Plastic (PP)
• Finish: Black
• Handle: Side x2
• Pole: socket Φ35 mm x2 (Bottom, 0° or -7°)
• Rigging
  • 2x Top
  • 1x Rear (Fit for M10 x 18 mm Eyebolts)
  • 2x Bottom
  • 2x Side (Fit for M8 x 25 mm UB-DXR15A)
• Floor Monitor Angle: 52°
• Dimensions (WxHxD): 17.6 x 27.5 x 15 inch (447 x 699 x 380 mm)
• Weight: 41.9 lbs (19 kg)
