Theatrixx WD-128A Hard Case Distro
Model: WD-128A
About: Theatrixx WD-128A Hard Case Distro

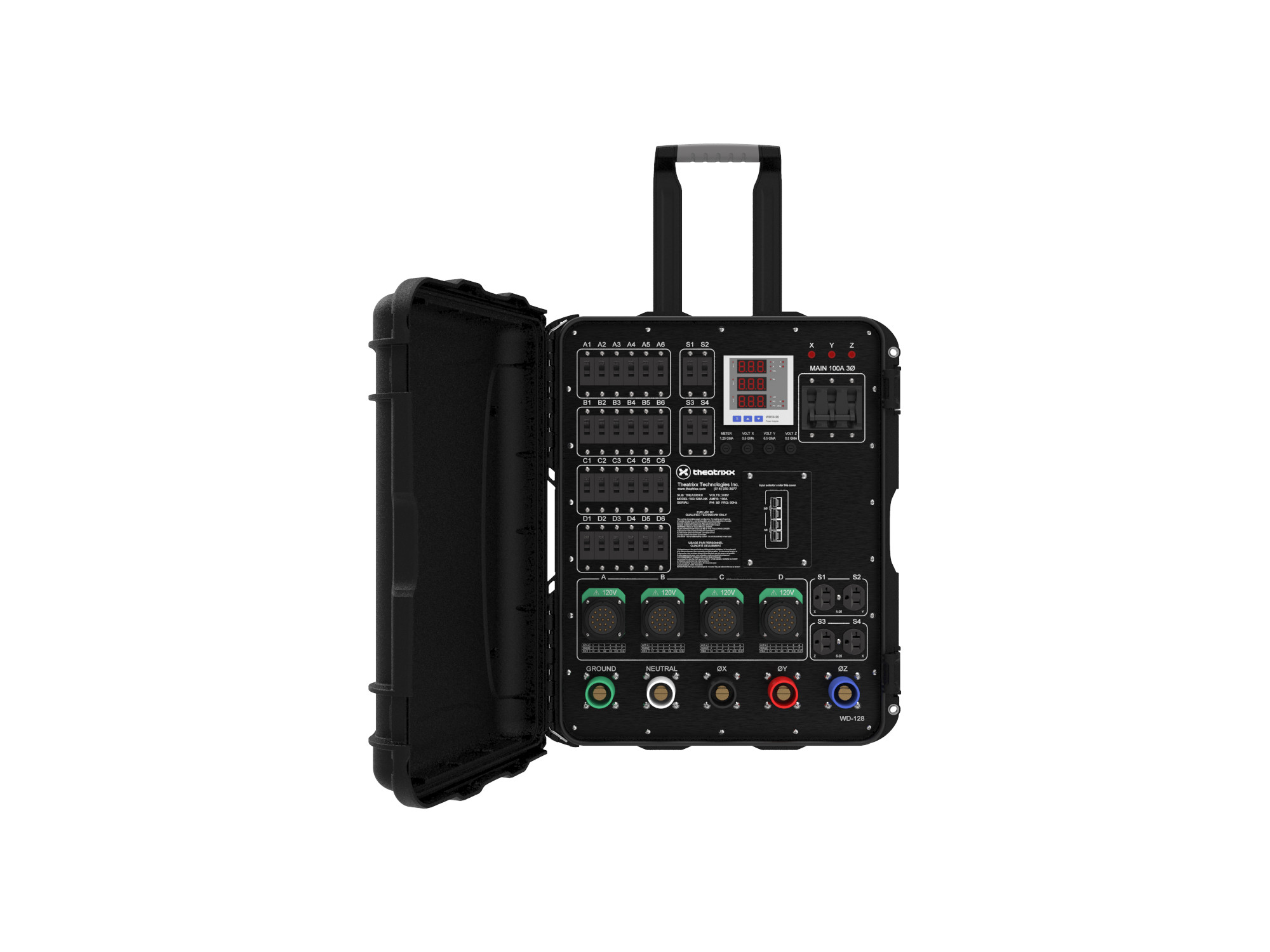

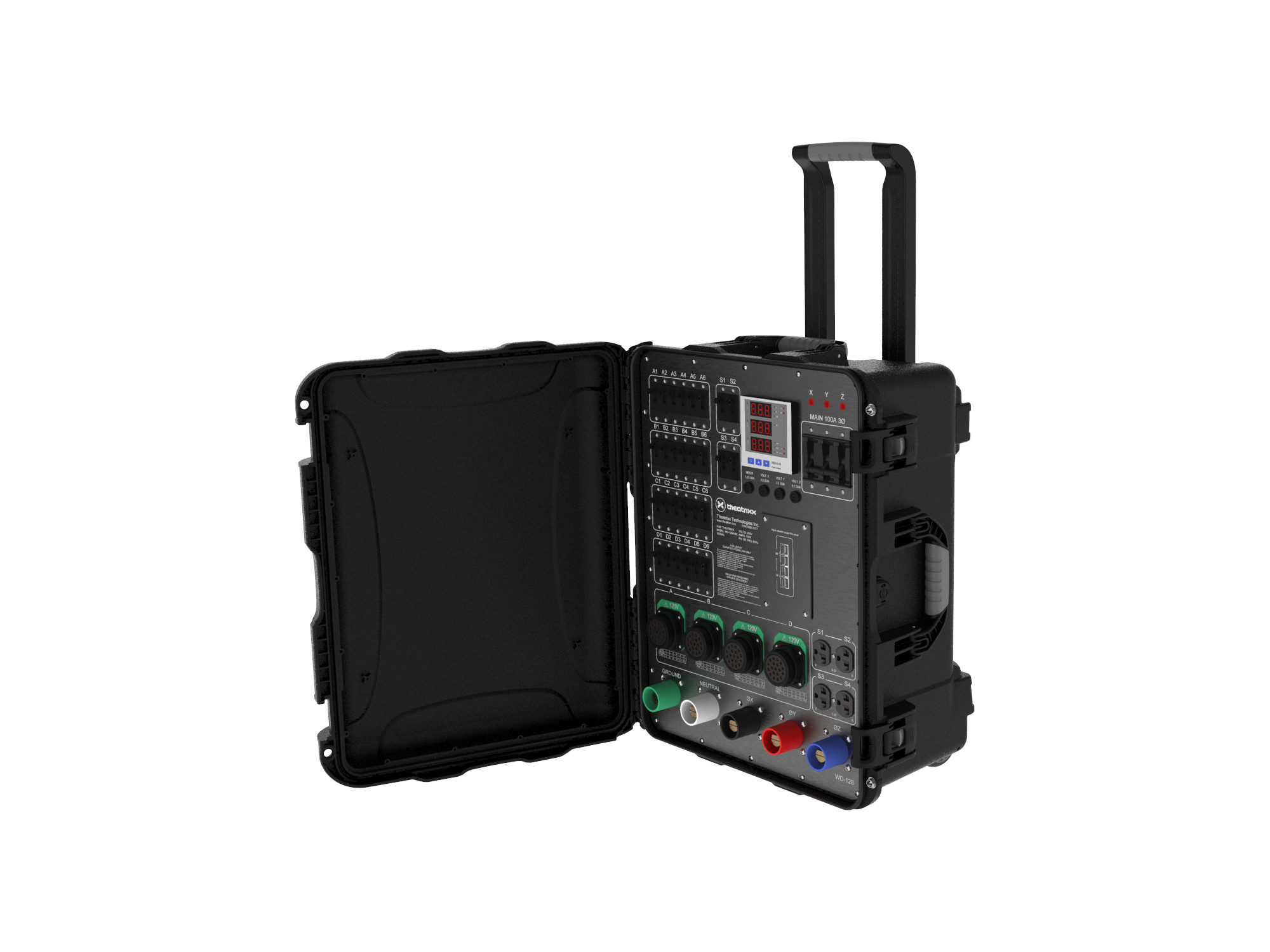

Built to withstand the daily hazards of touring, this WD-128A Theatrixx Electrical Distribution features an impressive amount of options for such a small format. The front panel is cut from a robust 0.080″ aluminum sheet and is fixed to a robust steel enclosure which is then inserted in a Nanuk type 950 transport case.
This type of power distribution is designed for lighting and stage power applications. It offers 24 separate 120V circuits on 4 x Socapex and 2 split 20A Edison Duplex (5-20) over a 200A 3 phases Main Breaker. Panel mount terminals and neon indicators allow quick and easy voltage checks. It also features a 1 to 3 phases selection located on top under an easy access trap door.
- Custom Electrical Distribution can be manufactured upon request.
- All products are CSA (22,2 No 14) and UL (1640) Certified by ETL.
Specifications
- Input
- Connector: CAM In – Straight or Ground/Neutral Reversed
- Breaker: 100A 120/208V 3 phases Main Breaker
- Outputs Features
- Connectors
- 4x Socapex 19 pins (120V)
- 2x 5-20 Duplex
- Breakers
- 24x 20A 120V Circuits
- 4x 20A 120V Circuits
- Digital Metering: Yes, integrated multifunction voltmeter/ammeter/wattmeter
- Single/Three Phase Switch: Yes, easy access from top of enclosure
- Phase Presence Indicators: 1x neon light per Input phase
- Voltage Metering Jacks: No
- Enclosure construction: Type 950 Nanuk Transport Case
- Connectors
- Case Dimensions (LxWxH): 22.8 x 18.3 x 11.7 inch (579 x 465 x 297 mm)
