Furman CN-20MP 20A SmartSequencing Remote Duplex
Model: CN-20MP
About: Furman CN-20MP 20A SmartSequencing Remote Duplex
Delivering SmartSequencing outside of the equipment rack, with remote relay.
Furman’s Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, via the Internet (with BB-RS232 adaptor and SmartSequencer), and/or control and automation systems.

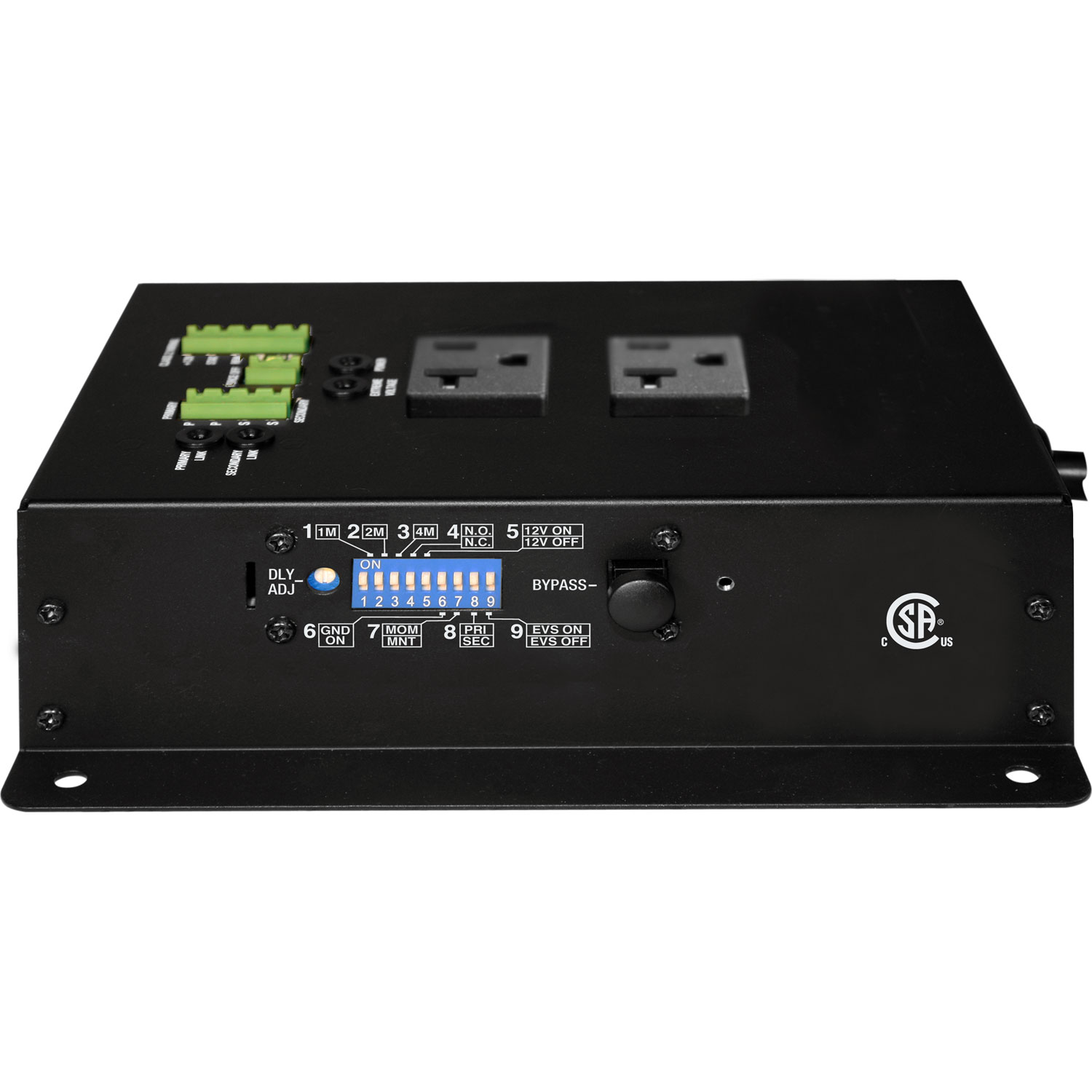

DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.
Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or data link (SmartSequencing from CN-1800S or CN-2400S).
The CN-20MP can shut itself off automatically when triggered by a fire alarm.
Furman CN-20MP Features
- SmartSequencing™ - SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
- Voltage Protection - Extreme Voltage Shutdown (EVS) safeguards from catastrophic under-voltage (under 80V sustained) or over-voltage (over 145V sustained) conditions. The EVS feature can be selectively enabled or disabled according to the preference of the user.
- BlueBOLT Compatible® - IP Control (Telnet or cloud-based BlueBOLT) via SmartSequencing (when connected to CN-1800S/CN-2400S with BB-RS232 Adaptor).
- Diagnostic Lights - Diagnostic lights provide valuable system information including power quality.
- 20 Amp Output Current - 20 amp maximum current capacity.
- DIP Switch Customization - DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.
UPC: 654061028482
Reviews: Furman CN-20MP 20A SmartSequencing Remote Duplex
Warranty: Furman CN-20MP 20A SmartSequencing Remote Duplex
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
BAT1500-EXT Battery: 2-year limited warranty
Elite Series: 3-year limited warranty
F1000/F1500 UPS Series: 3-year limited warranty, 2 years on the batteries
In Wall & In Line AC Conditioners: 3-year limited warranty
Power Station Series
PST-2+6 and PST-6: 1-year limited warranty
PST-8 and PST-8D: 3-year limited warranty
Reference Series i: 5-year limited warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
