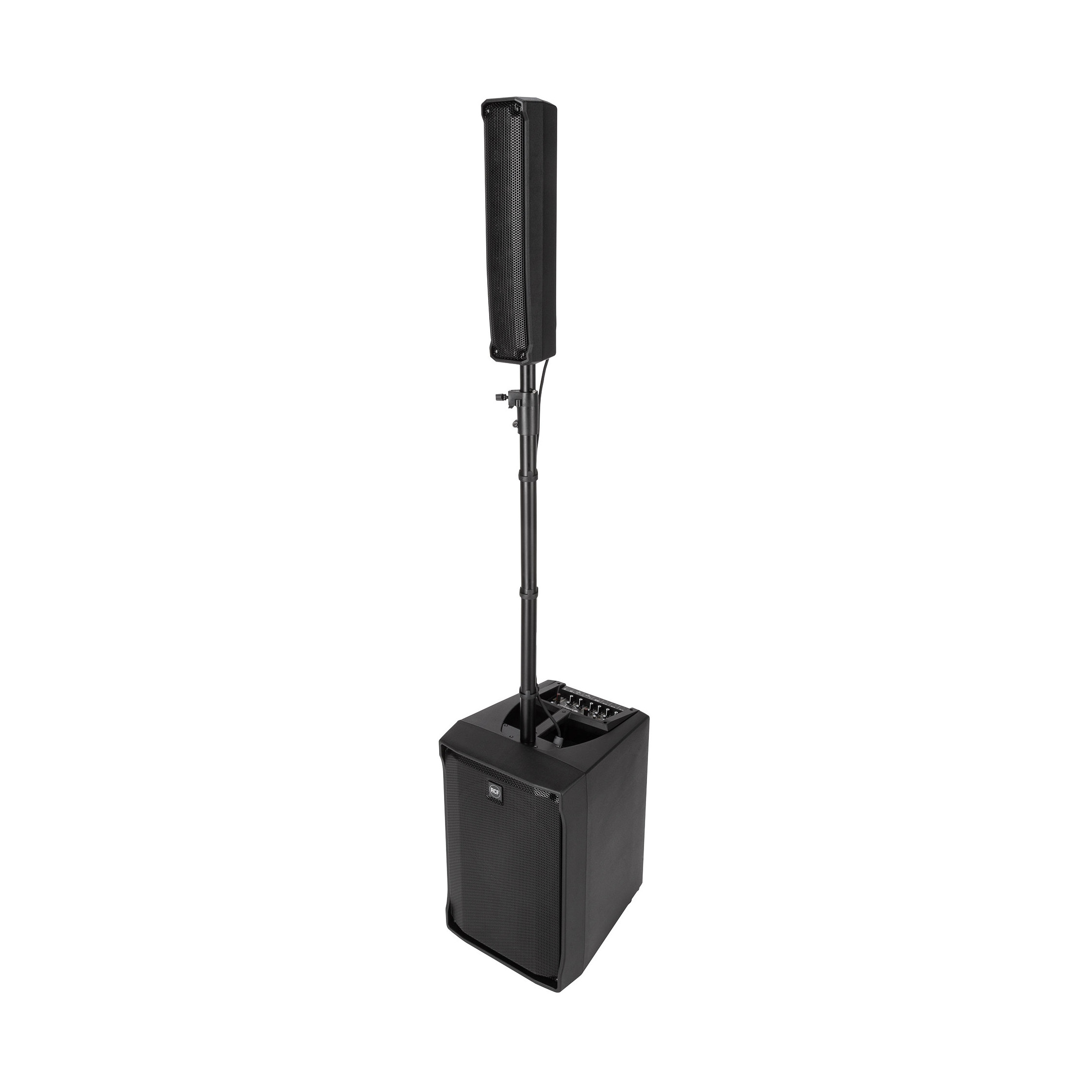

RCF EVOX JMIX8 Active Two-Way Portable Array System w/8ch Mixer - Black

About: RCF EVOX JMIX8 Active Two-Way Portable Array System w/8ch Mixer - Black

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

• 128 dB Max SPL
• 1400 Watt 2-way power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil

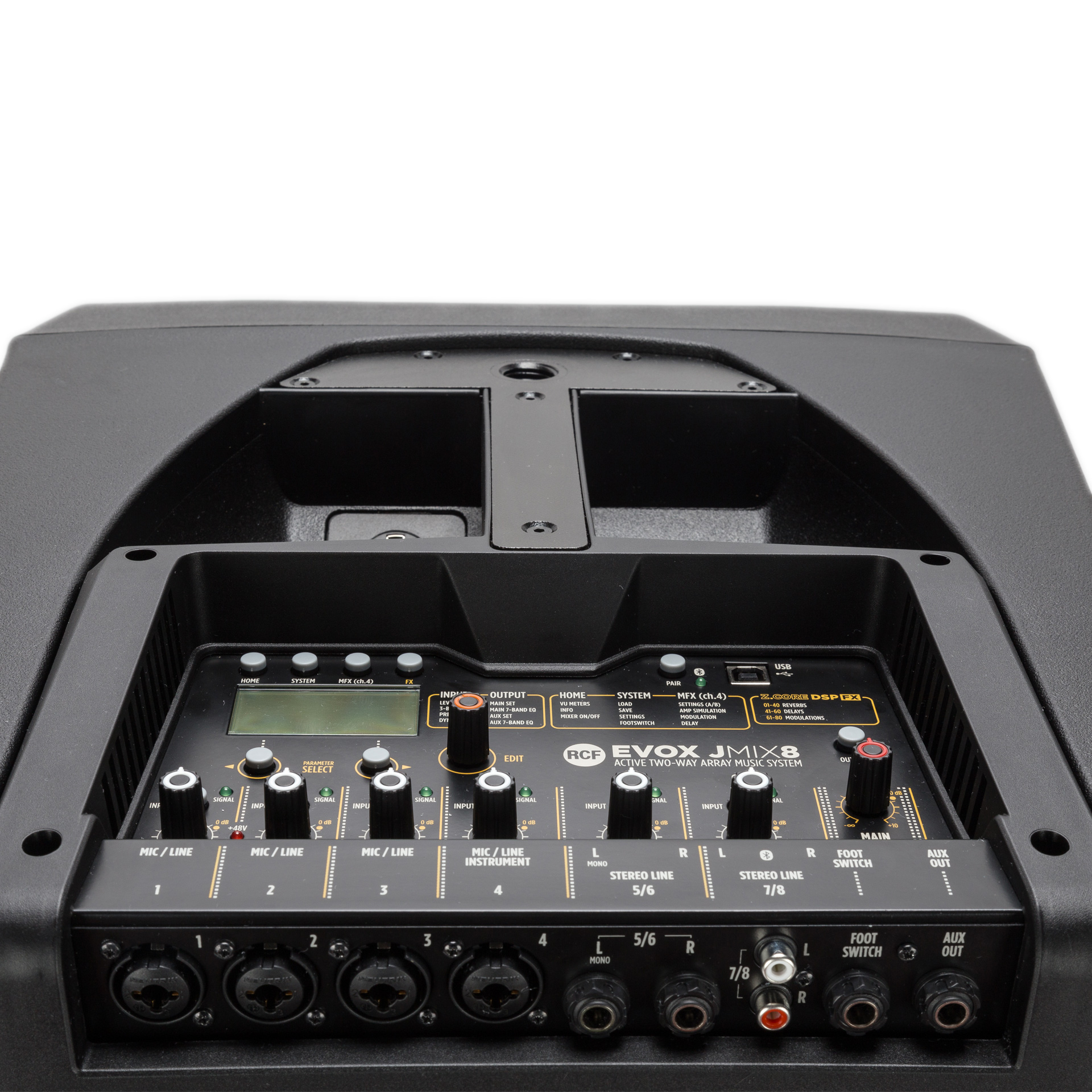

ONBOARD DIGITAL MIXER

The mixer section features a high quality professional preamplifier with remote digital gain control, selectable high pass filter, pan control and polarity reversal switch. Phantom power for condenser/electret microphones (+48V) available for channel 1 and 2. Each input channel is provided with a three band EQ: ±12dB gain shelving equaliser for lows and highs and a semiparametric EQ from 50Hz to 12kHz and ±12dB gain for the mid band. The EQ can be switched OFF with the touch of a button. Each channel can send audio to the FX chain and to the AUXiliary output for monitoring or other creative uses.

• EVOX APP
  • The RCF EVOX App ensures comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. The EVOX App is available for iOS and Android operating systems.
• Dynamic Compressor
  • MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.
• Main Channel
  • A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more RCF EVOX J harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.
• Guitar Amps And Cabinets Included
  • The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ’65, Jazz C, Rock’64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.
• Tons Of Effects
  • 80 High Quality effects presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs; 20 different delay types; 20 modulation effects to shape any nuance of your music.
• MFX
  • A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

POWERFUL CLASS D AMPLIFIER

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

SUPERIOR TRANSDUCERS

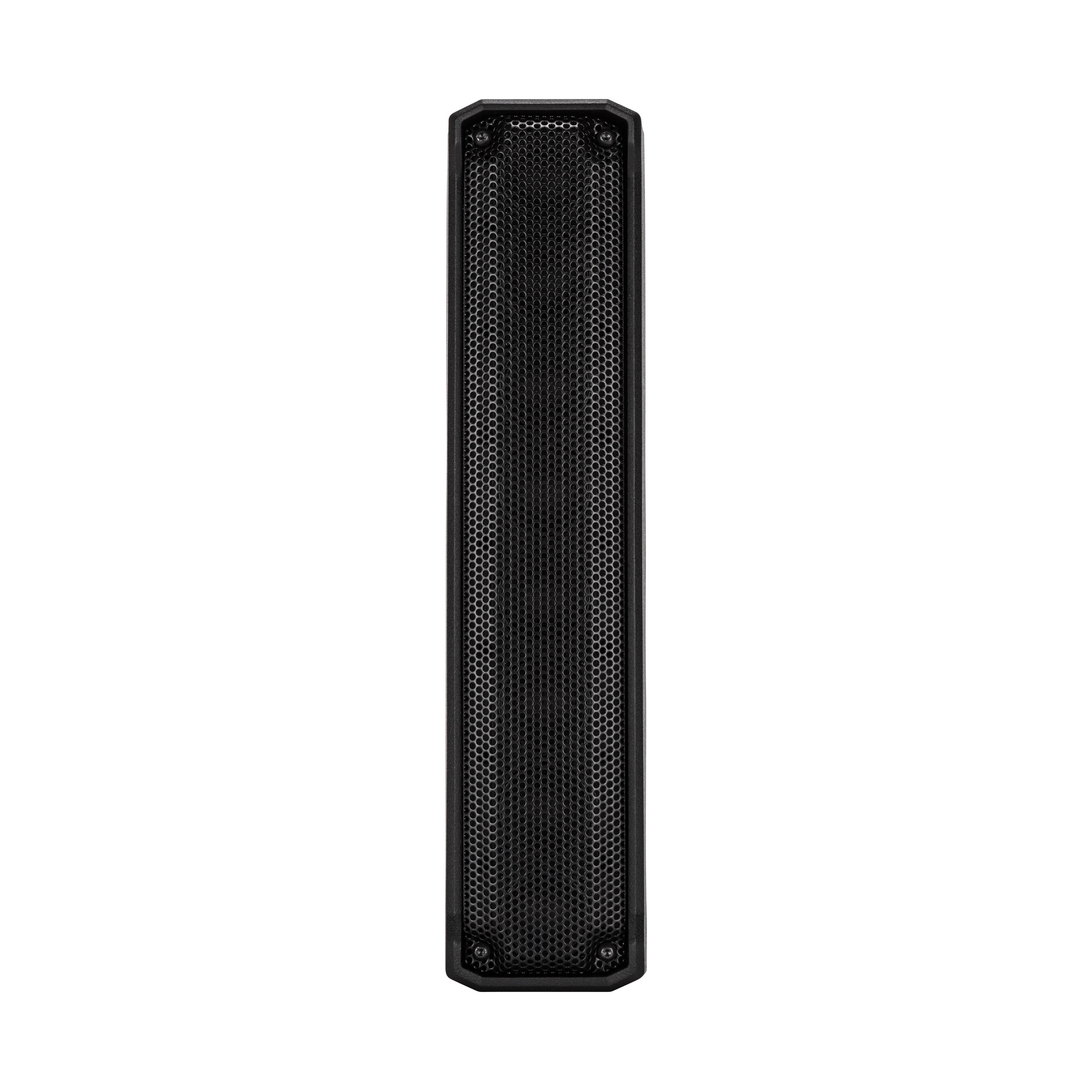

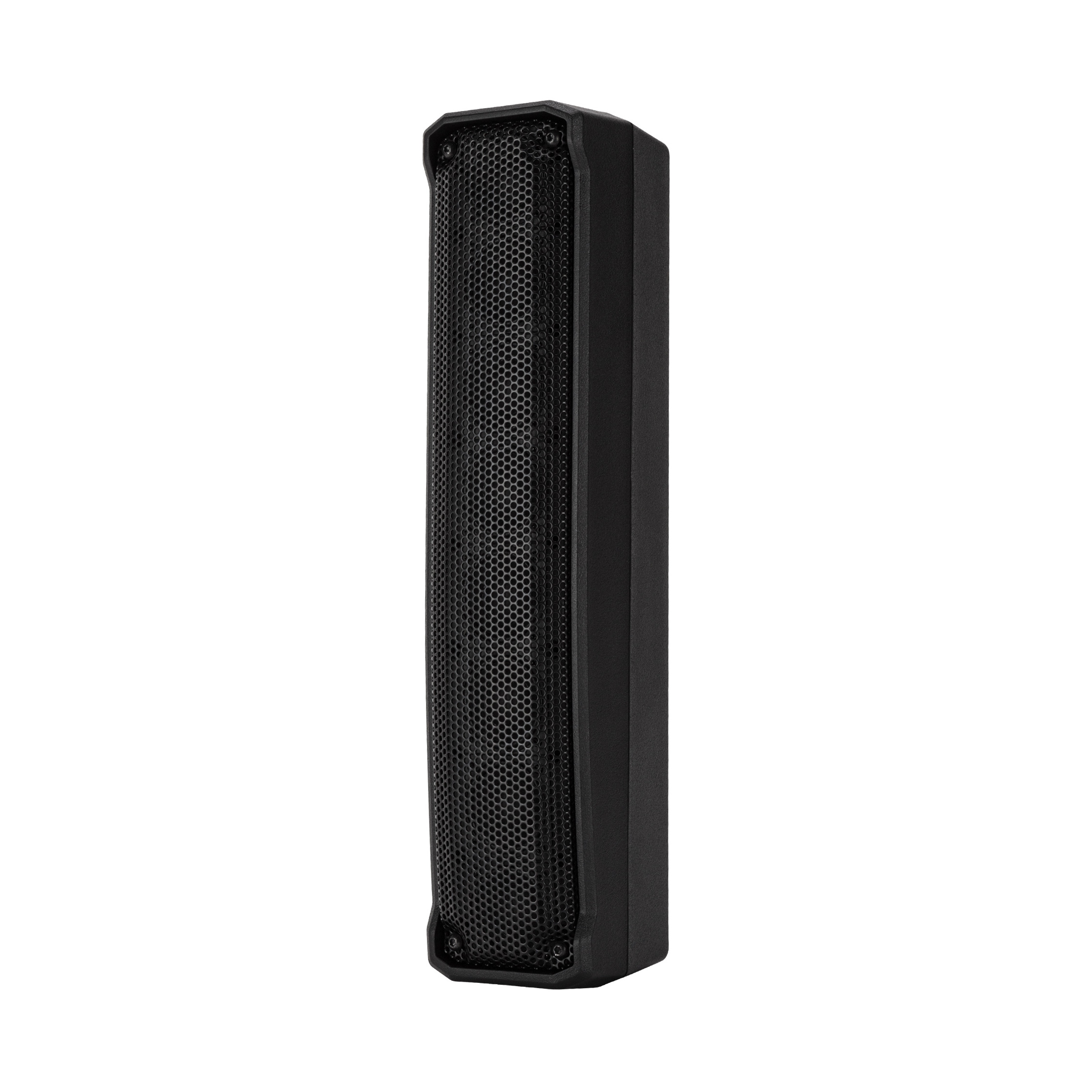

• HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

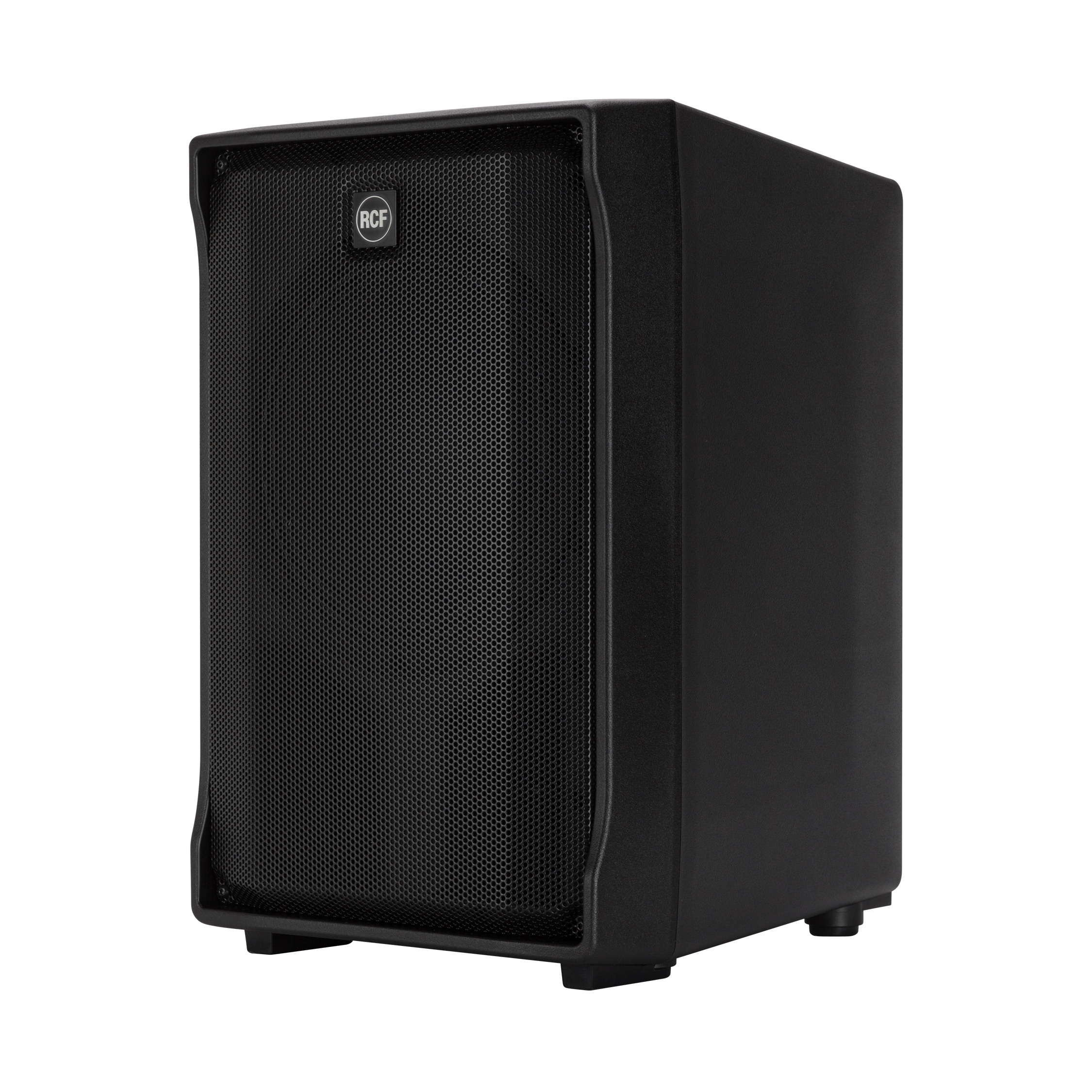

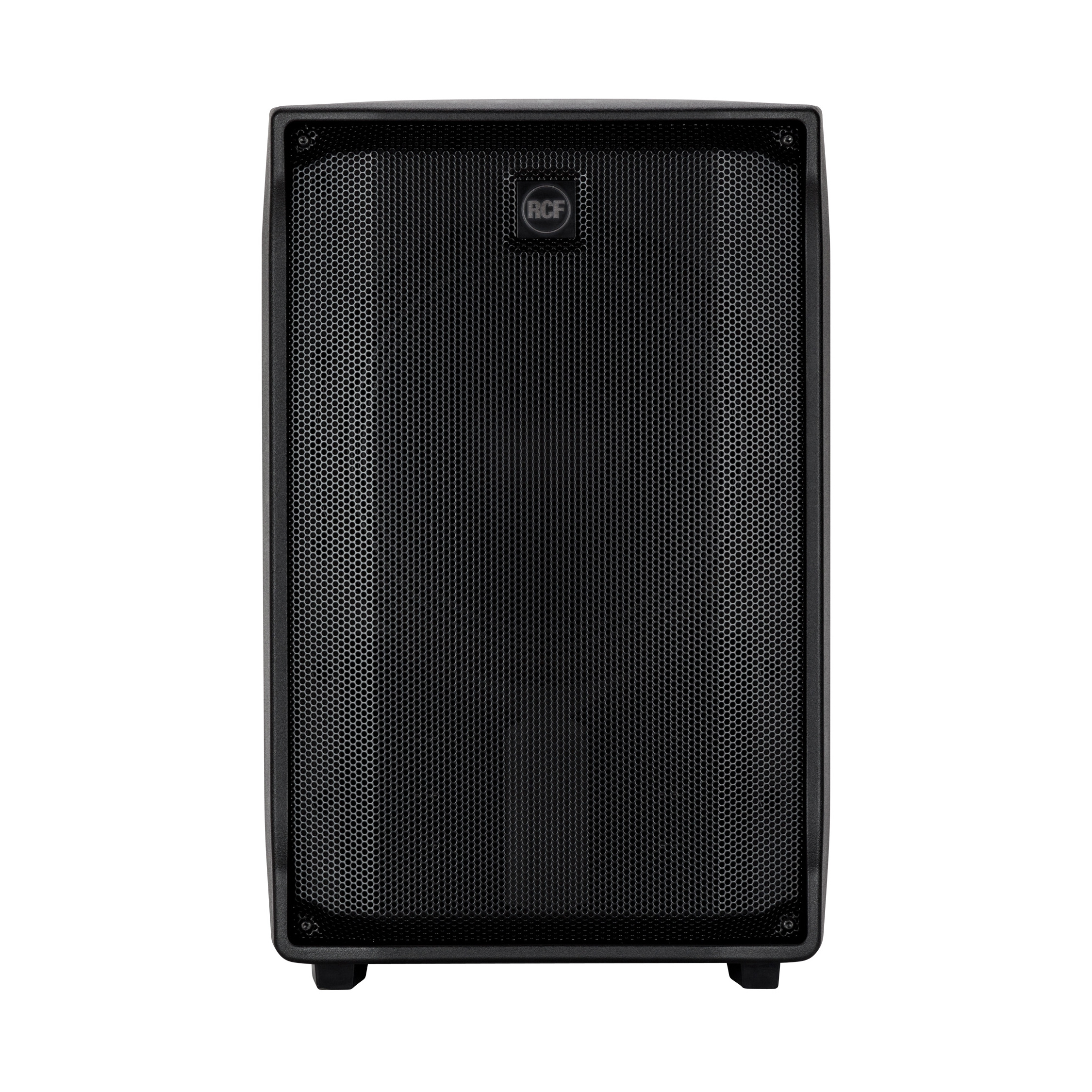

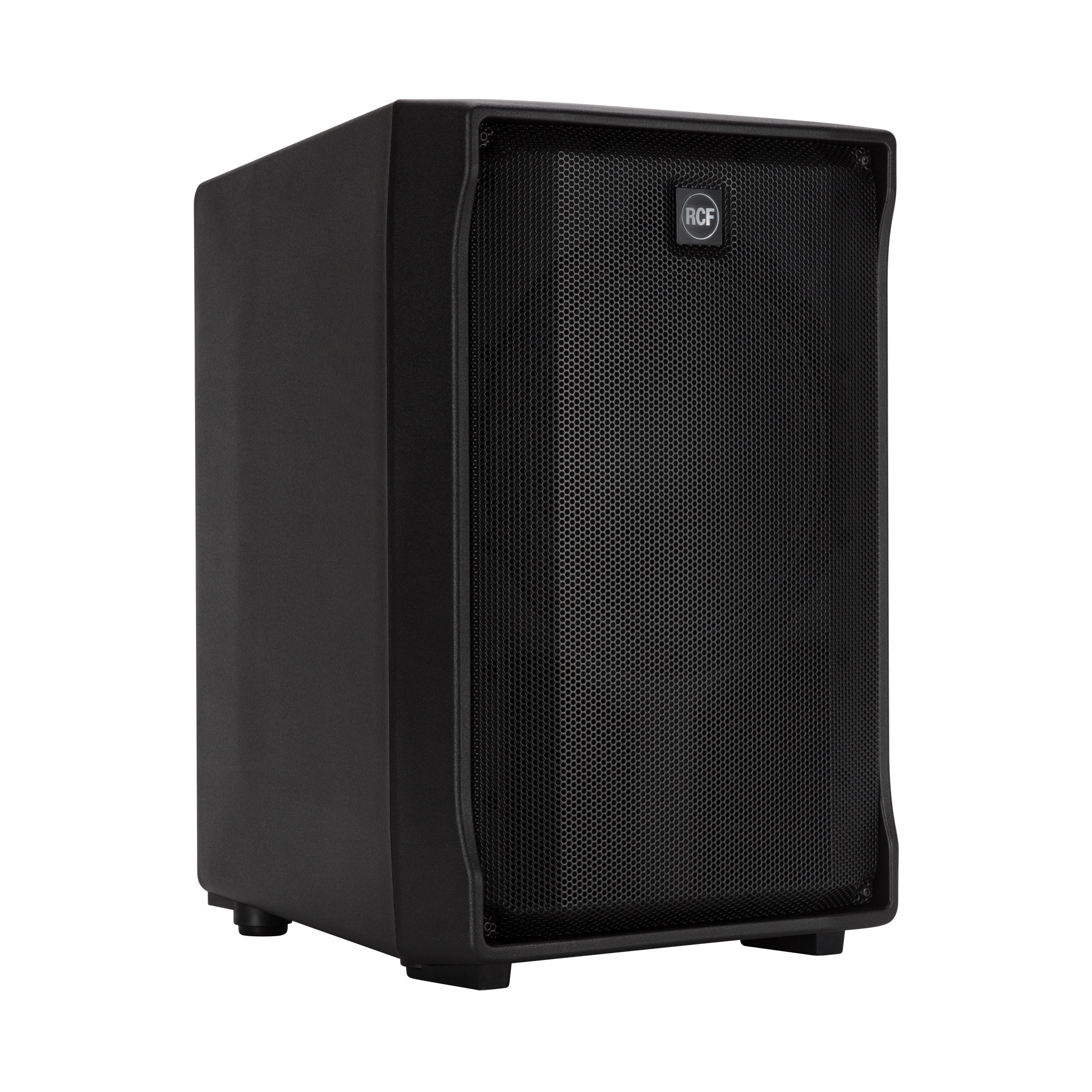

• LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

READY TO PLAY IN A FEW SIMPLE STEPS

• PORTABILITY - In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

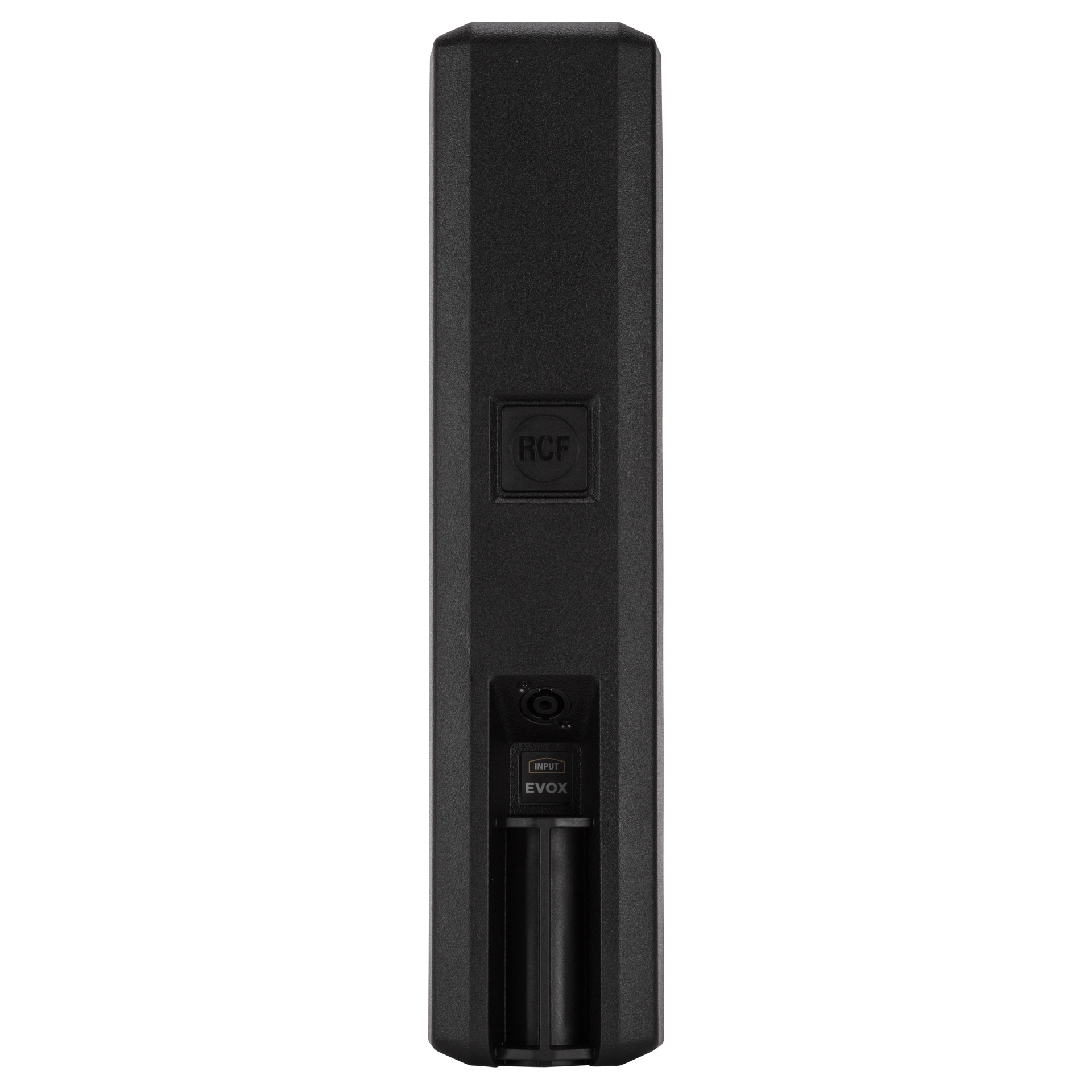

• MOUNTING - Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
• PLAY! - Carrying and mounting your audio system has never been so quick.

J SYSTEM CONFIGURATIONS

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Specifications

• Speaker
  • Acoustical
    • Frequency Response: 40 Hz - 20000 Hz
    • Max SPL @ 1m: 128 dB
    • Horizontal coverage angle: 120°
    • Vertical coverage angle: 30°
  • Transducers
    • Fullrange: 8 x 2.0'', 1.0'' v.c
    • Woofer: 1 x 12'', 2.5'' v.c
  • Input/Output
    • Input signal: bal/unbal
    • Input connectors: XLR, Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
  • Processor
    • Crossover Frequencies: 220 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, Boost, Mic/Line
  • Power
    • Total Power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling: Convection
    • Connections: VDE
• Digital Mixer
  • Electronic
    • Frequency Response: 20 Hz - 20 Hz
    • THD+N, 20dB gain, 0dBu out: 0.004% A-Weighted
  • Processing
    • Processing Channels: 8
    • Signal Processing: 32 Bit Floating Point
    • A/D-D/A conversion: 24 Bit @ 48.0 kHz
    • Dynamic range: 108
  • Inputs
    • Mic: 4
    • Remote Controlled Storable Gain: Yes
    • Gain Range: 0 dB - 45 dB
    • Input Noise Level: -114 dBu A-Weighted
    • Mic Inputs Impedance: 3 kohm
    • Low Cut: 20 Hz - 1000 Hz
    • Phantom Power +48V: Yes
    • Mono Line: 4
    • Gain Selection: 0 dB - 45 dB
    • Line Input Impedance: 11 kohm
    • HI-Z Line Inputs: 1
    • HI-Z Line Inputs Impedance (Mohm): 1 Mohm
    • A/D Dynamic range: 108 dB
    • Stereo Line: 2
    • Gain Selection: 0 dB - 45 dB
    • Stereo Line Input Impedance (kOhm): 11 kohm
  • Outputs
    • AUX Send: 1
    • AUX Output: 1
    • Main Out Impedance: 150 ohm
    • Main Out Level: 19 dBu
    • Aux Out Impedance (ohm): 150 ohm
    • Aux Out Level: 19 dBu
    • D/A Dynamic Range: 108 dB
  • Compressors
    • RCF Compressors: 4 mono (6 preset)
  • EQ
    • Input Channels EQ: 1 Semi Parametric / 2 Shelving
    • Description
      • 3 Band EQ: High and Low band shelving, Mid Band with sweepable frequency
      • Graphic 7 Band EQ on Main Mix and AUX send.
  • Auxiliary sends
    • AUX: 1 PRE/POST
    • FX POST: 1
  • Internal Effects
    • Send Effects: 1
    • MultiFX Insert Effects: 1
  • Mastering processors
    • Main OUT processors: 1
  • USB audio
    • Play trk: 2
  • Other features
    • Footswitch: Yes
  • Electrical
    • Power supply: Internal
• Standard compliance
  • Safety agency: CE compliant
• Physical
  • Cabinet/Case Material: PP Composite
  • Handles: 1 Top
  • Pole mount/Cap: M20 thread
  • Grille: Steel
  • Color: Black
  • Dimensions (HxWxD): 89.96 x 15.75 x 18.11 inch (2285 x 400 x 460 mm)
  • Weight: 48.94 lbs (22.2 kg)
