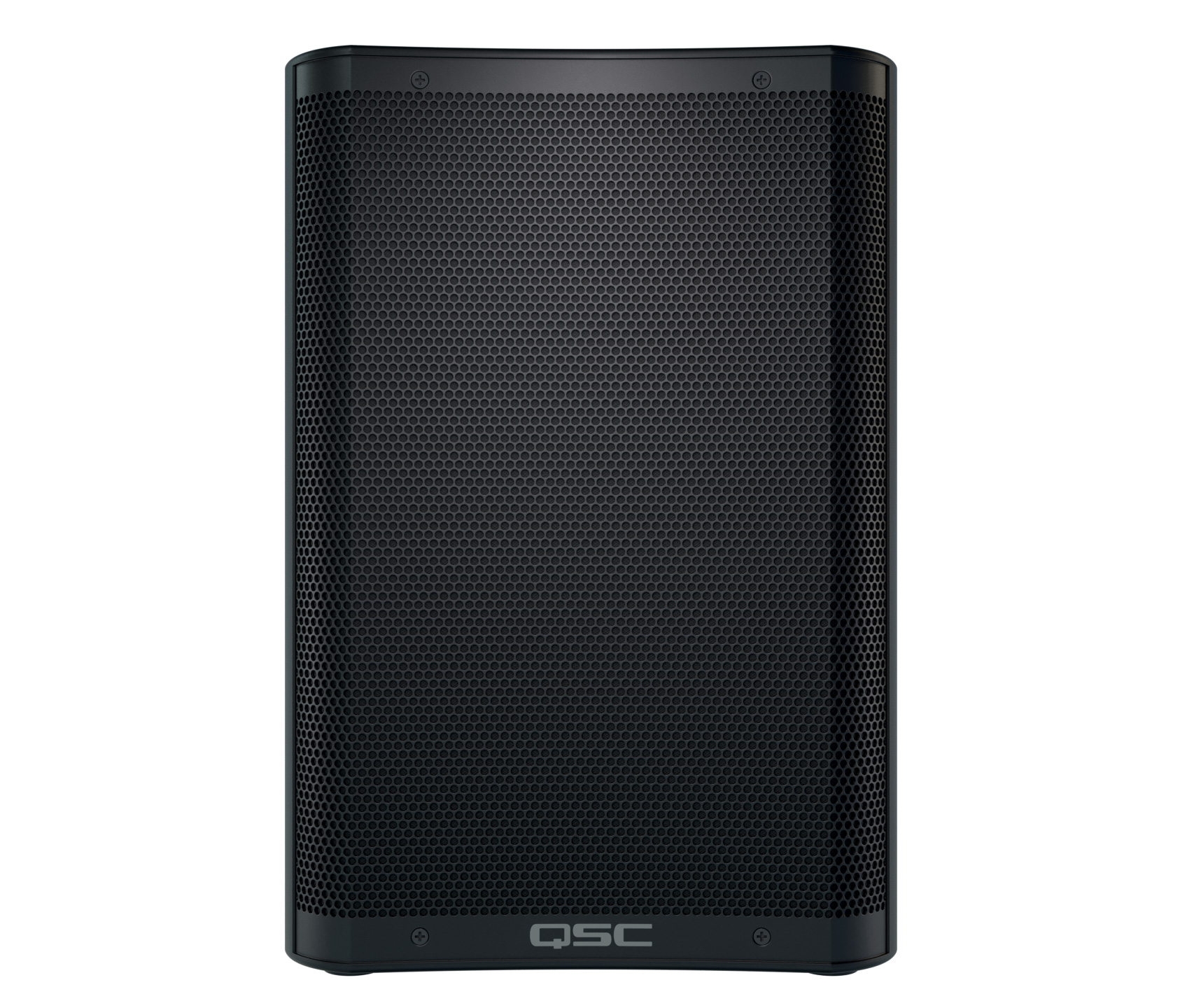

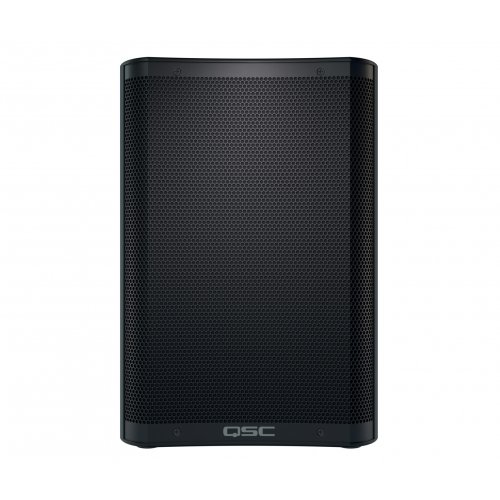

QSC CB10 Compact Battery-Powered Loudspeaker System

About: QSC CB10 Compact Battery-Powered Loudspeaker System

The CB10 is the ultimate compact loudspeaker system, offering unrivaled audio performance, unmatched versatility and battery-powered portability. Ease-of-use is further enhanced with Bluetooth audio and control via the QSC Loudspeaker Control App.

• Battery Powered
• Bluetooth Audio
• Lightweight & Portable
• 10-Inch Woofer; 1-Inch Compression Driver
• QSC Loudspeaker
• Control App
• 6-Year Warranty

The CB10 is ideal for DJs and mobile entertainers, event production professionals, musicians and bands, and any application where high performance audio is needed with the portability and versatility of a battery-powered system.

The CB10’s compact but powerful 10-inch LF driver delivers exceptional low-end reproduction and extension, while its class-leading 1-inch compression driver ensures superior high-frequency response and coverage, without distortion. The integrated 3-channel mixer allows simple and easy connections of microphones and instruments, as well as the option to stream Bluetooth music. Input presets and DSP further optimize system performance and ease of setup, while the intuitive rear panel coupled with expanded control via the QSC Loudspeaker Control app, offers simple plug-and-play operation and more expansive customization. Additionally, programmable room delay makes the CB10 an ideal system extension for distributed PA deployments.

The CB10 can be mounted on a loudspeaker stand or deployed on the floor via its tilt-back angle. CB10 is backed by a 6-Year Warranty with product registration within 30 days of purchase (1 Year Warranty on battery).

Key Features

• PROFESSIONAL PA PERFORMANCE
  • Powerful, Compact 2-way System
    • 440 watts of peak power (Class D)
    • 10-inch woofer
    • 1-inch HF compression driver
    • 127 dB @ 1 m (peak SPL)
  • Integrated 3-Channel Mixer Wireless Remote Control
    • Two combo XLR inputs with independent Factory Presets
    • QSC Loudspeaker Control App (iOS & Android) for convenient system remote control
  • Room Delay
    • 200 ms (max) of room delay
• VERSATILE
  • Simple to Use
    • Large carry handle on the enclosure top
    • Lightweight and portable
    • 30 degrees tilt back (floor deployment)
    • Integrated pole cup (stand deployment)
    • Bluetooth 5.1 Audio
    • For control and audio with True Wireless Stereo (TWS) Bluetooth
  • Battery and AC Power
    • Up to 12 hours of battery power (rechargeable in approx. 4 hrs)
    • User-installable/removable battery pack
    • AC power for unlimited steady operation

Specifications

• Configuration: Two-way Rechargeable Loudspeaker System
• LF Transducer: 254 mm (10-inch), cone
• HF Transducer: 25.4 mm (1-inch), compression driver
• Frequency Response (-6 dB): 51 Hz - 18 kHz
• Frequency Range (-10 dB): 47 Hz - 20 kHz
• Nominal Coverage Angle: 90° Axisymetric
• Maximum Rated SPL: 127 dB @ 1 m
• Amplification (peak): Class D, 440 W
• Cooling: Convection cooling
• Backpanel Controls
  • 3x Rotary level potentiometers (Gain)
  • 2x MIC Boost Push-Switch
  • 2x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
  • 1x Bluetooth Switch
  • 1x Output Select Switch
  • 1x AC Power Switch
• Loudspeaker Control App Functions
  • Input Channels: Gain Control, Presets (Channels A and B), EQ
  • Reverb (Channels A and B )
  • Ducker (Channel A)
  • Contour Selection
  • Custom Output Routing
  • Footswitch Functionality: Channel Mute, FX Mute, or Channel Boost
  • Bluetooth Audio Configuration
  • Loudspeaker Firmware Updates
• Backpanel Indicators
  • 3x Input Signal/Clip LEDs
  • 2x MIC selected LEDs
  • 3x Battery Charge LEDs
  • 1x Limiter Active LED
  • 1x Bluetooth LED
  • 1x Output Select LED
  • 1x Power/Standby LED
• Connectors
  • 2x locking XLR/F ¼ inch combo (Line Input and Mic/Line Input)
  • 1x 3.5 mm TRS (Stereo Input)
  • 1x 6.3 mm TS (Footswitch)
  • 1x XLR/M (Mix Output)
  • 1x locking IEC Power Connector
• DC Power (Battery): Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module
  • Battery life: up to 12 hours
  • Battery charging time: approx. 4 hours
• Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
• AC Power Input: Universal Power Supply: 100-240 VAC, 50/60 Hz
• AC Power Consumption: 100 VAC, 1A / 120 VAC, 0.9 / 240 VAC, 0.5A
• Enclosure Material: Polypropylene
• Color: Black (RAL 9011)
• Grille: Powder-coated steel with internal lining (18 Gauge)
• Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A
• Optional Accessories
  • CB10-CVR: Weatherized Cover for the CB10 Loudspeaker System
  • CB10-BATTERY: Rechargeable Lithium-ION 22.2 V, 4400 mAh, 97 Wh Battery Module
• Dimensions (HxWxD): 18.3 x 12.3 x 11.3 in (465 x 313 x 287 mm)
• Weight: 26.9 lb (12.2 kg)
