Tascam AES/EBU Input/Output Interface Card
Model: IF-AE16
About: Tascam AES/EBU Input/Output Interface Card

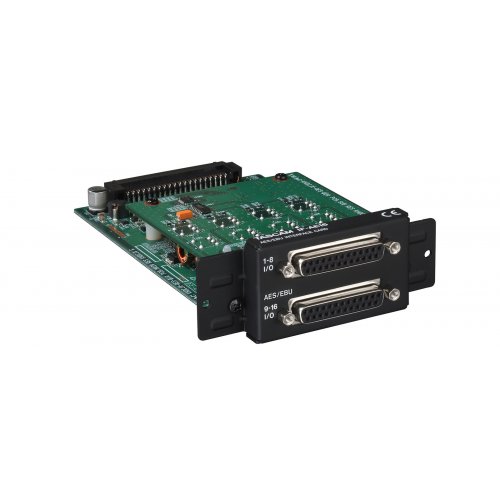

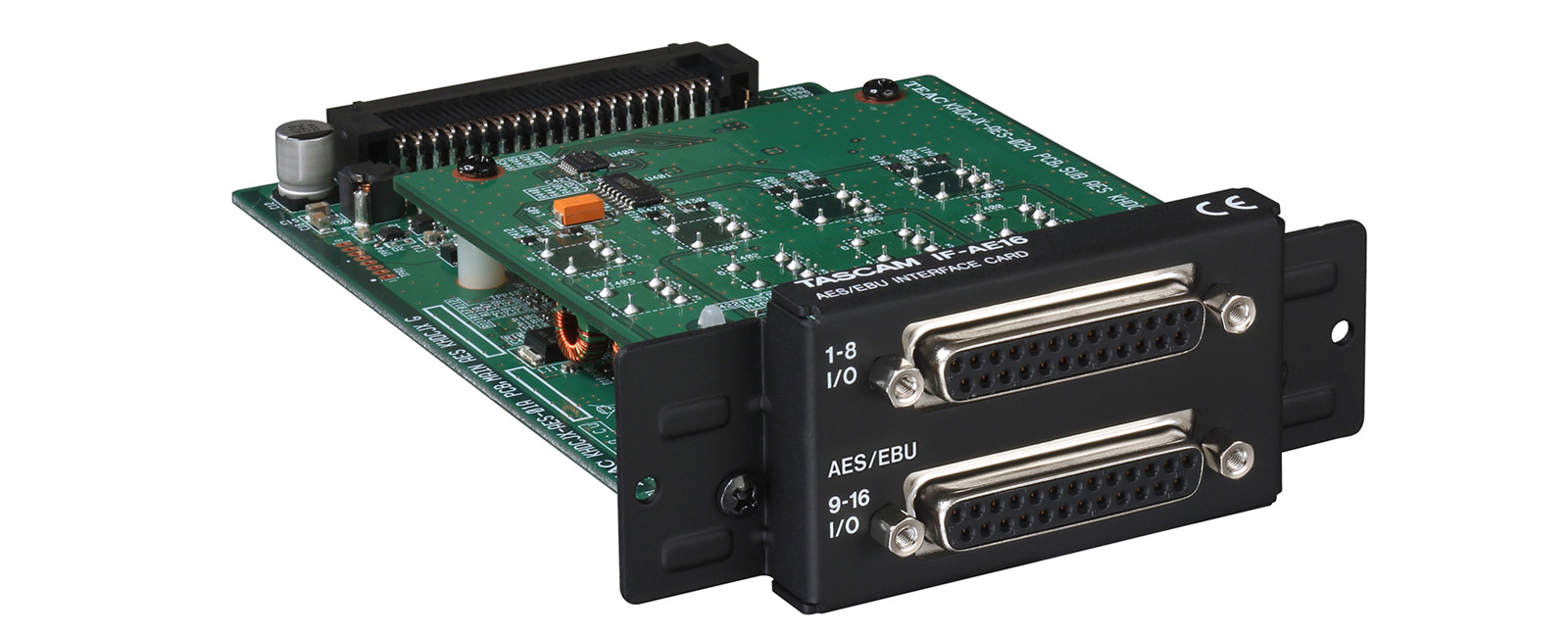

The IF-AE16 is an AES/EBU input/output interface card for the DA-6400 and DA-6400dp digital multitrack recorders. With 16 inputs and 16 outputs, two IF-AE16 cards can be used to enable 32 channels of input and output. The inputs have a built-in sampling rate converter that supports a wide range of formats.
- AES/EBU input/output audio interface card for DA-6400/DA-6400dp digital multitrack recorders
- 16 channels of input and output at 44.1/48/88.2/96kHz at either 16-bit or 24-bit
- Up to 32 channels of AES inputs and outputs using two IF-AE16 cards
- Built-in sampling rate converter for inputs with support for input frequencies of 32-192 kHz
- * Settings can be made for each pair of channels

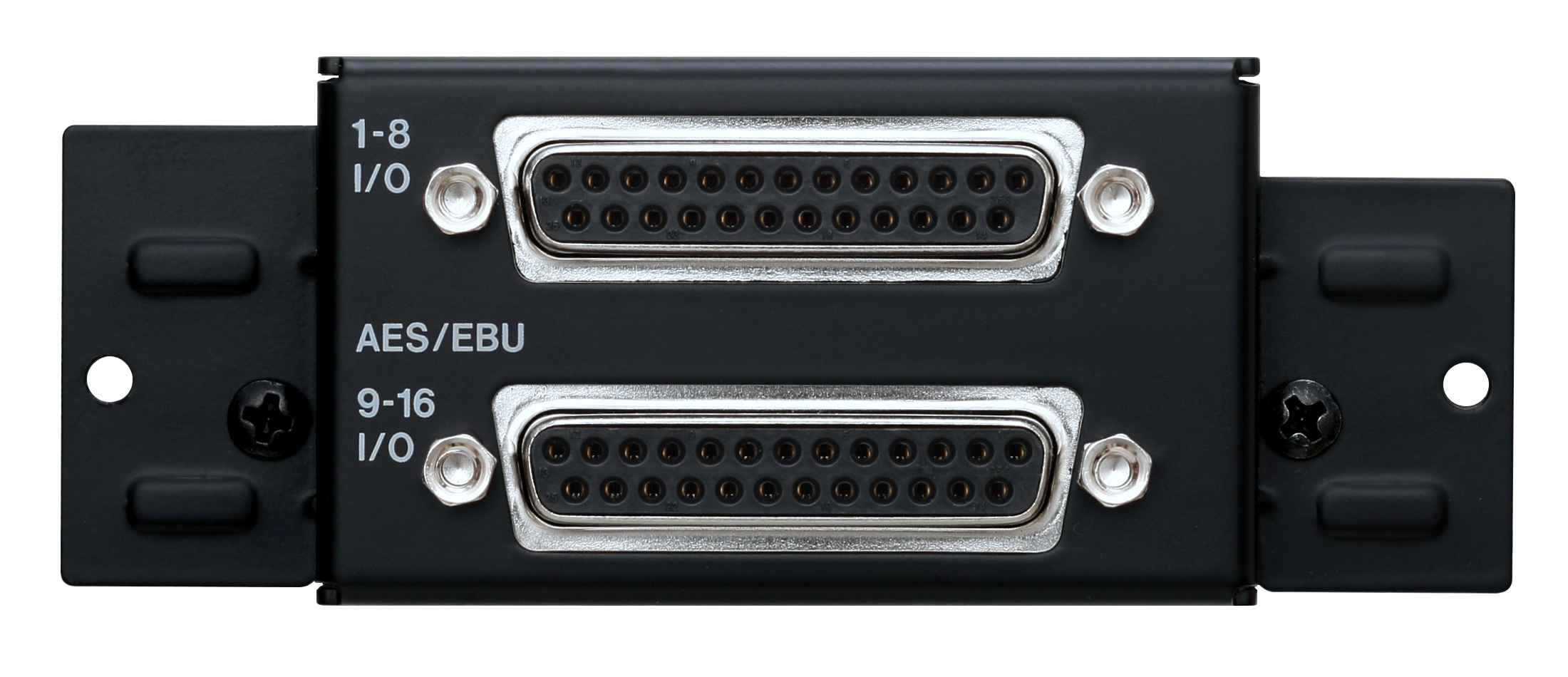

- Two D-sub 25-pin connectors for channels 1-8 and 9-16
- S/PDIF also supported as an input data format
- Input/output connector pin assignments* conform to AES59-2012
- * AES59-2012, used by many pro audio devices, utilizes the "TASCAM standard" pinout.
Specifications
- Format - 44.1k/48k/88.2k/96k Hz, 24-bit
- Number of channels - 16 Transmission is at double-speed when 88.2 or 96 kHz is selected
- Digital audio input/output - AES/EBU 1-8 I/O, AES/EBU 9-16 I/O
- Connectors - 2×8-channel 25-pin D-sub (female)
- Locking screws - No.4-40 UNC (inch type)
- Pin assignments - TASCAM Pin assignments
- Input frequencies
- 44.1k/48k/88.2k/96k Hz (when sampling rate converter OFF)
- 32k to 192k Hz (when sampling rate converter ON)
- Input format
- AES3-2003/IEC60958-4 (AES/EBU)
- IEC60958-3 (S/PDIF)
- * Data format only. Physical formats comply with AES3-2003/IEC60958-4 (AES/EBU).
- Output format - AES3-2003/IEC60958-4 (AES/EBU)
- Dimensions - 107(W)×40(H)×161.5(D)mm
- Weight - 222g
