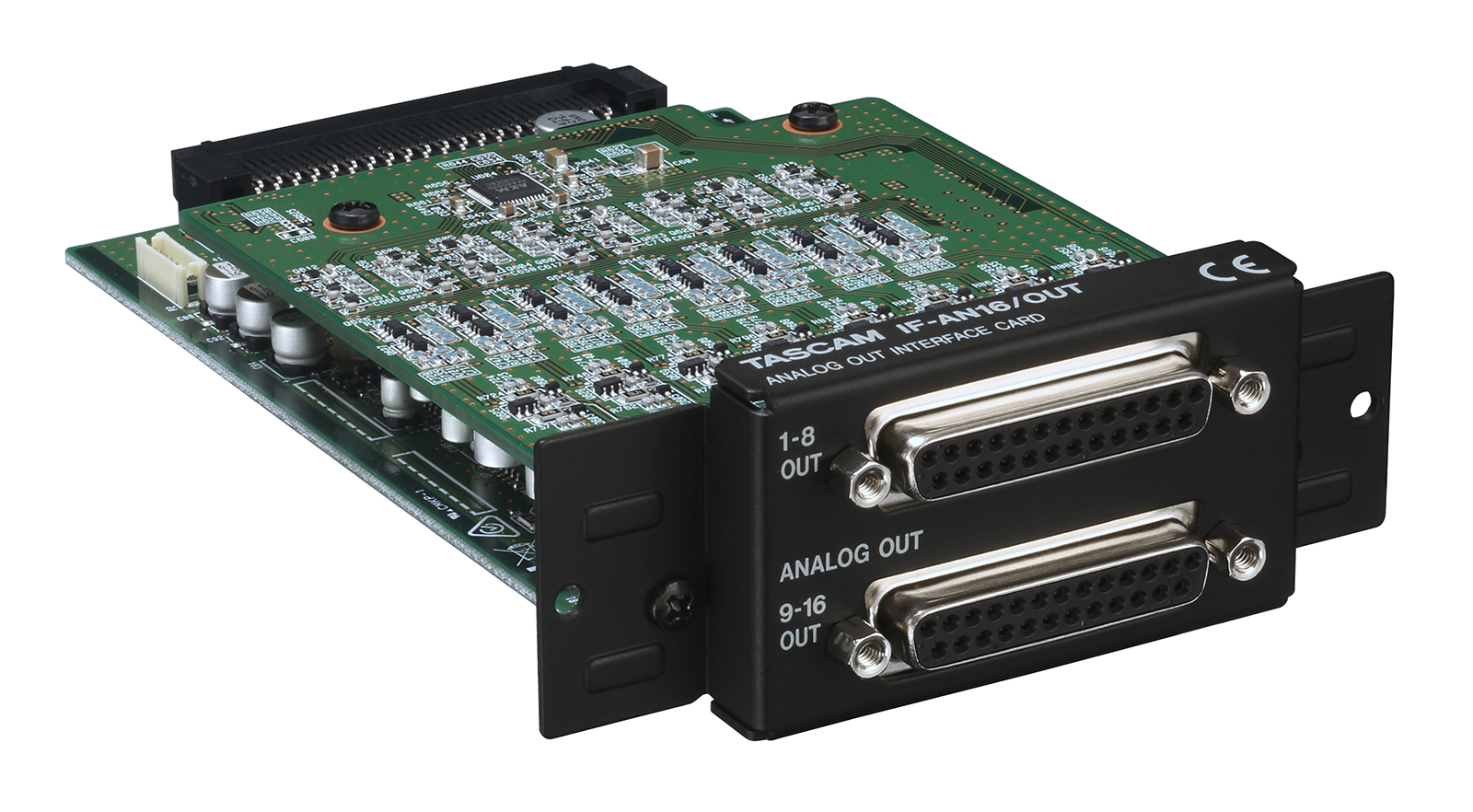

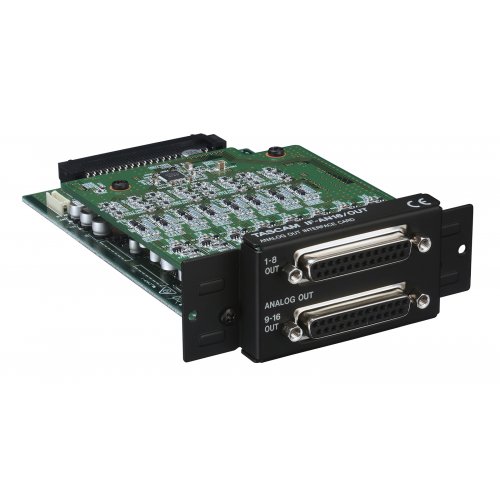

Tascam Analog Output Interface Card for the DA-6400/DA-6400dp Recorders
Model: IF-AN16OUT
About: Tascam Analog Output Interface Card for the DA-6400/DA-6400dp Recorders
The IF-AN16 / OUT is an analog output interface card for the DA-6400 / DA-6400dp digital multi-track recorders. Equipped with 16 analog output channels and 32-channel recording is available by using two IF-AN16 / OUT cards.
Use as a multi-channel output source for playback in theaters
By mounting the IF-AN16/OUT to DA-6400 series, it can be utilized as a compact 1 rack space multi-playback system.
For multi-channel playback in amusement parks
By mounting the IF-AN16/OUT to the 1U size DA-6400 recorder, it can be utilized as a multi-playback system and its compact 1 rack size remains the same. It syncs the video and audio with the Timecode System
Specifications
- Format
- Sampling frequency - 44.1k/48k/88.2k/96k Hz
- Bit length - 16-bit/24-bit

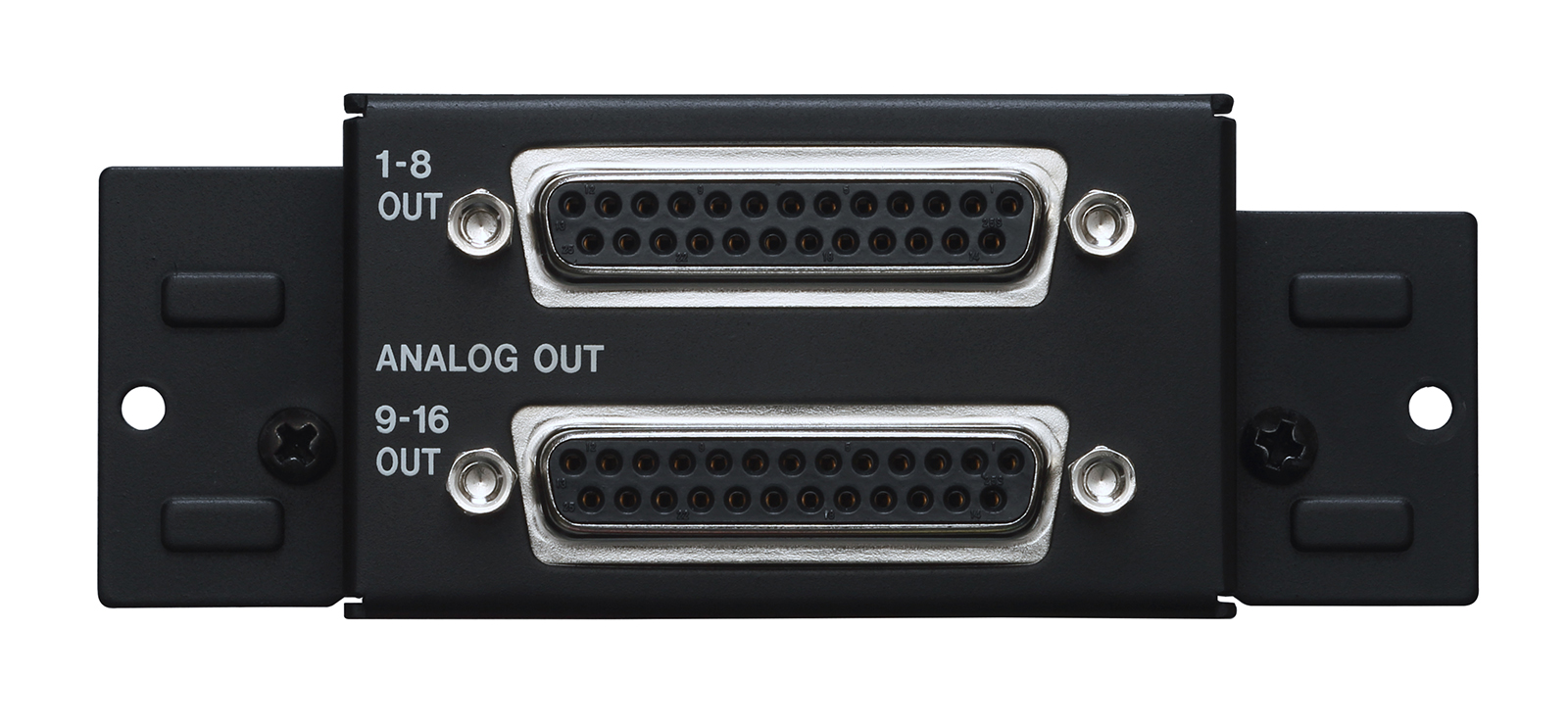

- Analog output 1-8/9-16
- Connector - D-Sub 25-pin
- Locking screws - No.4-40 UNC (inch type)
- No. of output channels - 16
- Nominal output level / maximum output level
- +4dBu/+24dBu
- +4dBu/+22dBu
- +4dBu/+20dBu
- +4dBu/+18dBu
- +6dBu/+15dBu
- Output impedance - 200Ω
- Output attenuation - 0 <> -14dB (0.5dB steps)
- Applicable load impedance - 2kΩ or more
- Audio performance
- Frequency response
- +0.1dB/-0.5dB：20Hz/20kHz（−16dBFS input, Fs=44.1k/48kHz, JEITA）
- +0.1dB/-1.0dB：20Hz/40kHz（−16dBFS input, Fs=88.2k/96kHz, JEITA）
- THD 0.001% or less (0dBFS input, 1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)
- S/N ratio 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)
- Dynamic range 110dB or more (Fs=44.1k/48k/88.2k/96kHz, JEITA)
- Crosstalk 110dB or more (1kHz, Fs=44.1k/48k/88.2k/96kHz, JEITA)
- Frequency response
- Dimensions 107(W)×40(H)×161.5(D)mm
- Weight 240g
UPC: 043774032839
Reviews: Tascam Analog Output Interface Card for the DA-6400/DA-6400dp Recorders
Warranty: Tascam Analog Output Interface Card for the DA-6400/DA-6400dp Recorders
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
1 Year Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
