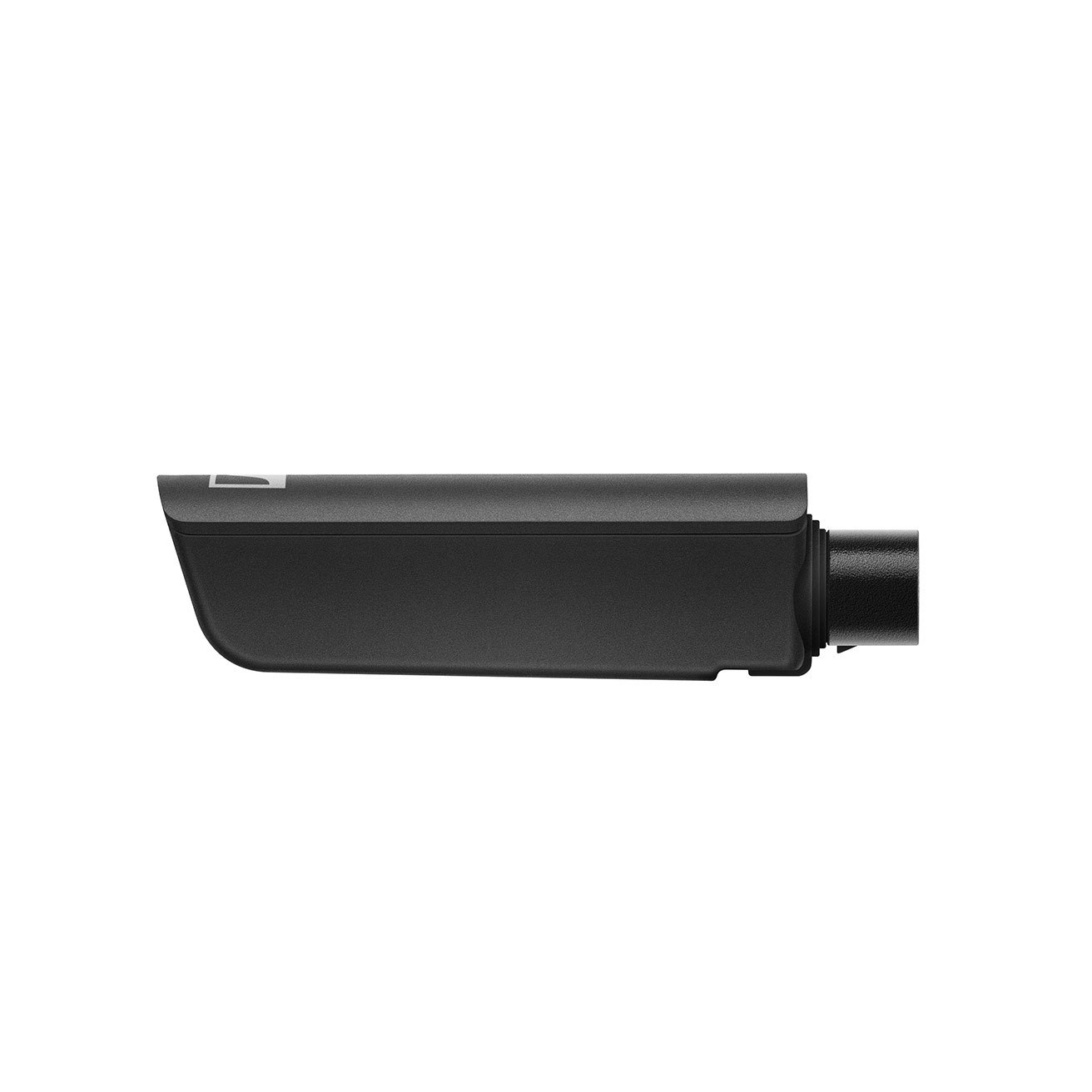

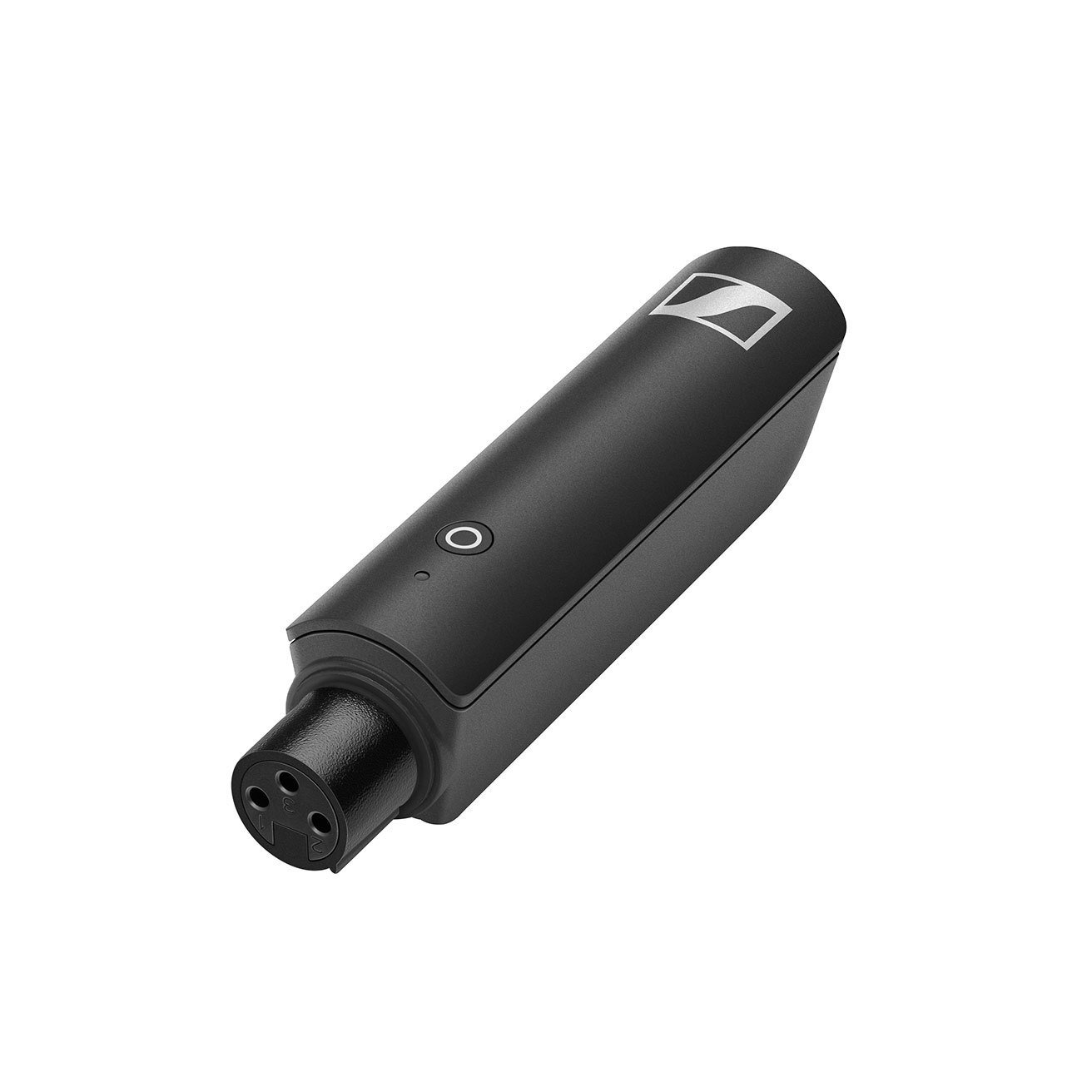

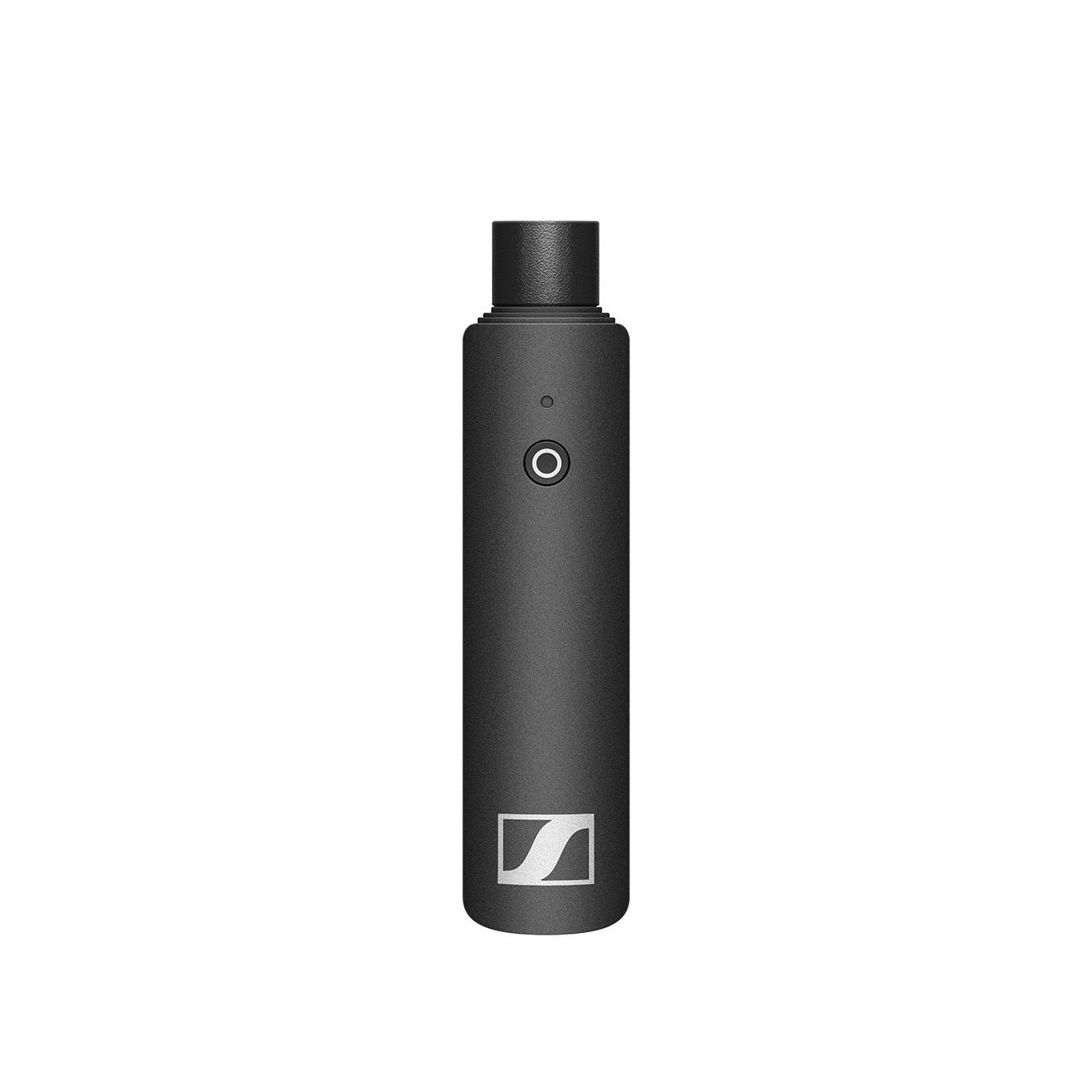

Sennheiser XSW-D Female XLR Transmitter
Model: 508494
About: Sennheiser XSW-D Female XLR Transmitter
XS Wireless Digital transmitter with female XLR input.
Designed to be used with any dynamic microphone with a male XLR output, this 2.4 GHz transmitter will pair with any XSW-D receiver. Offered as a replacement, this item includes a charging cable but does not include a micropho- ne or any other accessories.
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75 m range (250 ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
Specifications
- USB C interface for charging:
- Input voltage - typ. 5.0 V
- Charging temperature - 0 °C - 60 °C (32 °F - 140 °F)
- Charging time - typ. 3 h
- Battery pack:
- Cell type - Li-Ion
- Nominal voltage - 3.7 V
- Cell capacity - 850 mAh
- Operating time - up to 5 h
- AF characteristics:
- Codec - aptX® Live
- Audio frequency response - 80 - 18,000 Hz
- Audio output - max. 12 dBu
- Signal-to-noise ratio - ≥ 106 dB
- THD - < 0.1 %
- Audio latency - < 4 ms
- Product properties:
- Dimensions - approx. 102 x 24 x 28 mm
- Weight - approx. 86 g
- Frequency range - 2,400 - 2,483.5MHz
- Transmission power (EIRP) - max. 10 mW
- Modulation - GFSK with TDMA
- Environmental conditions:
- Operating temperature - -10 °C to +55 °C (14 °F to 131 °F)
- Relative humidity - 95 % (non-condensing)
What's in the Box
- XSW-D female XLR transmitter
- USB-A to USB-C charging cable
- Colored stickers for labelling
- Quick guide
- Safety guide
UPC: 615104317833
Reviews: Sennheiser XSW-D Female XLR Transmitter
Warranty: Sennheiser XSW-D Female XLR Transmitter
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Sennheiser: 2 years
Wired Sennheiser Evolution Series: 10 years
Neumann: 1 year
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
