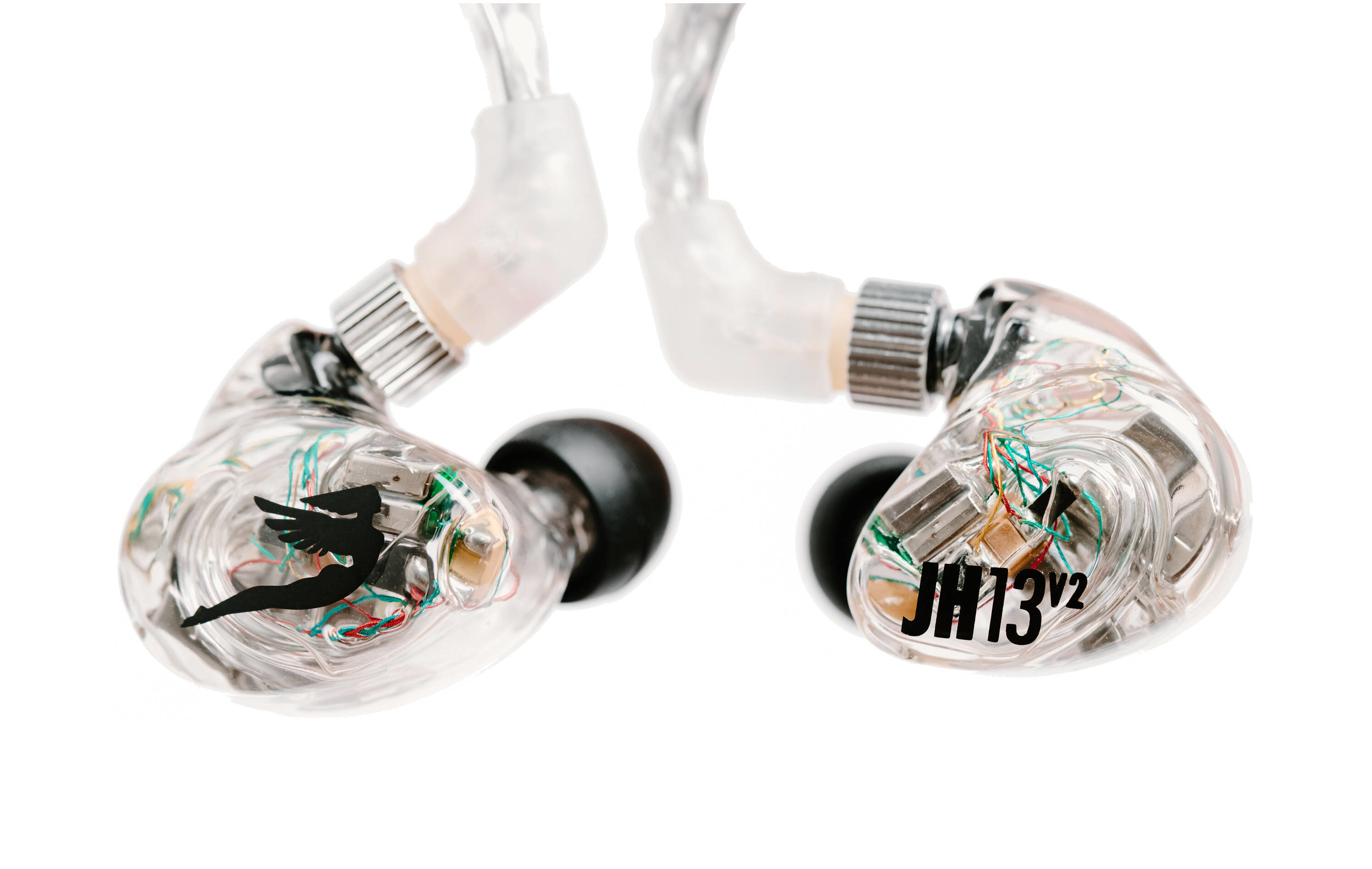

JH Audio JH13v2 Universal 8 Driver/3-Way Crossover IEM - Clear
Model: JHA-UIEM-13V2-C
About: JH Audio JH13v2 Universal 8 Driver/3-Way Crossover IEM - Clear
The JH13v2 is a flagship-grade in-ear monitor, tuned for natural accuracy, clarity, and musicality across genres. It employs 8 balanced armature drivers per side—dual low, dual mid, and quad high—to deliver full-range performance with excellent detail and separation.
The JH13v2 is praised for its wide soundstage, deep bass extension, and precise transient response, making it a very versatile choice from classical to hip-hop.
FREQPHASE WAVEGUIDE
Freq|phase Technology creates the most phase accurate IEMs on the market by correcting misalignment caused by low, mid, and high frequencies traveling to your ear at different speeds.
SOUNDRIVE TECHNOLOGY
Soundrive Technology utilizes our proprietary mini quad driverrs. This allows our Custom IEMs to remain smaller in size while housing up to 12 drivers per side.
ACOUSTIC SOUND CHAMBER
Acoustic Sound Chamber is a 3D printed, recessed tubing system that is the first of its kind, keeping sweat at bay and alleviating the need for excessive cleaning.
Specifications
- Driver Configuration: 8 balanced armature drivers per side (dual low, dual mid, quad high)
- Crossover: Integrated 3 way passive crossover (triple bore / FreqPhase waveguides)
- Frequency Response: 10Hz – 20kHz (typical)
- Impedance: 18Ω
- Input Sensitivity: 116dB @ 1mW
- Noise Isolation: ~ −26dB
- Variable Bass Attenuator: 0 to +12dB (via on cable module)
- Cable / Connector: High purity OFC 4N silver plated Litz cable, gold plated 1/8" input
What's in the Box
- JH13v2 Universal In-Ear Monitors (Clear)
- Premium Litz Wire Cable
- Wax Tool
- Bass Adjustment Tool
- Flygirl Sticker
- Owner's Manual
