Shure MXA Network Mute Button for Shure Networked Products
Model: MXA-NMB
About: Shure MXA Network Mute Button for Shure Networked Products

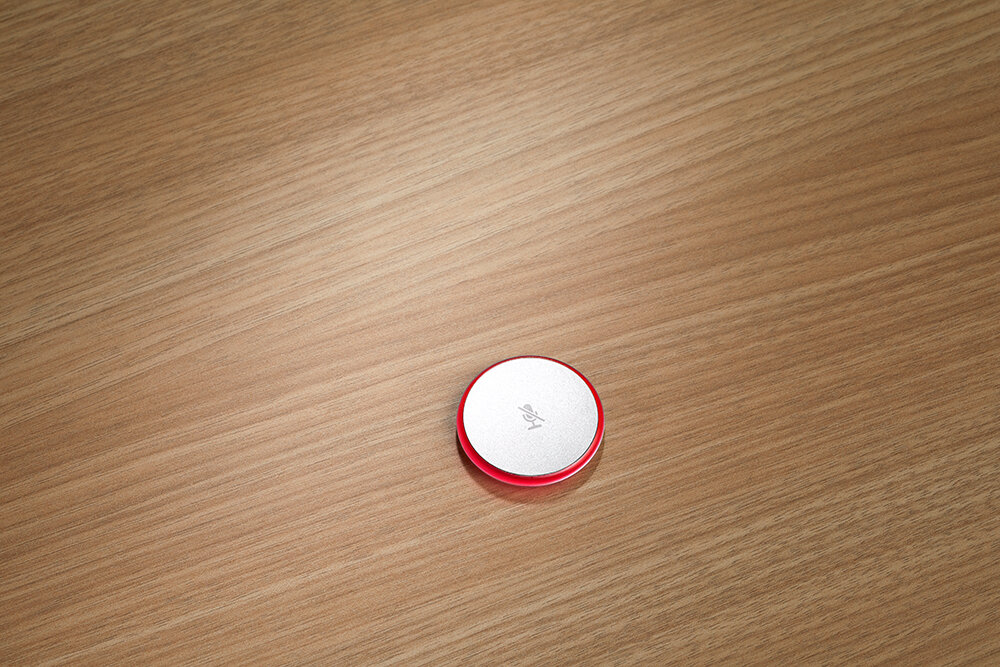

The MXA Network Mute Button is a configurable PoE-powered mute button accessory designed for Shure networked audio products, including Microflex. Advance Array Microphones as well as the IntelliMix. P300 and IntelliMix Room DSPs, and ANIUSB-MATRIX. One or many of the low-profile touch sensitive mute buttons can be configured to mute one or multiple microphones, depending on user needs or room configurations.
Features
- Designer System Configuration software for easy setup and configuration
- SystemOn Asset Management for remote management & troubleshooting
- PoE powered
- Compatible with third party control systems via programmable control strings
- LED status ring with configurable colors and brightness
- Configurable as toggle, push to talk and push to mute functionality
- IPX1 rated
- Easy table installation in 1” (25mm) or 7/8” (22mm) holes
- Available with or without microphone icon
Specifications
- ELECTRICAL
- Connector Type - RJ45, 8-pin power cable
- Cable Requirements - Cat 5e or higher (shielded cable recommended)
- Power Requirements - Power over Ethernet (PoE), Class 1
- Power Consumption - 2 W, maximum
- Control Software - Shure Designer
- Ingress Protection Rating - IEC 60529 IPX1 Water Protected
- MECHANICAL
- Operating Temperature Range - −6.7ÅãC (20ÅãF) to 40ÅãC (104ÅãF)
- Storage Temperature Range - −29ÅãC (-20ÅãF) to 74ÅãC (165ÅãF)
- DIMENSIONS (H x W x D)
- Base - 3.74 x 3.74 x 1.06 in. (94.96 x 94.96 x 27.04 mm)
- Mute Button - 1.54 x 1.54 x 0.2 in. (39.02 x 39.02 x 5.02 mm)
- Mute Button Tube - 0.87 x 0.87 x 3.03 in. (22 x 22 x 76.98 mm)
- Grommet - 1.97 x 1.97 x 0.31 in. (49.97 x 49.97 x 8 mm)
- Spacer - 1.93 x 1.93 x 0.05 in. (49 x 49 x 1.2 mm)
UPC: 042406574921
Reviews: Shure MXA Network Mute Button for Shure Networked Products
Warranty: Shure MXA Network Mute Button for Shure Networked Products
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Shure has a 2 Year Limited Warranty on all products except for batteries which have a 1 Year Warranrty
No warranty on Shure Software
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Shure do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
