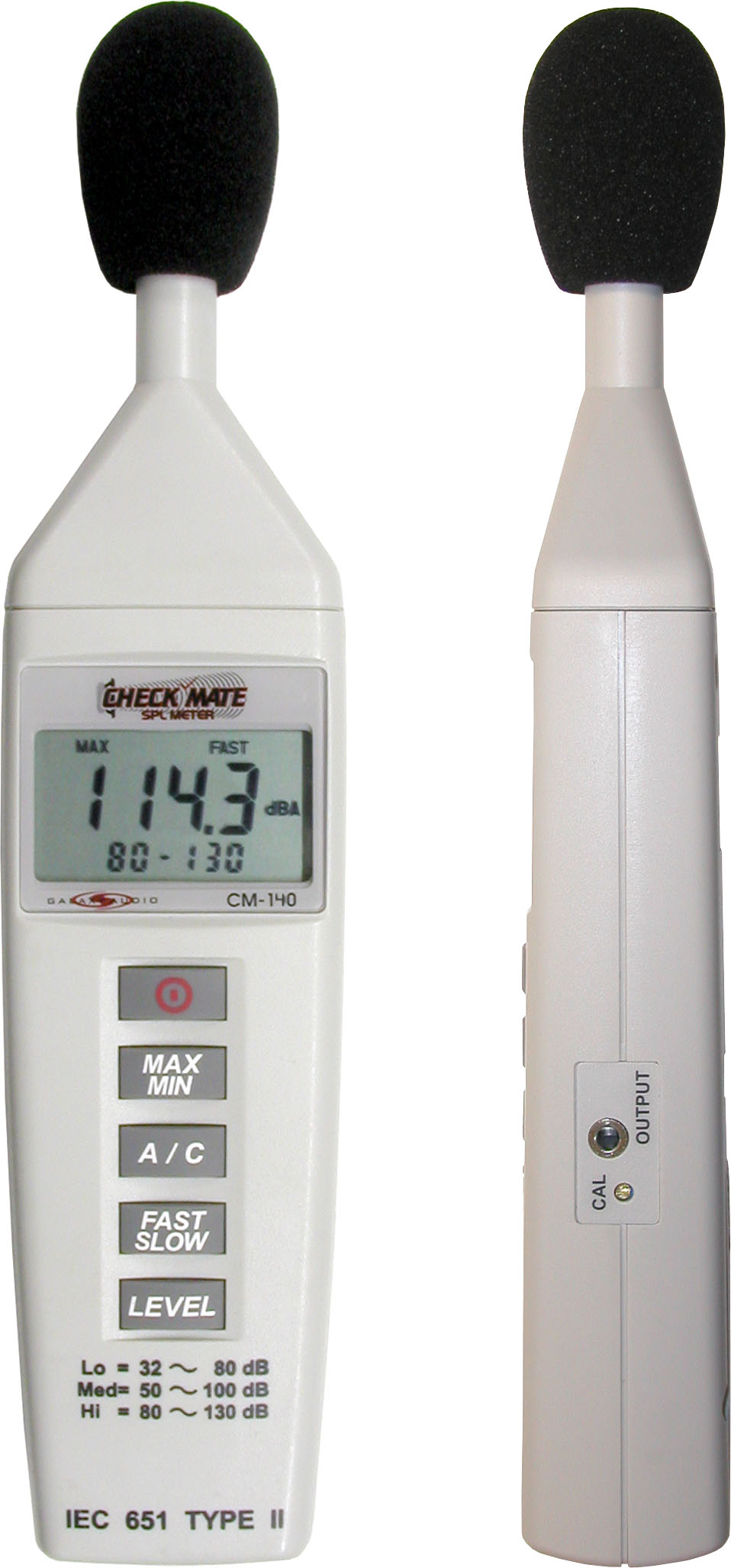

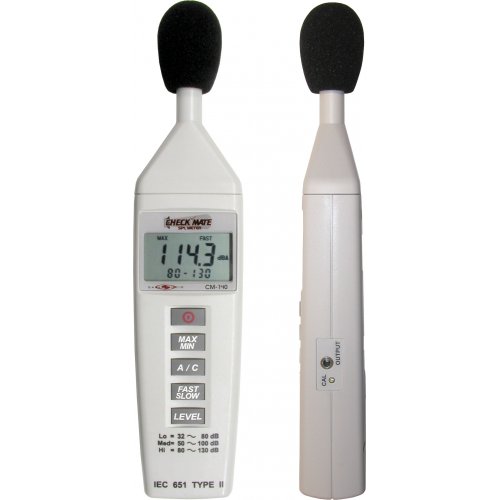

Galaxy Audio CM-140 Check Mate SPL Meter

Model: CM-140

Galaxy Audio CM-140 Check Mate SPL Meter
  • Free Shipping!
  •  More Coming Soon! Contact us for Lead Time
  • Not yet reviewed

About: Galaxy Audio CM-140 Check Mate SPL Meter

Today, there is a need to know just how loud your surroundings really are. The CHECK MATES are inexpensive tools everybody should own. The CM-140 and CM-150 meet the same IEC 651 Type 2 standards of SPL meters that cost 5 times as much or more. Windscreen and battery are included with each of the CHECK MATE models.

The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure SPL in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound. We have expanded our line from one CHECK MATE SPL Meter to four products in the category. We have sold thousands of units to working musicians, DJs, police departments, sound contractors, racetracks, etc...

CM-140 Features:

  • Mini Size
  • Low Cost High Performance
  • MAX/MIN Function
  • Level Range Display
  • AC Signal Output
  • Resolution 0.1 dB
  • IEC 651 Type II, ANSI S1.4 Type II


  • Microphone: ½" Electret condenser microphone
  • Accuracy: ±1.5 dB (ref 94dB @1KHz)
  • Level Range:
  • Lo = 32 ~ 80 dB
  • Med = 50 ~ 100 dB
  • Hi = 80 ~ 130 dB
  • Auxiliary Outputs: AC Signal Output
  • Frequency Weighting: A , C
  • Time Weighting: Fast , Slow
  • Dynamic Range: 50 dB
  • Frequency Range: 31.5Hz to 8KHz
  • Battery Life: 9V Battery 110 hours (included)
  • Operation Temp.: 0°C~ 40°C (32 to 104ºF) (<80% R.H.)
  • Storage Temp.: -10°C~ 60°C(14 to 140ºF) (<70% R.H.)
  • Dimension: 9.1" ×2.1" ×1.3" (232mm×54mm×34mm)
  • Weight: Approx. 0.54lbs. (200g)

UPC: 691281410000 is a Canadian authorized Galaxy Audio retailer.

Reviews: Galaxy Audio CM-140 Check Mate SPL Meter

There are currently no product reviews.

Warranty: Galaxy Audio CM-140 Check Mate SPL Meter Warranty:

30 Days

Manufacturer's Warranty:

Galaxy Audio products are warranted to the original purchaser for a period of 3 years (except check mate and anyspot which are waranteed for 1 year) against any defects in manufacturer’s workmanship and materials.
