Tascam RX-BT10 MKII Compact Stereo Bluetooth Receiver

About: Tascam RX-BT10 MKII Compact Stereo Bluetooth Receiver

The RX-BT10MKII Bluetooth receiver is the professional solution for integrating Bluetooth audio into any installation. With Bluetooth 5.1 Class 1, both balanced and unbalanced outputs, an extendable antenna, customizable Bluetooth device naming, and the option to connect a remote pairing button, the RX-BT10MKII delivers versatility and reliable performance in spaces ranging from small rooms to large venues.

• Bluetooth 5.1 (Class 1) for long distance and high stability connection
• XLR balanced output
• Compact and rugged metal enclosure
• Customizable Bluetooth device name*
  • *Dedicated software "TASCAM Bluetooth Name Editor" is required.
• Bluetooth antenna and pairing button are extendable, allowing to place it in the optimal position
• Switchable mono/stereo output
• RCA unbalanced output
• Euroblock terminal to add a remote pairing button
• Bluetooth paring button
• Bracket kit for mounting on a shelf or under a desk included
• Rack mountable (Required 1U rack-mountable shelf: AK-RS1, sold separately)
• AC adapter (PS-M1524) included

Add Bluetooth to Any System with Ease

The RX-BT10MKII is the easy way to add Bluetooth connectivity to any setup. With Bluetooth 5.1 Class 1 output, it delivers a stable connection over long distances—up to 100m in ideal conditions. The front-panel receiver antenna ensures reliable reception, so you don’t have to worry about signal sensitivity.

• *Actual range may vary depending on the environment, device class, and local radio wave conditions.

Output Options

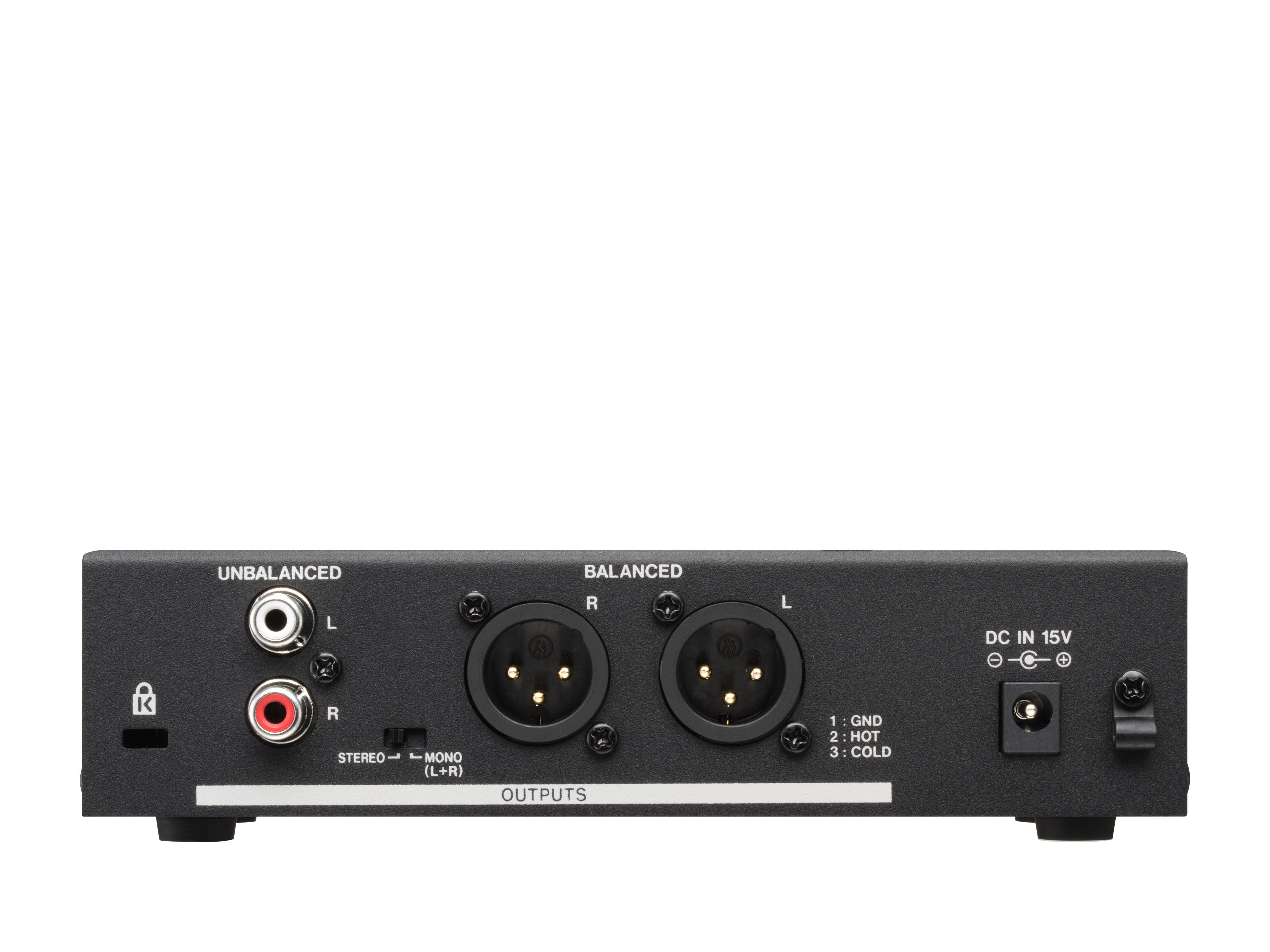

With both balanced and unbalanced outputs, this unit integrates seamlessly into any setup. Choose between balanced stereo XLR or unbalanced stereo RCA connections, and use the rear-panel stereo/mono switch to maintain a full stereo field or sum the signal as needed.

Compact and Built to Last

Built for durability, the RX-BT10MKII features a rugged metal enclosure that stands up to the demands of any installation. Its compact size makes it easy to integrate into a variety of setups. Mounting points on the top and bottom panels enable the RX-BT10MKII to be attached to practically anything, plus a bracket kit for mounting on a shelf or under a desk is included. Designed for reliability, long-lasting performance in any environment is a guarantee.

On the Go

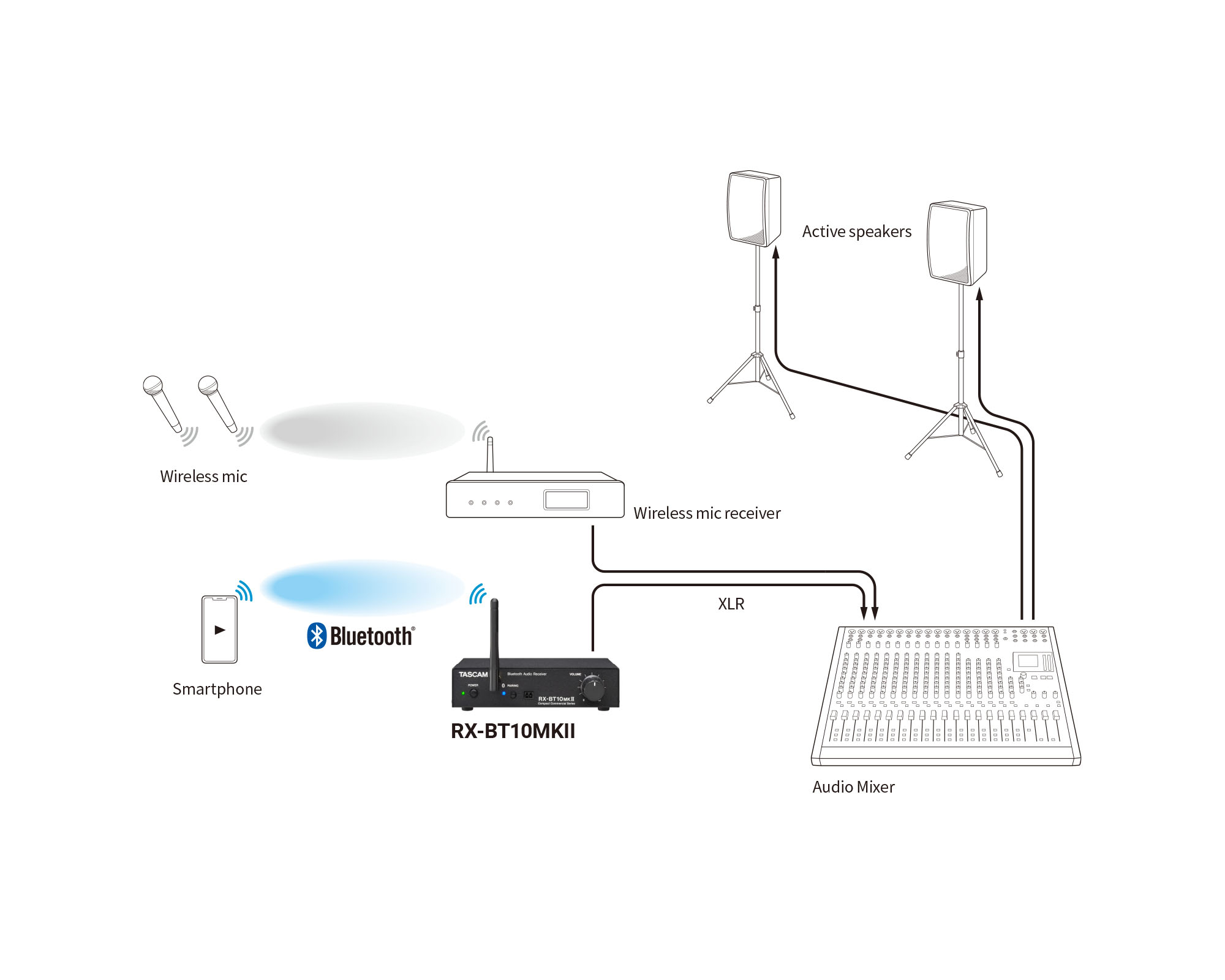

Lightweight and easy to carry from gig to gig, the RX-BT10MKII is perfect for hotel setups, classrooms, and mobile events. Flawlessly add Bluetooth connectivity to existing systems, while the balanced XLR output ensures a reliable, professional-grade connection in any environment.

Permanent Install

Long-term installation for the RX-BT10MKII is just another example of the units flexibility. Featuring mounting points on the top and bottom panels which allow for secure placement in any setup—perfect for stores, restaurants, and commercial spaces. Its extendable Bluetooth antenna and pairing button provide added flexibility, ensuring optimal performance even in fixed installations.

Fit for Any Event

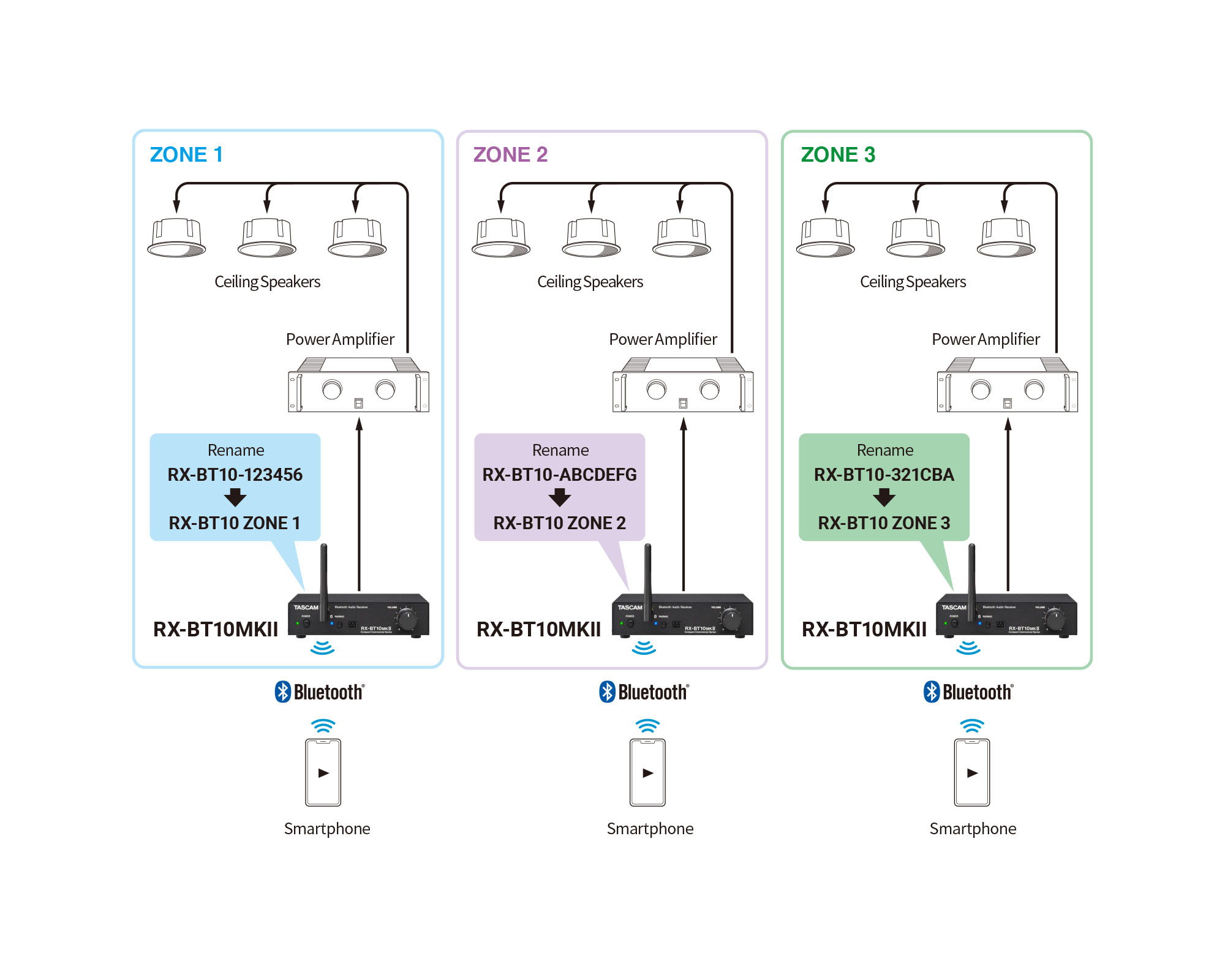

Ideal for banquet halls, conference rooms, and mid-to-large sized venues, the RX-BT10MKII features a unique ID for each connected device, making it easy to identify and manage multiple units in the same space. This ensures an organized setup with easy-to-read device assignments, even in complex installations. A random name will be generated for each connected unit, but this name can be changed on either iOS, iPadOS, or Android devices.

• *Rename is valid only on the device that made the change.

Unique, Changeable IDs

For installations where multiple RX-BT10 units are present, each individual receiver will be displayed with its own unique identification code. Changing the name of a unit is quick and simple from an iOS, iPadOS, or Android device.

• *Rename is valid only on the device that made the change.

Custom Bluetooth Device Names

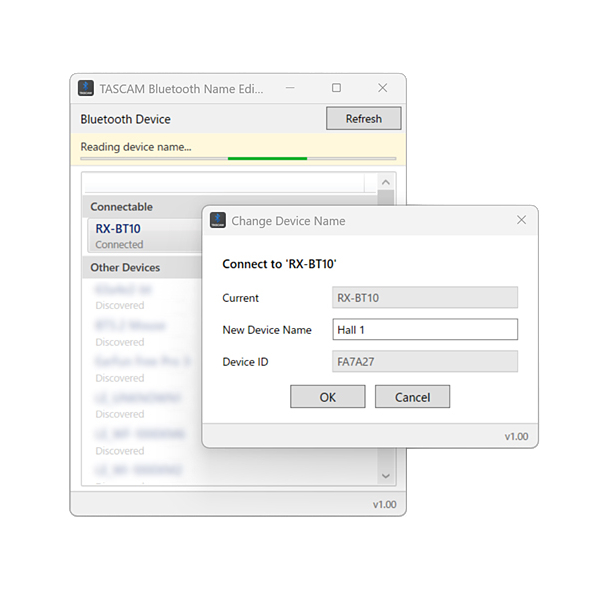

Using the dedicated editor software, the Bluetooth device name displayed on smartphones and tablets for the RX-BT10MKII can be customized to any name you choose. By assigning names such as “Conference Room 1” or “Hall 1” based on the installation location, users can quickly identify the correct device for a more efficient workflow.

Pairing Options

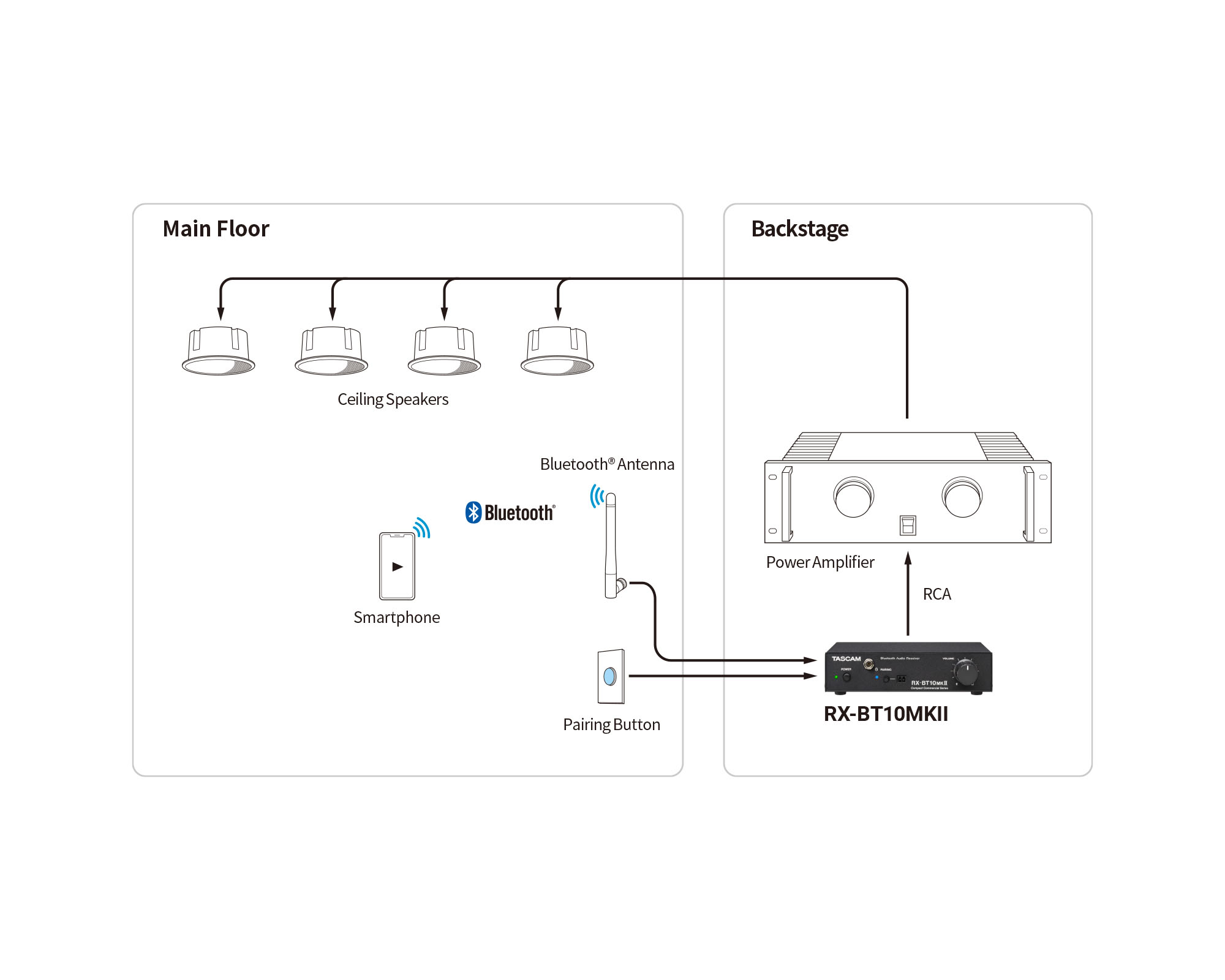

The RX-BT10MKII offers added benefits for permanent installations with a front-panel Euroblock terminal for connecting a remote pairing button. The front panel extendable Bluetooth antenna allows for optimal placement, ensuring the best possible signal reception in any setup.

Mount Nearly Anywhere

The RX-BT10MKII is designed for maximum installation flexibility for secure placement almost anywhere. It includes a bracket kit for shelf or under-desk mounting and for larger setups, a 1U rack-mountable shelf (AK-RS1, sold separately) is available for integration into any system of any size, anywhere.

Specifications

• Input
  • Bluetooth
    • Version: 5.1
    • Output class: Class 1 (about 100 m unobstructed transmission range)
    • Supported profiles: A2DP,AVRCP
    • Supported codecs: SBC,AAC
• Outputs
  • LINE OUT (UNBALANCED)
    • Connectors: RCA pin jacks
    • Maximum output level: +6dBV
    • Nominal output level: -10dBV
    • Output impedance: 100Ω or less
  • LINE OUT (BALANCED)
    • Connectors: XLR (1: GND, 2: HOT, 3: COLD)
    • Maximum output level: +14dBu
    • Nominal output level: -2dBu
    • Output impedance: 100Ω or less
• Audio Performance
  • Frequency response: 20 Hz - 20k Hz: +0.5 dB / -1 dB
  • Distortion（THD+N): 0.04% or less (1k Hz, maximum output level)
  • S/N: 90 dB or more (1k Hz, 22k Hz LPF, A-weighted)
  • Channel separation: 100 dB or more
• Other
  • Power: Specialized AC adapter (PS-M1524)
    • Input voltage: AC100 - 240V (50 - 60Hz)
    • Output voltage: DC15V
    • Output current: 2.4A
  • Operating temperature range: 0°C - 40°C
  • Operating humidity range: 5% - 85% (without condensation)
  • Power consumption: 1.7W
  • Dimensions (WxHxD, excluding protrusions): 6.73 x 1.77 x 2.87 in (171 x 45 x 73 mm)
  • Weight 1.17 lbs (530g)

What's in the Box

• 1x RX-BT10MKII
• 1x AC adapter (TASCAM PS-M1524)
• 1x Power Cable
• 1x Bracket kit
  • 2x Bracket
  • 6x Attachment screws
• 1x Euroblock plug (for pairing button)
• 1x Safety guide (including warranty)
• 1x TASCAM ID registration guide
