K&M 19420 Speaker Ceiling Mount
Model: 19420-BLACK
About: K&M 19420 Speaker Ceiling Mount

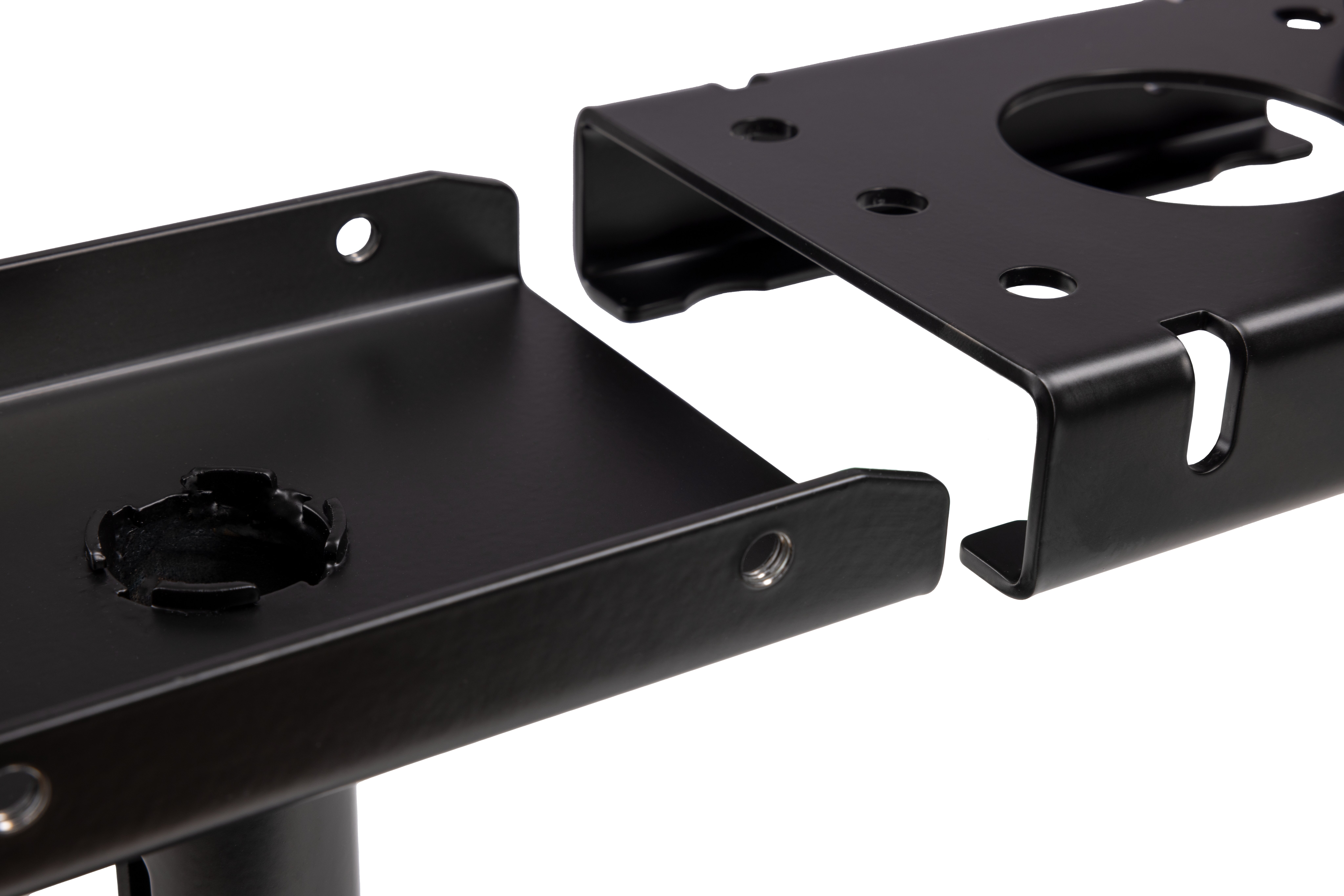

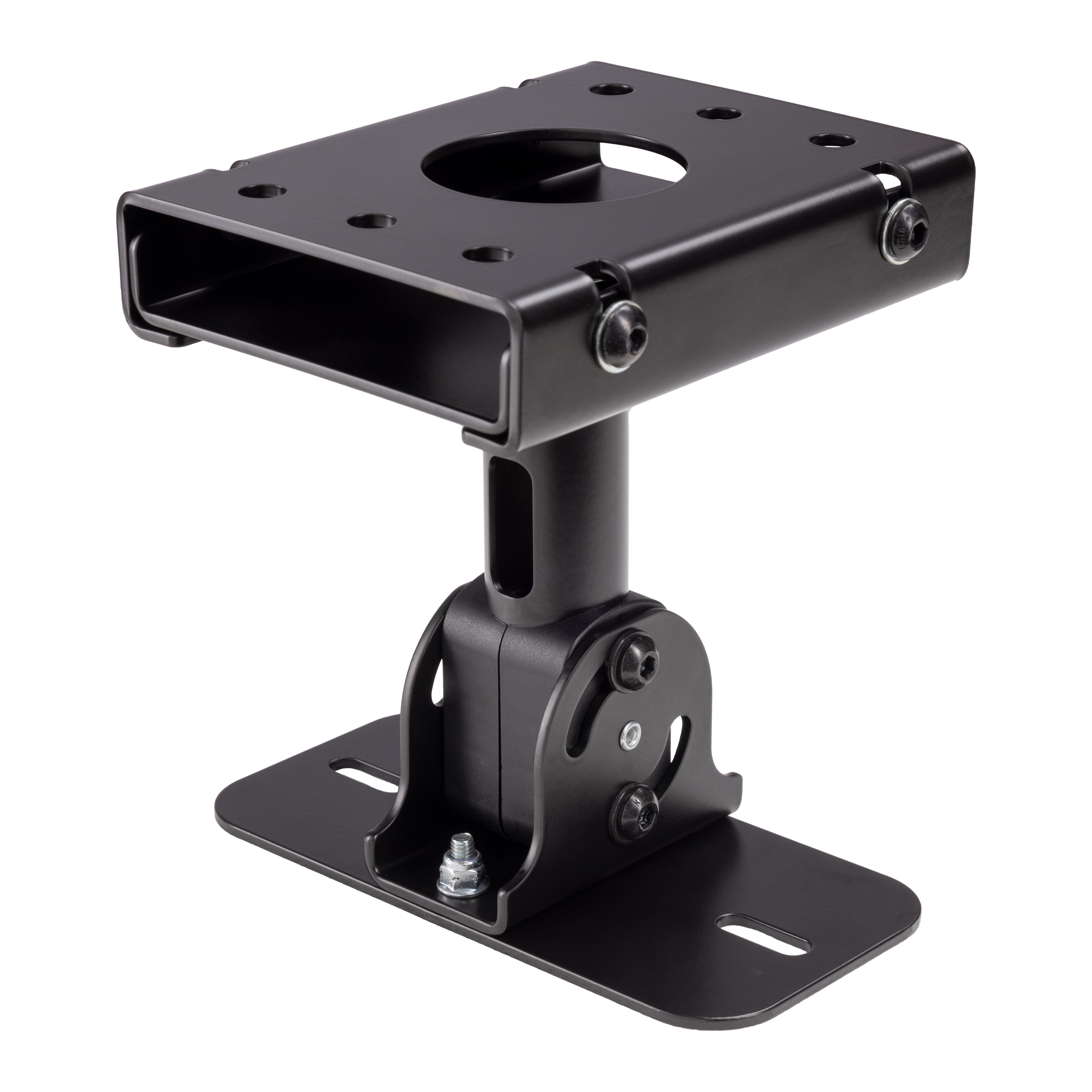

The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
- Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
- Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
Specifications
- Mounting: Attaches to ceilings
- Adjustment: Continuous
- Angle of inclination: 0° bis 75°
- Bearing plate: 180 x 90 mm
- Ceiling clearance: 180 mm
- Ceiling mounting plate: 160 x 126 mm
- Max. load capacity: 25 kg
- Spacing of holes: 60 - 70 mm or 115 - 150 mm
- Swivel: 90°
- Colour: Black
- Material: Steel
- Weight: 2.2 kg
UPC: 4016842122998
Reviews: K&M 19420 Speaker Ceiling Mount
There are currently no product reviews.
Warranty: K&M 19420 Speaker Ceiling Mount
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
5-year limited
10-year guarantee of availability for most spare parts
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
