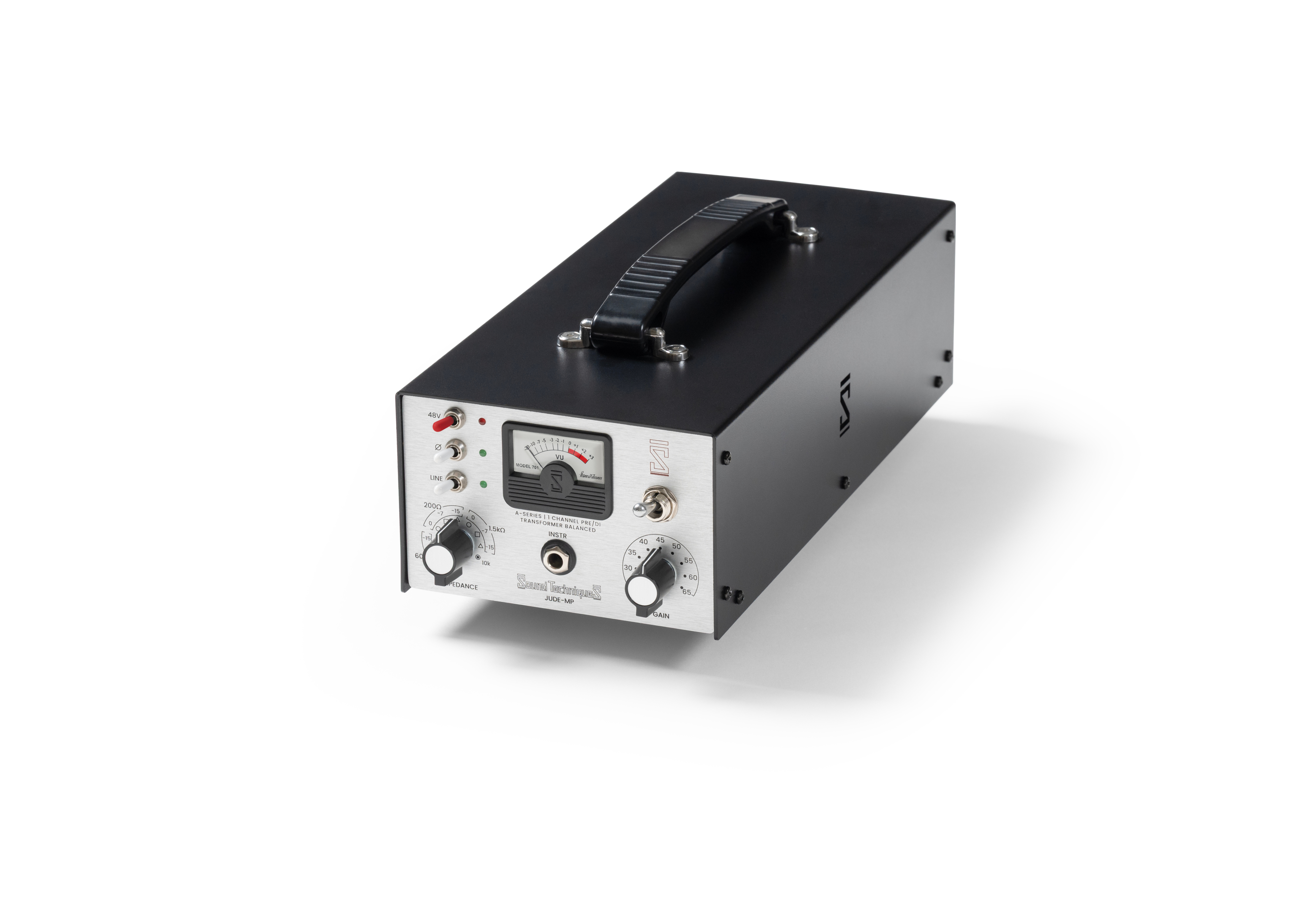

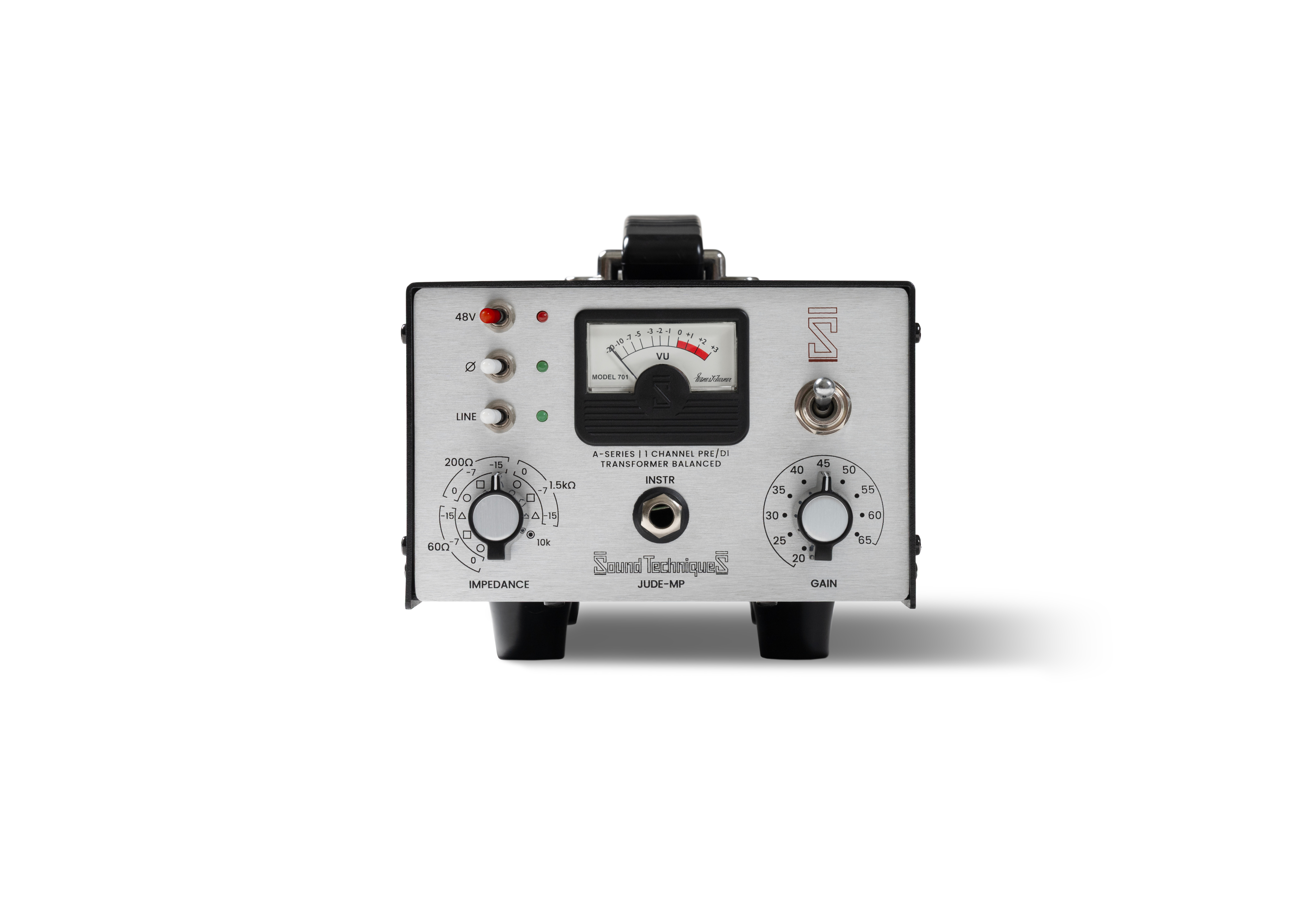

Warm Audio JUDE-MP Sound Techniques Jude Microphone Preamp

About: Warm Audio JUDE-MP Sound Techniques Jude Microphone Preamp

The Jude preamp is an official collaboration between Sound Techniques and Warm Audio, featuring the original “A-Range” console preamp circuit used in the first custom consoles at London's legendary Trident Studios. Designed by Geoff Frost and built directly from the original Sound Techniques console preamp schematics, the Jude preamp preserves the complete signal path, including the dual-discrete 3035 Class-A amplifier, original Z-Match tone impedance circuit, handwired construction, and custom-spec CineMag transformers. The same console design helped shape classic recordings by The Beatles, David Bowie, Elton John, Queen, and countless others. Jude delivers the authentic Sound Techniques console circuit that defined an era of recording history.

Original Sound Techniques A-Range Custom Console Preamp

The Sound Techniques Jude microphone preamp was created in partnership between legendary British console builder Sound Techniques and Warm Audio, bringing the exact preamp circuit from the original Trident Studios “A-Range” consoles to more studios worldwide. Designed by Geoff Frost, the engineer behind those historic consoles, the Jude preamp combines the authentic circuit topology and premium components of the original design to deliver the celebrated sound heard on classic records by David Bowie, Elton John, Queen, and famously Hey Jude and other timeless Beatles & Paul McCartney recordings.

The Authentic Original Console Circuit

Through direct collaboration with Sound Techniques, Jude delivers the exact preamp circuit found in the legendary Trident Studios "A-Range" consoles. While countless products have attempted to emulate the sound, the original design has remained largely inaccessible outside of authentic Sound Techniques hardware. The Jude preamp preserves the complete original signal path including the dual-discrete 3035 Class-A amplifier and proprietary 8-lead impedance-matching control. The result is the unmistakable depth, punch, and musical character that helped define recordings made at London's most influential studios.

Accurate Sound Techniques Components & Hand-Wired Construction

The Sound Techniques team specified every detail of Jude's design. Premium component selection like Wima and Nichicon audio-grade capacitors, carbon resistors, and custom CineMag USA transformers populate a carefully hand-wired PCB board layout designed by Sound Techniques. Sound Techniques trusted Warm Audio to meticulously manufacture each unit to their exact console-grade standards. Jude delivers authentic performance, response, and sonic character that made the original Sound Techniques consoles legendary among engineers and producers, preserving the integrity of the original design throughout.

Z-Match Impedance Tone Control

Derived directly from the original Sound Techniques console design, the 9-position Z-Match tone control recreates Geoff Frost's unique 8-lead impedance-matching circuit. By optimizing the interaction between microphone and preamp, it allows engineers to fine-tune gain, response, and character across a wide range of vintage and modern microphones. It’s like having 9 tonal change options that will interact differently with any microphone.

5-Year Warranty

Like all Warm Audio gear, every single Jude Preamp comes with a 5-year warranty and is meticulously hand-tested and inspected by trained technicians with a passion for making music in Austin, TX USA.

Specifications

• Single-Channel, Dual-Discrete Console Microphone Preamp
• Variable Input Gain Based On Z-Match Impedance Setting
• Preamp Gain: 65 - 76dB [40Ω Source Impedance]
• Custom-Wound, 3-Impedance CineMag Input Transformers
• Custom-Wound, High-Purity Nickel CineMag Output Transformers
• Variable Mic Input Impedance: 60Ω | 200Ω | 1.5KΩ
• Nichicon Audio Grade & Wima Capacitors
• EIN  -128 dBu (A-wtd)
• Self-Noise : -99 dBu (A-wtd)
• THD : 0.008%
• 48v Phantom Power | Polarity Switch | Line-Level Switch

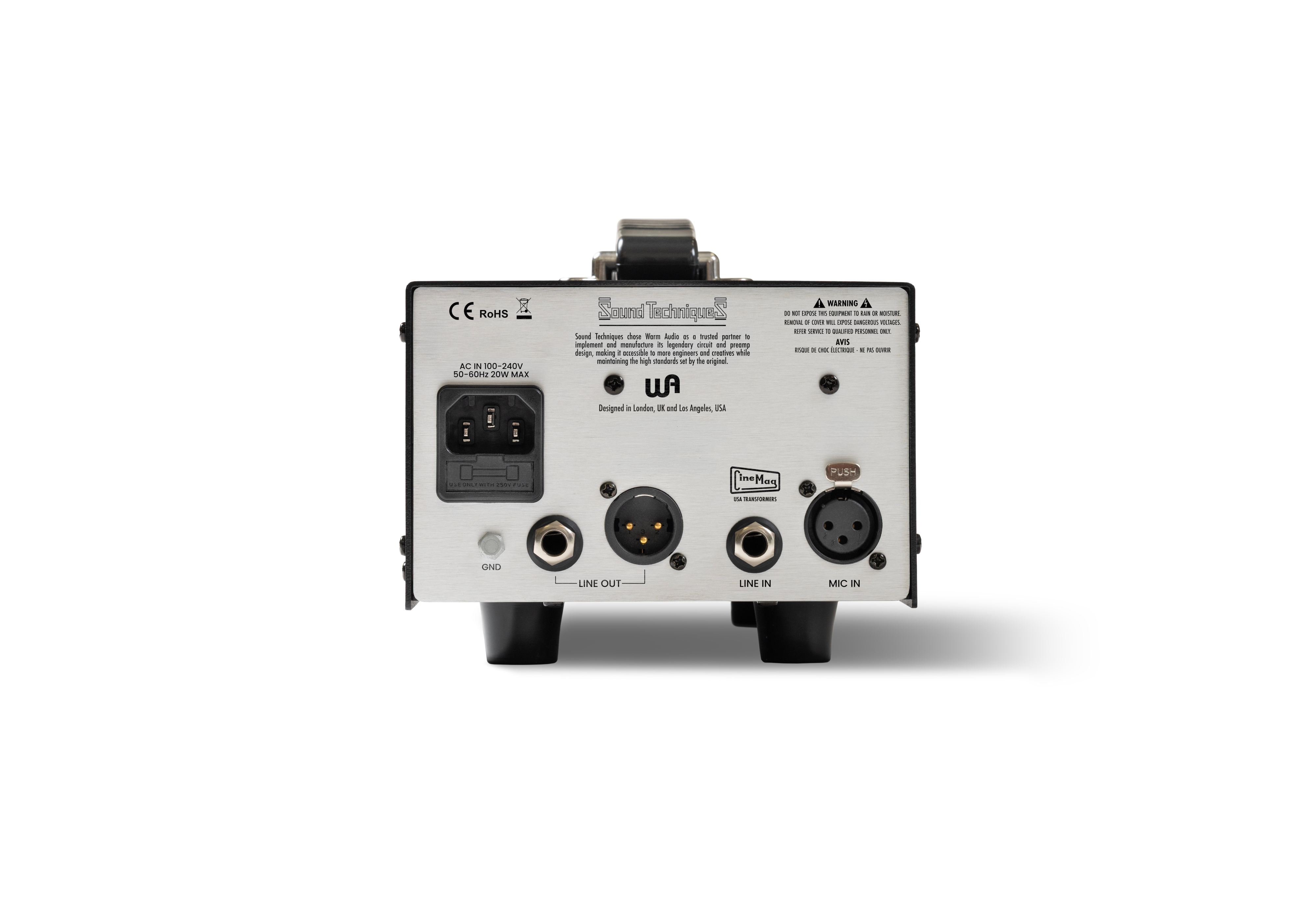

• Inputs: XLR Mic | TS/TRS ¼”
• Outputs: XLR / ¼” TRS Line-Level
• Frequency Response: 10 Hz - 25 kHz (+/-2dB)
• Aluminum Faceplate. Steel Chassis & VU Meter Level Indication
