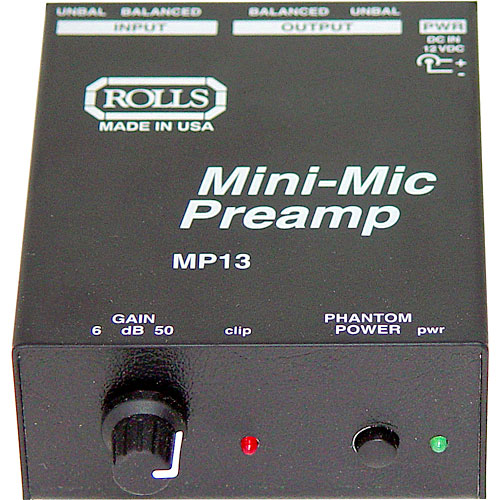

Rolls MP13 Mini-Mic Preamp
Model: MP13
About: Rolls MP13 Mini-Mic Preamp
The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
Features:
- Small size
- Works with dynamic, Phantom and Heaset mics
- XLR and 3.5mm inputs
- XLR and 1/4" outs
- Works with 9 to 12 Vdc
Specifications:
- Input Impedance: 10K Ohms balanced/unbalanced
- Max Input Level: +4dBV XLR balanced, +10dBV unbalanced
- Max Gain: XLR 60dB, 1/4" 54dB
- Phase Shift: <10 deg. 20 Hz - 20 kHz
- EIN: -108dB max.
- THD: <.01%
- IMD (SMPTE): < .01%
- CMRR: >80 dB
- Phantom Power: +21 Volts, 6 mA
- Power: 12VDC
- Size: 3.4" X 4.2" X 1.4"
- Weight: 1 lbs (.45 kg)
UPC: 675889000139
AVShop.ca is a Canadian authorized Rolls retailer.
Reviews: Rolls MP13 Mini-Mic Preamp
There are currently no product reviews.
Warranty: Rolls MP13 Mini-Mic Preamp
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Rolls Accessories
Limited 1-year warranty parts and labor.
Rolls Rack Units: (Mixers, Amplifiers, Processors)
Limited 1-year warranty parts and labor.
Rolls Signal Sources
90 Days warranty parts and labor.
RFX Units
Limited 3-year warranty parts and labor.
Bellari
Limited 1-year warranty parts and labor.
