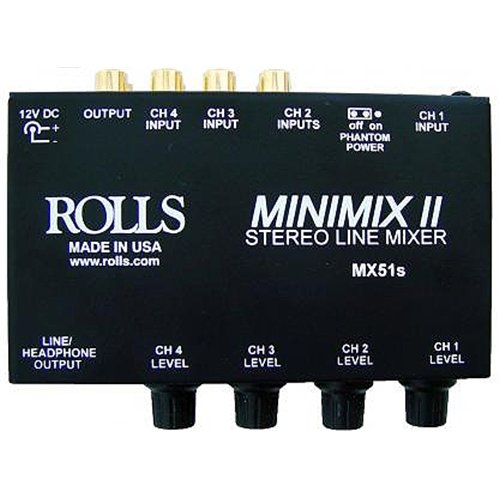

Rolls MX51s MiniMix II 1/4in & RCA Mixer
Model: MX51s
About: Rolls MX51s MiniMix II 1/4in & RCA Mixer

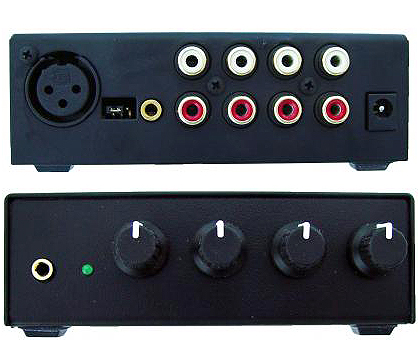

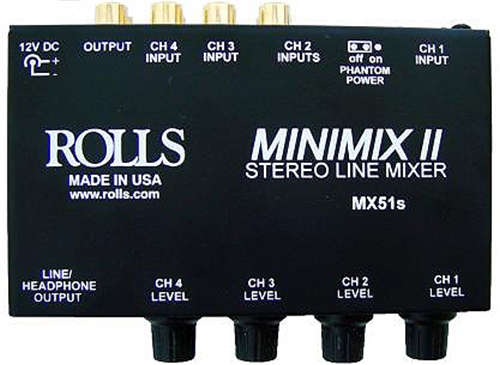

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8” input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8” jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter.
Features:
- For mixing a microphone XLR input with up to three RCA input signals
- Four channels total
- Line / Headphone output level
- ROLLS PS27 AC adapter included
- Stereo RCA Line-Level Output
Specifications:
- Input Impedance: 10K Ohms unbalanced each jack
- CH 1 Gain: 32 dB XLR jack (highest gain)
- Phantom Power: for CH 1 microphone XLR
- Ch2 Gain: 26 dB 1/8" and RCA
- Ch 3 and 4 Gain: 26 dB each RCA
- Output: 1/8" stereo and stereo RCA
- S/N Ratio: >90 dB
- THD: <.008%
- IMD(SMPTE): <.008%
- Power: ROLLS PS27 12 VDC adapter
- Size: 3" x 5" x 1.25" (8 x 13 x 3.2 cm)
- Weight: 1 lbs. (.45 Kg)
UPC: 675889000511
