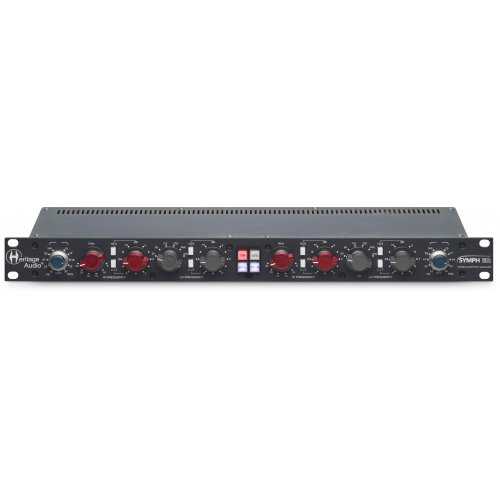

Heritage Audio SYMPH EQ Equalizer

Model: SYMPH-EQ

Heritage Audio SYMPH EQ Equalizer
Heritage Audio SYMPH EQ Equalizer
  • Free Shipping!
  •  In Stock - Shipping Only
  • Not yet reviewed




About: Heritage Audio SYMPH EQ Equalizer

Baxandall equalizer’s topology, introduced to the public by Peter Baxandall in 1952, was a very ingenious way of obtaining high and low shelves with boost and cut option without using expensive rotary switches. This affordable circuit was soon adopted by hi-fi and console manufacturers for its simplicity, where parametric options aren’t needed.

Heritage Audio has successfully replaced the Baxandall topology with a functional equivalent — a much more musical one, implemented as a one rack space, master bus/ mastering type unit.

The Stereo Asymptotic Equalizer, affectionately known as Symph EQ, takes its name from the shape obtained by its shelf curves; where the boost or cut amplitude grows up until the asymptotic value is reached, keeping the ultra highs and sub lows always controlled.

Its sound can only be described as tight, sweet, and natural, and its use of parallel equalizing to obtain the desired response curves makes it to have exceptional low phase deviation and artifacts.

SHELVING WITH SURGICAL, BUT MUSICAL PRECISION.

A smart circuit layout allows for a maximum boost/cut of 10.5 dB in 0.5 dB steps. The main rotary switch sets 1dB steps whilst the 0.5 button adds half a dB to the main reading. The CUT button turns the boost amount into cut. Six strategically selected frequency choices per band are available (8, 10, 12, 15, 20 and 24 Khz on the high shelf, and 470, 360, 220, 110, 60 and 20 Hz on the low shelf).

2-POLE HIGH AND LOW PASS FILTERS

In order to keep the sub-low and ultra-high frequency content well under control, further high-pass and low-pass filters have been added on dual concentric rotary switches, at 12dB/octave. 5 frequency choices plus OFF are available on each one (10, 12, 18, 22 and 30 Khz on the low-pass, and 160, 82, 47, 20 and 15 Hz on the high-pass).

THIS IS WHERE THE MAGIC LIVES.

The Symph EQ would have been an awesome sculpting tool just as it has been described above, but it turns into a monster piece with the following 3 additions:

  • It features the same exclusive Carnhill input transformers made in Oxford found in the Successor.
  • Its outputs are driven by 73-type Class-A output amplifiers, built with the same Carnhill St´Ives output transformers as the rest of the family.
  • Most importantly and, here is where the Symph EQ really shines, it has built in Mid Side (M/S) capabilities.

M/S EQUALIZING CANNOT BE RIVALED.

Nothing comes close to M/S equalizing a mix. It allows the user to process the center and the sides independently. The benefits of such processing are hard to believe. You can brighten your mix without making your vocals sound harsh, or even tighten the stereo-image’s bass content without making your bass or kick sound weak! These are just a few examples of the Symph EQ M/S power!

The response of the Side high pass filter has been made elliptical as in the vintage disk cutters for precise frequency response.

THIS IS WHAT YOU GET WITH THE SYMPH EQ

  • Custom Carnhill Oxford input transformers, and custom Carnhill St Ives output transformers, both exclusively made for Heritage Audio.
  • A high-end, 73-style Class-A output stage.
  • All controls use high-quality rotary switches for 0.5dB precision equalizing.
  • Mid-side processing allows for precise center bass management and high boosting hard panned sources without affecting center ones such as vocals, snare, etc. Side high-pass filter turns into elliptical type when in M/S, as implemented in vintage disk cutters.
  • Stereo and M/S inputs and outputs, all balanced and ground free (unbalanced compatible) on gold plated XLRs.ON, M/S or stereo mode and individual hard BYPASS per channel.
  • Fully manufactured in the EU.

UPC: 609832678113

Videos: Heritage Audio SYMPH EQ Equalizer

Reviews: Heritage Audio SYMPH EQ Equalizer

There are currently no product reviews.


Warranty: Heritage Audio SYMPH EQ Equalizer

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Three Years, parts and labour against manufacturer defects.
