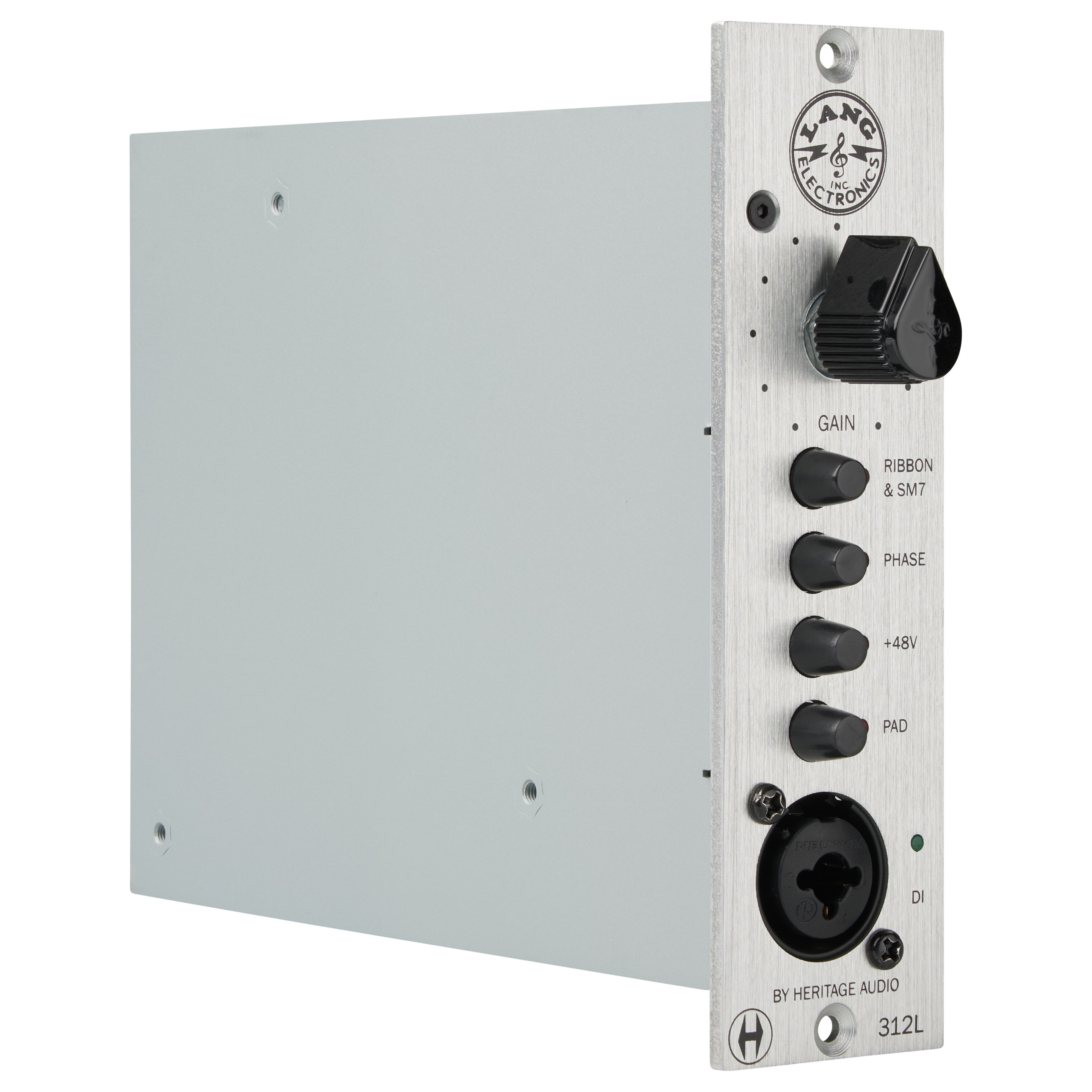

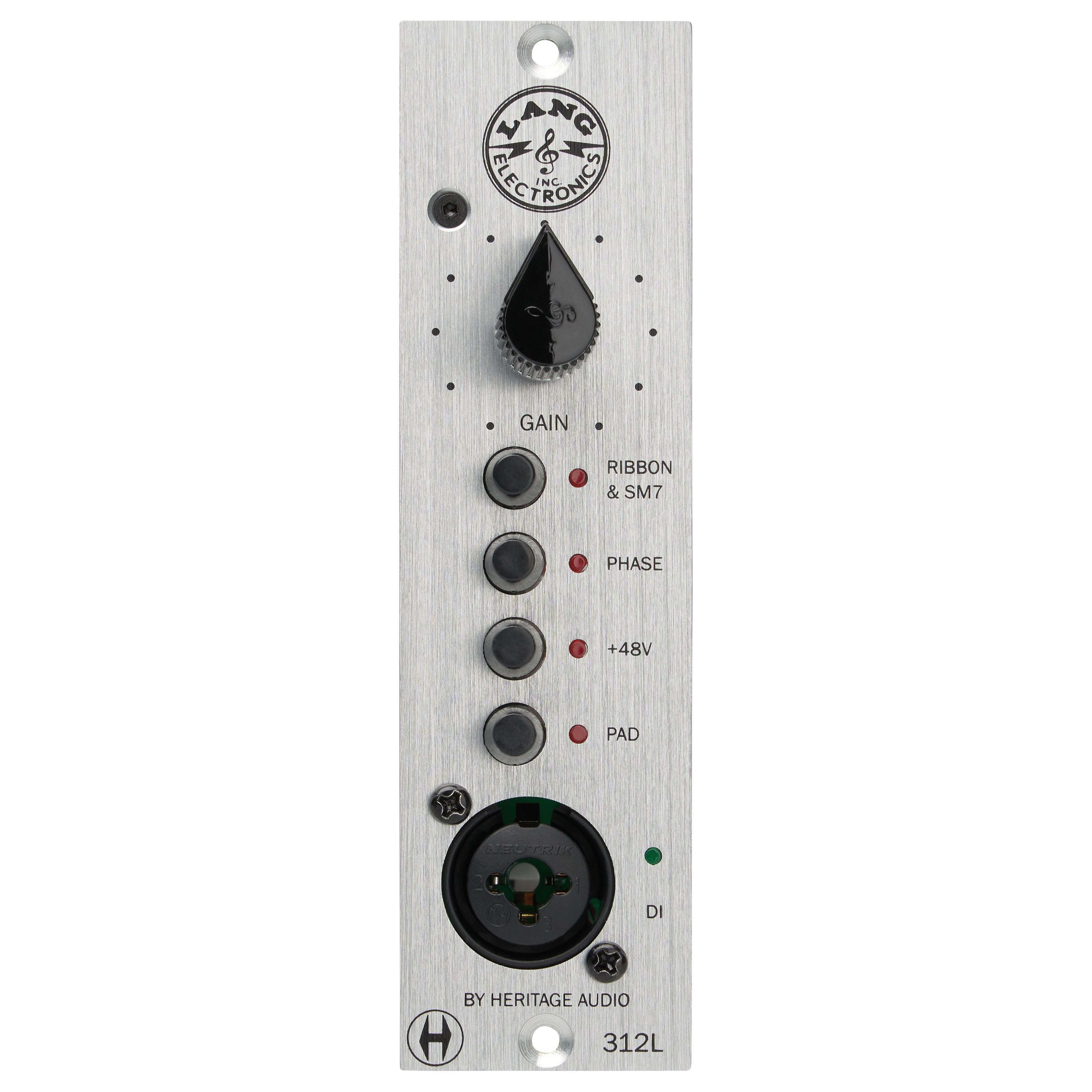

Heritage Audio LANG-312L 500 Series Mic Preamp
Model: LANG-312L
About: Heritage Audio LANG-312L 500 Series Mic Preamp
The LANG 312L is simply bursting with dBs. With up to 90 dB of gain, it’s equipped with more power than almost any other preamp out there. With the LANG 312L, you’ll be able to use each and every microphone in your collection without the need for any external boosting, and it won’t even break a sweat. This is especially useful for all you ribbon and vintage mic users that never seem to get peak performance from your expensive mics. Thanks to its extremely low internal noise and impressively fast response, you’ll hear dynamics you never knew existed. Time to hear your mics as they’ve never sounded before!
- Super fast transients!
- In-your-face NY style preamp that has proven legendary for drums and guitars.
- An impressive gain range from +15 dB to up to +90 dB.
- Unique +25 dB built-in lifter that eliminates the need for external gain boosters for hungry mics.
- A ribbon mic’s best friend as it accommodates the preamp to fit perfectly to its needs.
- Ultra-low noise floor EIN -130 dBu.
- Custom made HA-880 footprint compatible op-amp.
- CINEMAG output transformer, custom made in the US.
- Exclusive 2622 LANG input transformer designed by Heritage Audio.
- Switchable 48V phantom power, -20 dB pad and phase.
- Convenient front-panel XLR/TS combo jack with TS hi-Z instrument DI plus XLR mic inputs.
- Single-space 500-series module; requires compatible 500 series rack.
- All the classic ‘70s NY vibe, at a third of the price.
Time to hear your Mics as they’ve never sounded before!
Bring all that energy and excitement that has made New York City the capital of the world into your recordings.
With our custom made transformer balanced Inputs & Outputs (LANG & CineMag) you can be sure that a thick, solid and professional signal will be produced to ensure all of your broadcasting and recording needs are addressed.

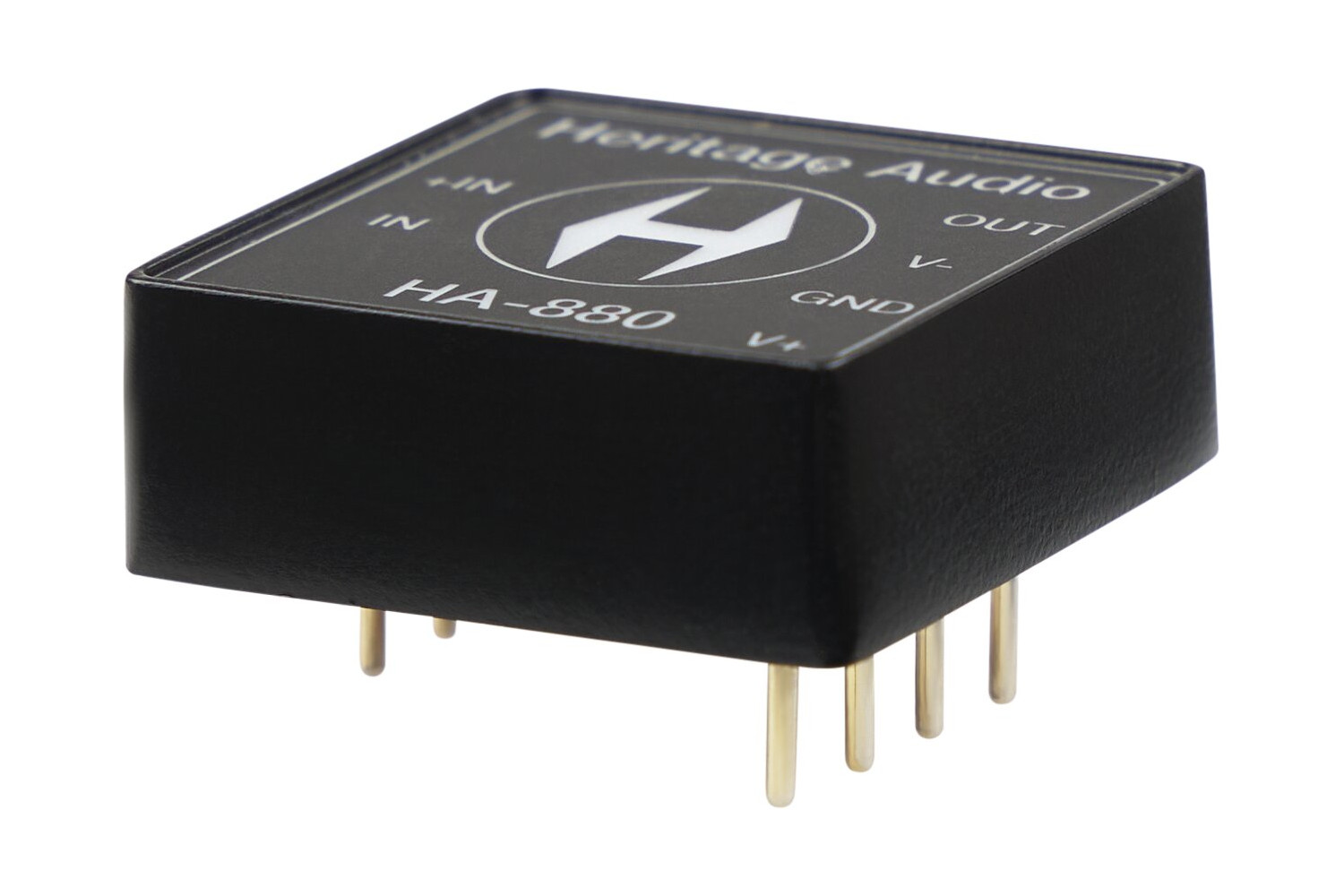

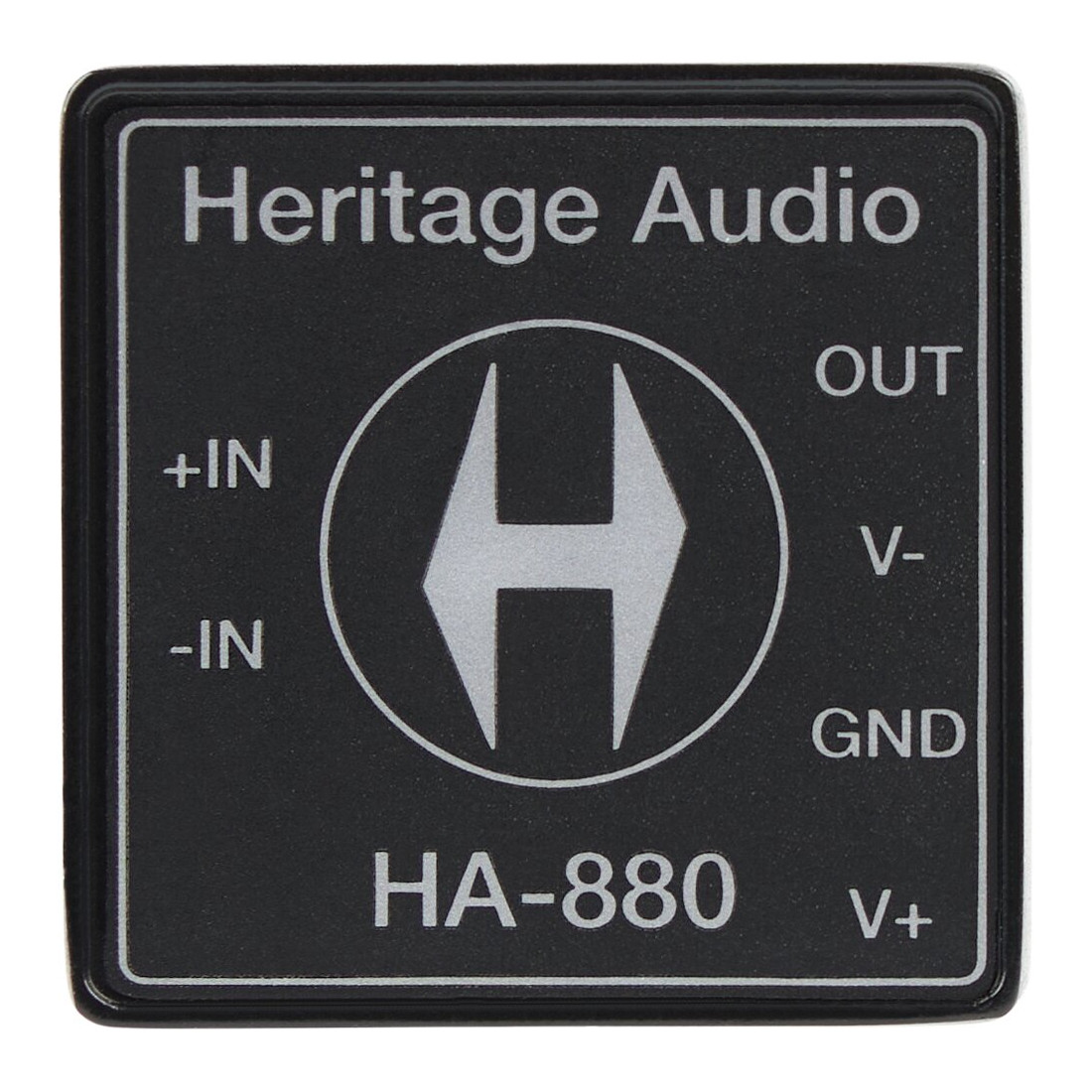

The newly designed HA-880 OP-Amp that sits at the core of the LANG 312L is footprint compatible and switchable with any other classic OP-Amps available.
All of this at an unheard of price that is less than 1/3 of what a unit of this calibre tends to go for.
Specifications
- Microphone input impedance: 1200 Ω , 10KΩ with lifter engaged, perfect for lo gain ribbon mics. Input is transformer balanced and floating.
- Line input impedance: 10 kΩ bridging, transformer balanced and floating.
- DI input impedance: Greater than 2 MΩ, unbalanced.
- Output impedance: Less than 75 Ω, transformer balanced and floating, to drive a load of 600 Ω (factory unterminated).
- Maximum output: Greater than +30 dBu into 600 Ω.
- THD: Less than 0.005 % at 1 kHz, less than 0.01 % at 100 Hz.
- Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).
- Maximum gain: 90 dB.
- Noise: Less than -130 dBu EIN unweighted.
- Power consumption: 50 mA per rail ±16 V DC.
UPC: 699838691315
Reviews: Heritage Audio LANG-312L 500 Series Mic Preamp
Warranty: Heritage Audio LANG-312L 500 Series Mic Preamp
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Three Years, parts and labour against manufacturer defects.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
